Sayfa 0-80 - Isuzu EPC

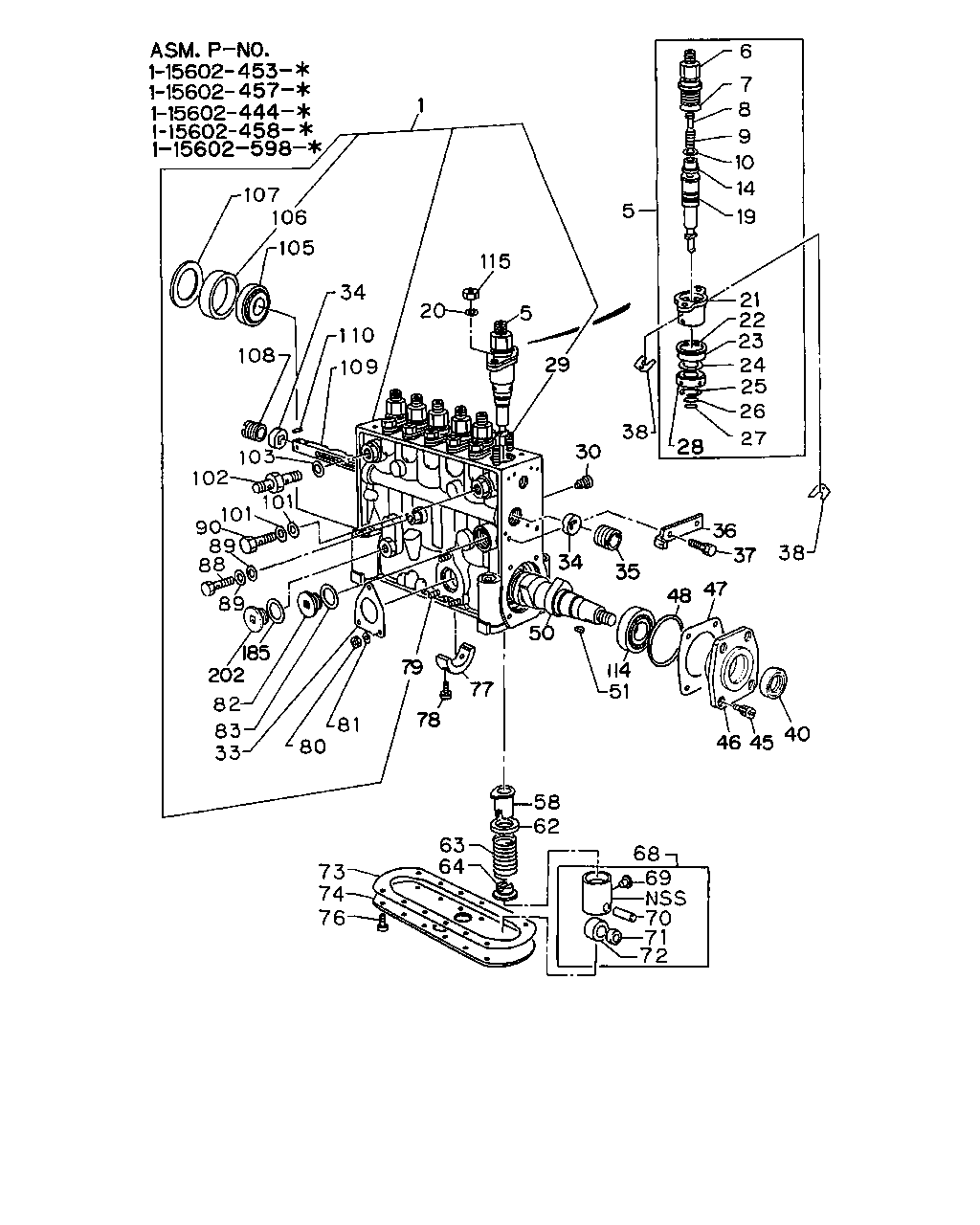

0-80 — INJECTION PUMP (#456) — 448 parça

6 7 8 9 10 14 5 1 19 107 106 105 115 5 20 34 108 110 109 29 21 22 23 24 25 26 27 28 38 30 103 102 101 101 90 89 88 89 185 202 82 83 33 80 81 79 78 77 50 34 35 36 37 38 47 48 114 51 46 45 40 58 62 63 64 73 74 76 68 69 70 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: C = 1-15602-444-1	1-15611-065-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15611-066-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15611-078-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15602-050-4	1-15611-098-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: J = 1-15603-021-1	1-15611-111-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15602-050-4	1-15631-035-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: D = 1-15602-453-0	1-15631-061-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: C = 1-15602-444-1, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15631-063-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15631-115-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: J = 1-15603-021-1	1-15631-155-0	10	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: D = 1-15602-453-0	1-15641-010-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15602-444-1, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15644-007-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: J = 1-15603-021-1	1-15644-007-0	10	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-050-4	1-15644-011-0	10	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15644-013-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: J = 1-15603-021-1	1-15629-088-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81235-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	9-81235-052-0	10	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15639-084-0	10	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15602-444-1, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15649-005-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: J = 1-15603-021-1	1-15649-005-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15643-005-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: J = 1-15603-021-1	1-15662-001-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15602-050-4	1-15723-273-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: C = 1-15602-444-1, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	5-15643-001-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: D = 1-15602-453-0	9-81241-306-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81215-174-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81215-174-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15639-085-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: D = 1-15602-453-0	1-15641-009-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 1-15602-444-1, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15641-013-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: J = 1-15603-021-1	1-15641-028-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15602-050-4	1-15631-038-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: D = 1-15602-453-0	1-15631-062-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: C = 1-15602-444-1, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15631-064-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: J = 1-15603-021-1	1-15631-092-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15631-116-0	10	1	-
20	WASHER; PLUNGER BARREL ASM PART: J = 1-15603-021-1	1-15639-020-0	20	1	-
20	WASHER; PLUNGER BARREL ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15639-020-0	12	1	-
21	FLANGE; PLUNGER ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15742-082-0	10	1	-
21	FLANGE; PLUNGER ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15742-082-0	06	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15649-008-0	10	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15649-008-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: J = 1-15603-021-1	1-15629-089-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15639-016-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15639-016-0	06	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-430-0	10	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-88410-430-0	06	1	-
25	RING; SNAP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-88410-431-0	06	1	-
25	RING; SNAP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-431-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: J = 1-15603-021-1	1-15629-090-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	9-81215-120-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81215-120-0	06	1	-
27	GASKET; PLUNGER LWR ASM PART: J = 1-15603-021-1	1-15629-090-0	10	1	-
27	GASKET; PLUNGER LWR ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	9-81215-120-0	10	1	-
27	GASKET; PLUNGER LWR ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81215-120-0	06	1	-
28	DEFLECTOR; PLUNGER ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15639-086-0	06	1	-
28	DEFLECTOR; PLUNGER ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-086-0	10	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-432-0	20	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-88410-432-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81215-130-0	06	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81215-130-0	10	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0	1-15619-068-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: J = 1-15603-021-1	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81215-123-0	02	1	-
35	SPACER; HSG ASM PART: E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15619-280-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15619-148-0	01	1	-
37	BOLT; POINTER FIX,INJ PUMP M6X12 W/LK WASHER ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-01910-612-0	02	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0	1-15619-084-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: J = 1-15603-021-1	1-15619-317-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15619-308-0	04	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15602-050-4	1-15629-023-0	04	1	-
45	BOLT; FRT COVER TO HSG ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	5-15729-027-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15612-010-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15629-037-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.120 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.140 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.160 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.180 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: J = 1-15603-021-1	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15629-076-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15602-050-4, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81215-128-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: D = 1-15602-453-0	1-15621-043-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15602-050-4, J = 1-15603-021-1	1-15621-047-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: C = 1-15602-444-1, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15621-069-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15621-072-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15629-009-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15635-001-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15635-001-0	10	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81215-136-0	10	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81215-136-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: D = 1-15602-453-0	1-15634-005-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15634-008-0	10	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: C = 1-15602-444-1, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15634-008-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15643-004-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15643-004-0	10	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15602-050-4	9-81215-137-0	10	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81221-240-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81221-240-0	10	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15629-063-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15629-063-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81225-062-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81225-062-0	10	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81225-061-0	10	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81225-061-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81225-060-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81225-060-0	10	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15629-031-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: J = 1-15603-021-1	1-15629-091-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81215-180-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15612-012-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15629-051-0	01	1	-
76	BOLT; COVER TO HSG ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15619-066-0	16	1	-
76	BOLT; COVER TO HSG ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15619-066-0	12	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: D = 1-15602-453-0	1-15619-274-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81225-066-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: C = 1-15602-444-1, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81225-066-0	01	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81325-187-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81325-187-0	04	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15602-050-4, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15729-006-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: C = 1-15602-444-1, J = 1-15603-021-1	8-94171-110-0	03	1	-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: B = 1-15602-434-5	9-09110-406-0	03	1	9501-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: B = 1-15602-434-5	9-09110-506-0	03	1	-9412
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: H = 1-15602-922-0, I = 1-15602-993-0	9-09110-506-0	03	1	-
81	WASHER; LK,FUEL FEED PUMP FIX ID=6.1 ASM PART: B = 1-15602-434-5, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0	9-09150-506-0	03	1	-
81	WASHER; LK,FUEL FEED PUMP FIX ID=6.1 ASM PART: A = 1-15602-050-4	9-09150-606-0	03	1	-
82	PLUG; HSG,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15619-067-0	01	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ID=10.2 OD=15.2 ASM PART: A = 1-15602-050-4	1-09630-052-0	02	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: G = 1-15602-598-2	1-15719-093-0	03	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15719-093-0	02	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15602-050-4	1-15619-278-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15639-087-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: J = 1-15603-021-1	1-15641-027-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15759-011-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-09630-085-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 1-15602-050-4, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15759-012-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-13260-050-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15619-268-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-09630-085-0	03	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: C = 1-15602-444-1, E = 1-15602-457-0, G = 1-15602-598-2	1-15759-012-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 1-15602-050-4	1-15759-012-0	03	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: D = 1-15602-453-0, F = 1-15602-458-0	1-15759-012-0	02	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.500 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.800 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.000 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.200 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15637-008-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15637-015-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-440-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-88410-456-0	12	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-456-0	20	1	-
185	GASKET; PLUG ASM PART: C = 1-15602-444-1	1-15619-102-0	01	1	-
202	PLUG; PUMP,SIDE ASM PART: C = 1-15602-444-1	1-15759-004-0	01	1	-

6 7 8 9 10 14 19 5 1 106 105 107 110 34 108 109 154 32 165 79 29 115 31 32 21 22 23 24 28 38 25 26 27 33 38 80 81 30 5 34 48 111 112 113 45 114 50 51 47 46 40 103 103 103 102 89 88 89 101 90 101 77 58 62 63 64 78 83 82 73 74 76 72 69 70 68 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: C = 1-15602-444-1	1-15611-065-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15611-066-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15611-078-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15602-050-4	1-15611-098-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: J = 1-15603-021-1	1-15611-111-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15602-050-4	1-15631-035-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: D = 1-15602-453-0	1-15631-061-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: C = 1-15602-444-1, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15631-063-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15631-115-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: J = 1-15603-021-1	1-15631-155-0	10	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: D = 1-15602-453-0	1-15641-010-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15602-444-1, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15644-007-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: J = 1-15603-021-1	1-15644-007-0	10	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-050-4	1-15644-011-0	10	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15644-013-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: J = 1-15603-021-1	1-15629-088-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81235-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	9-81235-052-0	10	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15639-084-0	10	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15602-444-1, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15649-005-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: J = 1-15603-021-1	1-15649-005-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15643-005-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: J = 1-15603-021-1	1-15662-001-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15602-050-4	1-15723-273-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: C = 1-15602-444-1, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	5-15643-001-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: D = 1-15602-453-0	9-81241-306-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81215-174-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81215-174-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15639-085-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: D = 1-15602-453-0	1-15641-009-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 1-15602-444-1, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15641-013-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: J = 1-15603-021-1	1-15641-028-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15602-050-4	1-15631-038-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: D = 1-15602-453-0	1-15631-062-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: C = 1-15602-444-1, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15631-064-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: J = 1-15603-021-1	1-15631-092-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15631-116-0	10	1	-
21	FLANGE; PLUNGER ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15742-082-0	10	1	-
21	FLANGE; PLUNGER ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15742-082-0	06	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15649-008-0	10	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15649-008-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: J = 1-15603-021-1	1-15629-089-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15639-016-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15639-016-0	06	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-430-0	10	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-88410-430-0	06	1	-
25	RING; SNAP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-88410-431-0	06	1	-
25	RING; SNAP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-431-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: J = 1-15603-021-1	1-15629-090-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	9-81215-120-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81215-120-0	06	1	-
27	GASKET; PLUNGER LWR ASM PART: J = 1-15603-021-1	1-15629-090-0	10	1	-
27	GASKET; PLUNGER LWR ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	9-81215-120-0	10	1	-
27	GASKET; PLUNGER LWR ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81215-120-0	06	1	-
28	DEFLECTOR; PLUNGER ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15639-086-0	06	1	-
28	DEFLECTOR; PLUNGER ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-086-0	10	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-432-0	20	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-88410-432-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81215-130-0	06	1	-
30	PLUG; SCREW,INJ PUMP HSG ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81215-130-0	10	1	-
31	HANGER; FRT,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15619-163-0	01	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15619-039-0	02	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0	1-15619-068-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: J = 1-15603-021-1	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81215-123-0	02	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0	1-15619-084-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: J = 1-15603-021-1	1-15619-317-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15619-308-0	04	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15602-050-4	1-15629-023-0	04	1	-
45	BOLT; FRT COVER TO HSG ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	5-15729-027-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15612-010-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15629-037-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.120 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.140 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.160 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.180 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: J = 1-15603-021-1	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15629-076-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15602-050-4, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81215-128-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: D = 1-15602-453-0	1-15621-043-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15602-050-4, J = 1-15603-021-1	1-15621-047-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: C = 1-15602-444-1, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15621-069-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15621-072-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15629-009-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15635-001-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15635-001-0	10	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81215-136-0	10	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81215-136-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: D = 1-15602-453-0	1-15634-005-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15634-008-0	10	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: C = 1-15602-444-1, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15634-008-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15643-004-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15643-004-0	10	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15602-050-4	9-81215-137-0	10	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81221-240-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81221-240-0	10	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15629-063-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15629-063-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81225-062-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81225-062-0	10	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81225-061-0	10	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81225-061-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81225-060-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81225-060-0	10	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15629-031-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: J = 1-15603-021-1	1-15629-091-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81215-180-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15612-012-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15629-051-0	01	1	-
76	BOLT; COVER TO HSG ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15619-066-0	16	1	-
76	BOLT; COVER TO HSG ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15619-066-0	12	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: D = 1-15602-453-0	1-15619-274-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81225-066-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: C = 1-15602-444-1, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81225-066-0	01	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-81325-187-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81325-187-0	04	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15602-050-4, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15729-006-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: C = 1-15602-444-1, J = 1-15603-021-1	8-94171-110-0	03	1	-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: B = 1-15602-434-5	9-09110-406-0	03	1	9501-
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: B = 1-15602-434-5	9-09110-506-0	03	1	-9412
80	NUT; FUEL FEED PUMP FIX M6 ASM PART: H = 1-15602-922-0, I = 1-15602-993-0	9-09110-506-0	03	1	-
81	WASHER; LK,FUEL FEED PUMP FIX ID=6.1 ASM PART: B = 1-15602-434-5, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0	9-09150-506-0	03	1	-
81	WASHER; LK,FUEL FEED PUMP FIX ID=6.1 ASM PART: A = 1-15602-050-4	9-09150-606-0	03	1	-
82	PLUG; HSG,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15619-067-0	01	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ID=10.2 OD=15.2 ASM PART: A = 1-15602-050-4	1-09630-052-0	02	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: G = 1-15602-598-2	1-15719-093-0	03	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15719-093-0	02	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15602-050-4	1-15619-278-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15639-087-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: J = 1-15603-021-1	1-15641-027-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15759-011-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-09630-085-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 1-15602-050-4, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15759-012-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-13260-050-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15619-268-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-09630-085-0	03	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: C = 1-15602-444-1, E = 1-15602-457-0, G = 1-15602-598-2	1-15759-012-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 1-15602-050-4	1-15759-012-0	03	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: D = 1-15602-453-0, F = 1-15602-458-0	1-15759-012-0	02	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.500 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.800 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.000 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.200 ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	1-15637-008-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15637-015-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-440-0	01	1	-
111	GASKET; FRT COVER FIX ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15629-024-0	04	1	-
112	SHIM; FRT COVER FIX ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81315-216-0	04	1	-
113	WASHER; LK,FRT COVER TO HSG ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	8-94128-928-0	04	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: C = 1-15602-444-1, D = 1-15602-453-0, E = 1-15602-457-0, F = 1-15602-458-0, G = 1-15602-598-2	9-88410-456-0	12	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	9-88410-456-0	20	1	-
154	HANGER; RR,INJ PUMP ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0, J = 1-15603-021-1	1-15619-163-0	01	1	-
165	WASHER; LK,PLUNGER FIX ASM PART: A = 1-15602-050-4, B = 1-15602-434-5, H = 1-15602-922-0, I = 1-15602-993-0	1-15639-020-0	20	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
