Sayfa 2-36 - Isuzu EPC

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#45599) — 210 parça

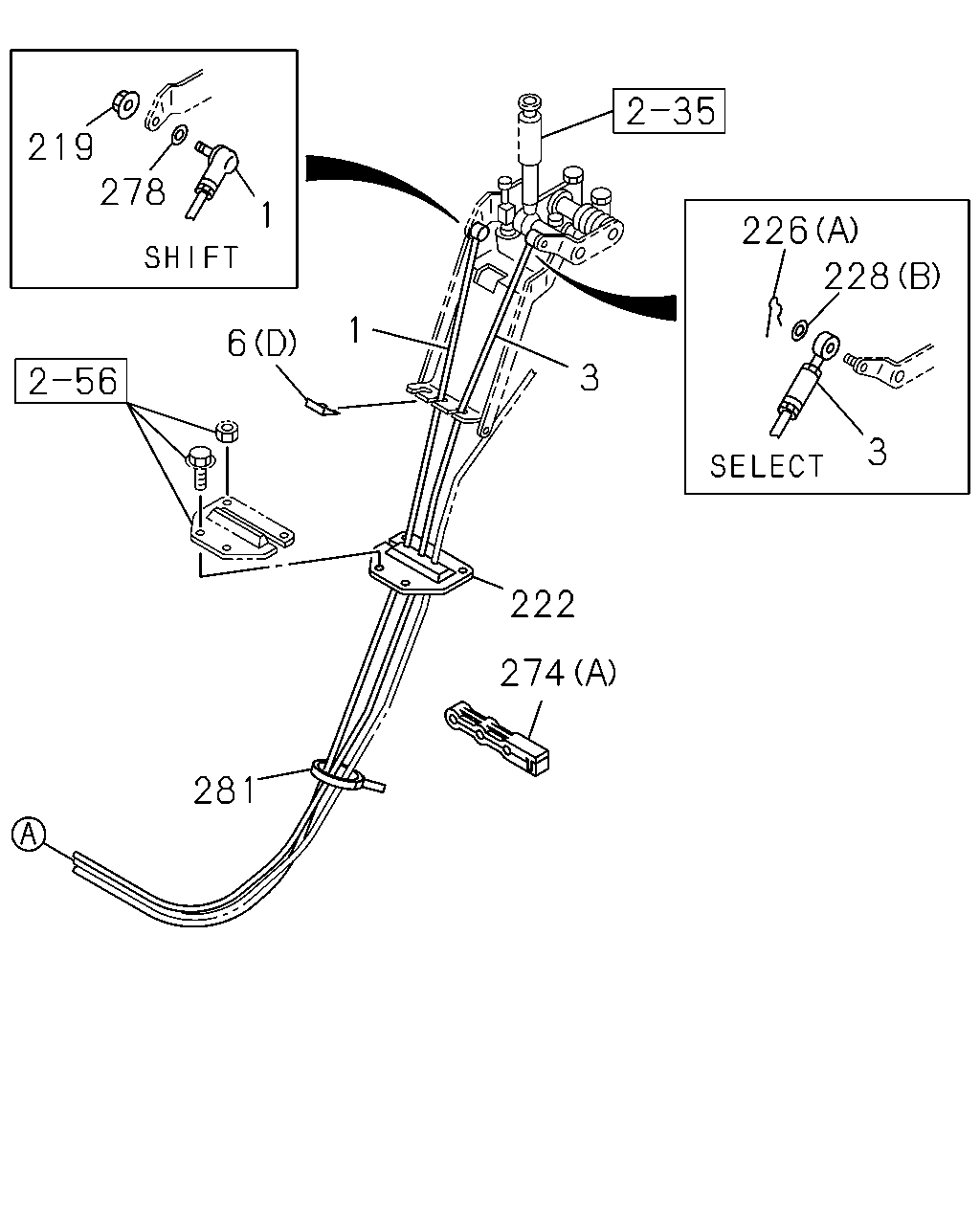

219 278 1 226 228 1 6 3 3 222 274 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.854 CABLE; SHIFT,TRANS CONT FLOOR REMOTE SHIFT<M11> L=2540	8-97089-986-3	01	1	9812-0105	●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11>	8-97305-499-0	01	1	0106-			●
3	00.852 CABLE; SELECT,TRANS CONT FLOOR REMOTE SHIFT<M11> L=2684	8-97089-987-2	01	1	9812-0105	●	●
3	00.852 CABLE; SELECT,TRANS CONT 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11>	8-97289-615-1	01	1	0106-			●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> (C)	8-97036-332-1	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 04.686 (H) ID=21 L=24	8-94176-807-1	01	1	0106-			●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97036-330-1	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97036-330-1	01	1	0106-			●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97036-329-2	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 04.785 (G)	8-94458-385-1	01	1	0106-			●
6	04.047 CLIP; CABLE (B)	8-97137-589-0	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE (B)	8-97137-589-0	01	1	0106-			●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (D)	8-97011-448-0	02	1	9812-0105	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (D)	8-97011-448-0	02	1	0106-			●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A) ID=19.2	8-97211-011-0	02	1	9812-0105	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A) ID=19.2	8-97211-011-0	02	1	0106-			●
219	04.047 NUT; FLANGE,SHAFT CABLE FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9905	●	●
219	04.047 NUT; FLANGE,SHAFT CABLE FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0	8-94363-045-0	01	1	9906-0105	●	●
219	04.047 NUT; FLANGE,SHAFT CABLE FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0	8-94363-045-0	01	1	0106-			●
222	04.010 GROMMET; CABLE FLOOR REMOTE SHIFT<M11>	8-97089-851-0	01	1	9812-0105	●	●
222	04.010 GROMMET; CABLE FLOOR REMOTE SHIFT<M11>	8-97089-851-0	01	1	0106-			●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7	8-94111-137-0	01	1	9812-0105	●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7	8-94111-137-0	01	1	0106-			●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> (B) L=23	8-94170-378-0	01	1	9812-0105	●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> (B) L=23	8-94170-378-0	01	1	0106-			●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40	8-97182-975-0	02	1	9812-0105	●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40	8-97182-975-0	02	1	0106-			●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4	9-09164-508-0	01	1	9812-0105	●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4	9-09164-508-0	01	1	0106-			●
274	04.008 CLIP; CONT CABLE FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ> (A)	8-97093-491-1	01	1	0106-			●
274	04.008 CLIP; CONT CABLE 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.047 (B)	8-97036-333-1	01	1	0106-			●
278	00.854 WASHER; LK,SHIFT WIRE FLOOR REMOTE SHIFT<M11> 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	9812-0105	●	●
278	00.854 WASHER; LK,SHIFT WIRE FLOOR REMOTE SHIFT<M11> 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0106-			●
281	04.042 CLIP; BAND 03.162 L=140	5-09707-031-1	01	1	9812-0105	●	●
281	04.042 CLIP; BAND 03.162 L=140	5-09707-031-1	01	1	0106-			●

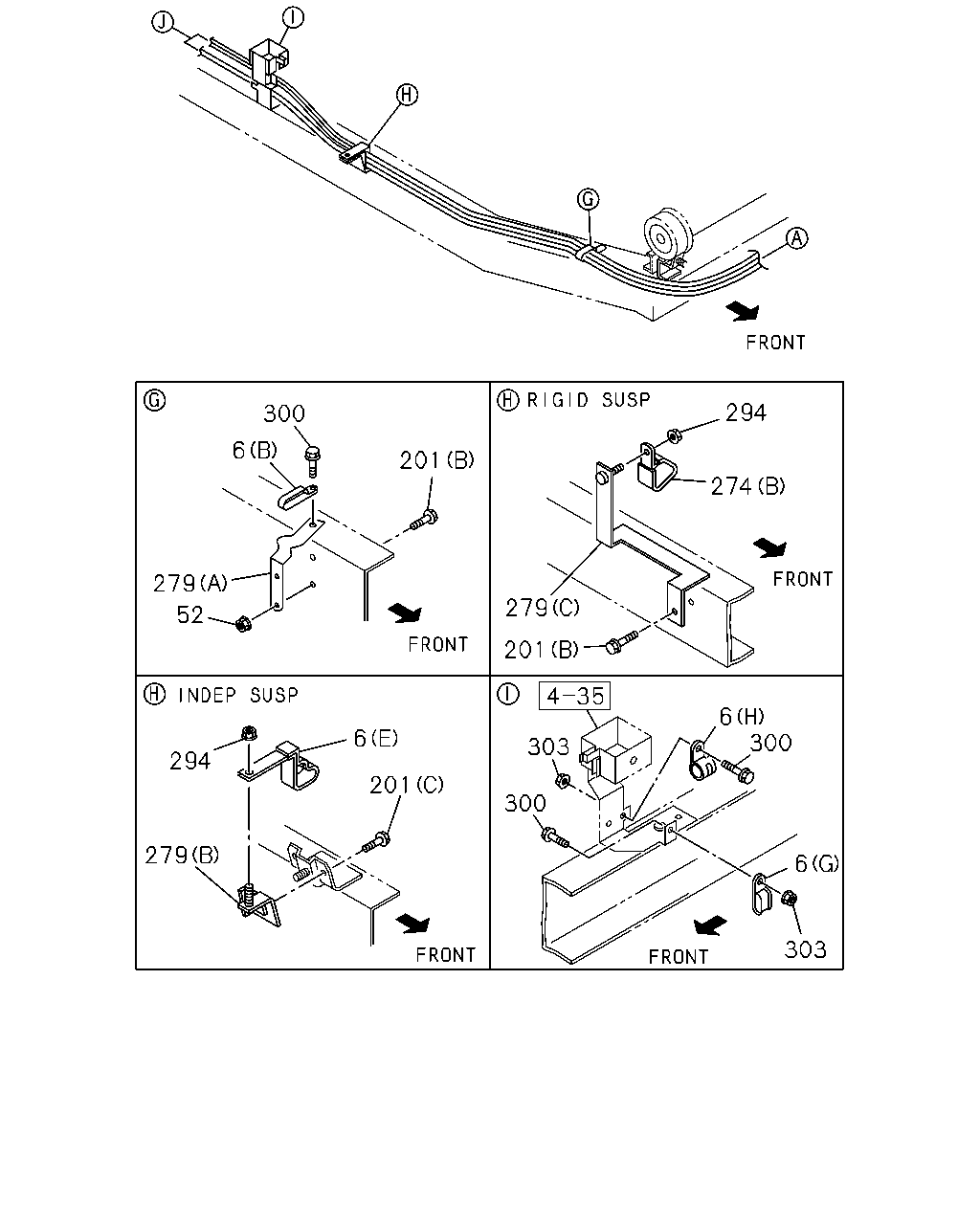

300 6 201 279 6 52 300 303 294 6 201 300 279 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> (C)	8-97036-332-1	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 04.686 (H) ID=21 L=24	8-94176-807-1	01	1	0106-			●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97036-330-1	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97036-330-1	01	1	0106-			●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97036-329-2	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 04.785 (G)	8-94458-385-1	01	1	0106-			●
6	04.047 CLIP; CABLE (B)	8-97137-589-0	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE (B)	8-97137-589-0	01	1	0106-			●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (D)	8-97011-448-0	02	1	9812-0105	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (D)	8-97011-448-0	02	1	0106-			●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A) ID=19.2	8-97211-011-0	02	1	9812-0105	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A) ID=19.2	8-97211-011-0	02	1	0106-			●
52	04.047 NUT; BRKT AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	02	1	9906-0105	●	●
52	04.047 NUT; BRKT AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-0203			●
52	04.047 NUT; BRKT DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) 04.785 M10 FLANGE	0-91150-110-0	02	1	0204-			●
52	04.047 NUT; BRKT MIDDLE(NK***F) 04.785 M10 FLANGE	0-91150-110-0	02	1	0204-			●
201	04.032 BOLT; BRKT FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9812-0105	●	●
201	04.032 BOLT; BRKT 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0106-			●
201	04.032 BOLT; BRKT AIR INTAKE REAR VERTICAL<KJ3> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9906-0105	●	●
201	04.032 BOLT; BRKT AIR INTAKE REAR VERTICAL<KJ3> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0106-			●
201	04.032 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 01.428 (C) M6X12 FLANGE	0-28080-612-0	01	1	9812-0105	●	●
201	04.032 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 01.428 (C) M6X12 FLANGE	0-28080-612-0	01	1	0106-			●
279	04.047 BRACKET; CABLE TO FRAME (A)	8-97101-709-1	01	1	9812-0105	●	●
279	04.047 BRACKET; CABLE TO FRAME (A)	8-97101-709-1	01	1	0106-0203			●
279	04.047 BRACKET; CABLE TO FRAME SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) (A)	8-97101-709-1	01	1	0204-			●
279	04.047 BRACKET; CABLE TO FRAME DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) (A)	8-97101-709-1	01	1	0204-			●
279	04.047 BRACKET; CABLE TO FRAME FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97066-629-5	01	1	9812-0105	●	●
279	04.047 BRACKET; CABLE TO FRAME FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97066-629-5	01	1	0106-			●
279	04.047 BRACKET; CABLE TO FRAME 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97289-620-0	01	1	0106-			●
279	04.047 BRACKET; CABLE TO FRAME DUAL RR TIRE&SHORT(NKC**C) EXC. REAR WIDE TREAD(V4T) (A)	8-97106-662-0	01	1	0204-			●
294	00.854 NUT; CLIP FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●
294	00.854 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-			●
300	00.854 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105	●	●
300	00.854 BOLT; CLIP 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-			●
300	00.854 BOLT; CLIP 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9812-0105	●	●
300	00.854 BOLT; CLIP 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0106-			●
300	00.854 BOLT; CLIP 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0106-			●
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●
303	00.855 NUT; CLIP 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-			●
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-			●

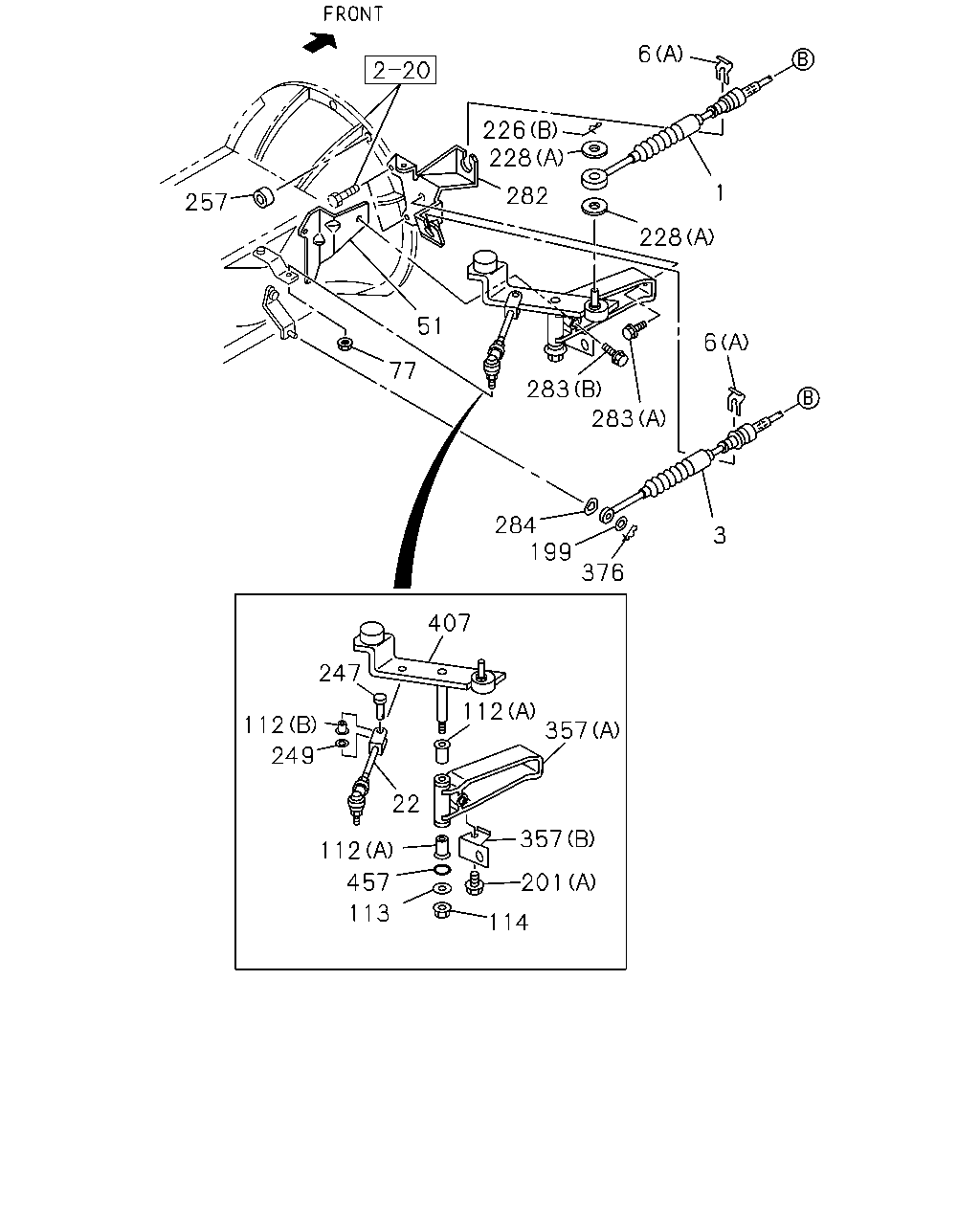

6 226 228 1 282 257 228 51 6 77 283 283 284 199 3 376 407 247 112 357 112 249 22 357 112 457 201 113 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.854 CABLE; SHIFT,TRANS CONT FLOOR REMOTE SHIFT<M11> L=2540	8-97089-986-3	01	1	9812-0105	●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11>	8-97305-499-0	01	1	0106-			●
3	00.852 CABLE; SELECT,TRANS CONT FLOOR REMOTE SHIFT<M11> L=2684	8-97089-987-2	01	1	9812-0105	●	●
3	00.852 CABLE; SELECT,TRANS CONT 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11>	8-97289-615-1	01	1	0106-			●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> (C)	8-97036-332-1	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 04.686 (H) ID=21 L=24	8-94176-807-1	01	1	0106-			●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97036-330-1	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97036-330-1	01	1	0106-			●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97036-329-2	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 04.785 (G)	8-94458-385-1	01	1	0106-			●
6	04.047 CLIP; CABLE (B)	8-97137-589-0	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE (B)	8-97137-589-0	01	1	0106-			●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (D)	8-97011-448-0	02	1	9812-0105	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (D)	8-97011-448-0	02	1	0106-			●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A) ID=19.2	8-97211-011-0	02	1	9812-0105	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A) ID=19.2	8-97211-011-0	02	1	0106-			●
22	04.035 ROD; CONT,SHIFT FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP)	8-97134-286-0	01	1	9812-0105	●	●
22	04.035 ROD; CONT,SHIFT FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97174-058-0	01	1	9812-0105	●	●
51	04.010 BRACKET; GEAR CONT 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97029-286-0	01	1	9812-0105	●	●
77	04.037 NUT; LK,BALL JOINT,CONT ROD FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9905	●
77	04.037 NUT; LK,BALL JOINT,CONT ROD FLOOR REMOTE SHIFT<M11> M8 T=8.0	8-94363-045-0	01	1	9906-0105	●	●
112	04.046 BUSHING; RELAY LEVER FLOOR REMOTE SHIFT<M11> (A)	8-97174-057-0	02	1	9812-0105	●	●
112	04.046 BUSHING; RELAY LEVER FLOOR REMOTE SHIFT<M11> (B)	8-97174-060-0	01	1	9812-0105	●	●
113	04.046 WASHER; RELAY LEVER FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) 16.682 ID=10.5 OD=22	9-09160-610-0	01	1	9812-0105	●	●
113	04.046 WASHER; RELAY LEVER FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) 16.682 ID=10.5 OD=22	9-09160-610-0	02	1	9812-0105	●	●
114	04.037 NUT; RELAY LEVER FLOOR REMOTE SHIFT<M11> 04.785 M10 FLANGE	0-91150-110-0	01	1	9812-0105	●	●
199	04.012 WASHER; PL,SELECT FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4	9-09160-508-0	01	1	9812-0105	●	●
199	04.012 WASHER; PL,SELECT FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4	9-09160-508-0	01	1	0106-			●
201	04.032 BOLT; BRKT FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9812-0105	●	●
201	04.032 BOLT; BRKT 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0106-			●
201	04.032 BOLT; BRKT AIR INTAKE REAR VERTICAL<KJ3> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9906-0105	●	●
201	04.032 BOLT; BRKT AIR INTAKE REAR VERTICAL<KJ3> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0106-			●
201	04.032 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 01.428 (C) M6X12 FLANGE	0-28080-612-0	01	1	9812-0105	●	●
201	04.032 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 01.428 (C) M6X12 FLANGE	0-28080-612-0	01	1	0106-			●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7	8-94111-137-0	01	1	9812-0105	●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7	8-94111-137-0	01	1	0106-			●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> (B) L=23	8-94170-378-0	01	1	9812-0105	●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> (B) L=23	8-94170-378-0	01	1	0106-			●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40	8-97182-975-0	02	1	9812-0105	●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40	8-97182-975-0	02	1	0106-			●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4	9-09164-508-0	01	1	9812-0105	●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4	9-09164-508-0	01	1	0106-			●
247	04.010 PIN; CONT ROD TO LEVER FLOOR REMOTE SHIFT<M11> 04.037	9-09876-059-1	01	1	9812-0105	●	●
249	04.010 WASHER; RUBBER,CONT ROD TO LEVER FLOOR REMOTE SHIFT<M11> 04.037 ID=8.5 T=1.5	9-09851-889-0	01	1	9812-0105	●	●
257	00.851 PIECE; DIST,RELAY LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94369-173-0	01	1	9906-0105	●
282	04.010 BRACKET; TRANS SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11>	8-97034-142-1	01	1	9812-0105	●	●
282	04.010 BRACKET; TRANS SIDE 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11>	8-97260-120-0	01	1	0106-			●
283	04.037 BOLT; RELAY LEVER FLOOR REMOTE SHIFT<M11> 03.405 (A) M10X25 FLANGE	0-28681-025-0	01	1	9812-0105	●	●
283	04.037 BOLT; RELAY LEVER FLOOR REMOTE SHIFT<M11> 03.162 (B) M10X35 FLANGE	0-28681-035-0	01	1	9812-0105	●	●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB FLOOR REMOTE SHIFT<M11> ID=8.4 OD=14	5-09550-002-0	01	1	9812-0105	●	●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB FLOOR REMOTE SHIFT<M11> ID=8.4 OD=14	5-09550-002-0	01	1	0106-			●
357	04.010 BRACKET; RELAY LEVER FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97089-692-0	01	1	9812-0105	●	●
357	04.010 BRACKET; RELAY LEVER FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97174-056-0	01	1	9812-0105	●	●
357	04.010 BRACKET; RELAY LEVER FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97182-166-0	01	1	9812-0105	●	●
376	04.047 PIN; SNAP,SELECT CABLE FLOOR REMOTE SHIFT<M11> L=23	8-94170-378-0	01	1	9812-0105	●	●
376	04.047 PIN; SNAP,SELECT CABLE FLOOR REMOTE SHIFT<M11> L=23	8-94170-378-0	01	1	0106-			●
407	04.030 LEVER; RELAY,SHIFT FLOOR REMOTE SHIFT<M11>	8-97174-055-1	01	1	9812-0105	●	●
457	04.010 GASKET FLOOR REMOTE SHIFT<M11> ID=13.8	9-09561-114-0	02	1	9812-0105	●	●

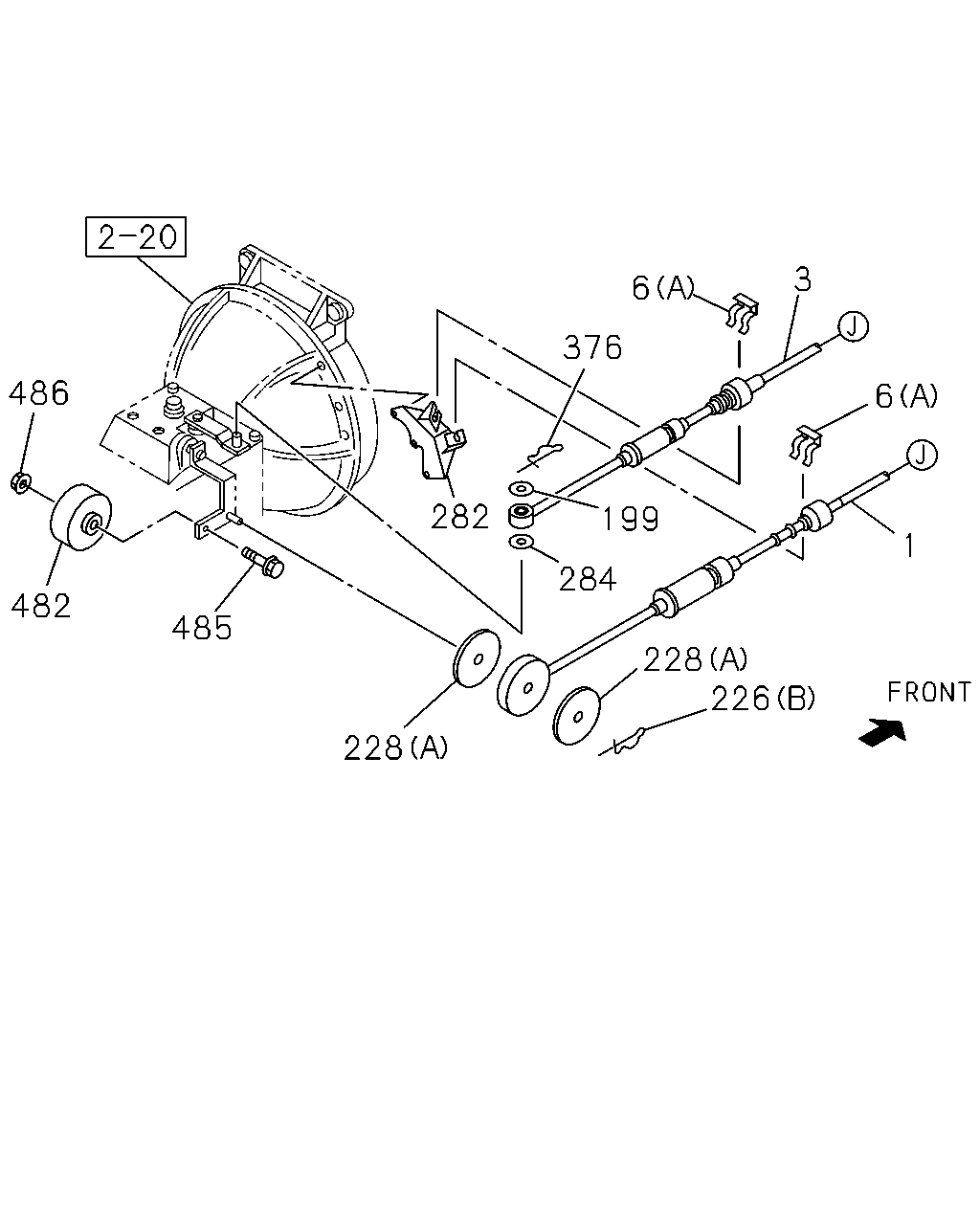

3 6 376 486 6 282 199 1 284 482 485 228 226 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.854 CABLE; SHIFT,TRANS CONT FLOOR REMOTE SHIFT<M11> L=2540	8-97089-986-3	01	1	9812-0105	●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11>	8-97305-499-0	01	1	0106-			●
3	00.852 CABLE; SELECT,TRANS CONT FLOOR REMOTE SHIFT<M11> L=2684	8-97089-987-2	01	1	9812-0105	●	●
3	00.852 CABLE; SELECT,TRANS CONT 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11>	8-97289-615-1	01	1	0106-			●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> (C)	8-97036-332-1	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 04.686 (H) ID=21 L=24	8-94176-807-1	01	1	0106-			●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97036-330-1	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97036-330-1	01	1	0106-			●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97036-329-2	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 04.785 (G)	8-94458-385-1	01	1	0106-			●
6	04.047 CLIP; CABLE (B)	8-97137-589-0	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE (B)	8-97137-589-0	01	1	0106-			●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (D)	8-97011-448-0	02	1	9812-0105	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (D)	8-97011-448-0	02	1	0106-			●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A) ID=19.2	8-97211-011-0	02	1	9812-0105	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A) ID=19.2	8-97211-011-0	02	1	0106-			●
199	04.012 WASHER; PL,SELECT FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4	9-09160-508-0	01	1	9812-0105	●	●
199	04.012 WASHER; PL,SELECT FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4	9-09160-508-0	01	1	0106-			●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7	8-94111-137-0	01	1	9812-0105	●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7	8-94111-137-0	01	1	0106-			●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> (B) L=23	8-94170-378-0	01	1	9812-0105	●	●
226	04.047 PIN; SHIFT CABLE FLOOR REMOTE SHIFT<M11> (B) L=23	8-94170-378-0	01	1	0106-			●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40	8-97182-975-0	02	1	9812-0105	●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40	8-97182-975-0	02	1	0106-			●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4	9-09164-508-0	01	1	9812-0105	●	●
228	04.047 WASHER; PL,SHIFT CABLE FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4	9-09164-508-0	01	1	0106-			●
282	04.010 BRACKET; TRANS SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11>	8-97034-142-1	01	1	9812-0105	●	●
282	04.010 BRACKET; TRANS SIDE 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11>	8-97260-120-0	01	1	0106-			●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB FLOOR REMOTE SHIFT<M11> ID=8.4 OD=14	5-09550-002-0	01	1	9812-0105	●	●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB FLOOR REMOTE SHIFT<M11> ID=8.4 OD=14	5-09550-002-0	01	1	0106-			●
376	04.047 PIN; SNAP,SELECT CABLE FLOOR REMOTE SHIFT<M11> L=23	8-94170-378-0	01	1	9812-0105	●	●
376	04.047 PIN; SNAP,SELECT CABLE FLOOR REMOTE SHIFT<M11> L=23	8-94170-378-0	01	1	0106-			●
482	04.047 WEIGHT; SHIFT CABLE FLOOR REMOTE SHIFT<M11>	8-97066-730-2	01	1	0106-			●
485	04.047 BOLT; WEIGHT FLOOR REMOTE SHIFT<M11> M12X60 FLANGE	0-28091-260-0	01	1	0106-			●
486	04.047 NUT; WEIGHT FLOOR REMOTE SHIFT<M11> 06.509 M12 FLANGE	8-94436-194-0	01	1	0106-			●

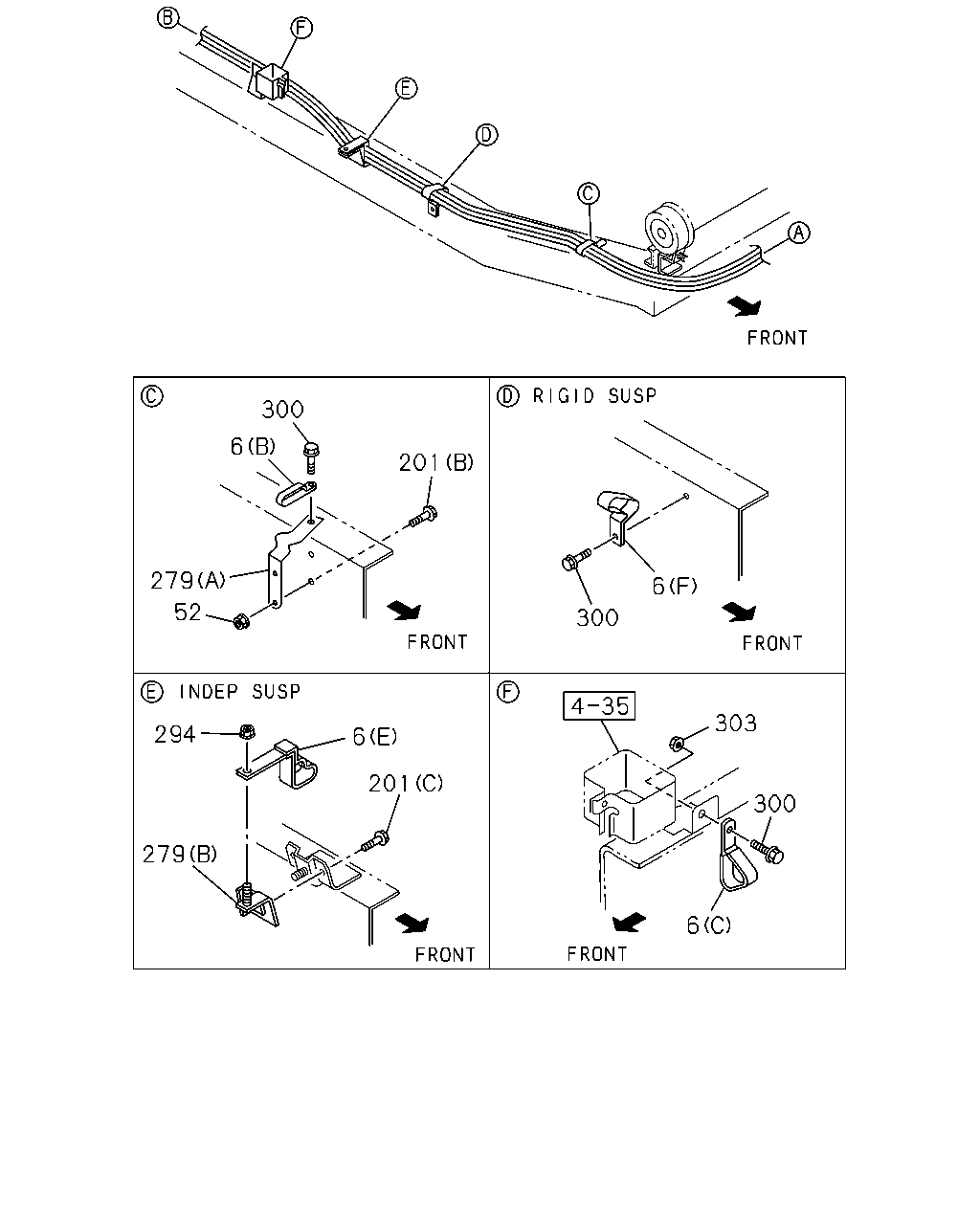

294 300 6 201 274 279 279 52 201 6 300 6 303 294 201 300 279 6 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> (C)	8-97036-332-1	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 04.686 (H) ID=21 L=24	8-94176-807-1	01	1	0106-			●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97036-330-1	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97036-330-1	01	1	0106-			●
6	04.047 CLIP; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97036-329-2	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 04.785 (G)	8-94458-385-1	01	1	0106-			●
6	04.047 CLIP; CABLE (B)	8-97137-589-0	01	1	9812-0105	●	●
6	04.047 CLIP; CABLE (B)	8-97137-589-0	01	1	0106-			●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (D)	8-97011-448-0	02	1	9812-0105	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (D)	8-97011-448-0	02	1	0106-			●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A) ID=19.2	8-97211-011-0	02	1	9812-0105	●	●
6	04.047 CLIP; CABLE FLOOR REMOTE SHIFT<M11> (A) ID=19.2	8-97211-011-0	02	1	0106-			●
52	04.047 NUT; BRKT AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	02	1	9906-0105	●	●
52	04.047 NUT; BRKT AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-0203			●
52	04.047 NUT; BRKT DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) 04.785 M10 FLANGE	0-91150-110-0	02	1	0204-			●
52	04.047 NUT; BRKT MIDDLE(NK***F) 04.785 M10 FLANGE	0-91150-110-0	02	1	0204-			●
201	04.032 BOLT; BRKT FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9812-0105	●	●
201	04.032 BOLT; BRKT 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0106-			●
201	04.032 BOLT; BRKT AIR INTAKE REAR VERTICAL<KJ3> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9906-0105	●	●
201	04.032 BOLT; BRKT AIR INTAKE REAR VERTICAL<KJ3> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0106-			●
201	04.032 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 01.428 (C) M6X12 FLANGE	0-28080-612-0	01	1	9812-0105	●	●
201	04.032 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 01.428 (C) M6X12 FLANGE	0-28080-612-0	01	1	0106-			●
274	04.008 CLIP; CONT CABLE FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ> (A)	8-97093-491-1	01	1	0106-			●
274	04.008 CLIP; CONT CABLE 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.047 (B)	8-97036-333-1	01	1	0106-			●
279	04.047 BRACKET; CABLE TO FRAME (A)	8-97101-709-1	01	1	9812-0105	●	●
279	04.047 BRACKET; CABLE TO FRAME (A)	8-97101-709-1	01	1	0106-0203			●
279	04.047 BRACKET; CABLE TO FRAME SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) (A)	8-97101-709-1	01	1	0204-			●
279	04.047 BRACKET; CABLE TO FRAME DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) (A)	8-97101-709-1	01	1	0204-			●
279	04.047 BRACKET; CABLE TO FRAME FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97066-629-5	01	1	9812-0105	●	●
279	04.047 BRACKET; CABLE TO FRAME FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97066-629-5	01	1	0106-			●
279	04.047 BRACKET; CABLE TO FRAME 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97289-620-0	01	1	0106-			●
279	04.047 BRACKET; CABLE TO FRAME DUAL RR TIRE&SHORT(NKC**C) EXC. REAR WIDE TREAD(V4T) (A)	8-97106-662-0	01	1	0204-			●
294	00.854 NUT; CLIP FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●
294	00.854 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-			●
300	00.854 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105	●	●
300	00.854 BOLT; CLIP 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-			●
300	00.854 BOLT; CLIP 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9812-0105	●	●
300	00.854 BOLT; CLIP 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0106-			●
300	00.854 BOLT; CLIP 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0106-			●
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●
303	00.855 NUT; CLIP 4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-			●
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
