1-40 — FUEL TANK
(#45592) — 34 parça
◀
[140A] NO.1 (18 parça)
[140A] NO.3 (9 parça)
[140A] NO.2 (7 parça)
▶

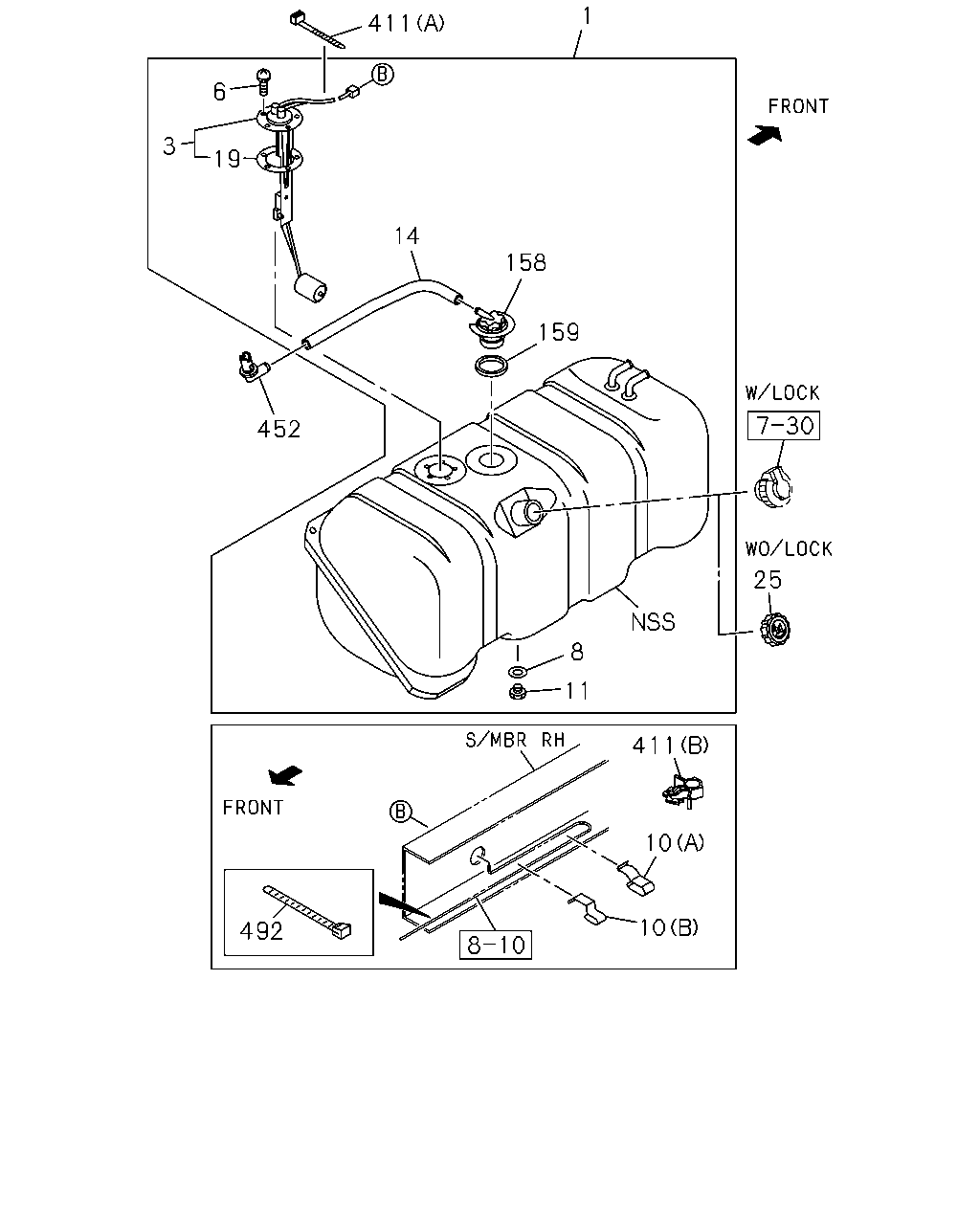

1
411
6
3
19
14
158
159
452
25
8
11
411
10
10
492
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.001 TANK; FUEL
756X375X375 75L
8-97351-657-5
01
1
0609-
3
03.107 UNIT; FUEL TANK,SUB
8-98005-215-0
01
1
0609-
6
03.115 SCREW; TANK UNIT TO SUB FUEL TAN
02.361 M5X10 W/LK WASHER
0-36220-510-0
05
1
0609-
8
03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17
9-09572-008-0
01
1
0609-
10
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.559 (A) T=9.2
5-09709-013-0
AR
1
0609-
10
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.525 (B) T=4.5 & 9
5-09709-023-0
AR
1
0609-
10
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.525 (B) T=9.2 & 9
5-09709-025-0
AR
1
0609-
10
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
01.240 (A) T=5.5
5-09709-047-0
AR
1
0609-
11
03.890 PLUG; DRAIN,FUEL TANK
02.343 M8X12 FLANGE
0-28050-812-0
01
1
0609-
14
03.163 HOSE; BREATHER,OUTLET
L=320
8-98157-805-0
01
1
0609-
19
03.112 GASKET; FUEL TANK UNIT
8-97222-756-0
01
1
0609-
25
03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05>
8-94258-609-1
01
1
0609-
158
03.164 VALVE; ROLL OVER & FLOAT
8-97179-645-0
01
1
0609-
159
03.015 SEAL; ROLL OVER & FLOAT VALVE
8-97326-488-0
01
1
0609-
411
02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (B) ID=5-12 L=18
1-09709-287-0
01
1
0611-
411
02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (A) L=140
5-09707-031-1
03
1
0609-
452
03.028 BREATHER; FUEL TANK
8-97357-261-0
01
1
0609-
492
03.028 CLIP; HARNESS TO VAC HOSE
03.162 L=140
5-09707-031-1
02
1
0609-

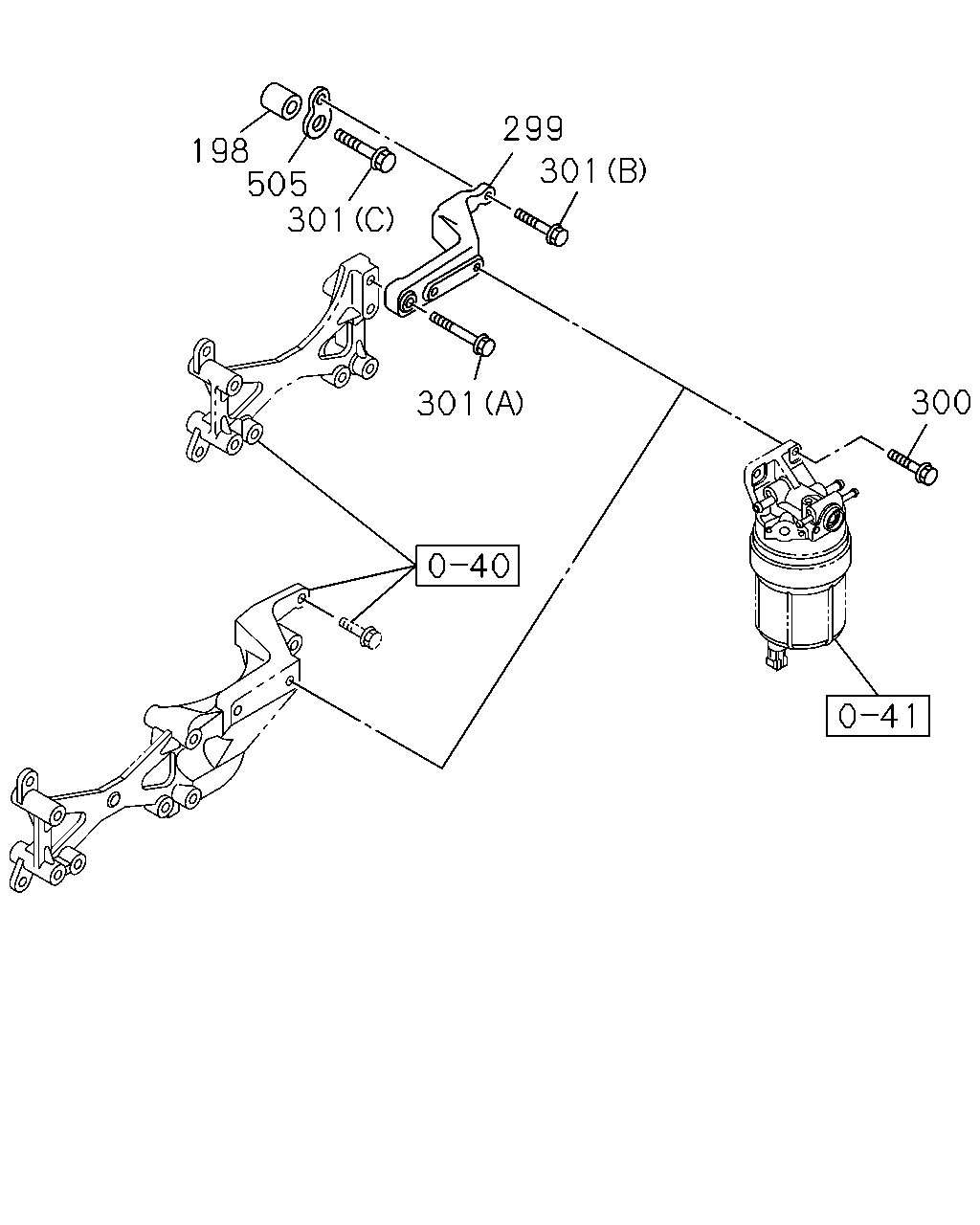

299
198
505
301
301
300
301
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
198
03.107 SPACER
8-98081-509-0
01
1
0704-1001
299
03.162 BRACKET; FUEL FILTER
8-98009-087-4
01
1
0609-1001
300
03.162 BOLT; BRKT TO BODY
06.216 M8X25 FLANGE
0-28650-825-0
02
1
0609-
301
03.162 BOLT; BRKT TO SEDIMENTER
(C) M14X58 FLANGE
8-98081-508-0
01
1
0704-1001
301
03.162 BOLT; BRKT TO SEDIMENTER
02.277 (B) M8X40 FLANGE
0-28050-840-0
01
1
0609-0703
301
03.162 BOLT; BRKT TO SEDIMENTER
(B) M8X40 FLANGE
0-28060-840-0
01
1
0704-1001
301
03.162 BOLT; BRKT TO SEDIMENTER
04.686 (A) M8X60 FLANGE
0-28050-860-0
01
1
0609-0703
301
03.162 BOLT; BRKT TO SEDIMENTER
(A) M8X66 FLANGE
8-98081-507-0
01
1
0704-1001
505
03.163 BRACKET
8-98081-486-0
01
1
0704-1001

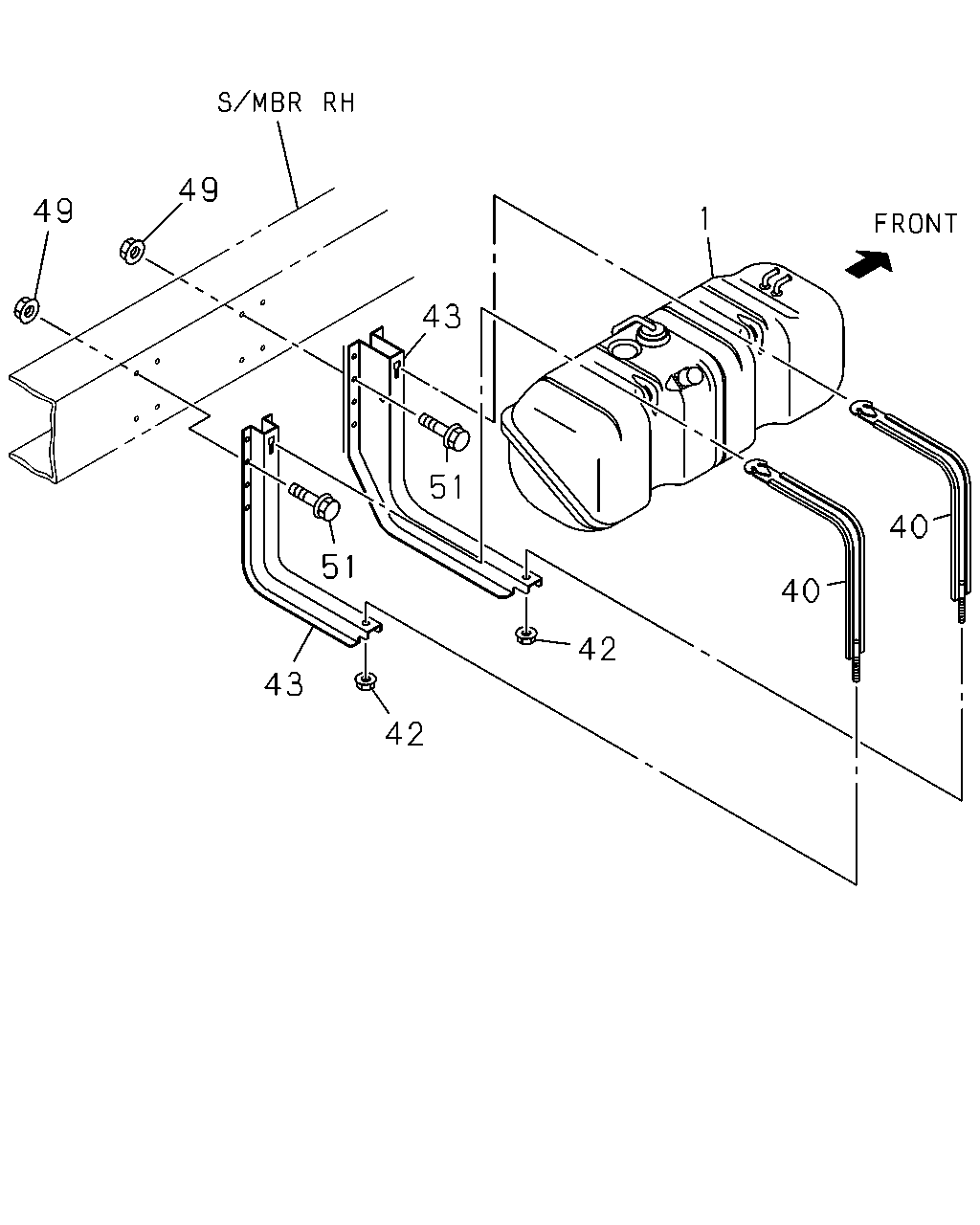

49
49
1
43
51
40
51
40
42
43
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.001 TANK; FUEL
756X375X375 75L
8-97351-657-5
01
1
0609-
40
03.022 BELT; SUPPORT,FUEL TANK
8-97169-231-1
02
1
0609-
42
03.023 NUT; SUPPORT BELT
M8 FLANGE
9-09130-408-0
02
1
0609-
43
03.015 BRACKET; FUEL TANK
FRONT
8-97035-517-0
01
1
0609-
43
03.015 BRACKET; FUEL TANK
REAR
8-97181-220-0
01
1
0609-
49
03.023 NUT; BRKT
04.085 M10 FLANGE
0-91180-210-0
08
1
0609-
51
03.023 BOLT; BRKT TO FRAME
07.068 M10X30 FLANGE
0-28661-030-0
08
1
0609-
