1-11 — RADIATOR HOSE AND SUB TANK
(#45588) — 21 parça
◀
[111A] RADIATOR HOSE (5 parça)

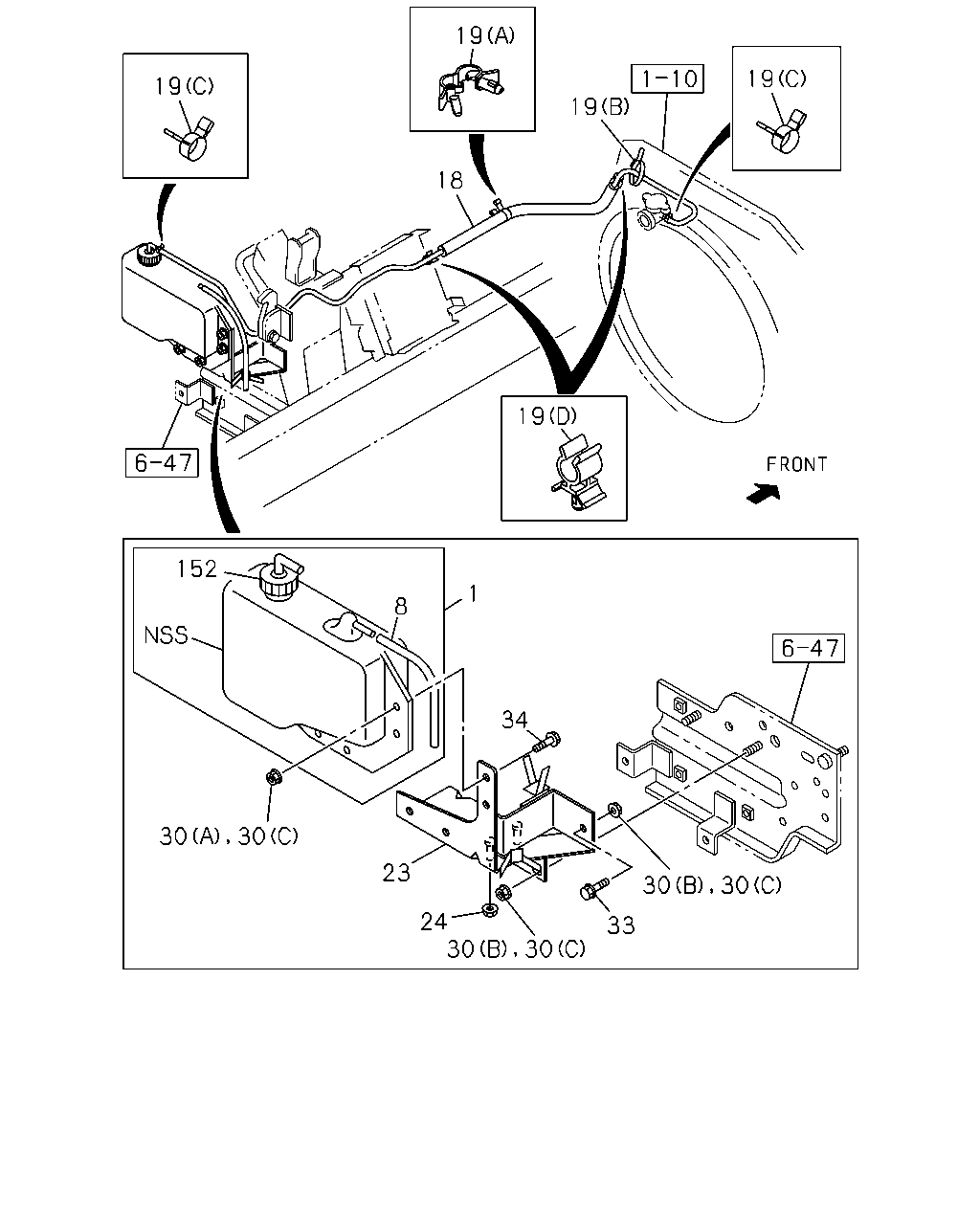

[111A] SURGE TANK (16 parça)
▶
55
56
56
128
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
01.173 HOSE; WATER,RAD OUTLET
8-97383-814-1
01
1
0609-
56
01.166 CLIP; WATER HOSE,RAD
ID=48
5-09704-049-0
02
1
0609-0610
56
01.166 CLIP; WATER HOSE,RAD
ID=48
8-98036-282-0
02
1
0611-0901
56
01.166 CLIP; WATER HOSE,RAD
ID=48
8-98133-956-0
02
1
0902-
128
01.159 HOSE; WATER,RAD INL
8-97383-812-1
01
1
0609-
19
19
19
19
18
19
152
1
8
34
30
30
23
24
33
30
30
30
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 TANK; SURGE,RAD
8-97205-136-1
01
1
0609-
8
01.166 HOSE; VINYL
01.240 L=500
1-09366-179-0
01
1
0609-
18
01.240 HOSE; RAD TO SURGE TANK
8-98018-434-3
01
1
0609-
19
01.240 CLIP; HOSE,SURGE TANK
03.162 (A) ID=13-18 L=14.5
1-09709-290-0
02
1
0609-
19
01.240 CLIP; HOSE,SURGE TANK
02.559 (B) L=250
5-09707-030-1
02
1
0609-
19
01.240 CLIP; HOSE,SURGE TANK
01.219 (C) ID=12
8-94238-610-0
02
1
0609-0911
19
01.240 CLIP; HOSE,SURGE TANK
(C) ID=12
8-98150-358-0
02
1
0912-
19
01.240 CLIP; HOSE,SURGE TANK
(D) ID=12
8-98029-256-0
02
1
0609-
23
01.219 BRACKET; RESERVE TANK
8-98044-159-0
01
1
0609-
24
01.219 NUT
01.062 M6 FLANGE
0-91180-106-0
02
1
0609-
30
01.203 NUT
01.062 (A) M8 FLANGE
0-91180-108-0
04
1
0609-0609
30
01.203 NUT
01.062 (C) M8 FLANGE
0-91180-108-0
07
1
0610-
30
01.203 NUT
01.540 (B) M8 FLANGE
0-91180-208-0
03
1
0609-0609
33
01.277 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0609-
34
01.203 BOLT; RESERVE TANK
06.216 M8X25 FLANGE
0-28650-825-0
04
1
0609-
152
01.203 CAP ASM; SURGE TANK
8-97217-799-0
01
1
0609-
