1-01 — ACCELERATOR PEDAL AND CONTROL (#45586) — 17 parça

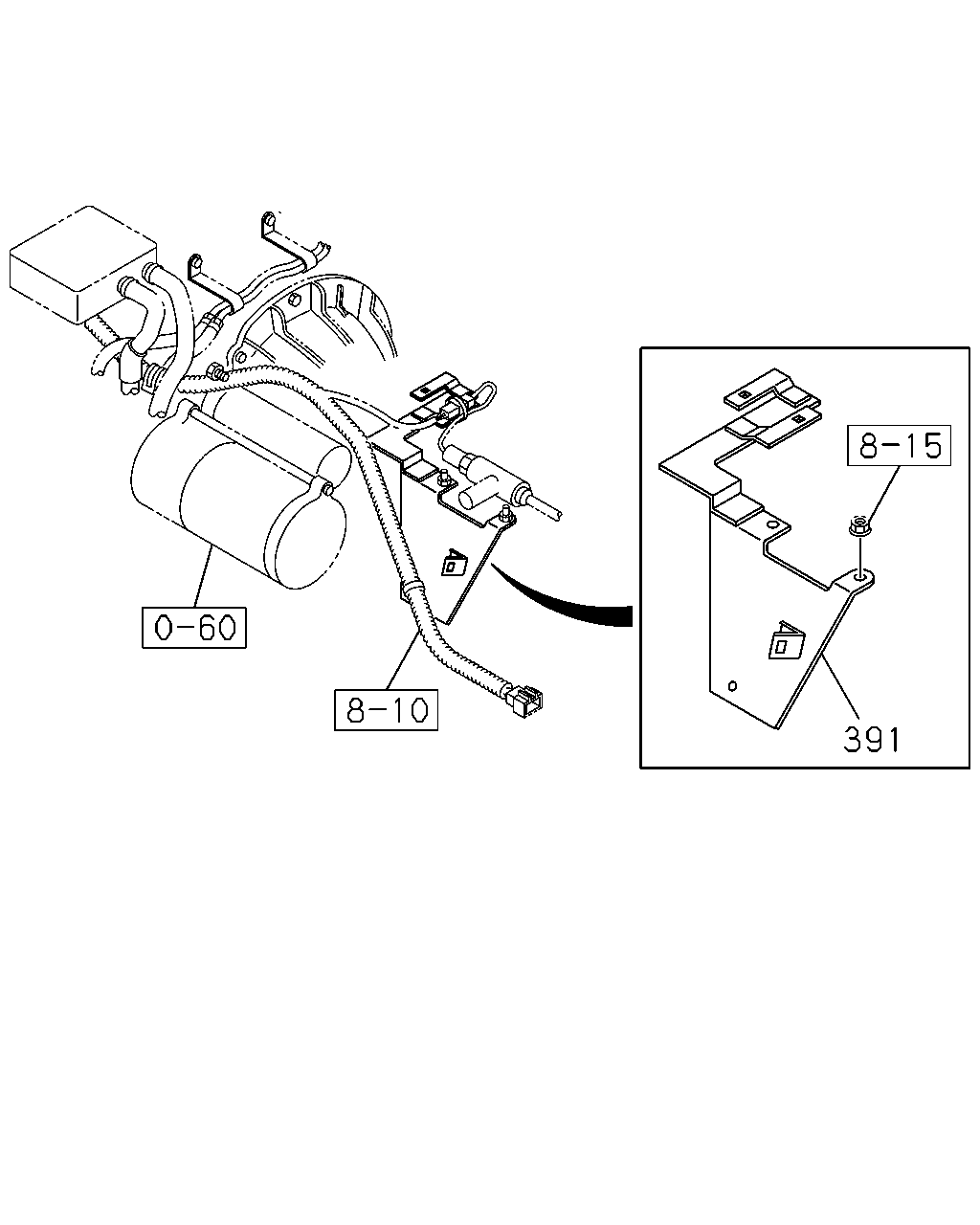

çizim 13762
391
BalonParca AdiParca NoAdetTipApplied Date
391 03.452 BRACKET; ENG CONT 8-97357-141-0 01 1 0609-

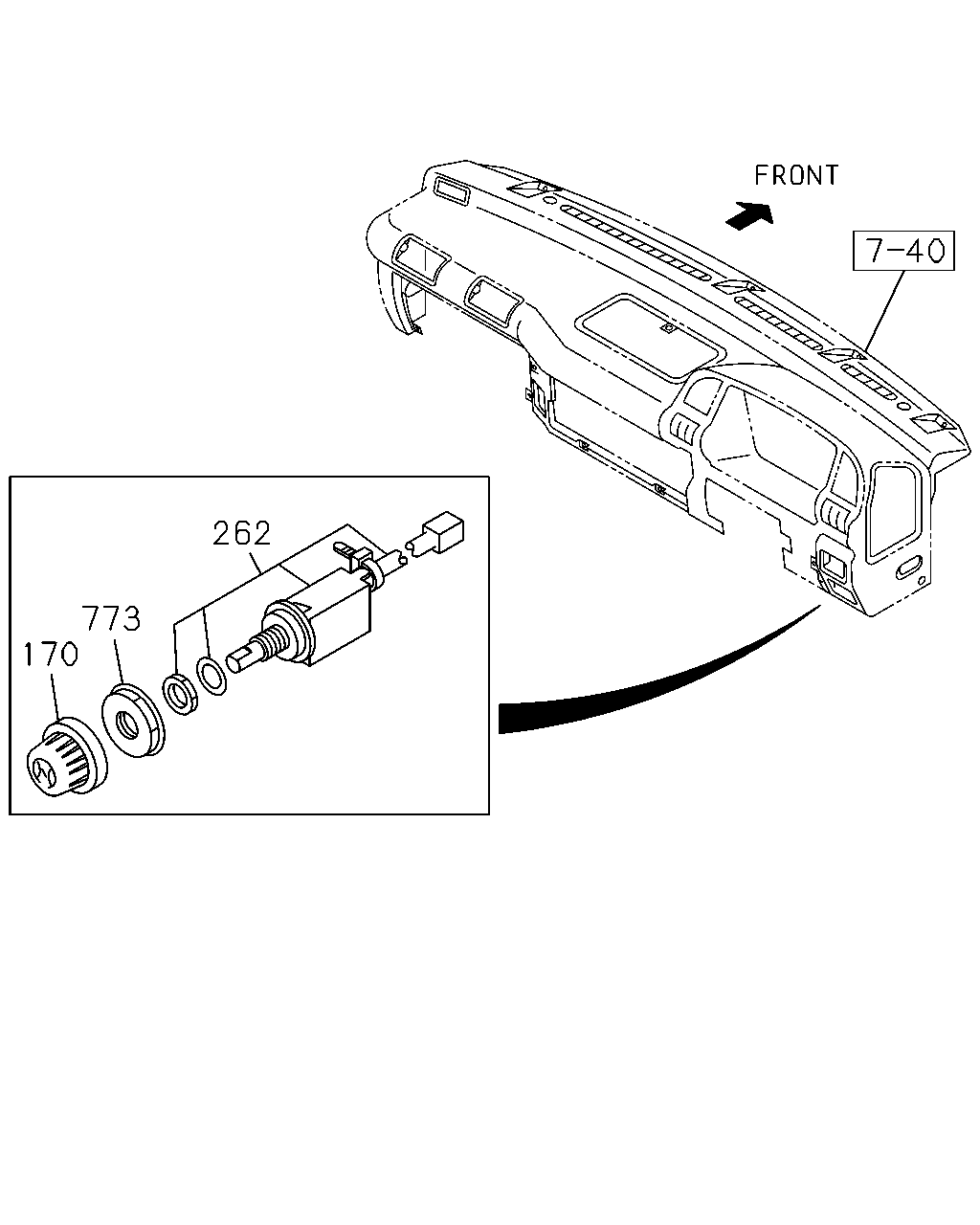

çizim 13798
262 773 170
BalonParca AdiParca NoAdetTipApplied Date
170 03.480 KNOB 8-97310-165-0 01 1 0609-
262 03.452 SWITCH; ACCEL,IDLE 8-97215-119-1 01 1 0609-
773 03.452 HOLDER; ACCEL PEDAL 8-97352-127-0 01 1 0609-

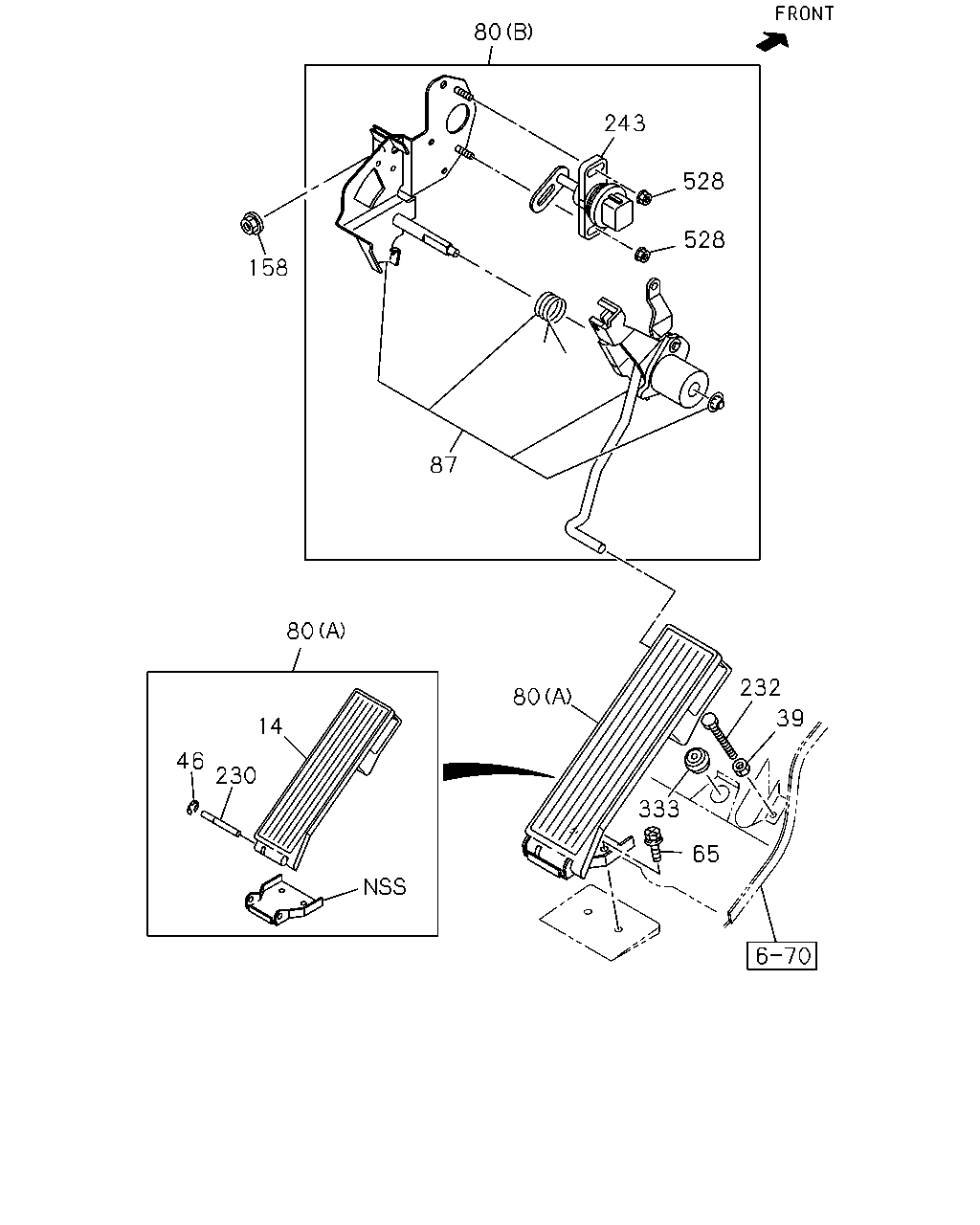

çizim 57627
80 243 528 528 158 87 80 232 80 39 14 46 230 333 65
BalonParca AdiParca NoAdetTipApplied Date
14 03.451 PAD; PEDAL,ACCEL 8-97853-062-2 01 1 0609-
39 03.459 NUT; ACCEL PEDAL STOPPER
02.334 M8 		0-91110-508-0 01 1 0609-
46 03.485 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 0609-
65 03.483 BOLT
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0609-
80 03.452 LINK ASM; ENG CONT
(A) 		8-97853-061-2 01 1 0609-
80 03.452 LINK ASM; ENG CONT
(B) 		8-97997-556-6 01 1 0609-
87 03.454 LINK; ENG CONT 8-97581-415-5 01 1 0609-
158 03.452 NUT; BRKT
08.857 M8 FLANGE 		8-94279-060-0 02 1 0609-
230 03.452 PIN; JOINT,ACCEL PEDAL TO BRKT 8-97853-064-0 01 1 0609-
232 03.459 BOLT; STOPPER,ACCEL PEDAL
M8X45 		8-97378-461-0 01 1 0609-
243 03.425 SENSOR; ACCEL 8-97602-416-0 01 1 0609-
333 03.671 GROMMET; HOLE,CABLE
16.545 OD=24.5 T=7.5 		8-97224-683-0 01 1 0609-
528 03.463 NUT; ACCEL SENSOR
12.183 M5 		8-94169-022-0 02 1 0609-
