0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#45582) — 43 parça
◀

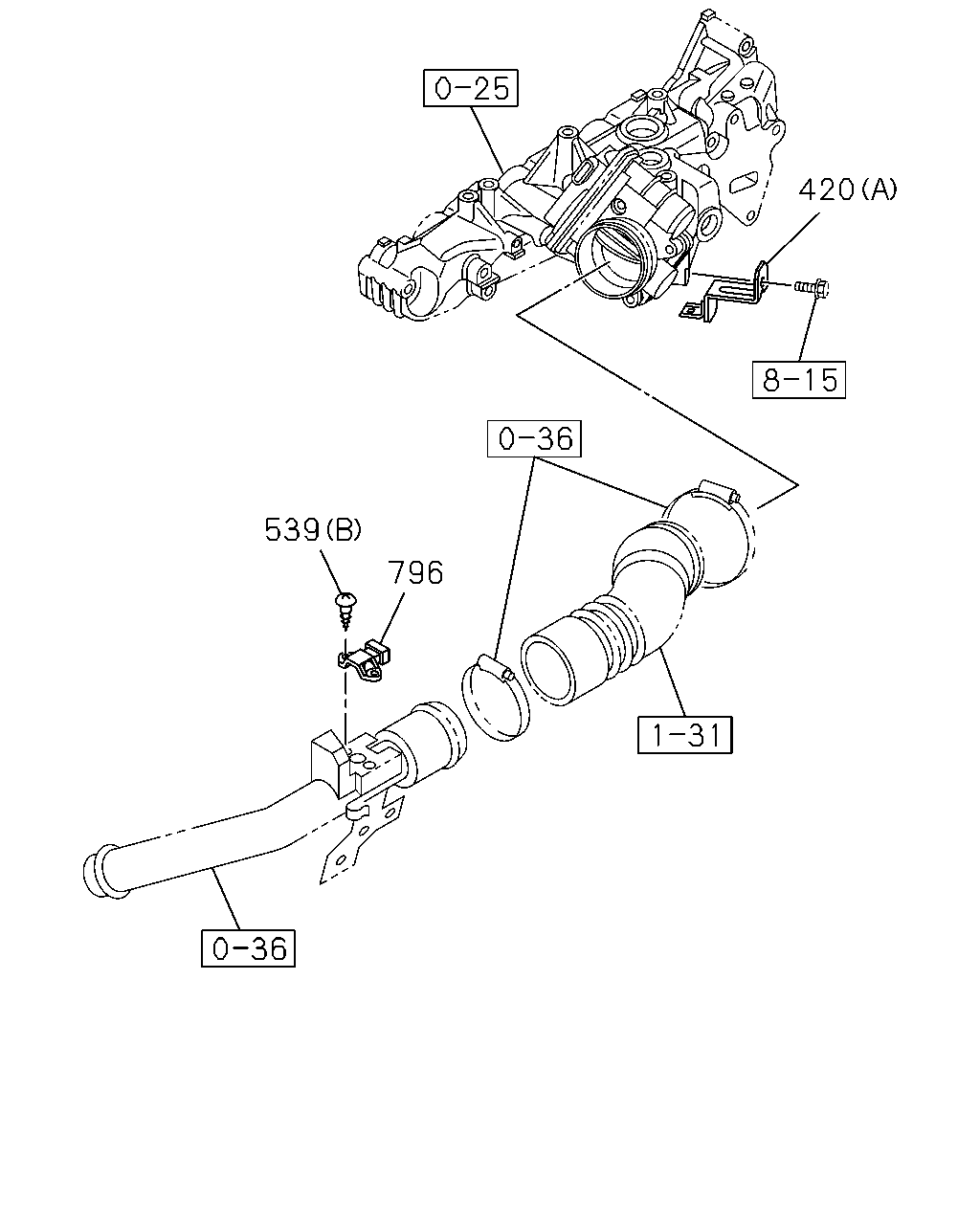

[060A] MAP SENSOR (5 parça)

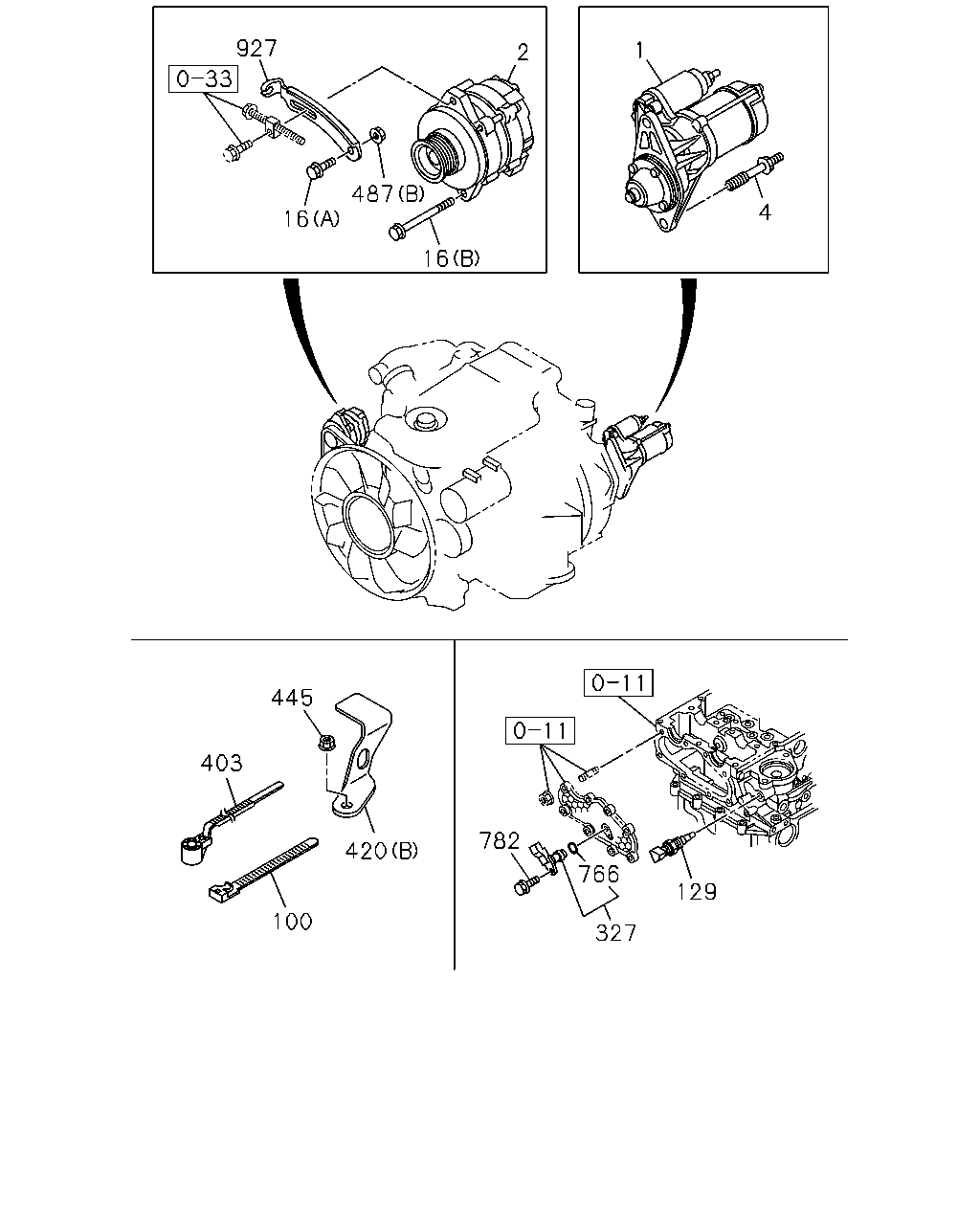

[060A] STARTER,GENERATOR AND SENSOR (19 parça)

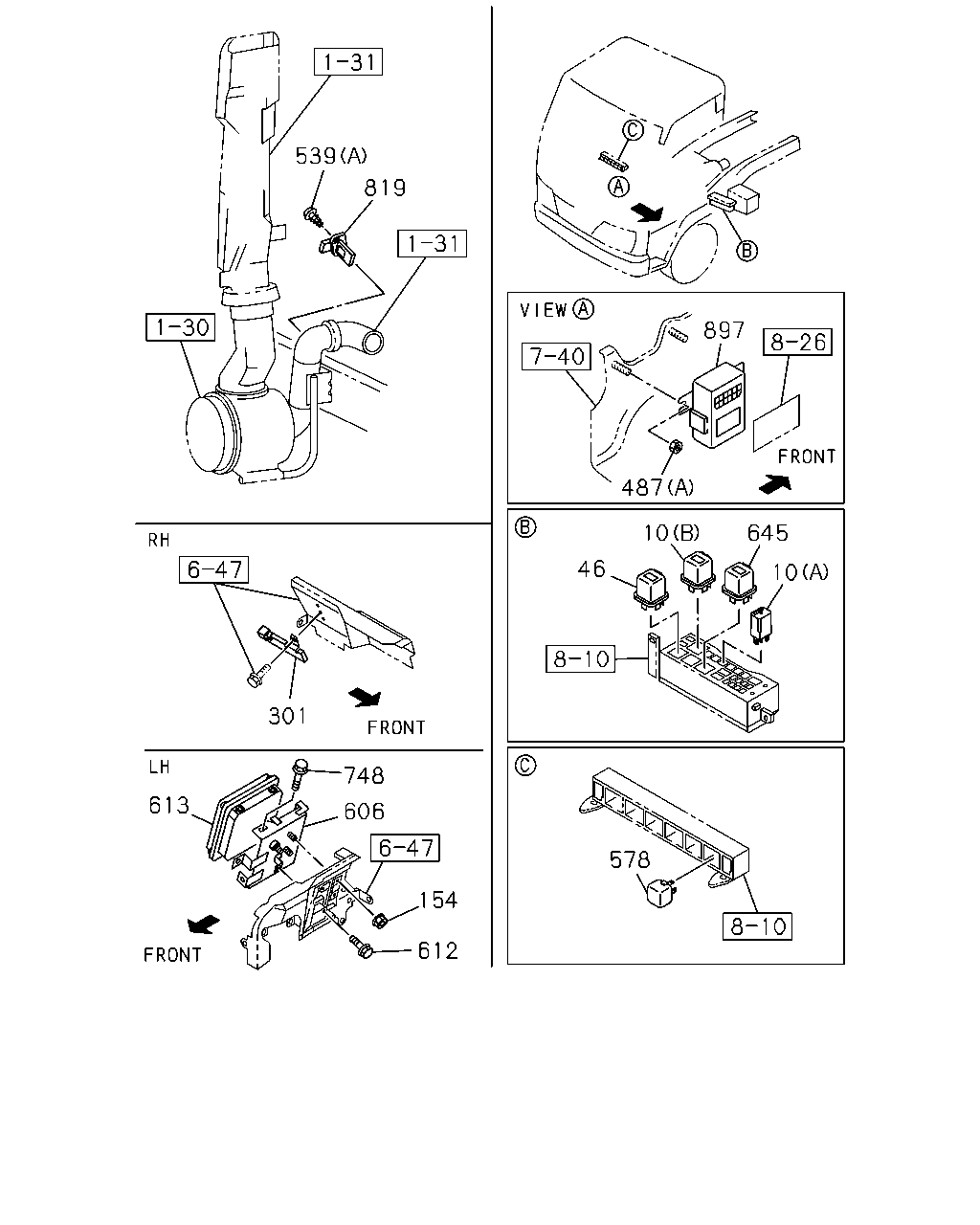

[060A] ENG CONT UNIT,RELAY AND SENSOR (19 parça)
▶
420
539
796
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
420
02.183 BRACKET; HARNESS
(A)
8-98024-050-0
01
1
0609-
420
02.183 BRACKET; HARNESS
(B)
8-98030-725-1
01
1
0609-
539
02.510 SCREW; SENSOR
02.559 (A) M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
0609-
539
02.510 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
0609-
796
01.150 SENSOR; MAP
8-98009-418-0
01
1
0609-
927
1
2
487
4
16
16
445
403
782
420
766
129
100
327
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI
8-98054-984-0
01
1
0609-
2
02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A
8-98029-889-2
01
1
0609-
2
02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V80A(7YN) 24V 50A
8-98029-887-2
01
1
0609-
4
02.042 BOLT; STARTER
M10X15,M14X75 L=103
8-97212-602-0
02
1
0609-
16
02.277 BOLT; GEN
(B) M10X120 FLANGE
0-28056-012-0
01
1
0609-
16
02.277 BOLT; GEN
(A) M8X50 FLANGE
8-98050-130-0
01
1
0609-
100
02.559 CLIP; HARNESS
03.162 L=140
5-09707-031-1
01
1
0609-
100
02.559 CLIP; HARNESS
04.594 L=100
5-09707-036-1
01
1
0609-
129
01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT
8-98023-717-0
01
1
0609-
327
02.361 SENSOR; CAMSHAFT POSITION
8-97312-108-1
01
1
0609-
403
02.343 CLIP; CABLE
L=119.5
1-09707-197-0
01
1
0609-
420
02.183 BRACKET; HARNESS
(A)
8-98024-050-0
01
1
0609-
420
02.183 BRACKET; HARNESS
(B)
8-98030-725-1
01
1
0609-
445
02.483 NUT; BRKT
03.162 M10 FLANGE
0-91180-110-0
01
1
0609-
487
02.343 NUT
01.062 (A) M6 FLANGE
0-91180-106-0
02
1
0609-
487
02.343 NUT
01.062 (B) M8 FLANGE
0-91180-108-0
01
1
0609-
766
02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8
8-97369-404-0
01
1
0609-
782
02.510 BOLT; SENSOR
09.242 M6X16 FLANGE
0-28050-616-0
01
1
0609-
927
02.274 PLATE
8-98039-816-1
01
1
0609-
539
819
897
487
10
645
46
10
301
748
613
606
578
154
612
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
02.100 RELAY; STARTER
08.852 (A) 24V 10A MATSUSHITA
8-97173-035-1
01
1
0609-
10
02.100 RELAY; STARTER
(B) 24V 50A
8-97264-947-0
01
1
0609-
46
02.510 RELAY; GLOW PLUG
24V 50A
8-97173-947-0
01
1
0609-
154
02.510 NUT; BRKT FIX
10.147 M6 W/DISHED WASHER
8-94423-325-0
03
1
0609-0611
154
02.510 NUT; BRKT FIX
04.115 M6 W/DISHED WASHER
8-98029-921-0
03
1
0612-
301
02.510 RESISTOR; DROPPING
8-97357-613-0
01
1
0609-
487
02.343 NUT
01.062 (A) M6 FLANGE
0-91180-106-0
02
1
0609-
487
02.343 NUT
01.062 (B) M8 FLANGE
0-91180-108-0
01
1
0609-
539
02.510 SCREW; SENSOR
02.559 (A) M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
0609-
539
02.510 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
0609-
578
02.510 RELAY; CHARGE WARNING
08.852 24V 10A MATSUSHITA
8-97173-035-1
01
1
0609-
606
03.680 BRACKET; CONT UNIT
8-98018-868-2
01
1
0609-
612
02.510 BOLT; BRKT
09.171 M10X25 FLANGE
0-28051-025-0
01
1
0609-0609
612
02.510 BOLT; BRKT
03.470 M6X22 W/LK&PL WASHER
8-97892-370-0
01
1
0610-
613
03.670 CONTROL UNIT; ENG
8-98037-497-8
01
1
0609-
645
02.510 RELAY; ENG CONT
24V 30A JIDECO
8-97238-540-0
01
1
0609-
748
02.500 BOLT; CONT UNIT
M6X10
0-35050-610-0
03
1
0609-
819
01.150 SENSOR; MASS AIR FLOW (MAF)
03.682
8-97601-967-0
01
1
0609-
897
02.510 DRM
8-98013-144-7
01
1
0609-
