Isuzu WW
▶
BUSES
▶
LV
▶
10695 - LV233(THAI)
▶
2 - Clutch, Transmission, Trans Axle
▶

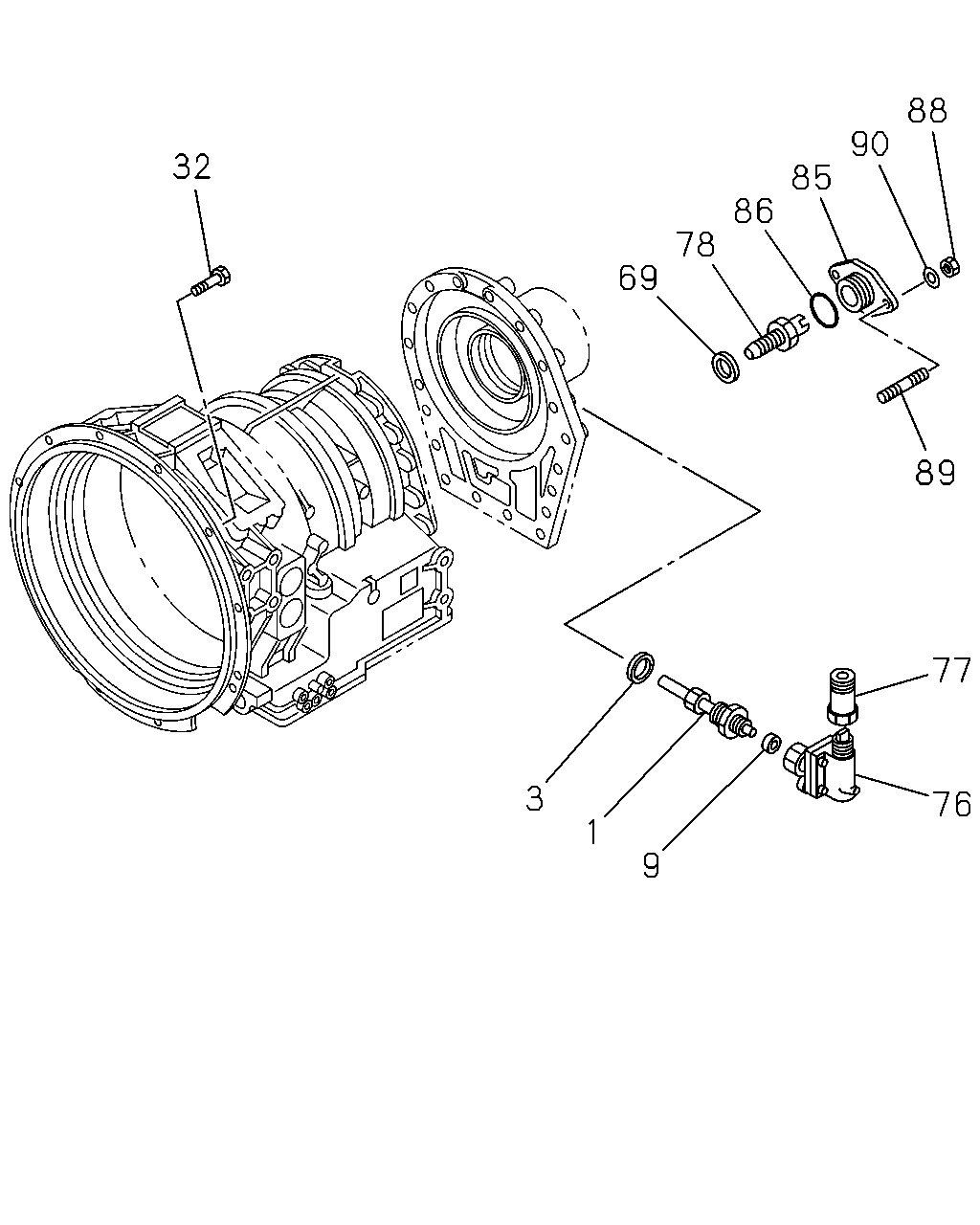

2-25 - SPEEDOMETER DRIVEN GEAR
▶
2-25 — SPEEDOMETER DRIVEN GEAR
(#4558) — 25 parça
88
90
32
85
86
78
69
89
77
3
76
1
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GEAR; DRIVEN,SPD
1-33372-180-0
01
1
9712-
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09635-399-0
01
1
9712-
9
SEAL; OIL,DRIVEN GEAR
1-34149-021-0
01
1
9712-
32
BOLT; CLU HSG TO FLYWHEEL HSG
M12X50 FLANGE
0-28181-250-0
11
1
9712-
69
WASHER; PL
T=0.60
1-34149-023-0
02
1
9712-
69
WASHER; PL
T=0.80
1-34149-024-0
02
1
9712-
69
WASHER; PL
T=1.00
1-34149-025-0
02
1
9712-
69
WASHER; PL
T=1.20
1-34149-026-0
02
1
9712-
69
WASHER; PL
T=1.40
1-34149-027-0
02
1
9712-
69
WASHER; PL
T=1.60
1-34149-028-0
02
1
9712-
69
WASHER; PL
T=2.00
1-34149-030-0
02
1
9712-
69
WASHER; PL
T=2.10
1-34149-031-0
02
1
9712-
69
WASHER; PL
T=2.20
1-34149-032-0
02
1
9712-
69
WASHER; PL
T=2.30
1-34149-033-0
02
1
9712-
69
WASHER; PL
T=2.40
1-34149-034-0
02
1
9712-
69
WASHER; PL
T=2.60
1-34149-035-0
02
1
9712-
69
WASHER; PL
T=3.00
1-34149-037-0
02
1
9712-
76
BOX; GEAR
1-33379-005-0
01
1
9712-
77
NUT; GEAR BOX
1-33379-006-0
01
1
9712-
78
SENSOR; SPD
1-34149-022-0
01
1
9712-
85
COVER; SENSOR
1-34141-019-0
01
1
9712-
86
GASKET; SENSOR COVER
1-34142-030-0
01
1
9712-
88
NUT; SENSOR COVER
1-34149-039-0
02
1
9712-
89
STUD; SENSOR COVER
1-34149-040-0
02
1
9712-
90
WASHER; SENSOR COVER
1-33519-076-0
02
1
9712-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
