0-33 — FAN AND FAN BELT (#45574) — 23 parça

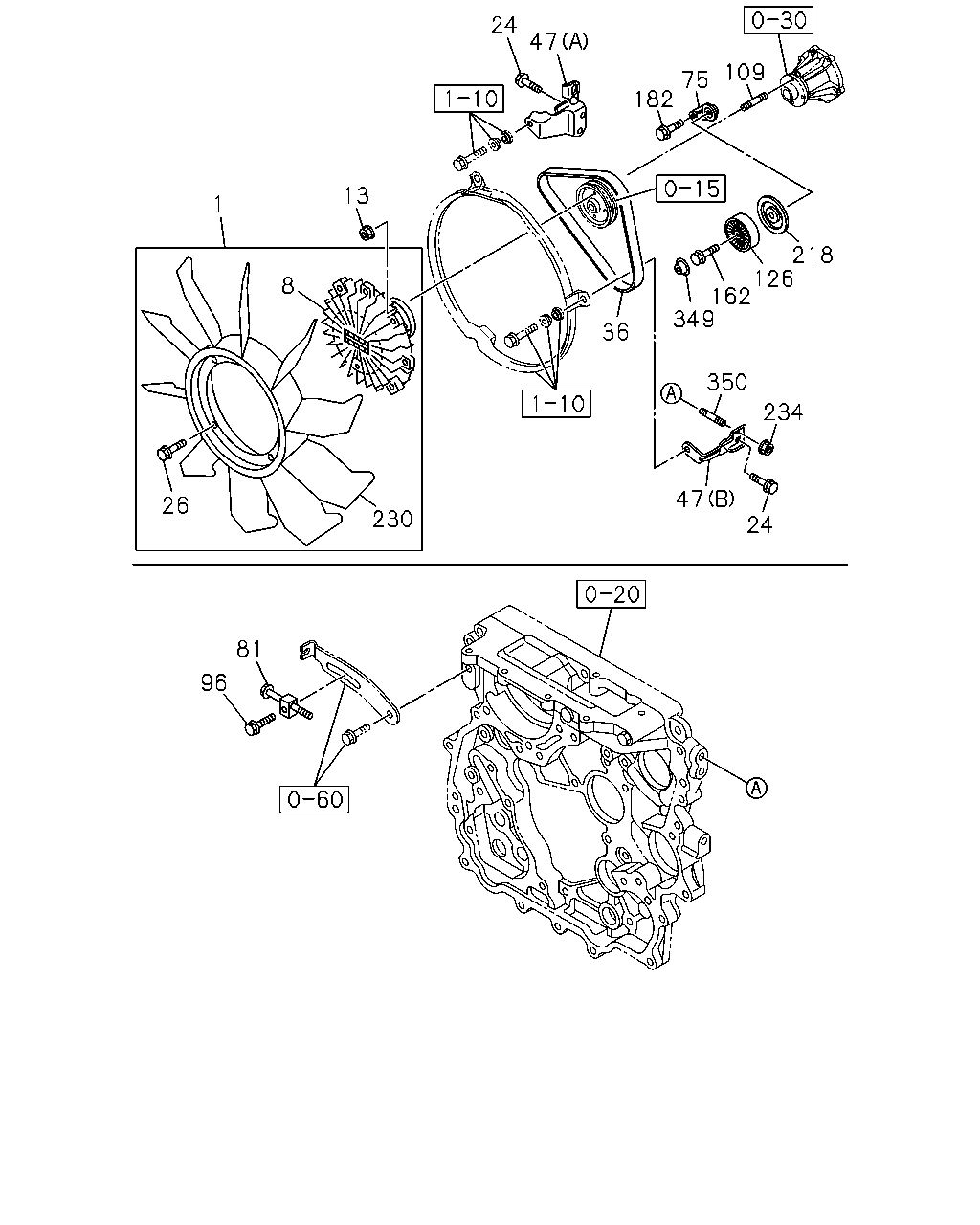

çizim 57983
24 47 109 75 182 13 1 218 126 162 349 8 36 350 234 47 26 230 24 81 96
BalonParca AdiParca NoAdetTipApplied Date
1 01.064 FAN; COOLING
OD=450 		8-97382-603-1 01 1 0609-
8 01.064 CLUTCH; COOLING FAN 8-98024-684-0 01 1 0609-
13 01.062 NUT; COOLING FAN
07.829 M6 FLANGE 		5-09440-004-0 04 1 0609-
24 01.062 BOLT; FAN
03.417 M10X20 FLANGE 		0-28151-020-0 02 1 0609-
24 01.062 BOLT; FAN
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0609-
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0609-
36 01.066 BELT; COOLING FAN
GENERATOR 24V80A(7YN) L=1046 		8-98003-187-0 01 1 0609-
36 01.066 BELT; COOLING FAN
EXC. GENERATOR 24V80A(7YN) L=1006 		8-97362-926-0 01 1 0609-
47 01.060 BRACKET; FAN
(A) 		8-97381-548-0 01 1 0609-0802
47 01.060 BRACKET; FAN
(A) 		8-98064-373-0 01 1 0803-
47 01.060 BRACKET; FAN
(B) 		8-97381-549-1 01 1 0609-
75 01.062 BRACKET; IDLE PULLEY
GENERATOR 24V80A(7YN) 		8-97381-570-1 01 1 0609-
81 02.317 PIECE; SLIDING 8-97132-048-0 01 1 0609-
96 02.317 BOLT; ADJ PLATE
03.403 M8X30 FLANGE 		0-28650-830-0 01 1 0609-
109 01.062 STUD; FAN CLU
M6X18 L=27 		0-41010-618-0 04 1 0609-
126 01.062 PULLEY; IDLE
GENERATOR 24V80A(7YN) 00.659 		8-97371-903-1 01 1 0609-
162 01.062 BOLT; FAN CLU
GENERATOR 24V80A(7YN) 00.685 M10X45 FLANGE 		0-28051-045-0 01 1 0609-
182 01.062 BOLT; BRKT
GENERATOR 24V80A(7YN) 09.173 M8X45 FLANGE 		0-28050-845-0 02 1 0609-
218 01.062 COVER; IDLE PULLEY
GENERATOR 24V80A(7YN) 		8-98045-582-0 01 1 0609-
230 01.055 FAN; COOLING 8-97330-207-0 01 1 0609-
234 01.060 NUT; FAN BRKT
06.164 M8 FLANGE 		5-09440-010-0 01 1 0609-
349 01.252 CAP; IDLE PULLEY
GENERATOR 24V80A(7YN) 00.724 		8-97386-240-0 01 1 0609-
350 02.317 STUD; FAN BRKT
01.428 M8X18 L=30 		0-41010-818-0 01 1 0609-
