Isuzu WW
▶
TRUCKS
▶
NHR
▶
51101 - NHR EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-12 - CYLINDER BLOCK
▶
0-12 — CYLINDER BLOCK
(#45562) — 34 parça
◀

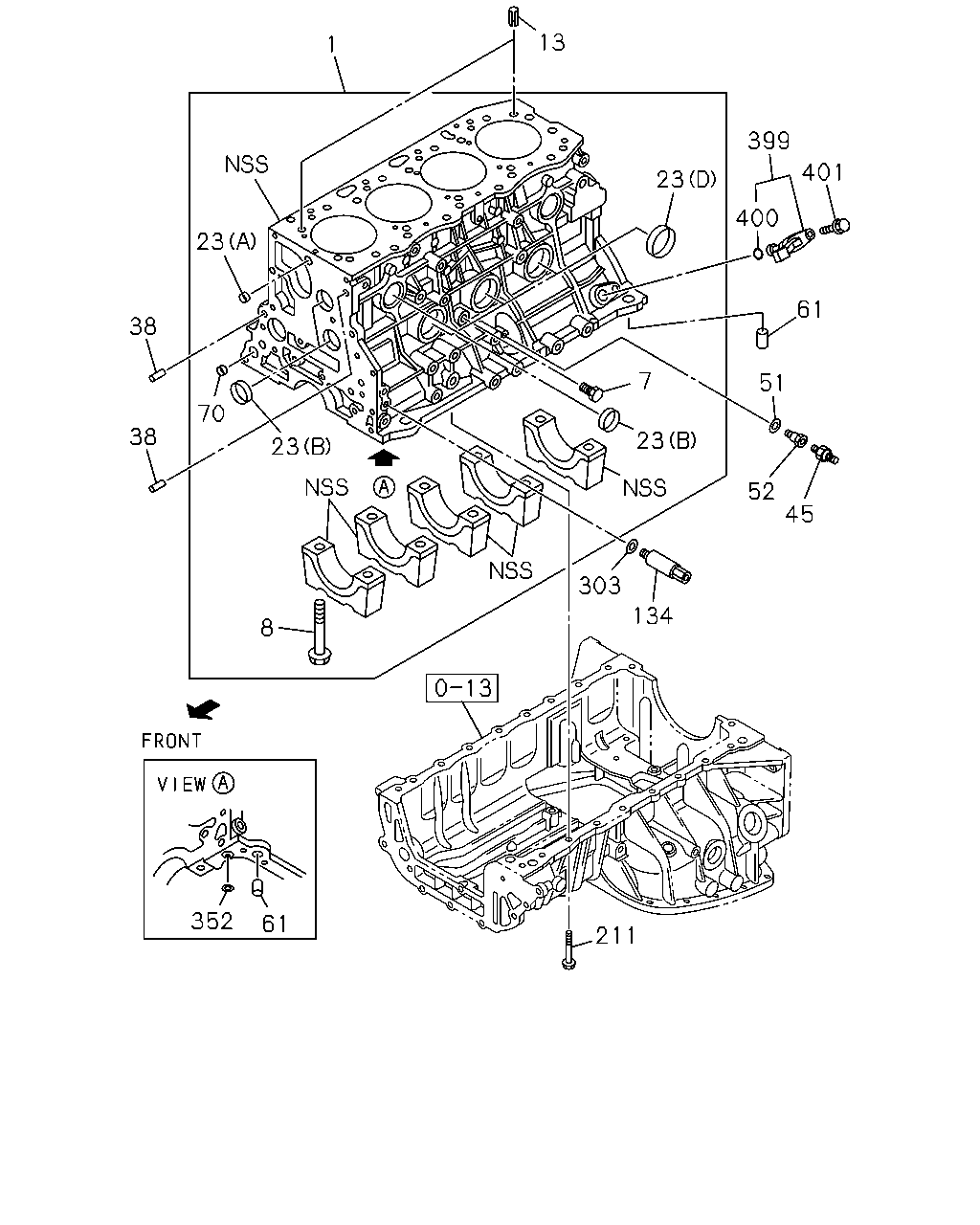

[012A] CYL BLOCK LH SIDE (23 parça)

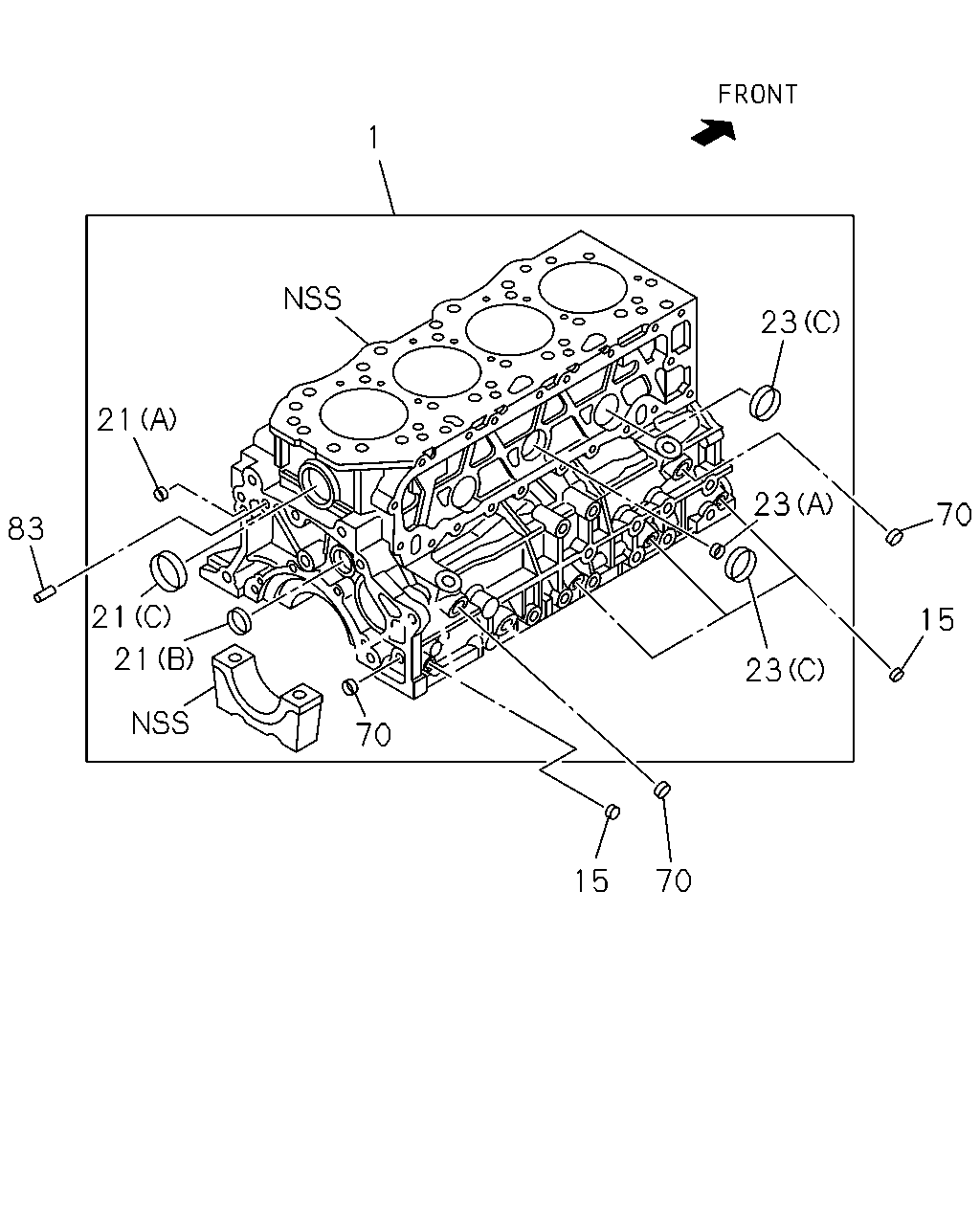

[012A] CYL BLOCK RH SIDE (11 parça)
▶
13
1
399
401
23
400
23
61
38
7
51
70
38
23
23
52
45
303
134
8
352
61
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.033 BLOCK ASM; CYL
8-98013-824-2
01
1
0609-
7
00.034 PLUG; WATER DRAIN
PT1/4
9-09664-001-0
01
1
0609-
8
00.056 BOLT; BRG CAP
M14X89 FLANGE
8-94432-642-0
10
1
0609-
13
00.293 DOWEL; C/BL TO HD
8-94453-344-0
02
1
0609-
23
00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18
5-11219-008-0
02
1
0609-
23
00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=32
5-11219-015-0
04
1
0609-
23
00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36
5-11219-018-0
02
1
0609-
23
00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=45
8-97036-550-1
03
1
0609-
38
00.206 PIN; TIMING GEAR CASE
04.510 OD=10 L=20
8-97135-423-0
02
1
0609-
45
01.800 SWITCH; OIL PRESSURE
8-97176-230-0
01
1
0609-
51
01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94336-292-0
01
1
0609-
52
01.803 NIPPLE; OIL PRESS WARNING SW,C/B
8-94167-750-2
01
1
0609-0709
52
01.803 NIPPLE; OIL PRESS WARNING SW,C/B
8-98089-872-0
01
1
0710-
61
00.206 PIN; STRAIGHT
01.428
9-09878-597-0
02
1
0609-
70
00.034 CUP; SEALING,FRT & RR
00.253 OD=16
5-11129-006-0
06
1
0609-
134
01.531 PLUG; OIL PUMP
8-97316-983-4
01
1
0609-
211
01.428 BOLT; CRANKCASE
06.216 M8X25 FLANGE
0-28650-825-0
19
1
0609-
211
01.428 BOLT; CRANKCASE
00.685 M8X40 FLANGE
0-28650-840-0
01
1
0609-
303
01.531 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0
9-09571-410-0
01
1
0609-
352
01.429 GASKET; C/BL TO CRANKCASE
ALSO INCLUDED IN GASKET SET(ENGINE).
9-09566-116-0
01
1
0609-
399
00.724 SENSOR; CRANKSHAFT POSITION
02.361
8-97312-108-1
01
1
0609-
400
00.724 GASKET; CRANKSHAFT POSITION SENS
ID=14.2 OD=18.8
8-97369-404-0
01
1
0609-
401
00.724 BOLT; SENSOR
09.242 M6X16 FLANGE
0-28050-616-0
01
1
0609-
1
23
21
23
70
83
21
15
21
23
70
15
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.033 BLOCK ASM; CYL
8-98013-824-2
01
1
0609-
15
01.531 PLUG; OIL GALLERY
PT1/8
1-09605-050-0
04
1
0609-
21
00.034 CUP; SEALING,RR
00.253 (A) OD=12.3
5-09600-013-0
01
1
0609-
21
00.034 CUP; SEALING,RR
(B) OD=38
5-11219-017-0
01
1
0609-
21
00.034 CUP; SEALING,RR
(C) OD=36
5-11219-018-0
01
1
0609-
23
00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18
5-11219-008-0
02
1
0609-
23
00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=32
5-11219-015-0
04
1
0609-
23
00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36
5-11219-018-0
02
1
0609-
23
00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=45
8-97036-550-1
03
1
0609-
70
00.034 CUP; SEALING,FRT & RR
00.253 OD=16
5-11129-006-0
06
1
0609-
83
00.685 PIN; FLYWHEEL HSG
08.939 OD=10 L=32
9-08161-032-0
01
1
0609-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
