10695 - LV233(THAI)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

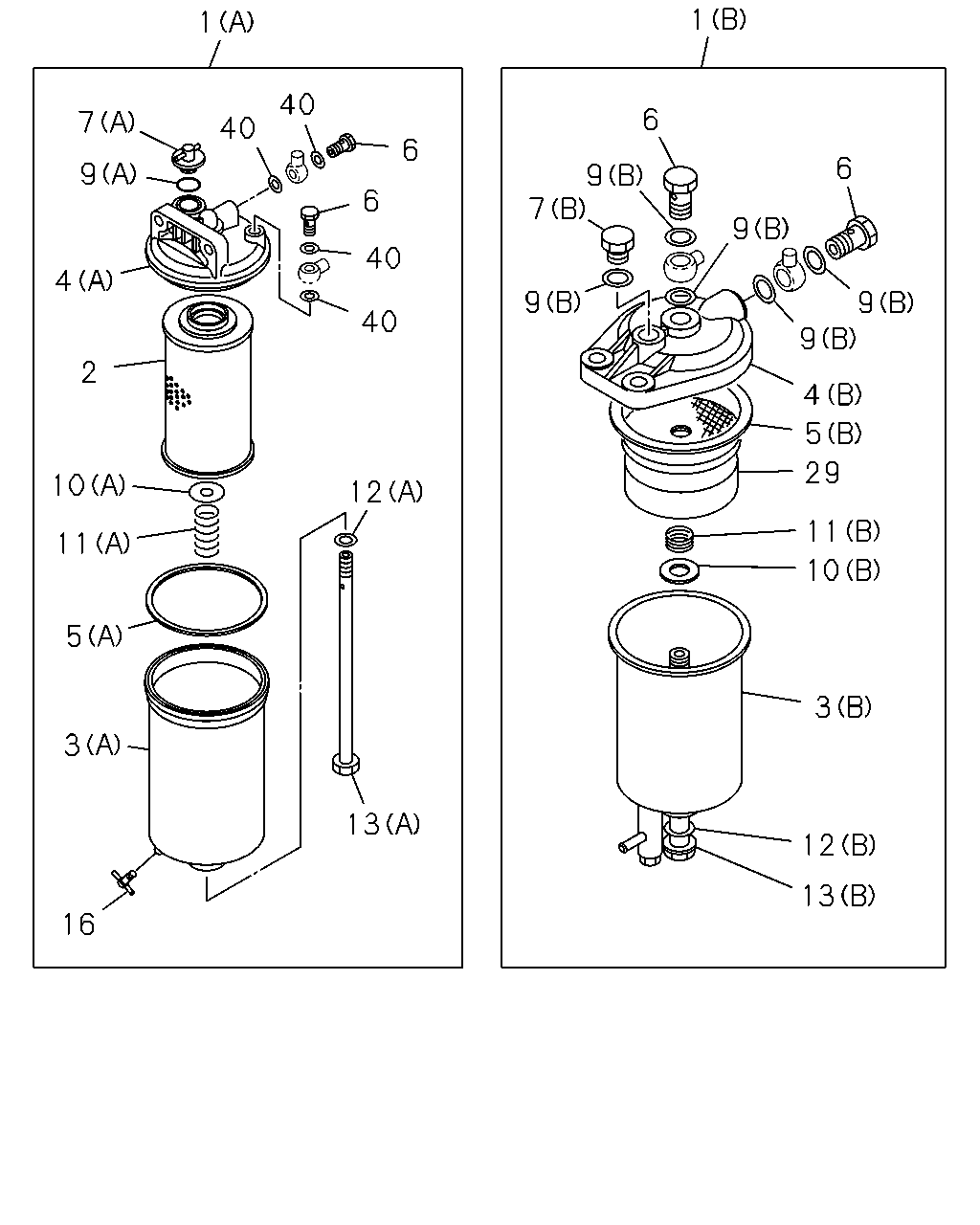

1-45 - WATER SEDIMENTER; FUEL
▶
1-45 — WATER SEDIMENTER; FUEL
(#4556) — 26 parça
1
1
40
6
7
40
6
6
9
9
7
6
9
40
4
9
9
9
40
2
4
5
29
10
12
11
11
10
5
3
3
13
12
13
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SEDIMENTER; FUEL
(B)
1-13200-363-1
01
1
9712-
1
SEDIMENTER; FUEL
(A)
1-13200-396-1
01
1
9712-
2
ELEMENT; FUEL FILTER
1-13240-020-0
01
1
9712-
3
BODY ASM; SEDIMENTER
(A)
1-13211-069-0
01
1
9712-
3
BODY ASM; SEDIMENTER
(B)
1-13211-166-0
01
1
9712-
4
COVER; UPR,SEDIMENTER ASM
(A)
1-13212-055-0
01
1
9712-
4
COVER; UPR,SEDIMENTER ASM
(B)
9-13212-077-0
01
1
9712-
5
GASKET; UPR COVER,SEDIMENTER
(B)
1-09630-050-0
01
1
9712-
5
GASKET; UPR COVER,SEDIMENTER
(A)
1-09630-072-0
01
1
9712-
6
CONNECTOR ASM; SEDIMENTER
M14X27 FLANGE
1-09675-086-0
04
1
9712-
7
PLUG; DRAIN,SEDIMENTER
(A)
1-13219-059-0
01
1
9712-
7
PLUG; DRAIN,SEDIMENTER
(B) M14X9
9-99202-314-0
01
1
9712-
9
GASKET; DRAIN PLUG & CONNECTOR
(B) ID=14.2 OD=19.2
1-09630-085-0
05
1
9712-
9
GASKET; DRAIN PLUG & CONNECTOR
(A)
1-13219-060-0
01
1
9712-
10
SEAT; ELEMENT,SEDIMENTER
(B)
1-13249-015-0
01
1
9712-
10
SEAT; ELEMENT,SEDIMENTER
(A)
1-13249-020-0
01
1
9712-
11
SPRING; SET,SCREEN
(B)
1-13249-014-0
01
1
9712-
11
SPRING; SET,SCREEN
(A)
1-13249-019-0
01
1
9712-
12
GASKET; CENTER BOLT
(A)
1-13219-057-0
01
1
9712-
12
GASKET; CENTER BOLT
(B)
9-09920-586-0
01
1
9712-
13
BOLT; CENTER,SEDIMENTER
(B)
1-13231-022-0
01
1
9712-
13
BOLT; CENTER,SEDIMENTER
(A)
1-13231-030-0
01
1
9712-
16
COCK ASM; DRAIN
1-13219-058-0
01
1
9712-
29
SCREEN ASM; SEDIMENTER
1-13249-018-0
01
1
9712-
31
VALVE; SEDIMENTER
1-13219-142-0
01
1
9712-
40
GASKET; CONNECTOR TO COVER
ID=14.2 OD=19.2
1-09630-085-0
04
1
9712-
