◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#45556) — 8 parça

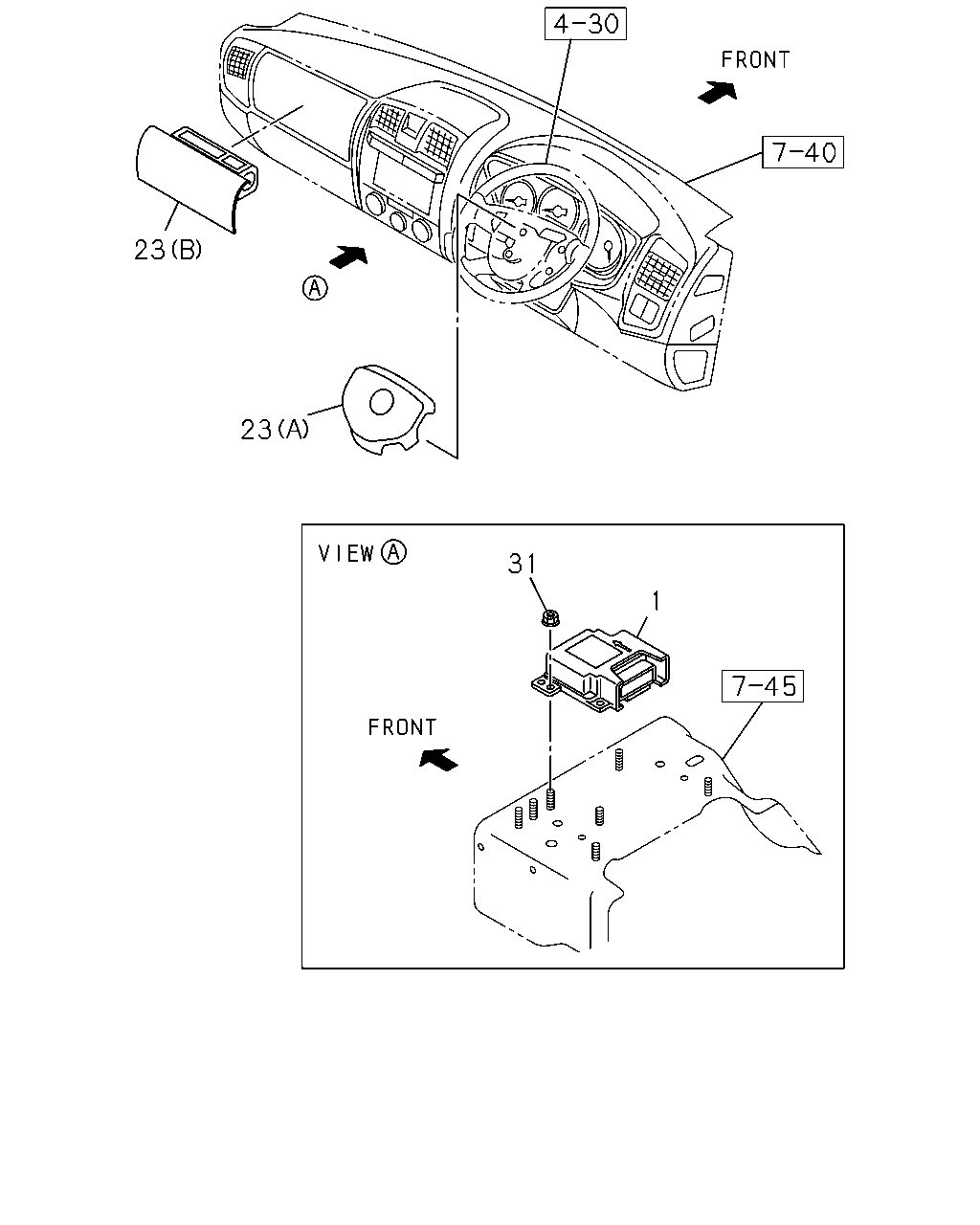

çizim 50341
23 23 31 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97360-405-0 01 1 0303-0305 ● ●
1 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER<7FA> THA 		8-97360-407-0 01 1 0306-0408 ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<7FA> (A) DARK GRAY THA 		8-97294-068-5 01 1 0303-0308 ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<7FA> (A) DARK GRAY THA 		8-97396-931-0 01 1 0309-0312 ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<7FA> (A) DARK GRAY THA 		8-97397-845-0 01 1 0401-0408 ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<7FA> (B) DARK GRAY THA 		8-97395-749-0 01 1 0303-0305 ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<7FA> (B) DARK GRAY THA 		8-97396-840-0 01 1 0306-0408 ● ●
31 NUT
AIR BAG DRIVER & PASSENGER<7FA> M6 FLANGE THA 		0-91180-206-0 03 1 0303-0408 ● ●
