◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-41 - UNDER COVER; INSTRUMENT ▶
7-41 — UNDER COVER; INSTRUMENT (#45555) — 22 parça

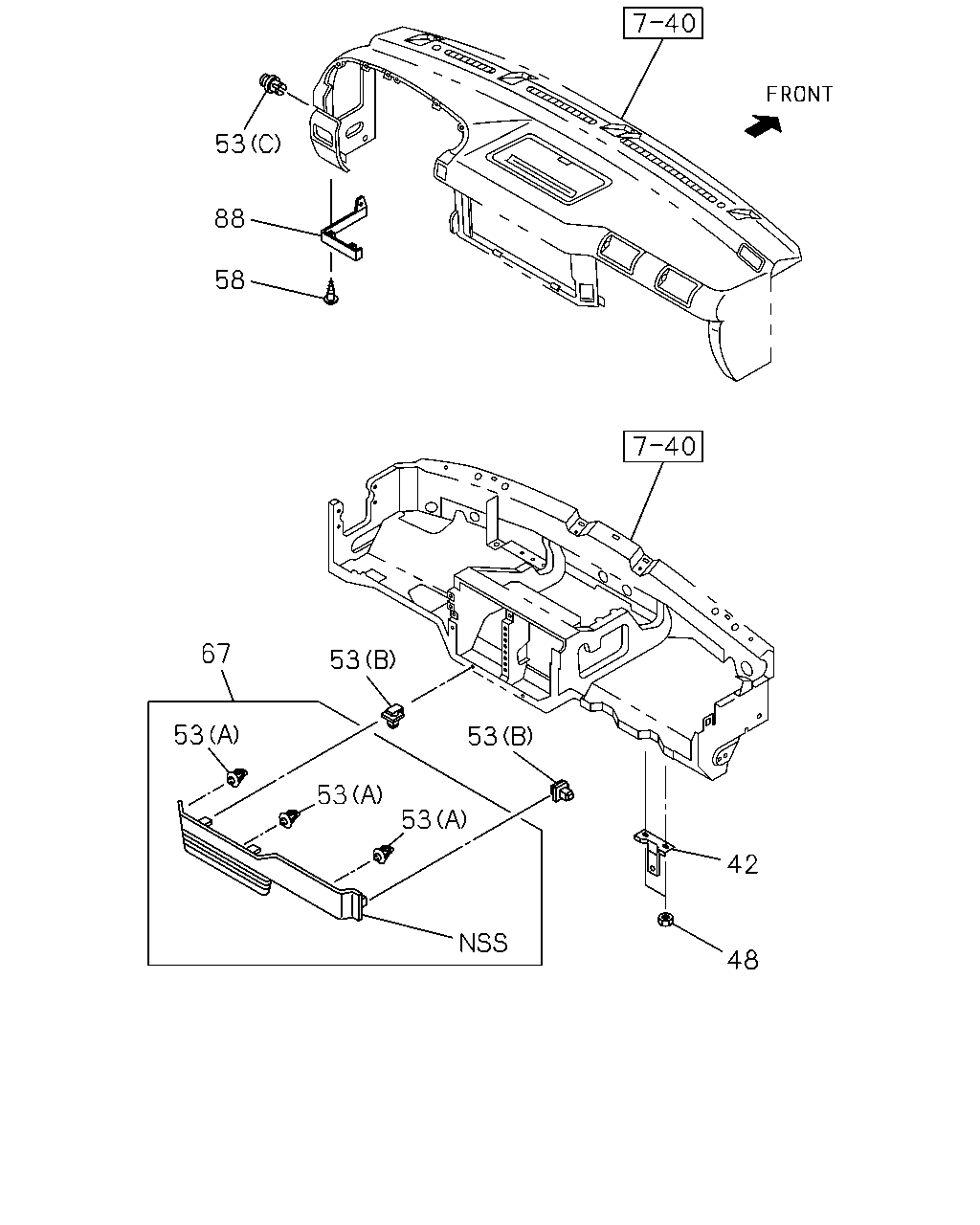

çizim 55075
53 88 58 67 53 53 53 53 53 42 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
42 16.110 BRACKET; UNDER COVER 8-97217-299-1 01 1 0211-0501 ● ● ● ● ● ●
42 16.110 BRACKET; UNDER COVER 8-97217-299-1 01 1 0502- ● ● ● ● ●
48 16.081 NUT; UNDER COVER
04.594 M6 FLANGE 		0-91150-106-0 02 1 0211-0501 ● ● ● ● ● ●
48 16.081 NUT; UNDER COVER
04.594 M6 FLANGE 		0-91150-106-0 02 1 0502-0602 ● ● ● ● ●
48 16.081 NUT; UNDER COVER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
DUMP CHASSIS(V4D) 16.800 (C) BLACK 		8-94493-404-0 01 1 0211-0703 ●
53 16.085 CLIP; UNDER COVER
EXC. DUMP CHASSIS(V4D) 06.521 (C) DARK GRAY 		8-97857-542-0 01 1 0211-0501 ●
53 16.085 CLIP; UNDER COVER
06.521 (C) DARK GRAY 		8-97857-542-0 01 1 0211-0501 ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
EXC. DUMP CHASSIS(V4D) 06.521 (C) DARK GRAY 		8-97582-246-0 01 1 0502-0703 ●
53 16.085 CLIP; UNDER COVER
06.521 (C) DARK GRAY 		8-97582-246-0 01 1 0502-0703 ● ● ● ●
53 16.085 CLIP; UNDER COVER
06.521 (C) DARK GRAY 		8-97582-246-0 01 1 0704- ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
16.100 (A) 		8-97853-169-0 04 1 0211-0501 ● ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
16.100 (A) 		8-97853-169-0 04 1 0502- ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
(B) 		8-97853-249-5 03 1 0211-0501 ● ● ● ● ● ●
53 16.085 CLIP; UNDER COVER
(B) 		8-97853-249-5 03 1 0502- ● ● ● ● ●
58 09.264 SCREW; UNDER COVER
16.067 M5X14 		8-94279-325-0 02 1 0211-0501 ● ● ● ● ● ●
58 09.264 SCREW; UNDER COVER
16.067 M5X14 		8-94279-325-0 02 1 0502-0612 ● ● ● ● ●
58 09.264 SCREW; UNDER COVER
09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 02 1 0701- ● ● ● ● ●
67 16.081 COVER; UNDER,INST PNL 8-97857-188-3 01 1 0211-0501 ● ● ● ● ● ●
67 16.081 COVER; UNDER,INST PNL 8-97857-188-3 01 1 0502- ● ● ● ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
DARK GRAY 		8-97857-539-1 01 1 0211-0501 ● ● ● ● ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
DARK GRAY 		8-97585-432-1 01 1 0502- ● ● ● ● ●
