◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#45551) — 196 parça

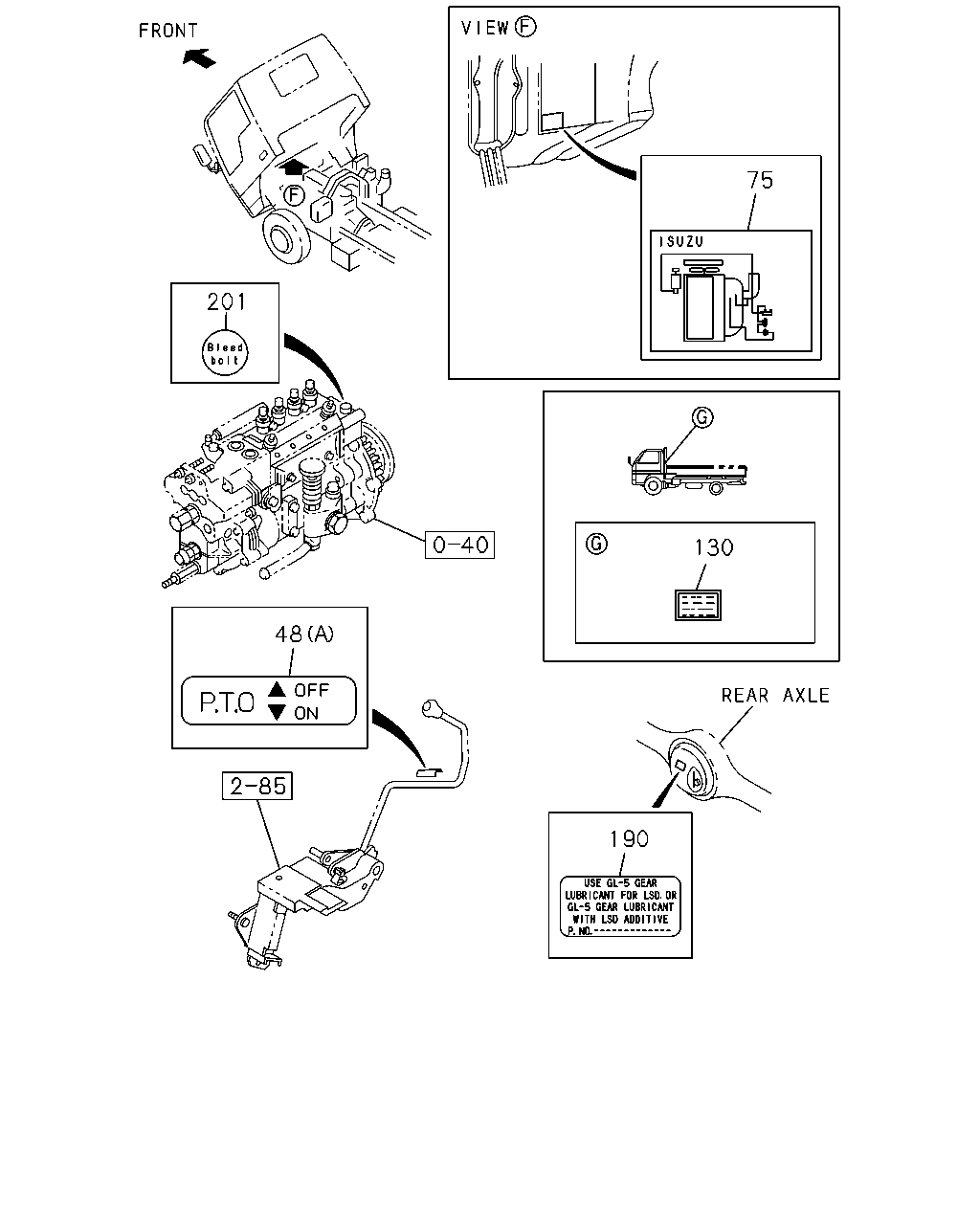

çizim 11593
75 201 130 48 190
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) (A) 		8-97116-561-0 01 1 0211-0501 ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) (A) 		8-97116-561-0 01 1 0502-0708 ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (B) 		8-94313-054-0 01 1 0211-0501 ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (B) 		8-94313-054-0 01 1 0502-0504 ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (B) 		8-94313-054-0 01 1 0502-0504 ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (B) 		8-94313-054-0 01 1 0505- ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (B) 		8-94469-277-0 01 1 0211-0501 ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (B) 		8-94469-277-0 01 1 0502-0504 ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (B) 		8-94469-277-0 01 1 0502-0504 ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (B) 		8-94469-277-0 01 1 0505- ● ● ● ● ●
75 03.680 PLATE; CAUTION,HOSE ROUTING
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> 		8-97183-915-1 01 1 0211-0501 ● ● ● ●
75 03.680 PLATE; CAUTION,HOSE ROUTING
4HE1-TCN ENG(RDR) TAIWAN EQUIPMENT(RWV) 		8-97183-915-1 01 1 0502- ●
75 03.680 PLATE; CAUTION,HOSE ROUTING
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) 		8-97183-915-1 01 1 0502- ● ● ●
130 08.808 PLATE; CAUTION,GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94192-480-0 02 1 0211-0501 ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4HF1-S ENG(RLS),4HE1 ENG(RLY) FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42) G.V.W. 6.0-6.5TON(RPV) LIMITED SLIP DIFF<6LV> ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97200-740-0 01 1 0211-0501 ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42) G.V.W. 6.0-6.5TON(RPV) LIMITED SLIP DIFF<6LV> ENGINE POWER N-SPEC(7QV) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> 		8-97200-740-0 01 1 0211-0501 ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42) G.V.W. 6.0-6.5TON(RPV) LIMITED SLIP DIFF<6LV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97200-740-0 01 1 0502- ●
190 08.808 PLATE; CAUTION,OIL CHANGE
REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41),FINAL GEARRATIO 43/7(R42) G.V.W. 6.0-6.5TON(RPV) LIMITED SLIP DIFF<6LV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,FRAME STRAIGHT TYPE<7KJ> 		8-97200-740-0 01 1 0502- ● ●
201 08.808 PLATE; CAUTION,BLEED BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97192-288-0 01 1 0211-0501 ● ● ● ● ● ●
201 08.808 PLATE; CAUTION,BLEED BOLT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 		8-97192-288-0 01 1 0502- ● ● ● ●

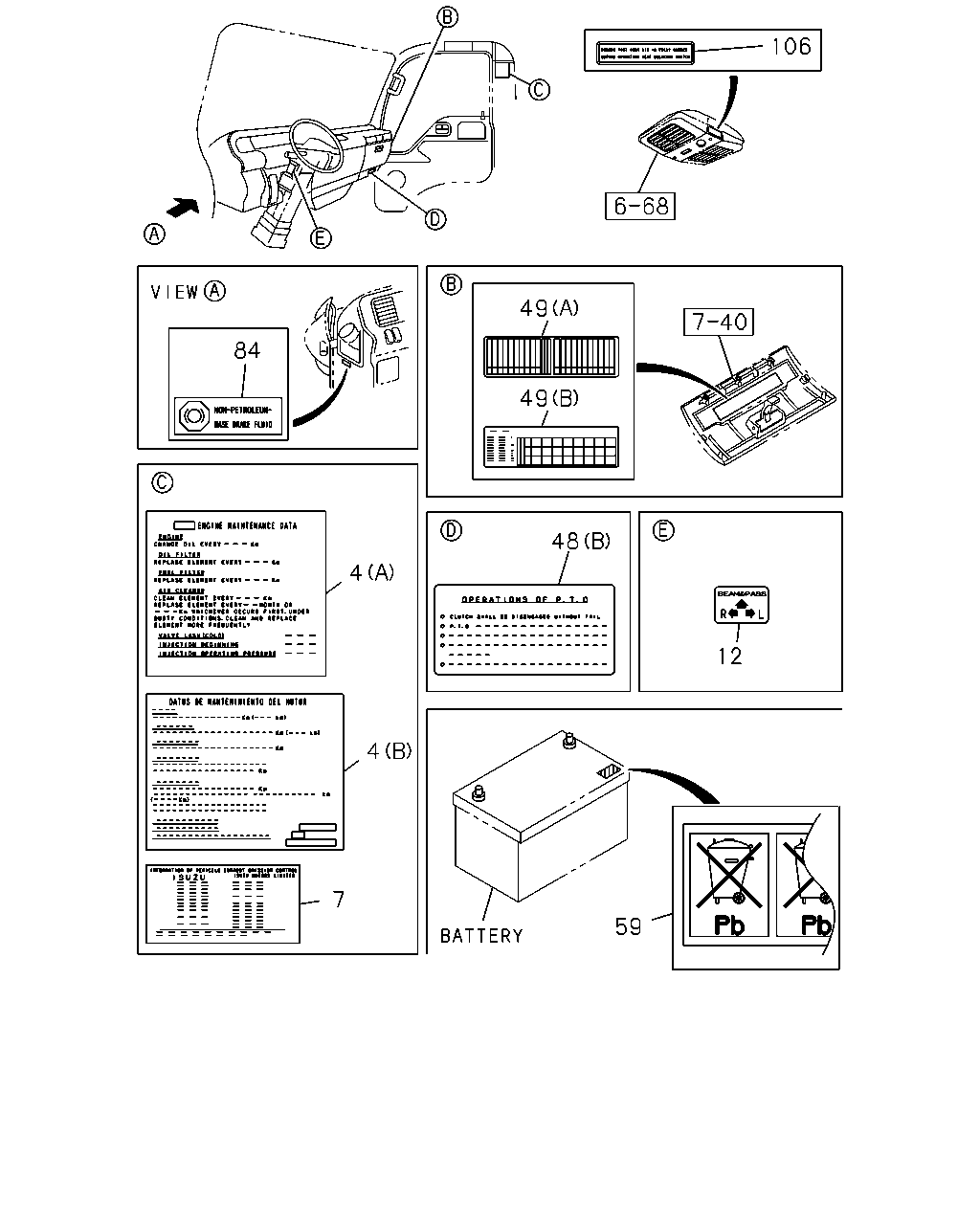

çizim 53717
106 49 84 49 48 4 12 4 7 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) CAUTION SPANISH<YN1> ENGINE POWER N-SPEC(7QV) (B) 		8-97215-749-0 01 1 0211-0501 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) CAUTION SPANISH<YN1> EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-97189-399-0 01 1 0211-0501 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) CAUTION SPANISH<YN1> (B) 		8-97189-399-0 01 1 0211-0501 ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) CAUTION SPANISH<YN1> (B) 		8-97189-399-0 01 1 0502- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> (B) 		8-97189-399-0 01 1 0502- ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) EXC. CAUTION SPANISH<YN1>,ENGINE POWER N-SPEC(7QV) (A) 		8-97189-398-0 01 1 0211-0501 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) EXC. CAUTION SPANISH<YN1> (A) 		8-97189-398-0 01 1 0211-0501 ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) EXC. CAUTION SPANISH<YN1> (A) 		8-97189-398-0 01 1 0502- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (A) 		8-97189-398-0 01 1 0502- ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. CAUTION SPANISH<YN1> (A) 		8-97215-748-0 01 1 0211-0501 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CAUTION SPANISH<YN1> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97189-404-0 01 1 0211-0501 ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-N ENG(RJZ) CAUTION SPANISH<YN1> (B) 		8-97215-749-0 01 1 0502- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) EXC. CAUTION SPANISH<YN1>,CHARGE AIR COOLER<6PL> (A) 		8-97189-403-0 01 1 0211-0501 ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HF1-N ENG(RJZ) EXC. CAUTION SPANISH<YN1> (A) 		8-97215-748-0 01 1 0502- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CAUTION SPANISH<YN1> CHARGE AIR COOLER<6PL> (B) 		8-97189-406-0 01 1 0211-0501 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CAUTION SPANISH<YN1> CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) (B) 		8-97189-406-0 01 1 0211-0501 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) CAUTION SPANISH<YN1> (B) 		8-97189-406-0 01 1 0502-0506 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) CAUTION SPANISH<YN1> EXC. EURO3 SPECIFICATION(NT3) (B) 		8-97189-406-0 01 1 0507- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CAUTION SPANISH<YN1> (A) 		8-97189-405-0 01 1 0211-0501 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3), CAUTIONSPANISH<YN1> (A) 		8-97189-405-0 01 1 0211-0501 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. CAUTION SPANISH<YN1> (A) 		8-97189-405-0 01 1 0502-0506 ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. EURO3 SPECIFICATION(NT3), CAUTIONSPANISH<YN1> (A) 		8-97189-405-0 01 1 0507- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) TURBOCHARGER(K51) CAUTION SPANISH<YN1> EXC. COLOMBIA EQUIPMENT(X74) (B) 		8-97211-906-0 01 1 0211-0501 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) TURBOCHARGER(K51) CAUTION SPANISH<YN1> (B) 		8-97211-906-0 01 1 0211-0501 ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1-T ENG(RDP) CAUTION SPANISH<YN1> EXC. COLOMBIA EQUIPMENT(X74) (B) 		8-97211-906-0 01 1 0502-0612 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1-T ENG(RDP) CAUTION SPANISH<YN1> EXC. COLOMBIA EQUIPMENT(X74) (B) 		8-97211-906-0 01 1 0701- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1-T ENG(RDP) CAUTION SPANISH<YN1> (B) 		8-97211-906-0 01 1 0701- ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) TURBOCHARGER(K51) COLOMBIA EQUIPMENT(X74) EXC. CAUTION SPANISH<YN1> (A) 		8-97226-451-0 01 1 0211-0501 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1-T ENG(RDP) COLOMBIA EQUIPMENT(X74) EXC. CAUTION SPANISH<YN1> (A) 		8-97226-451-0 01 1 0502- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) TURBOCHARGER(K51) COLOMBIA EQUIPMENT(X74) CAUTION SPANISH<YN1> (B) 		8-97226-452-0 01 1 0211-0501 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1-T ENG(RDP) COLOMBIA EQUIPMENT(X74) CAUTION SPANISH<YN1> (B) 		8-97226-452-0 01 1 0502- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. COLOMBIA EQUIPMENT(X74),CAUTION SPANISH<YN1> (A) 		8-97187-424-0 01 1 0211-0501 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. CAUTION SPANISH<YN1> (A) 		8-97187-424-0 01 1 0211-0501 ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1-T ENG(RDP) EXC. COLOMBIA EQUIPMENT(X74),CAUTION SPANISH<YN1> (A) 		8-97187-424-0 01 1 0502-0612 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1-T ENG(RDP) EXC. COLOMBIA EQUIPMENT(X74),CAUTION SPANISH<YN1> (A) 		8-97187-424-0 01 1 0701- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1-T ENG(RDP) EXC. CAUTION SPANISH<YN1> (A) 		8-97187-424-0 01 1 0701- ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) CAUTION SPANISH<YN1> EXC. TURBOCHARGER(K51) (B) 		8-97189-402-1 01 1 0211-0501 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) CAUTION SPANISH<YN1> (B) 		8-97189-402-1 01 1 0502- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),CAUTION SPANISH<YN1> (A) 		8-97189-401-1 01 1 0211-0501 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) EXC. CAUTION SPANISH<YN1> (A) 		8-97189-401-1 01 1 0502- ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) CAUTION SPANISH<YN1> CHARGE AIR COOLER<6PL> (A) 		8-97260-875-0 01 1 0211-0501 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> (A) 		8-97260-875-0 01 1 0211-0501 ●
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) CHARGE AIR COOLER<6PL> EXC. CAUTION SPANISH<YN1> (B) 		8-97260-874-0 01 1 0211-0501 ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (B) 		8-97260-874-0 01 1 0211-0501 ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCS ENG(RJS) CAUTION SPANISH<YN1> (B) 		8-98013-424-0 01 1 0507-0606 ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CAUTION SPANISH<YN1> (B) 		8-98013-424-0 01 1 0607- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCS ENG(RJS) EXC. CAUTION SPANISH<YN1> (A) 		8-98013-423-0 01 1 0507-0606 ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. CAUTION SPANISH<YN1> (A) 		8-98013-423-0 01 1 0607- ● ●
7 03.680 LABEL; EMISSION
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> EXC. ENGINE POWER N-SPEC(7QV) 		8-97201-735-0 01 1 0211-0501 ● ● ● ●
7 03.680 LABEL; EMISSION
4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) 		8-97201-735-0 01 1 0502- ● ● ●
7 03.680 LABEL; EMISSION
4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 		8-97215-747-0 01 1 0211-0501 ● ● ● ●
7 03.680 LABEL; EMISSION
4HE1-TCN ENG(RDR) TAIWAN EQUIPMENT(RWV) 		8-97215-747-0 01 1 0502- ● ● ● ●
12 02.459 LABEL; TURN 8-94273-445-0 01 1 0211-0501 ● ● ● ● ● ●
12 02.459 LABEL; TURN 8-94273-445-0 01 1 0502- ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) (A) 		8-97116-561-0 01 1 0211-0501 ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) (A) 		8-97116-561-0 01 1 0502-0708 ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (B) 		8-94313-054-0 01 1 0211-0501 ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (B) 		8-94313-054-0 01 1 0502-0504 ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (B) 		8-94313-054-0 01 1 0502-0504 ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (B) 		8-94313-054-0 01 1 0505- ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (B) 		8-94469-277-0 01 1 0211-0501 ● ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (B) 		8-94469-277-0 01 1 0502-0504 ● ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (B) 		8-94469-277-0 01 1 0502-0504 ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (B) 		8-94469-277-0 01 1 0505- ● ● ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
CHARGE AIR COOLER<6PL> (A) 		8-97215-898-0 01 1 0211-0501 ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (A) 		8-97215-898-0 01 1 0211-0501 ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
(A) 		8-97215-898-0 01 1 0211-0501 ●
49 08.808 PLATE; CAUTION,FUSE BOX
(B) 		8-97377-715-0 01 1 0502- ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
VOLTAGE 24V<7AE> (B) 		8-97377-715-0 01 1 0502- ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97182-191-0 01 1 0211-0309 ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
VOLTAGE 24V<7AE> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHARGE AIR COOLER<6PL> (A) 		8-97182-191-0 01 1 0211-0309 ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97182-191-0 01 1 0310-0501 ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
VOLTAGE 24V<7AE> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURKISH EQUIPMENT(S6S),CHARGE AIR COOLER<6PL> (A) 		8-97182-191-0 01 1 0310-0501 ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
VOLTAGE 24V<7AE> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHARGE AIR COOLER<6PL> (A) 		8-97182-191-0 01 1 0310-0501 ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> (B) 		8-97377-713-0 01 1 0502-0612 ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> (B) 		8-97377-713-0 01 1 0502-0612 ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> (B) 		8-97377-713-0 01 1 0701- ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
SAUDI ARABIA EQUIPMENT(EU2) VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97358-021-0 01 1 0211-0309 ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
SAUDI ARABIA EQUIPMENT(EU2),TURKISH EQUIPMENT(S6S) VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97358-021-0 01 1 0310-0501 ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
SAUDI ARABIA EQUIPMENT(EU2) VOLTAGE 24V<7AE> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97358-021-0 01 1 0310-0501 ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> (A) 		8-97203-577-0 01 1 0211-0501 ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HK1-TCS ENG(RJS) (B) 		8-97377-717-0 01 1 0507-0606 ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97377-717-0 01 1 0607- ● ●
59 08.808 PLATE; CAUTION,BATTERY
RUSSIA EQUIPMENT(B12) 10 PER 1 SHEET 		8-97116-760-0 02 1 0710- ● ●
59 08.808 PLATE; CAUTION,BATTERY
ISRAEL EQUIPMENT(7LX) 10 PER 1 SHEET 		8-97116-760-0 02 1 0211-0501 ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
10 PER 1 SHEET 		8-97116-760-0 02 1 0211-0501 ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
ISRAEL EQUIPMENT(7LX) 		8-97062-755-2 01 1 0211-0211 ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID 8-97062-755-2 01 1 0211-0211 ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 		8-97062-755-2 01 1 0212-0501 ● ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
TURKISH EQUIPMENT(S6S) 		8-97062-755-2 01 1 0502-0506 ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
TURKISH EQUIPMENT(S6S) 		8-97062-755-2 01 1 0507-0709 ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 		8-97062-755-2 01 1 0710-0910 ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
TURKISH EQUIPMENT(S6S) 		8-97062-755-2 01 1 0911- ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
4 WHEEL ANTI LOCK BRAKE<JE5> CHILE EQUIPMENT(6KB) BRK WHL LK CONT LSPV<6PH> 		8-97062-755-2 01 1 0911- ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 		8-97062-755-2 01 1 0911- ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
RUSSIA EQUIPMENT(B12) 		8-97062-755-2 01 1 0911- ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97580-590-0 01 1 0211-0501 ● ● ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97580-590-0 01 1 0502- ● ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-97580-589-0 01 1 0211-0501 ● ● ● ● ● ●
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-97580-589-0 01 1 0502- ● ● ● ● ●
çizim 54068
35 35 5 5 9 279 273
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 05.880 LABEL; TIRE AIR PRESSURE
(AUJ),(AUS),(AVK) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 0211-0302 ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUS) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 0211-0302 ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUJ),(AUS),(AVK),(CQU) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 0303-0501 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUS) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 0303-0501 ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUJ),(AUS),(AVK) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 0303-0501 ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUJ),(AUS),(AVK) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 0502-0505 ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUS) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 0502-0505 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(CQU) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 0506-0506 ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUJ),(AUS),(AVK),(CQU) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 0506-0506 ●
5 05.880 LABEL; TIRE AIR PRESSURE
(CQU) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 0507-0604 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUJ),(AUS),(AVK),(CQU) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 0507-0604 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(CQU),(CRV) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 0605-1408 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUJ),(AUS),(AVK),(CQU),(CRV) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 0605-1408 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(CRV) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 1409- ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUJ),(AUS),(AVK),(CQU),(CRV) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 1409- ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(CQU),(CRV) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 1409- ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUJ),(AUS),(AVK) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 0211-0302 ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUS) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 0211-0302 ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUJ),(AUS),(AVK),(CQU) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 0303-0501 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUS) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 0303-0501 ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUJ),(AUS),(AVK) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 0303-0501 ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUJ),(AUS),(AVK) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 0502-0505 ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUS) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 0502-0505 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(CQU) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 0506-0506 ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUJ),(AUS),(AVK),(CQU) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 0506-0506 ●
5 05.880 LABEL; TIRE AIR PRESSURE
(CQU) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 0507-0604 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUJ),(AUS),(AVK),(CQU) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 0507-0604 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(CQU),(CRV) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 0605-1408 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUJ),(AUS),(AVK),(CQU),(CRV) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 0605-1408 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(CRV) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 1409- ●
5 05.880 LABEL; TIRE AIR PRESSURE
(AUJ),(AUS),(AVK),(CQU),(CRV) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 1409- ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
(CQU),(CRV) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 1409- ●
9 08.808 PLATE; NAME,SPD RANGE
4HE1-TCN ENG(RDR) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97229-102-0 01 1 0505-0606 ●
9 08.808 PLATE; NAME,SPD RANGE
4HE1-TCN ENG(RDR) M/T MYY5T(RSM) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97229-102-0 01 1 0505-0606 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR) M/T MYY5T(RSM) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97229-102-0 01 1 0607- ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HE1 ENG(RLY) M/T MYY5T(RSM) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97229-102-0 01 1 0211-0305 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HE1 ENG(RLY) M/T MYY5T(RSM) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,VIN MODEL YEAR 2004(8JA) 		8-97229-102-0 01 1 0306-0501 ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MYY5T(RSM) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 0505- ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MYY5T(RSM) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-942-0 01 1 0505- ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M/T MYY5T(RSM) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-946-0 01 1 0505- ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY5T(RSM) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-94158-942-0 01 1 0211-0305 ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY5T(RSM) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,VIN MODEL YEAR 2004(8JA) 		8-94158-942-0 01 1 0306-0501 ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY5T(RSM) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-946-0 01 1 0211-0305 ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY5T(RSM) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1>,VIN MODEL YEAR 2004(8JA) 		8-94158-946-0 01 1 0306-0501 ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY5T(RSM) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 0211-0305 ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY5T(RSM) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CAUTION SPANISH<YN1>,VIN MODELYEAR 2004(8JA) 		8-94158-940-0 01 1 0306-0501 ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1-T ENG(RDP),4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY6P(RSJ) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97229-101-0 01 1 0505-0506 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97229-101-0 01 1 0505-0506 ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1-T ENG(RDP),4HE1-TCS ENG(RDS) M/T MZZ6U(RSF),M/T MYY6P(RSJ) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97229-101-0 01 1 0507-0606 ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1-T ENG(RDP),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MYY6P(RSJ) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97229-101-0 01 1 0507-0606 ●
9 08.808 PLATE; NAME,SPD RANGE
4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97229-101-0 01 1 0507-0606 ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MYY6P(RSJ) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97229-101-0 01 1 0607- ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,ENGINE POWER N-SPEC(7QV) 		8-97229-101-0 01 1 0211-0305 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH) M/T MYY6P(RSJ) TURBOCHARGER(K51) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97229-101-0 01 1 0211-0305 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,ENGINE POWER N-SPEC(7QV),VIN MODEL YEAR 2004(8JA) 		8-97229-101-0 01 1 0306-0501 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH) M/T MYY6P(RSJ) TURBOCHARGER(K51) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,VIN MODEL YEAR 2004(8JA) 		8-97229-101-0 01 1 0306-0501 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HE1 ENG(RLY) M/T MZZ6U(RSF) TURBOCHARGER(K51) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CHARGE AIR COOLER<6PL> 		8-97229-100-0 01 1 0212-0305 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HE1 ENG(RLY) M/T MZZ6U(RSF) TURBOCHARGER(K51) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CHARGE AIR COOLER<6PL>,VIN MODEL YEAR 2004(8JA) 		8-97229-100-0 01 1 0306-0501 ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 0211-0501 ● ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-1 01 1 0502-1005 ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-98070-512-0 01 1 1006- ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 0211-0305 ● ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1>,VIN MODEL YEAR 2004(8JA) (B) 		5-85881-328-1 01 1 0306-0501 ● ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2), CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 0502- ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 0211-0305 ● ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1>,VIN MODEL YEAR 2004(8JA) (A) 		8-97856-228-0 01 1 0306-0501 ● ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2), CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 0502-1005 ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2), CAUTION SPANISH<YN1> (A) 		8-98067-809-0 01 1 1006- ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> VIN MODEL YEAR 2004(8JA) (B) 		8-97371-054-0 01 1 0306-0501 ● ● ●
35 08.808 PLATE; CAUTION,CAB
SAUDI ARABIA EQUIPMENT(EU2) MANUAL TILT CAB<RWZ> (B) 		8-97371-054-0 01 1 0502- ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
SAUDI ARABIA EQUIPMENT(EU2) MANUAL TILT CAB<RWZ> VIN MODEL YEAR 2004(8JA) (A) 		8-97583-038-0 01 1 0306-0501 ● ● ●
35 08.808 PLATE; CAUTION,CAB
SAUDI ARABIA EQUIPMENT(EU2) MANUAL TILT CAB<RWZ> (A) 		8-97583-038-0 01 1 0502-1005 ● ● ● ●
35 08.808 PLATE; CAUTION,CAB
SAUDI ARABIA EQUIPMENT(EU2) MANUAL TILT CAB<RWZ> (A) 		8-98105-131-0 01 1 1006- ● ● ● ●
273 08.808 LABEL; CAUTION,OIL
SAUDI ARABIA EQUIPMENT(EU2) HYDRO BRAKE BOOSTER<7QQ> 		8-97371-006-0 01 1 0306-0501 ● ● ●
273 08.808 LABEL; CAUTION,OIL
SAUDI ARABIA EQUIPMENT(EU2) HYDRO BRAKE BOOSTER<7QQ> 		8-97371-006-0 01 1 0502- ● ● ● ●
279 08.808 PLATE; CAUTION,SLD
4HK1-TCN ENG(RDQ) (AUJ),(CRV) RUSSIA EQUIPMENT(B12) SPEED LIMITER 90KM<NMJ> 		8-98001-448-0 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
