◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#45548) — 11 parça

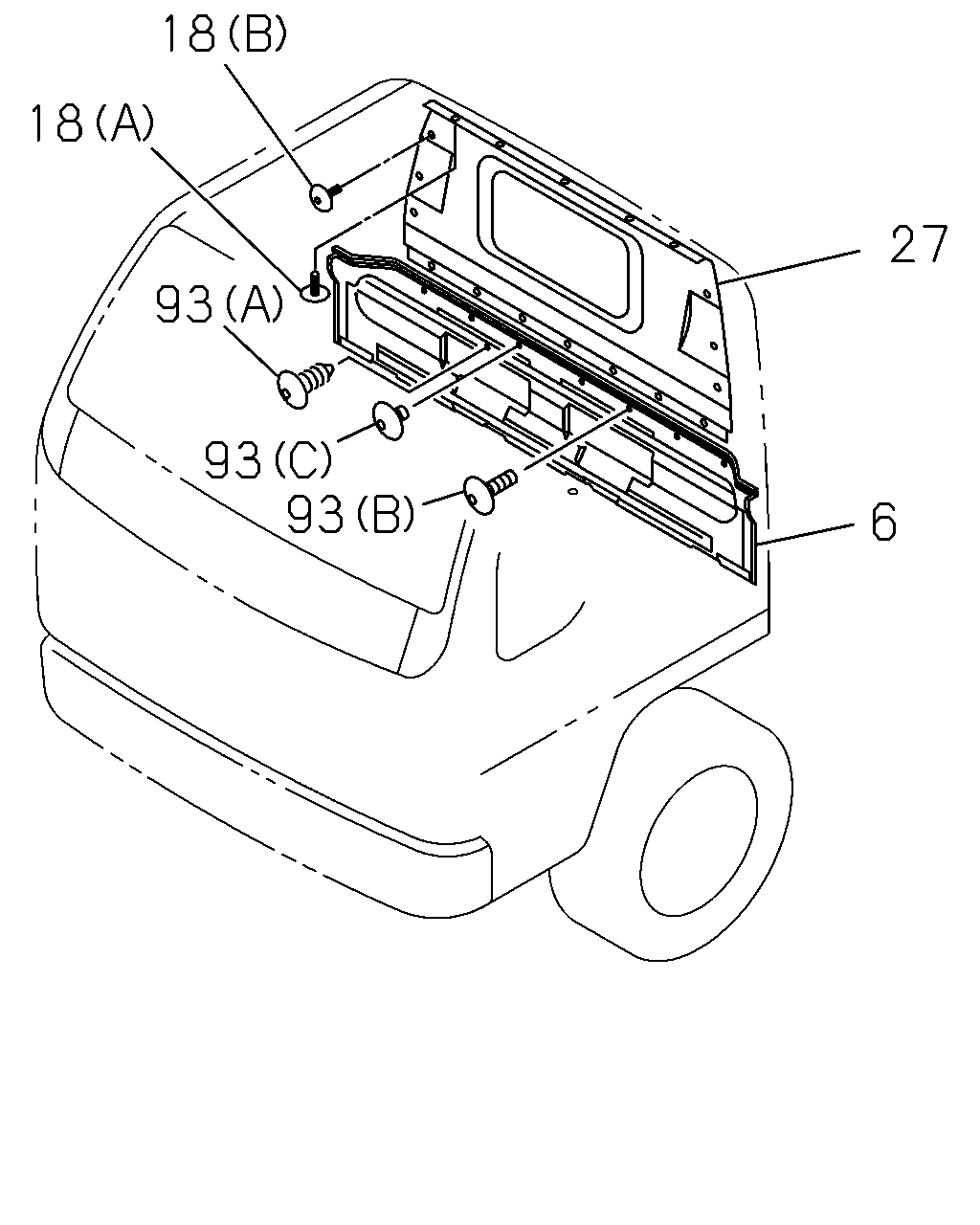

çizim 55363
18 18 27 93 93 93 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 16.592 MAT; SILENCER,CAB BACK
INTERIOR DELUXE<RBB> GRAY 		8-97582-816-4 01 1 0710- ● ●
6 16.592 MAT; SILENCER,CAB BACK
INTERIOR DELUXE<RBB> DARK GRAY 		8-97857-037-3 01 1 0211-0501 ● ● ●
18 16.587 CLIP; TRIM COVER,CAB BACK
INTERIOR DELUXE<RBB> RUSSIA EQUIPMENT(B12) (A) GRAY 		8-97406-432-0 07 1 0712- ● ●
18 16.587 CLIP; TRIM COVER,CAB BACK
INTERIOR DELUXE<RBB> RUSSIA EQUIPMENT(B12) (B) DARK GRAY 		8-97406-446-0 06 1 0712- ● ●
27 16.587 COVER; TRIM,BACK
INTERIOR DELUXE<RBB> RUSSIA EQUIPMENT(B12) GRAY 		8-97582-819-5 01 1 0712- ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> 16.166 (A) GRAY 		8-97405-295-0 02 1 0710- ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> 16.587 (B) GRAY 		8-97406-432-0 07 1 0710- ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> 16.587 (C) DARK GRAY 		8-97406-446-0 02 1 0710- ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> (B) DARK GRAY 		8-97857-054-0 07 1 0211-0501 ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> (C) ID=7X14 		8-97857-564-0 02 1 0211-0501 ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> (A) DARK GRAY 		8-97866-675-0 02 1 0211-0501 ● ● ●
