Sayfa 6-80 - Isuzu EPC

6-80 — BACK PANEL (#45546) — 250 parça

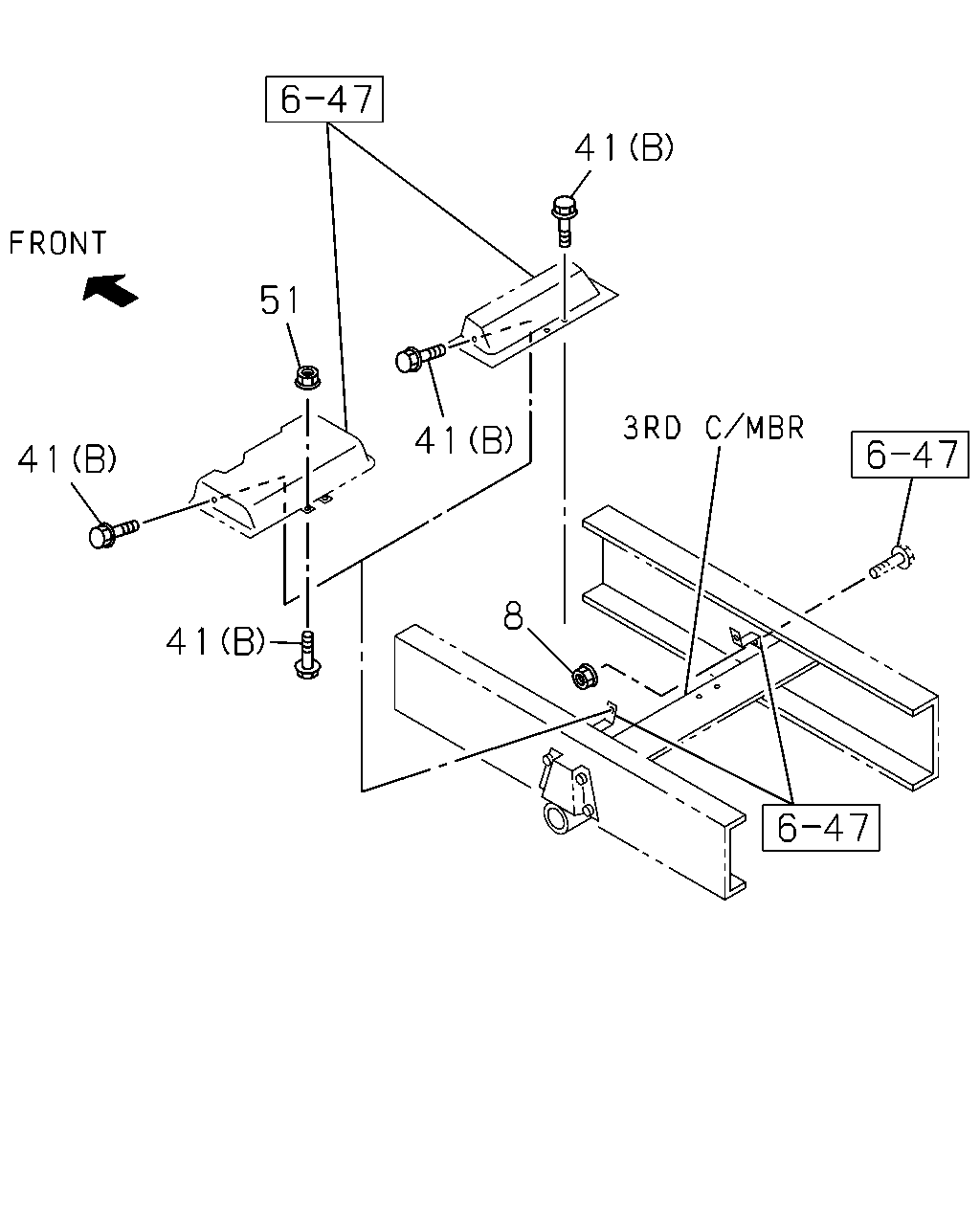

41 51 41 41 8 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
8	16.587 NUT; BACK PANEL 4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●	●	●
8	16.587 NUT; BACK PANEL 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●	●	●
8	16.587 NUT; BACK PANEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●	●
8	16.587 NUT; BACK PANEL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506	●	●	●	●
8	16.587 NUT; BACK PANEL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506	●	●	●	●
8	16.587 NUT; BACK PANEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506		●	●	●
8	16.587 NUT; BACK PANEL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(RWV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0507	●	●	●	●
8	16.587 NUT; BACK PANEL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0507	●	●	●	●
8	16.587 NUT; BACK PANEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0507		●	●	●
8	16.587 NUT; BACK PANEL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●	●
8	16.587 NUT; BACK PANEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●	●
8	16.587 NUT; BACK PANEL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●	●	●
8	16.587 NUT; BACK PANEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●	●
8	16.587 NUT; BACK PANEL 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●	●
8	16.587 NUT; BACK PANEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-		●	●	●
8	16.587 NUT; BACK PANEL 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501					●
41	16.587 BOLT 4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●	●	●	●
41	16.587 BOLT 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501		●	●	●
41	16.587 BOLT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0502-0506	●	●	●	●
41	16.587 BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0502-0506		●	●	●
41	16.587 BOLT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(RWV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0507-0507	●	●	●	●
41	16.587 BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0507-0507		●	●	●
41	16.587 BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512		●	●	●
41	16.587 BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-0612		●	●	●
41	16.587 BOLT 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0701-	●	●	●	●	●
41	16.587 BOLT 4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0211-0501	●	●	●	●
41	16.587 BOLT 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0211-0501		●	●	●
41	16.587 BOLT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX) 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0211-0501		●	●
41	16.587 BOLT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0502-0506	●	●	●	●
41	16.587 BOLT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0502-0506	●	●	●	●
41	16.587 BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0502-0506		●	●	●
41	16.587 BOLT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(RWV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0507-0507	●	●	●	●
41	16.587 BOLT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0507-0507	●	●	●	●
41	16.587 BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0507-0507		●	●	●
41	16.587 BOLT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0507-0606	●	●	●	●
41	16.587 BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0507-0606		●	●	●
41	16.587 BOLT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0607-	●	●	●	●
41	16.587 BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0607-		●	●	●
41	16.587 BOLT 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX) 02.664 (B) M8X20 FLANGE	0-28680-820-0	04	1	0211-0501		●	●		●
41	16.587 BOLT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE	0-28680-820-0	04	1	0502-0506		●	●	●
41	16.587 BOLT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE	0-28680-820-0	04	1	0507-0507		●	●	●
41	16.587 BOLT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 02.664 (B) M8X20 FLANGE	0-28680-820-0	04	1	0507-0512		●	●	●
41	16.587 BOLT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 01.531 (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●	●	●
51	16.587 NUT; PANEL 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●	●		●
51	16.587 NUT; PANEL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506		●	●	●
51	16.587 NUT; PANEL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0507		●	●	●
51	16.587 NUT; PANEL 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●	●
51	16.587 NUT; PANEL 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●	●	●

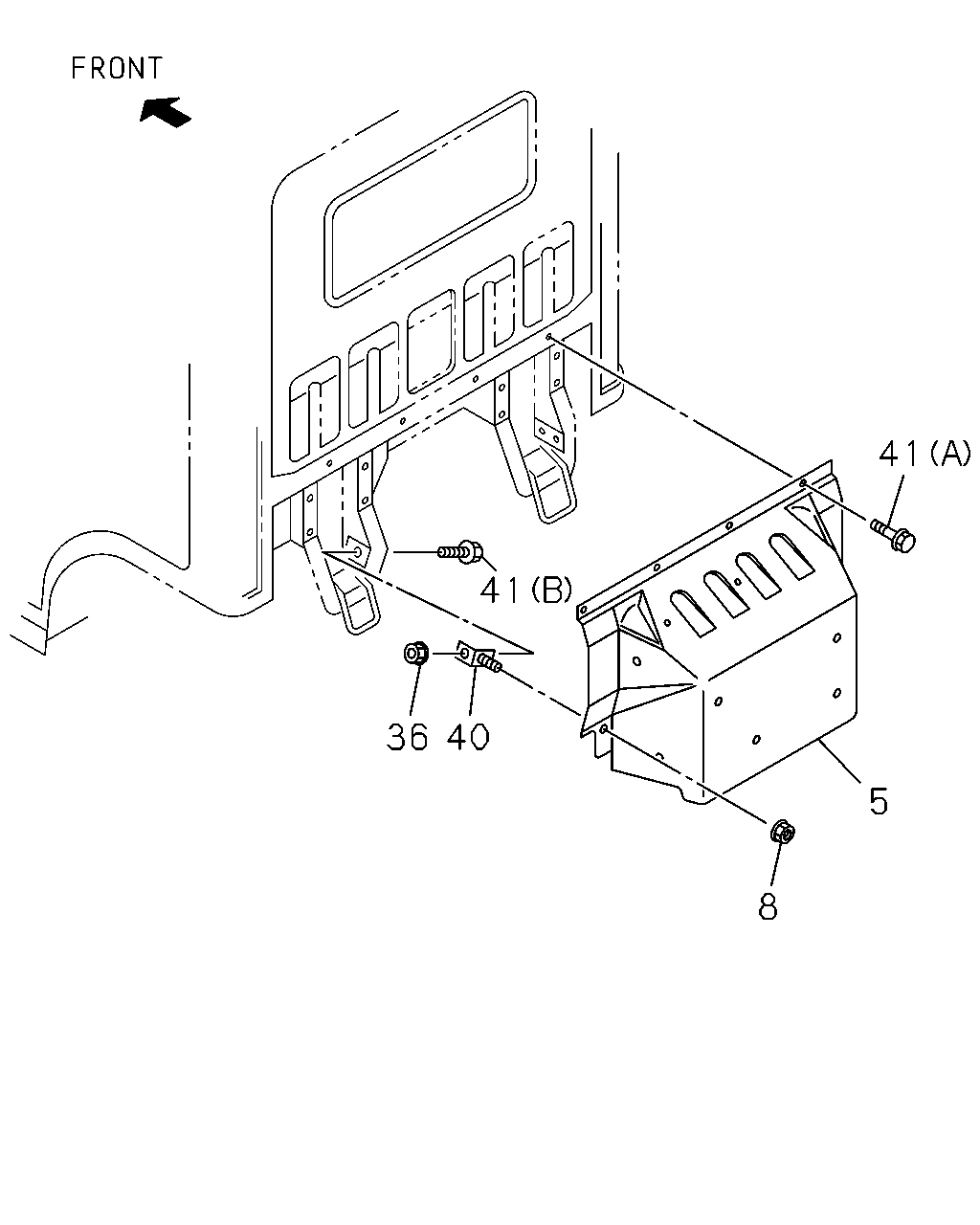

41 41 36 40 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
5	16.587 PANEL; CAB BACK 4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV)	8-97205-589-4	01	1	0211-0501	●			●
5	16.587 PANEL; CAB BACK 4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97205-589-4	01	1	0211-0501		●	●
5	16.587 PANEL; CAB BACK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX)	8-97205-589-4	01	1	0211-0501		●	●
5	16.587 PANEL; CAB BACK 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97205-589-4	01	1	0502-0505	●	●	●	●
5	16.587 PANEL; CAB BACK 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98021-286-0	01	1	0506-0506	●	●	●	●
5	16.587 PANEL; CAB BACK 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(RWV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-98021-286-0	01	1	0507-0507	●	●	●	●
5	16.587 PANEL; CAB BACK 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX),HYDRO BRAKE BOOSTER<7QQ>,ENGINE POWER N-SPEC(7QV)	8-97287-554-1	01	1	0211-0501		●	●
5	16.587 PANEL; CAB BACK 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX),ENGINE POWER N-SPEC(7QV)	8-97287-554-1	01	1	0211-0501		●	●
5	16.587 PANEL; CAB BACK 4HE1-TCN ENG(RDR) FLOOR REMOTE SHIFT<M11> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97287-554-1	01	1	0502-0505	●
5	16.587 PANEL; CAB BACK 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97287-554-1	01	1	0502-0505		●	●	●
5	16.587 PANEL; CAB BACK 4HE1-TCN ENG(RDR) FLOOR REMOTE SHIFT<M11> NOISE PACK FOR REGULATION VAR.2<7TF>	8-98021-287-0	01	1	0506-0506	●
5	16.587 PANEL; CAB BACK 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> NOISE PACK FOR REGULATION VAR.2<7TF>	8-98021-287-0	01	1	0506-0506		●	●	●
5	16.587 PANEL; CAB BACK 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> NOISE PACK FOR REGULATION VAR.2<7TF>	8-98021-287-0	01	1	0507-0507	●	●	●	●
5	16.587 PANEL; CAB BACK 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV)	8-98021-287-0	01	1	0507-0606	●	●	●	●
5	16.587 PANEL; CAB BACK 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV)	8-98021-287-0	01	1	0607-	●	●	●	●
5	16.587 PANEL; CAB BACK 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX),ENGINE POWER N-SPEC(7QV)	8-97287-996-1	01	1	0211-0501		●	●
5	16.587 PANEL; CAB BACK 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97351-227-0	01	1	0211-0501		●	●
5	16.587 PANEL; CAB BACK 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2)	8-97351-227-0	01	1	0211-0501				●
5	16.587 PANEL; CAB BACK 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97351-227-0	01	1	0502-0606		●	●
5	16.587 PANEL; CAB BACK 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97351-227-0	01	1	0502-0606				●
5	16.587 PANEL; CAB BACK 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97351-227-0	01	1	0607-0612		●	●	●
5	16.587 PANEL; CAB BACK	8-97351-227-0	01	1	0701-	●	●	●	●	●
8	16.587 NUT; BACK PANEL 4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●	●	●
8	16.587 NUT; BACK PANEL 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●	●	●
8	16.587 NUT; BACK PANEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●	●
8	16.587 NUT; BACK PANEL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506	●	●	●	●
8	16.587 NUT; BACK PANEL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506	●	●	●	●
8	16.587 NUT; BACK PANEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506		●	●	●
8	16.587 NUT; BACK PANEL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(RWV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0507	●	●	●	●
8	16.587 NUT; BACK PANEL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0507	●	●	●	●
8	16.587 NUT; BACK PANEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0507		●	●	●
8	16.587 NUT; BACK PANEL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●	●
8	16.587 NUT; BACK PANEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●	●
8	16.587 NUT; BACK PANEL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●	●	●
8	16.587 NUT; BACK PANEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●	●
8	16.587 NUT; BACK PANEL 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●	●
8	16.587 NUT; BACK PANEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-		●	●	●
8	16.587 NUT; BACK PANEL 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501					●
36	16.587 NUT; BRKT 4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●	●	●
36	16.587 NUT; BRKT 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●	●	●
36	16.587 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506	●	●	●	●
36	16.587 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506		●	●	●
36	16.587 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(RWV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0507	●	●	●	●
36	16.587 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0507		●	●	●
36	16.587 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●	●
36	16.587 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0612		●	●	●
36	16.587 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0701-	●	●	●	●	●
40	16.587 BRACKET; BACK PANEL 4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97322-264-0	02	1	0211-0501	●	●	●	●
40	16.587 BRACKET; BACK PANEL 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97322-264-0	02	1	0211-0501		●	●	●
40	16.587 BRACKET; BACK PANEL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97322-264-0	02	1	0502-0506	●	●	●	●
40	16.587 BRACKET; BACK PANEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97322-264-0	02	1	0502-0506		●	●	●
40	16.587 BRACKET; BACK PANEL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(RWV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97322-264-0	02	1	0507-0507	●	●	●	●
40	16.587 BRACKET; BACK PANEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97322-264-0	02	1	0507-0507		●	●	●
40	16.587 BRACKET; BACK PANEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97322-264-0	02	1	0507-0612		●	●	●
40	16.587 BRACKET; BACK PANEL	8-97322-264-0	02	1	0701-	●	●	●	●	●
41	16.587 BOLT 4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●	●	●	●
41	16.587 BOLT 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501		●	●	●
41	16.587 BOLT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0502-0506	●	●	●	●
41	16.587 BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0502-0506		●	●	●
41	16.587 BOLT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(RWV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0507-0507	●	●	●	●
41	16.587 BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0507-0507		●	●	●
41	16.587 BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512		●	●	●
41	16.587 BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-0612		●	●	●
41	16.587 BOLT 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0701-	●	●	●	●	●
41	16.587 BOLT 4HE1 ENG(RLY) TAIWAN EQUIPMENT(RWV) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0211-0501	●	●	●	●
41	16.587 BOLT 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0211-0501		●	●	●
41	16.587 BOLT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX) 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0211-0501		●	●
41	16.587 BOLT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) TAIWAN EQUIPMENT(RWV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0502-0506	●	●	●	●
41	16.587 BOLT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0502-0506	●	●	●	●
41	16.587 BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0502-0506		●	●	●
41	16.587 BOLT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(RWV) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0507-0507	●	●	●	●
41	16.587 BOLT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0507-0507	●	●	●	●
41	16.587 BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0507-0507		●	●	●
41	16.587 BOLT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0507-0606	●	●	●	●
41	16.587 BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0507-0606		●	●	●
41	16.587 BOLT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0607-	●	●	●	●
41	16.587 BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(EU2) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0607-		●	●	●
41	16.587 BOLT 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX) 02.664 (B) M8X20 FLANGE	0-28680-820-0	04	1	0211-0501		●	●		●
41	16.587 BOLT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE	0-28680-820-0	04	1	0502-0506		●	●	●
41	16.587 BOLT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE	0-28680-820-0	04	1	0507-0507		●	●	●
41	16.587 BOLT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 02.664 (B) M8X20 FLANGE	0-28680-820-0	04	1	0507-0512		●	●	●
41	16.587 BOLT 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 01.531 (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●	●	●

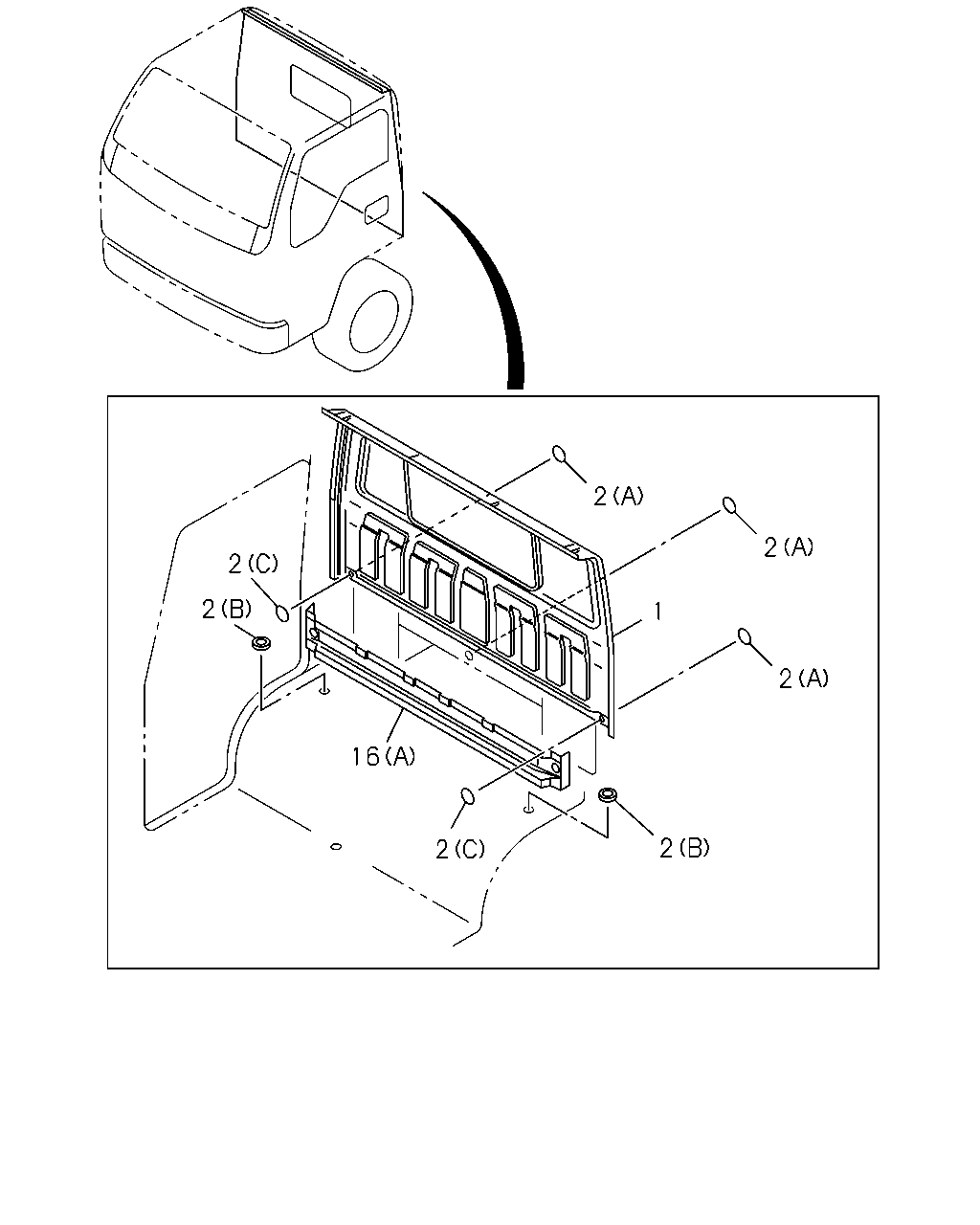

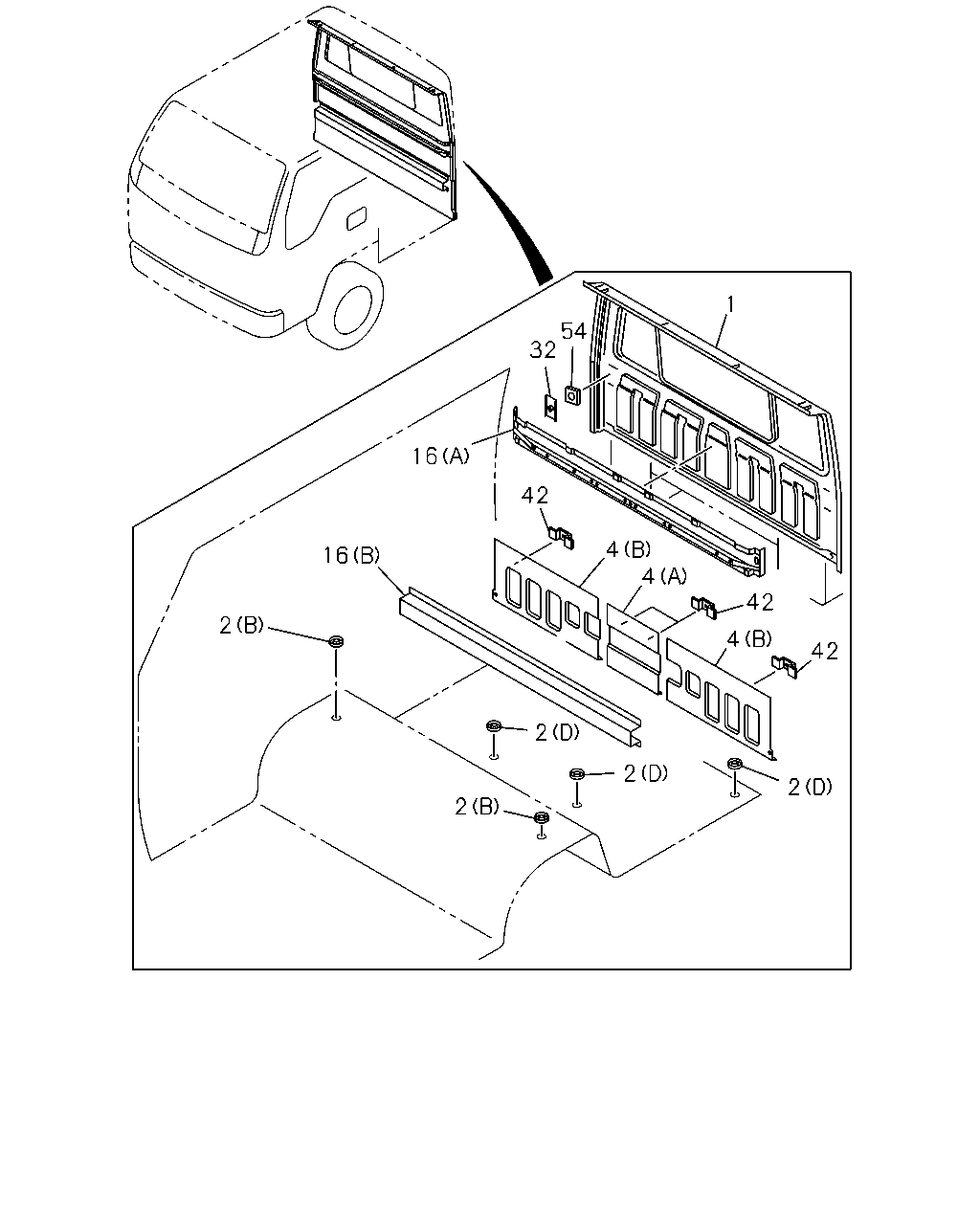

1 54 32 16 42 4 4 16 42 2 4 42 2 2 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.587 PANEL; BACK OUTER 4HF1-S ENG(RLS)	8-97851-267-6	01	1	0211-0501					●
1	16.587 PANEL; BACK OUTER 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3>	8-97851-267-6	01	1	0211-0501					●
1	16.587 PANEL; BACK OUTER	8-97851-267-6	01	1	0502-					●
1	16.587 PANEL; BACK OUTER	8-97859-127-0	01	1	0211-0501	●	●	●	●		●
1	16.587 PANEL; BACK OUTER	8-97859-127-0	01	1	0502-	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 02.580 (C) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0211-0501	●	●	●	●		●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 02.580 (C) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0502-0710	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.545 (C) OD=32 BLACK	8-98031-126-0	02	1	0711-	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 00.785 (B) OD=16.2	8-94492-493-0	02	1	0211-0501	●	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 00.785 (B) OD=16.2	8-94492-493-0	02	1	0502-0512	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.547 (B) OD=15.0	8-94279-040-0	02	1	0601-	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0211-0211	●					●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0211-0211		●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 16.165 (A) OD=25 BLACK	1-76798-019-0	05	1	0212-0501	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK	1-76798-019-0	05	1	0502-0506	●		●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.165 (A) OD=25 BLACK	1-76798-019-0	05	1	0502-0506		●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK	1-76798-019-0	05	1	0507-0709	●			●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.165 (A) OD=25 BLACK	1-76798-019-0	05	1	0507-0709		●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 16.165 (A) OD=25 BLACK	1-76798-019-0	05	1	0710-	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE SAUDI ARABIA EQUIPMENT(EU2) 16.165 (A) OD=25 BLACK	1-76798-019-0	05	1	0211-0211		●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE EXC. MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0212-0501	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0212-0501		●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0212-0501						●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE EXC. MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0502-0506	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0502-0506		●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE EXC. MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0507-0709	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0507-0709		●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE EXC. MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0710-	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0710-		●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 15.222 (D) OD=35	8-94122-971-0	04	1	0211-					●
4	16.575 PANEL; CAB BACK LWR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97892-520-1	01	1	0211-0501					●
4	16.575 PANEL; CAB BACK LWR 4HF1-S ENG(RLS) (A)	8-97851-268-3	01	1	0211-0501					●
4	16.575 PANEL; CAB BACK LWR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97851-268-3	01	1	0211-0501					●
4	16.575 PANEL; CAB BACK LWR (A)	8-97851-268-3	01	1	0502-					●
4	16.575 PANEL; CAB BACK LWR 4HF1-S ENG(RLS) (B)	8-97851-293-5	01	1	0211-0501					●
4	16.575 PANEL; CAB BACK LWR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97851-293-5	01	1	0211-0501					●
4	16.575 PANEL; CAB BACK LWR (B)	8-97851-293-5	01	1	0502-					●
4	16.575 PANEL; CAB BACK LWR 4HF1-S ENG(RLS) (B)	8-97851-292-5	01	1	0211-0501					●
4	16.575 PANEL; CAB BACK LWR (B)	8-97851-292-5	01	1	0502-					●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCS ENG(RJS) TURKISH EQUIPMENT(S6S) (A)	8-97851-501-6	01	1	0507-0709			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCS ENG(RJS) TURKISH EQUIPMENT(S6S) EXC. INTERIOR DELUXE<RBB> (A)	8-97851-501-6	01	1	0710-			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,CHARGE AIR COOLER<6PL> (A)	8-97851-501-6	02	1	0211-0501	●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97851-106-9	01	1	0211-0501	●	●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97851-106-9	01	1	0502-0612	●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL (A)	8-97851-106-9	01	1	0502-0612					●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97851-106-9	01	1	0701-	●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97851-106-9	01	1	0701-		●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL (A)	8-97851-106-9	01	1	0701-					●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97890-837-1	01	1	0211-0501	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97890-837-1	01	1	0211-0501		●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL (A)	8-97890-837-1	01	1	0211-0501						●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) (A)	8-97890-837-1	01	1	0502-0506	●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1-TCN ENG(RDR) (A)	8-97890-837-1	01	1	0507-0606	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURKISH EQUIPMENT(S6S) (A)	8-97890-837-1	01	1	0507-0606		●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) EXC. TURKISH EQUIPMENT(S6S) (A)	8-97890-837-1	01	1	0507-0606			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97890-837-1	01	1	0507-0606				●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURKISH EQUIPMENT(S6S) (A)	8-97890-837-1	01	1	0607-0709	●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,TURKISH EQUIPMENT(S6S) (A)	8-97890-837-1	01	1	0710-	●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97890-837-1	01	1	0710-			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1-S ENG(RLS) (B)	8-97851-415-1	01	1	0211-0501					●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97851-415-1	01	1	0211-0501					●
16	16.575 REINFORCEMENT; BACK OUTER PNL (B)	8-97851-415-1	01	1	0502-					●
32	16.587 PATCH; AIR INT DUCT 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3>	8-97892-522-1	01	1	0211-0501					●
42	16.587 BRACKET; HEAT PROTECTOR 4HF1-S ENG(RLS) 16.588	8-94265-170-1	04	1	0211-0501					●
42	16.587 BRACKET; HEAT PROTECTOR 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> 16.588	8-94265-170-1	04	1	0211-0501					●
42	16.587 BRACKET; HEAT PROTECTOR 16.588	8-94265-170-1	04	1	0502-					●
54	16.587 SEAL; STUD 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> 16.585 30X30 ID=9 T=0.7	1-61281-444-0	01	1	0211-0501					●

2 2 2 2 1 2 16 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.587 PANEL; BACK OUTER 4HF1-S ENG(RLS)	8-97851-267-6	01	1	0211-0501					●
1	16.587 PANEL; BACK OUTER 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3>	8-97851-267-6	01	1	0211-0501					●
1	16.587 PANEL; BACK OUTER	8-97851-267-6	01	1	0502-					●
1	16.587 PANEL; BACK OUTER	8-97859-127-0	01	1	0211-0501	●	●	●	●		●
1	16.587 PANEL; BACK OUTER	8-97859-127-0	01	1	0502-	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 02.580 (C) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0211-0501	●	●	●	●		●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 02.580 (C) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0502-0710	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.545 (C) OD=32 BLACK	8-98031-126-0	02	1	0711-	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 00.785 (B) OD=16.2	8-94492-493-0	02	1	0211-0501	●	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 00.785 (B) OD=16.2	8-94492-493-0	02	1	0502-0512	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.547 (B) OD=15.0	8-94279-040-0	02	1	0601-	●	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0211-0211	●					●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0211-0211		●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 16.165 (A) OD=25 BLACK	1-76798-019-0	05	1	0212-0501	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK	1-76798-019-0	05	1	0502-0506	●		●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.165 (A) OD=25 BLACK	1-76798-019-0	05	1	0502-0506		●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK	1-76798-019-0	05	1	0507-0709	●			●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.165 (A) OD=25 BLACK	1-76798-019-0	05	1	0507-0709		●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 16.165 (A) OD=25 BLACK	1-76798-019-0	05	1	0710-	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE SAUDI ARABIA EQUIPMENT(EU2) 16.165 (A) OD=25 BLACK	1-76798-019-0	05	1	0211-0211		●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE EXC. MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0212-0501	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0212-0501		●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0212-0501						●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE EXC. MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0502-0506	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0502-0506		●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE EXC. MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0507-0709	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0507-0709		●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE EXC. MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0710-	●	●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK	1-76798-019-0	04	1	0710-		●	●	●
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 15.222 (D) OD=35	8-94122-971-0	04	1	0211-					●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCS ENG(RJS) TURKISH EQUIPMENT(S6S) (A)	8-97851-501-6	01	1	0507-0709			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCS ENG(RJS) TURKISH EQUIPMENT(S6S) EXC. INTERIOR DELUXE<RBB> (A)	8-97851-501-6	01	1	0710-			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,CHARGE AIR COOLER<6PL> (A)	8-97851-501-6	02	1	0211-0501	●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97851-106-9	01	1	0211-0501	●	●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97851-106-9	01	1	0502-0612	●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL (A)	8-97851-106-9	01	1	0502-0612					●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97851-106-9	01	1	0701-	●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97851-106-9	01	1	0701-		●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL (A)	8-97851-106-9	01	1	0701-					●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97890-837-1	01	1	0211-0501	●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97890-837-1	01	1	0211-0501		●		●
16	16.575 REINFORCEMENT; BACK OUTER PNL (A)	8-97890-837-1	01	1	0211-0501						●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) (A)	8-97890-837-1	01	1	0502-0506	●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1-TCN ENG(RDR) (A)	8-97890-837-1	01	1	0507-0606	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURKISH EQUIPMENT(S6S) (A)	8-97890-837-1	01	1	0507-0606		●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) EXC. TURKISH EQUIPMENT(S6S) (A)	8-97890-837-1	01	1	0507-0606			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97890-837-1	01	1	0507-0606				●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TURKISH EQUIPMENT(S6S) (A)	8-97890-837-1	01	1	0607-0709	●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> EXC. INTERIOR DELUXE<RBB>,TURKISH EQUIPMENT(S6S) (A)	8-97890-837-1	01	1	0710-	●	●	●	●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) INTERIOR DELUXE<RBB> AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97890-837-1	01	1	0710-			●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HF1-S ENG(RLS) (B)	8-97851-415-1	01	1	0211-0501					●
16	16.575 REINFORCEMENT; BACK OUTER PNL 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97851-415-1	01	1	0211-0501					●
16	16.575 REINFORCEMENT; BACK OUTER PNL (B)	8-97851-415-1	01	1	0502-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
