◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#45545) — 69 parça

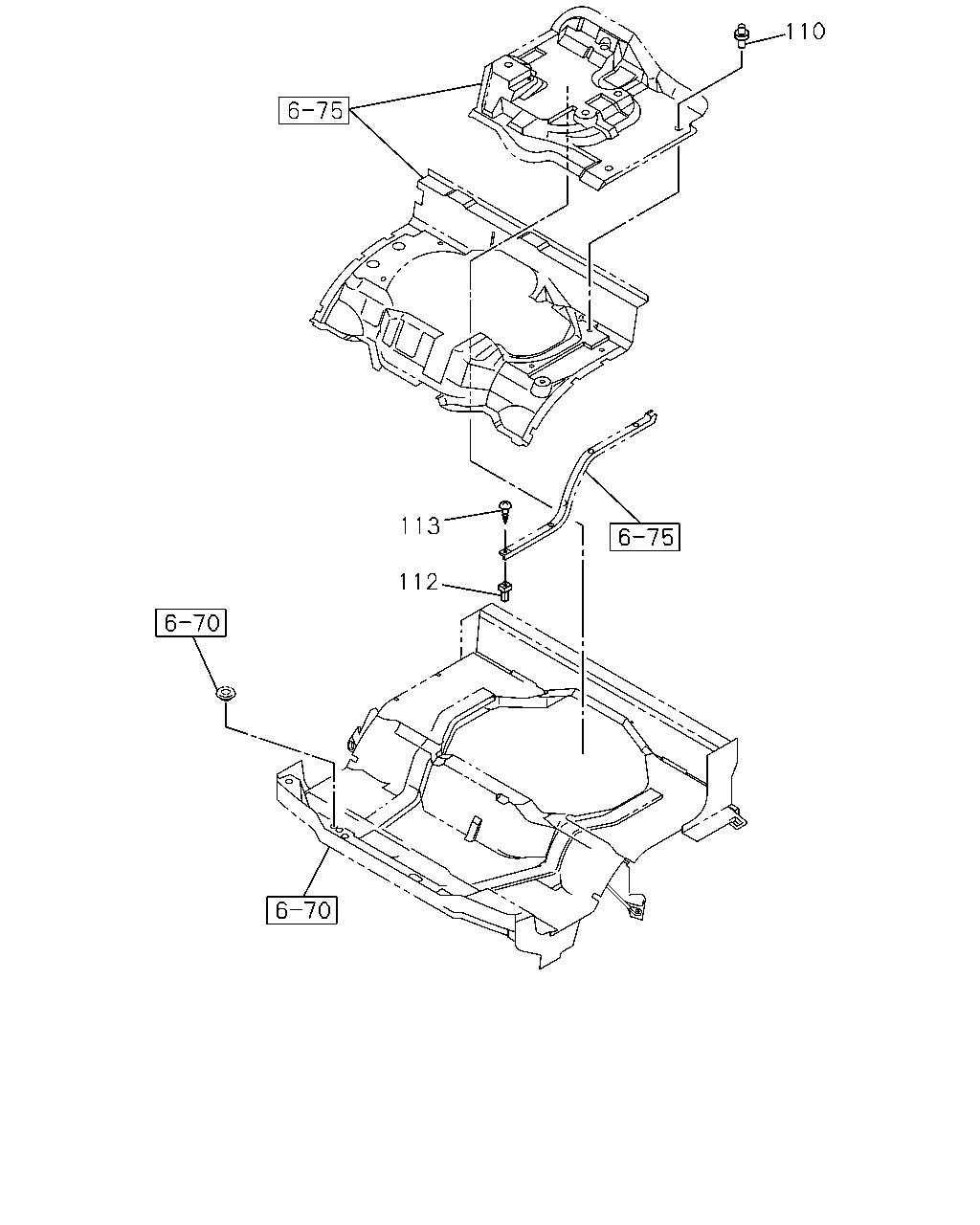

çizim 50854
110 113 112
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 13 1 0211-0211 ● ● ●
110 16.802 FASTENER; FLOOR MAT
EXC. SAUDI ARABIA EQUIPMENT(EU2) BLACK 		8-94279-089-0 13 1 0211-0211 ● ● ●
110 16.802 FASTENER; FLOOR MAT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) BLACK 		8-94279-089-0 11 1 0212-0212 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) BLACK 		8-94279-089-0 10 1 0212-0501 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 10 1 0502-0506 ● ● ●
110 16.802 FASTENER; FLOOR MAT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) BLACK 		8-94279-089-0 10 1 0502-0506 ●
110 16.802 FASTENER; FLOOR MAT
MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 10 1 0507-0709 ● ●
110 16.802 FASTENER; FLOOR MAT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) BLACK 		8-94279-089-0 10 1 0507-0709 ● ●
110 16.802 FASTENER; FLOOR MAT
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) BLACK 		8-94279-089-0 10 1 0710- ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
SAUDI ARABIA EQUIPMENT(EU2) BLACK 		8-94279-089-0 12 1 0211-0211 ● ● ●
110 16.802 FASTENER; FLOOR MAT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 12 1 0212-0212 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 12 1 0212-0212 ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 12 1 0212-0212 ● ●
110 16.802 FASTENER; FLOOR MAT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 11 1 0212-0501 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 11 1 0212-0501 ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 11 1 0212-0501 ● ●
110 16.802 FASTENER; FLOOR MAT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 11 1 0502-0506 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 11 1 0502-0506 ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 11 1 0502-0506 ●
110 16.802 FASTENER; FLOOR MAT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 11 1 0507-0709 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 11 1 0507-0709 ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 11 1 0507-0709 ●
110 16.802 FASTENER; FLOOR MAT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 11 1 0710- ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 11 1 0710- ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 11 1 0710- ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 0211-0501 ● ● ● ● ● ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 0502- ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 0211-0501 ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 0502-0604 ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
M5X14 TAPPING W/PL WASHER 		0-74160-514-0 10 1 0605-0612 ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 10 1 0701- ● ● ● ● ●

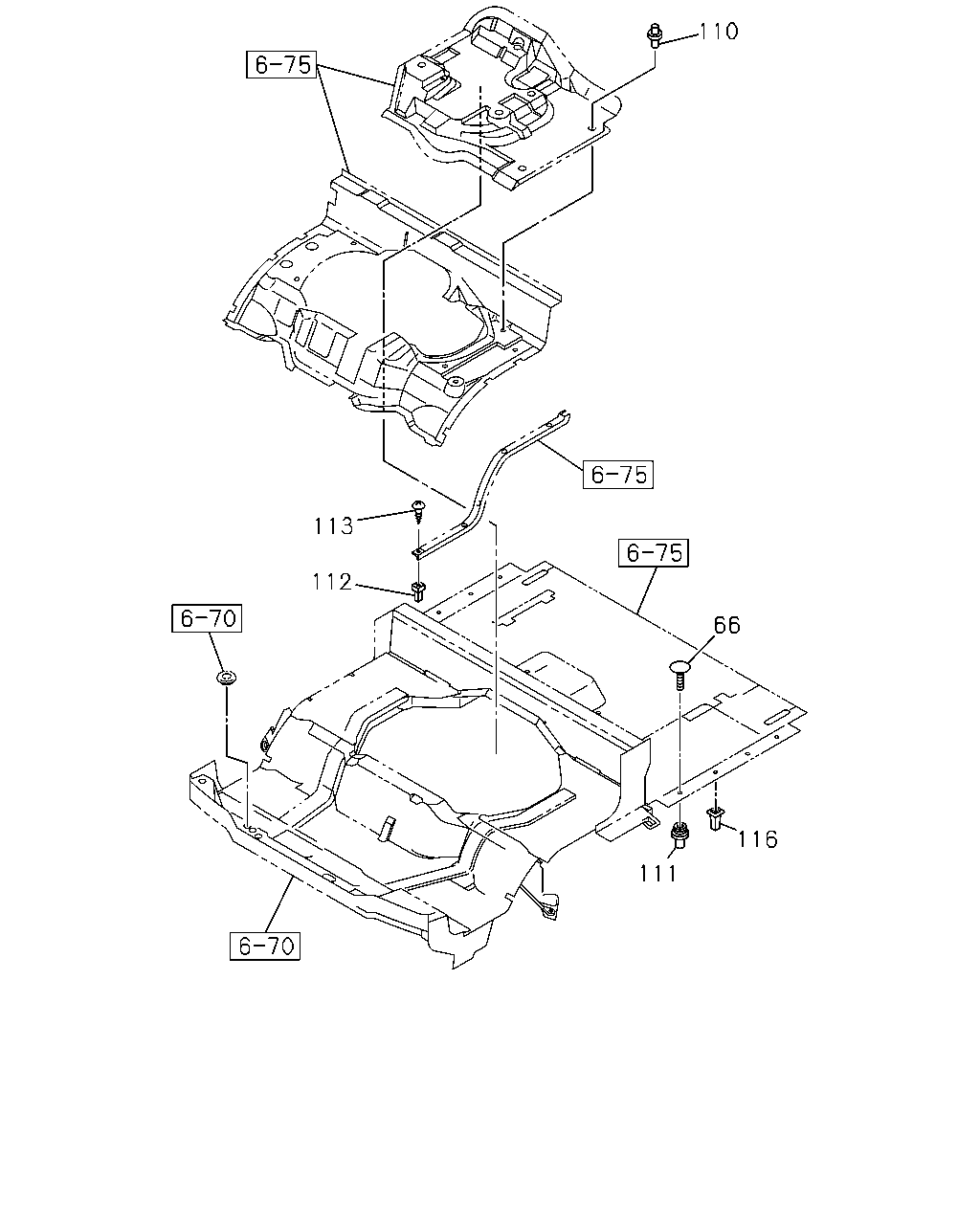

çizim 53996
110 113 112 66 116 111
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
66 16.800 PLUG; FLOOR MAT,CAB RR FLOOR
DARK GRAY 		8-97867-158-0 04 1 0211-0501 ●
66 16.800 PLUG; FLOOR MAT,CAB RR FLOOR
GRAY 		8-97582-244-0 04 1 0502-0708 ●
66 16.800 PLUG; FLOOR MAT,CAB RR FLOOR
16.802 GRAY 		8-97405-205-0 04 1 0709- ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 13 1 0211-0211 ● ● ●
110 16.802 FASTENER; FLOOR MAT
EXC. SAUDI ARABIA EQUIPMENT(EU2) BLACK 		8-94279-089-0 13 1 0211-0211 ● ● ●
110 16.802 FASTENER; FLOOR MAT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) BLACK 		8-94279-089-0 11 1 0212-0212 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) BLACK 		8-94279-089-0 10 1 0212-0501 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 10 1 0502-0506 ● ● ●
110 16.802 FASTENER; FLOOR MAT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) BLACK 		8-94279-089-0 10 1 0502-0506 ●
110 16.802 FASTENER; FLOOR MAT
MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 10 1 0507-0709 ● ●
110 16.802 FASTENER; FLOOR MAT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) BLACK 		8-94279-089-0 10 1 0507-0709 ● ●
110 16.802 FASTENER; FLOOR MAT
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) BLACK 		8-94279-089-0 10 1 0710- ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
SAUDI ARABIA EQUIPMENT(EU2) BLACK 		8-94279-089-0 12 1 0211-0211 ● ● ●
110 16.802 FASTENER; FLOOR MAT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 12 1 0212-0212 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 12 1 0212-0212 ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 12 1 0212-0212 ● ●
110 16.802 FASTENER; FLOOR MAT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 11 1 0212-0501 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 11 1 0212-0501 ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 11 1 0212-0501 ● ●
110 16.802 FASTENER; FLOOR MAT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 11 1 0502-0506 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 11 1 0502-0506 ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 11 1 0502-0506 ●
110 16.802 FASTENER; FLOOR MAT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 11 1 0507-0709 ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 11 1 0507-0709 ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 11 1 0507-0709 ●
110 16.802 FASTENER; FLOOR MAT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 11 1 0710- ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> BLACK 		8-94279-089-0 11 1 0710- ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 11 1 0710- ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 16.802 BLACK 		8-94279-089-0 15 1 0211-0501 ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.802 BLACK 		8-94279-089-0 15 1 0211-0501 ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
16.802 BLACK 		8-94279-089-0 15 1 0502- ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 0211-0501 ● ● ● ● ● ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 0502- ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 0211-0501 ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 0502-0604 ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
M5X14 TAPPING W/PL WASHER 		0-74160-514-0 10 1 0605-0612 ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 10 1 0701- ● ● ● ● ●
116 16.547 GROMMET; SCREW,FLOOR MAT
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 0211- ●
