◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#45544) — 928 parça

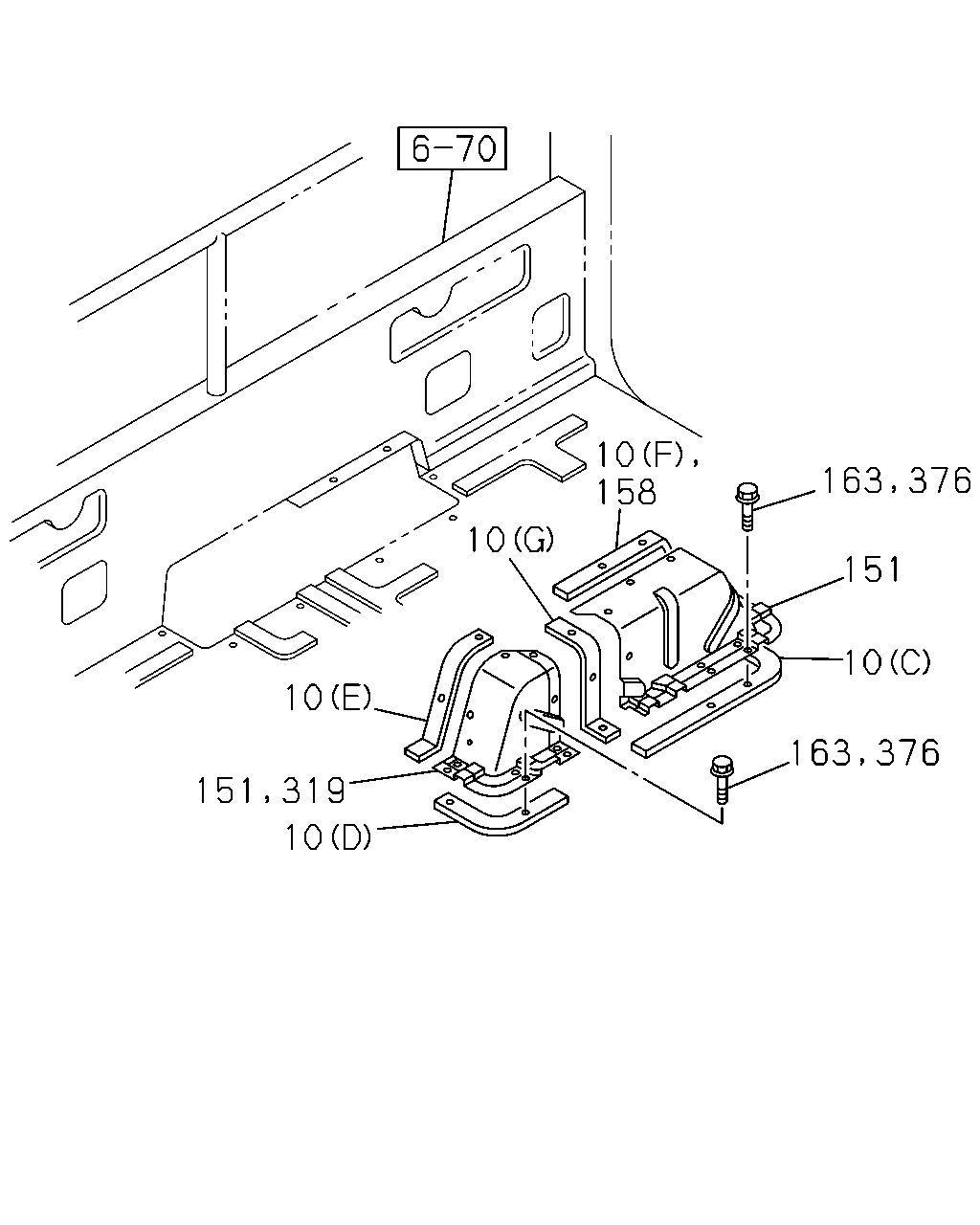

çizim 7811
10 158 10 151 10 10 10 163 376 163 376 151 319
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0710- ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0710-0710 ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) INTERIOR DELUXE<RBB> 16.545 (B) OD=32 BLACK 		8-98031-126-0 01 1 0711- ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-4 01 1 0211-0211 ● ● ●
10 16.549 SEAL; ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97853-267-4 01 1 0211-0211 ● ● ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97853-267-5 01 1 0212-0305 ● ● ● ●
10 16.549 SEAL; ENG COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) 		8-97853-267-5 01 1 0212-0305 ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-5 01 1 0212-0305 ● ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97581-109-0 01 1 0306-0501 ● ● ● ●
10 16.549 SEAL; ENG COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) 		8-97581-109-0 01 1 0306-0501 ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-0 01 1 0306-0501 ● ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0502-0506 ● ● ● ●
10 16.549 SEAL; ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0502-0506 ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0502-0506 ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0507-0709 ● ● ● ●
10 16.549 SEAL; ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0507-0709 ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0507-0709 ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0710- ● ● ● ●
10 16.549 SEAL; ENG COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0710- ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0710- ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0211-0501 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR MI DDLE BRONZE GREEN(909),BODY COLOR HIGHWAY YELLOW(916) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0211-0501 ● ● ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (F) L=886 		8-97996-183-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) L=566 		8-97996-184-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) L=512 		8-97996-185-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) L=481 		8-97582-088-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=519 		8-97995-003-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G) L=519 		8-97995-003-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=543 		8-97582-085-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G) L=543 		8-97582-085-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
(G) L=543 		8-97582-085-0 01 1 0502- ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=804 		8-97995-004-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) L=804 		8-97995-004-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=804 		8-97582-086-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) L=804 		8-97582-086-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
(C) L=804 		8-97582-086-0 01 1 0502- ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=519 		8-97995-005-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) (D) L=519 		8-97995-005-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
(D) L=519 		8-97995-005-0 01 1 0502- ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=467 		8-97995-006-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) (E) L=467 		8-97995-006-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=436 		8-97582-087-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) (E) L=436 		8-97582-087-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
(E) L=436 		8-97582-087-0 01 1 0502- ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 		8-97997-525-0 01 1 0211-0305 ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 		8-97582-093-0 01 1 0306-0501 ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 		8-97997-523-1 01 1 0211-0305 ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 		8-97582-091-0 01 1 0306-0501 ●
151 16.549 COVER ASM; ENG
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97996-192-0 01 1 0211-0305 ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) 		8-97996-192-0 01 1 0211-0305 ●
151 16.549 COVER ASM; ENG
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97582-089-0 01 1 0306-0501 ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) 		8-97582-089-0 01 1 0306-0501 ●
151 16.549 COVER ASM; ENG 8-97582-089-0 01 1 0502- ●
158 16.549 SEAL; RR,ENG COVER,FRT
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97995-002-0 01 1 0211-0501 ●
158 16.549 SEAL; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) 		8-97995-002-0 01 1 0211-0501 ●
158 16.549 SEAL; RR,ENG COVER,FRT 8-97995-002-0 01 1 0502- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 15 1 0211-0305 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 14 1 0306-0307 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 12 1 0308-0501 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 06 1 0211-0305 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 06 1 0211-0305 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 05 1 0306-0501 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 05 1 0306-0501 ●
163 16.549 BOLT; RR,ENG COVER,FRT
02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 05 1 0502- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 0211-0501 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 0211-0501 ●
163 16.549 BOLT; RR,ENG COVER,FRT
04.439 M6X16 FLANGE 		0-28680-616-0 03 1 0502-0512 ●
163 16.549 BOLT; RR,ENG COVER,FRT
02.343 M6X16 FLANGE 		0-28650-616-0 03 1 0601- ●
319 16.549 COVER; ENG RR,FLOOR
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97997-526-0 01 1 0211-0305 ●
319 16.549 COVER; ENG RR,FLOOR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) 		8-97997-526-0 01 1 0211-0305 ●
319 16.549 COVER; ENG RR,FLOOR
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97582-090-0 01 1 0306-0501 ●
319 16.549 COVER; ENG RR,FLOOR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) 		8-97582-090-0 01 1 0306-0501 ●
319 16.549 COVER; ENG RR,FLOOR 8-97582-090-0 01 1 0502- ●
376 16.549 BOLT; RR ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X16 W/PL WASHER 		8-97803-781-0 04 1 0211-0501 ●
376 16.549 BOLT; RR ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) 02.334 M6X16 W/PL WASHER 		8-97803-781-0 04 1 0211-0501 ●
376 16.549 BOLT; RR ENG COVER
02.334 M6X16 W/PL WASHER 		8-97803-781-0 04 1 0502- ●

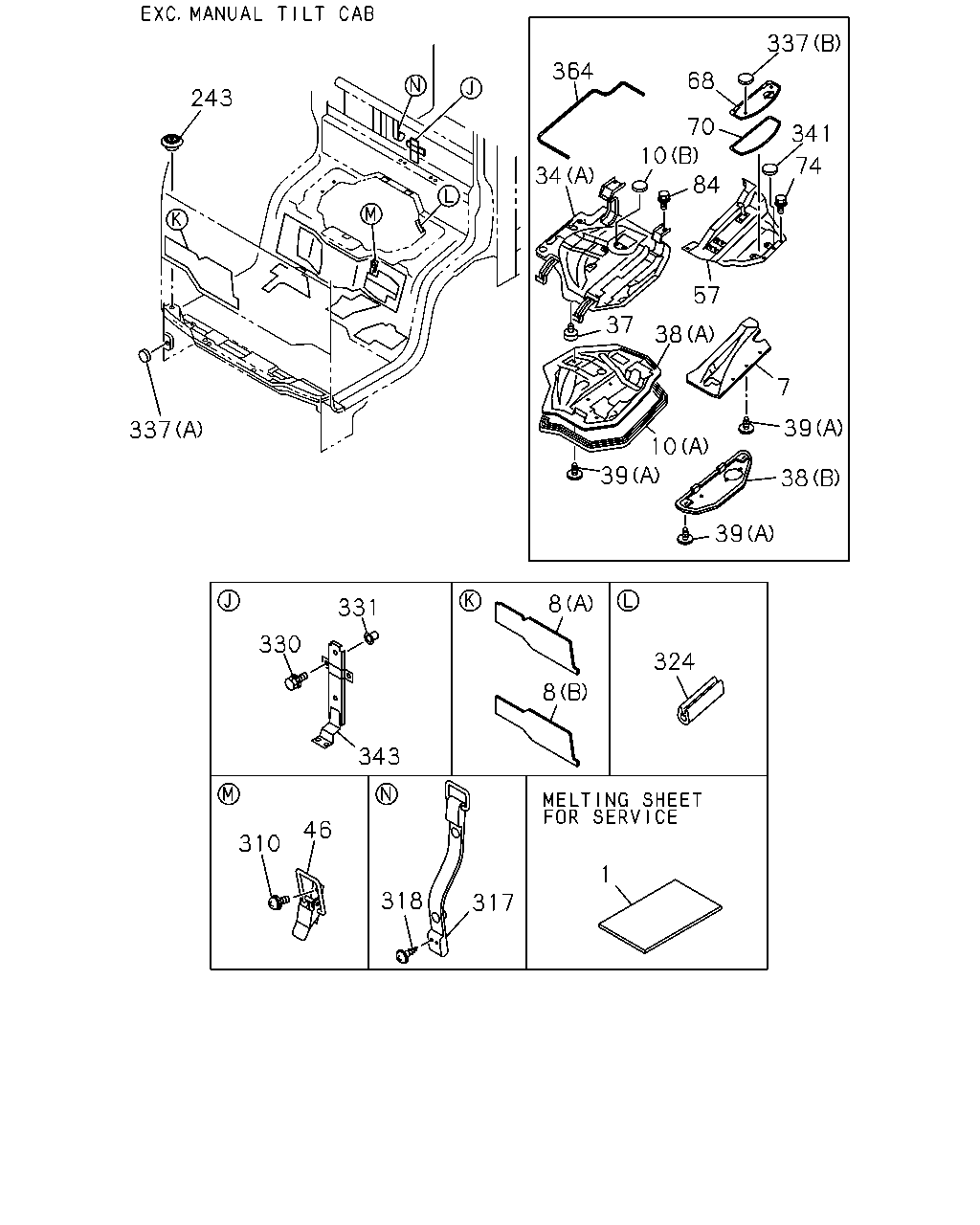

çizim 52016
337 364 68 243 70 10 84 341 74 34 57 37 38 7 39 337 10 39 38 39 8 331 330 324 8 343 46 310 1 318 317
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.850 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 0211- ● ● ● ●
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 AR 1 0211-0506 ● ● ● ● ● ●
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 AR 1 0507- ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97850-897-0 01 1 0211-0501 ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97850-897-0 01 1 0211-0501 ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97850-897-0 01 1 0502- ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97850-897-0 01 1 0502- ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 0211-0211 ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97850-896-0 01 1 0211-0211 ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 0212-0501 ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 0502-0506 ●
7 16.545 INSULATOR; SUPPORT COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 0507-0709 ● ●
7 16.545 INSULATOR; SUPPORT COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 0710- ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-606-1 01 1 0211-0501 ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-661-3 01 1 0502- ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-605-2 01 1 0211-0501 ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-660-3 01 1 0502- ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0710- ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0710-0710 ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) INTERIOR DELUXE<RBB> 16.545 (B) OD=32 BLACK 		8-98031-126-0 01 1 0711- ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-4 01 1 0211-0211 ● ● ●
10 16.549 SEAL; ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97853-267-4 01 1 0211-0211 ● ● ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97853-267-5 01 1 0212-0305 ● ● ● ●
10 16.549 SEAL; ENG COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) 		8-97853-267-5 01 1 0212-0305 ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-5 01 1 0212-0305 ● ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97581-109-0 01 1 0306-0501 ● ● ● ●
10 16.549 SEAL; ENG COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) 		8-97581-109-0 01 1 0306-0501 ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-0 01 1 0306-0501 ● ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0502-0506 ● ● ● ●
10 16.549 SEAL; ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0502-0506 ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0502-0506 ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0507-0709 ● ● ● ●
10 16.549 SEAL; ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0507-0709 ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0507-0709 ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0710- ● ● ● ●
10 16.549 SEAL; ENG COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0710- ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0710- ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0211-0501 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR MI DDLE BRONZE GREEN(909),BODY COLOR HIGHWAY YELLOW(916) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0211-0501 ● ● ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (F) L=886 		8-97996-183-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) L=566 		8-97996-184-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) L=512 		8-97996-185-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) L=481 		8-97582-088-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=519 		8-97995-003-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G) L=519 		8-97995-003-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=543 		8-97582-085-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G) L=543 		8-97582-085-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
(G) L=543 		8-97582-085-0 01 1 0502- ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=804 		8-97995-004-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) L=804 		8-97995-004-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=804 		8-97582-086-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) L=804 		8-97582-086-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
(C) L=804 		8-97582-086-0 01 1 0502- ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=519 		8-97995-005-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) (D) L=519 		8-97995-005-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
(D) L=519 		8-97995-005-0 01 1 0502- ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=467 		8-97995-006-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) (E) L=467 		8-97995-006-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=436 		8-97582-087-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) (E) L=436 		8-97582-087-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
(E) L=436 		8-97582-087-0 01 1 0502- ●

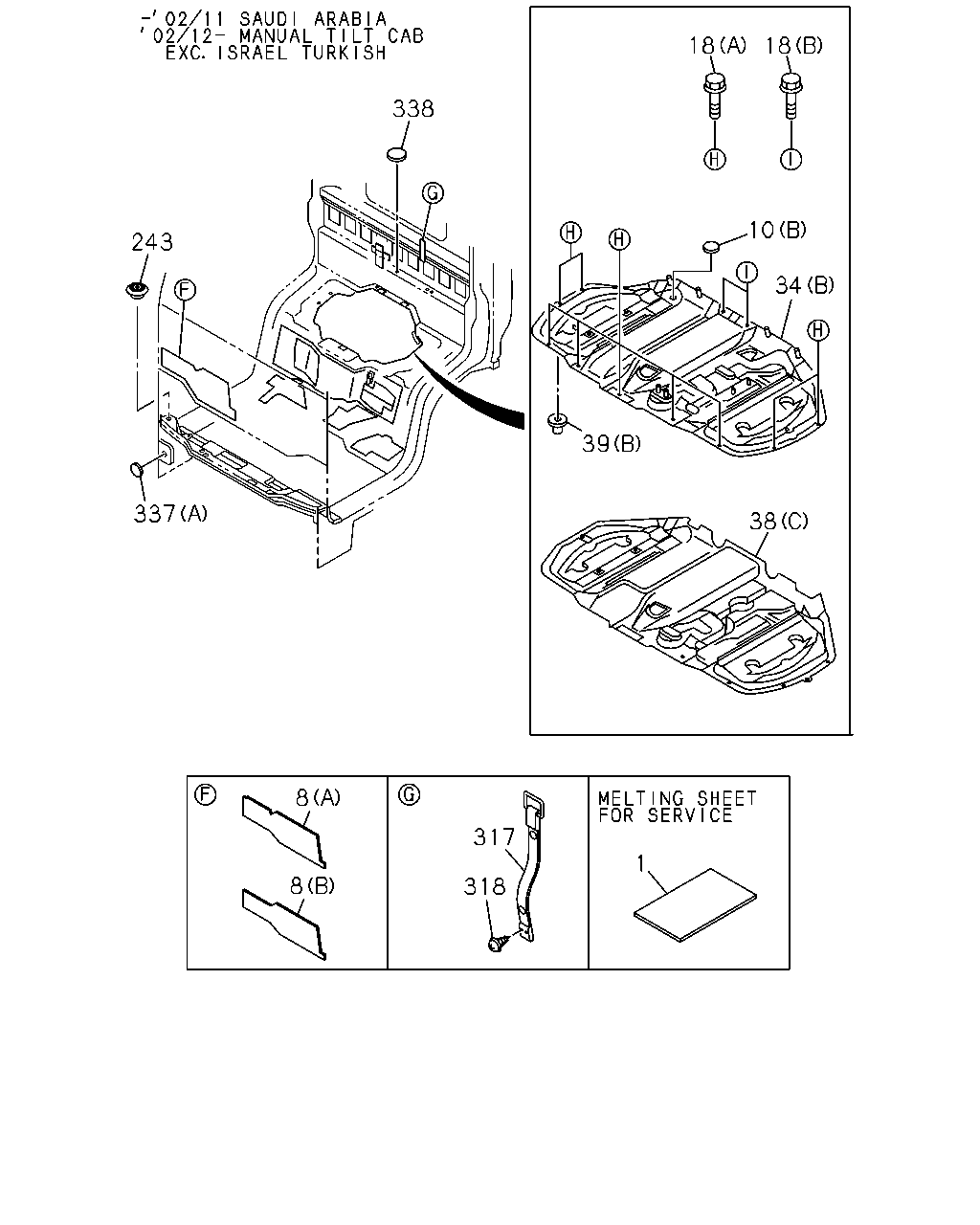

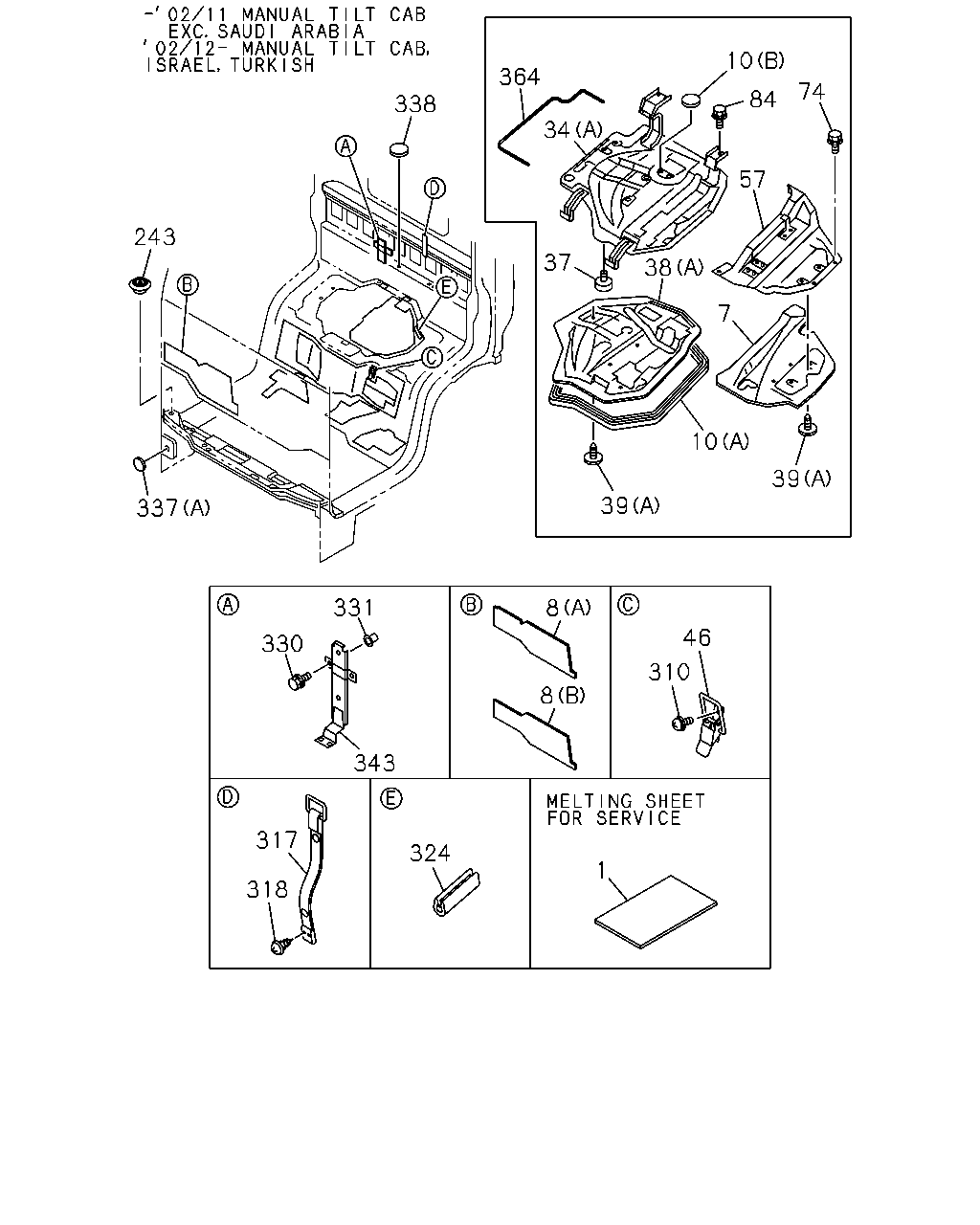

34 16.549 COVER ASM; ENG,CAB FLOOR
(A) 		8-97850-679-1 01 1 0211-0211 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97850-679-1 01 1 0211-0211 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0212-0501 ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0212-0501 ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(A) 		8-97850-679-1 01 1 0212-0501 ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0502-0506 ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0502-0506 ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(A) 		8-97850-679-1 01 1 0502-0506 ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0507-0709 ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0507-0709 ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(A) 		8-97850-679-1 01 1 0507-0709 ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0710- ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0710- ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(A) 		8-97850-679-1 01 1 0710- ●
34 16.549 COVER ASM; ENG,CAB FLOOR
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97850-893-1 01 1 0211-0211 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) (B) 		8-97850-893-1 01 1 0212-0501 ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> (B) 		8-97850-893-2 01 1 0502-0506 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (B) 		8-97850-893-2 01 1 0502-0506 ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> (B) 		8-97850-893-2 01 1 0507-0709 ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (B) 		8-97850-893-2 01 1 0507-0709 ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) (B) 		8-97850-893-2 01 1 0710- ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0211-0211 ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.155 OD=30 T=10 		5-74917-001-2 02 1 0211-0211 ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0212-0501 ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0212-0501 ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0212-0501 ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0502-0506 ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0502-0506 ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0502-0506 ●
37 16.549 RUBBER; BUFFER,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0507-0709 ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0507-0709 ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0507-0709 ●
37 16.549 RUBBER; BUFFER,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0710- ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0710- ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0710- ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0211-0211 ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97856-450-3 01 1 0211-0211 ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0212-0501 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0212-0501 ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0212-0501 ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0502-0506 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0502-0506 ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0502-0506 ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0507-0709 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0507-0709 ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0507-0709 ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0710- ● ● ● ●
38 16.549 INSULATOR; ENG COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0710- ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0710- ●
38 16.549 INSULATOR; ENG COVER
SAUDI ARABIA EQUIPMENT(EU2) (C) 		1-65380-234-3 01 1 0211-0211 ● ● ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) (C) 		1-65380-234-3 01 1 0212-0501 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> (C) 		1-65380-234-3 01 1 0502-0506 ● ● ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (C) 		1-65380-234-3 01 1 0502-0506 ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> (C) 		1-65380-234-3 01 1 0507-0709 ● ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (C) 		1-65380-234-3 01 1 0507-0709 ● ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) (C) 		1-65380-234-3 01 1 0710- ● ● ● ●
38 16.549 INSULATOR; ENG COVER
4HE1 ENG(RLY) (B) 		8-97856-803-0 01 1 0211-0501 ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 06 1 0211-0501 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 06 1 0211-0501 ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 06 1 0502- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 06 1 0502- ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 09 1 0211-0211 ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) OD=30 		8-94279-952-0 09 1 0211-0211 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0212-0501 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0212-0501 ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 05 1 0212-0501 ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0502-0506 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0502-0506 ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 05 1 0502-0506 ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0507-0709 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0507-0709 ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 05 1 0507-0709 ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0710- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0710- ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 05 1 0710- ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 05 1 0211-0211 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) OD=30 		8-94279-952-0 05 1 0211-0211 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 09 1 0212-0501 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 09 1 0502-0506 ●
39 16.549 CLIP; INSULATOR,COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 09 1 0507-0709 ● ●
39 16.549 CLIP; INSULATOR,COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 09 1 0710- ● ● ●
39 16.549 CLIP; INSULATOR,COVER
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-94279-996-0 11 1 0211-0211 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) (B) 		8-94279-996-0 11 1 0212-0501 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (B) 		8-94279-996-0 11 1 0502-0506 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (B) 		8-94279-996-0 11 1 0502-0506 ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (B) 		8-94279-996-0 11 1 0507-0709 ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (B) 		8-94279-996-0 11 1 0507-0709 ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) (B) 		8-94279-996-0 11 1 0710- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
4HE1 ENG(RLY) (A) OD=30 		8-94279-952-0 02 1 0211-0501 ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0211-0212 ● ● ●
46 16.549 HOOK ASM; ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97853-632-2 02 1 0211-0212 ● ● ●
46 16.549 HOOK ASM; ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-632-2 02 1 0301-0501 ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 		8-97853-632-2 02 1 0301-0501 ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0301-0501 ● ●
46 16.549 HOOK ASM; ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-632-2 02 1 0502-0506 ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97853-632-2 02 1 0502-0506 ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0502-0506 ●
46 16.549 HOOK ASM; ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-632-2 02 1 0507-0709 ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97853-632-2 02 1 0507-0709 ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0507-0709 ●
46 16.549 HOOK ASM; ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-632-2 02 1 0710- ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97853-632-2 02 1 0710- ● ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0710- ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-889-0 01 1 0211-0501 ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97850-889-0 01 1 0211-0501 ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-889-0 01 1 0502- ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97850-889-0 01 1 0502- ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 0211-0211 ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97850-888-0 01 1 0211-0211 ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 0212-0501 ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 0502-0506 ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 0507-0709 ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 0710- ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-712-3 01 1 0211-0312 ● ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97853-712-3 01 1 0211-0312 ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97583-489-0 01 1 0401-0501 ● ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97583-489-0 01 1 0401-0501 ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97583-489-0 01 1 0502-0608 ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97583-489-0 01 1 0502-0608 ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-98040-141-0 01 1 0609- ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-98040-141-0 01 1 0609- ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 0211-0501 ● ● ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 0211-0501 ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 0502- ● ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 0502- ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0211-0211 ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) 02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0211-0211 ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0212-0501 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0212-0501 ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0212-0501 ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0502-0506 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0502-0506 ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0502-0506 ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0507-0512 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0507-0512 ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0507-0512 ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE 		0-28650-820-0 05 1 0601-0709 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE 		0-28650-820-0 05 1 0601-0709 ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 05 1 0601-0709 ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE 		0-28650-820-0 05 1 0710- ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE 		0-28650-820-0 05 1 0710- ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 05 1 0710- ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0211 ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0211 ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0212-0501 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0212-0501 ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0212-0501 ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0709 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0709 ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0709 ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0211-0211 ● ● ●
84 16.549 BOLT; ENG COVER HINGE
EXC. SAUDI ARABIA EQUIPMENT(EU2) 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0211-0211 ● ● ●
84 16.549 BOLT; ENG COVER HINGE
EXC. MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0212-0501 ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0212-0501 ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0212-0501 ● ●
84 16.549 BOLT; ENG COVER HINGE
EXC. MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0502-0506 ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0502-0506 ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0502-0506 ●
84 16.549 BOLT; ENG COVER HINGE
EXC. MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512 ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512 ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512 ●
84 16.549 BOLT; ENG COVER HINGE
EXC. MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601-0709 ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601-0709 ● ●
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601-0709 ●
84 16.549 BOLT; ENG COVER HINGE
EXC. MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0710- ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0710- ● ● ●
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0710- ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0211-0501 ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0502- ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0211-0501 ● ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0211-0501 ● ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0502-0612 ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0502-0612 ●
310 16.549 SCREW; ENG COVER HOOK
EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ●
310 16.549 SCREW; ENG COVER HOOK
EXC. SAUDI ARABIA EQUIPMENT(EU2) 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-0 01 1 0211-0211 ● ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
EXC. MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0212-0501 ● ● ● ●
317 16.549 BAND; ENGINE COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0212-0501 ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0212-0501 ● ●
317 16.549 BAND; ENGINE COVER
EXC. MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0502-0506 ● ● ● ●
317 16.549 BAND; ENGINE COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0502-0506 ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0502-0506 ●
317 16.549 BAND; ENGINE COVER
EXC. MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0507-0709 ● ● ● ●
317 16.549 BAND; ENGINE COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0507-0709 ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0507-0709 ●
317 16.549 BAND; ENGINE COVER
EXC. MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0710- ● ● ● ●
317 16.549 BAND; ENGINE COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0710- ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0710- ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0211 ● ● ● ● ● ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0212-0501 ● ● ● ●
318 16.549 SCREW; BAND
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0212-0501 ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0212-0501 ● ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0502-0506 ● ● ● ●
318 16.549 SCREW; BAND
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0502-0506 ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0502-0506 ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0507-0604 ● ● ● ●
318 16.549 SCREW; BAND
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0507-0604 ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0507-0604 ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ●
318 16.549 SCREW; BAND
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ●
318 16.549 SCREW; BAND
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0701-0709 ● ● ● ●
318 16.549 SCREW; BAND
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0701-0709 ● ●
318 16.549 SCREW; BAND
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0701-0709 ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0710- ● ● ● ●
318 16.549 SCREW; BAND
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0710- ● ● ●
318 16.549 SCREW; BAND
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0710- ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0211-0211 ● ● ●
324 16.545 FINISHER; FLOOR PANEL
EXC. SAUDI ARABIA EQUIPMENT(EU2) L=140 		8-97892-742-0 01 1 0211-0211 ● ● ●
324 16.545 FINISHER; FLOOR PANEL
EXC. MANUAL TILT CAB<RWZ> L=140 		8-97892-742-0 01 1 0212-0501 ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> L=140 		8-97892-742-0 01 1 0212-0501 ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0212-0501 ● ●
324 16.545 FINISHER; FLOOR PANEL
EXC. MANUAL TILT CAB<RWZ> L=140 		8-97892-742-0 01 1 0502-0506 ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> L=140 		8-97892-742-0 01 1 0502-0506 ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0502-0506 ●
324 16.545 FINISHER; FLOOR PANEL
EXC. MANUAL TILT CAB<RWZ> L=140 		8-97892-742-0 01 1 0507-0709 ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> L=140 		8-97892-742-0 01 1 0507-0709 ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0507-0709 ●
324 16.545 FINISHER; FLOOR PANEL
EXC. MANUAL TILT CAB<RWZ> L=140 		8-97892-742-0 01 1 0710- ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> L=140 		8-97892-742-0 01 1 0710- ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0710- ●
330 16.545 BOLT; BRKT
BRAZIL EQUIPMENT(RWF) 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 0211-0501 ● ●
331 16.545 NUT; BRKT
BRAZIL EQUIPMENT(RWF) 16.570 M6 POP NUT 		8-94279-537-0 03 1 0211-0501 ● ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0211-0501 ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
4HF1-S ENG(RLS) 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0211-0501 ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0502-0610 ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0502-0610 ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0211-0501 ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0502- ● ● ● ● ●
341 16.549 SEAL; INSULATOR HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 01 1 0211-0501 ● ● ● ● ●
341 16.549 SEAL; INSULATOR HOLE
16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 01 1 0211-0501 ●
341 16.549 SEAL; INSULATOR HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-2 01 1 0502-0610 ● ● ● ●
341 16.549 SEAL; INSULATOR HOLE
16.570 OD=20 T=0.05 WHITE 		8-97856-832-2 01 1 0502-0610 ●
341 16.549 SEAL; INSULATOR HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0611- ● ● ● ●
341 16.549 SEAL; INSULATOR HOLE
16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0611- ●
343 16.587 BRACKET; FIRE EXTINGUISHER
BRAZIL EQUIPMENT(RWF) 		8-97859-427-1 01 1 0211-0501 ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0211-0211 ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
EXC. SAUDI ARABIA EQUIPMENT(EU2) L=1000 		8-97892-743-0 01 1 0211-0211 ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
EXC. MANUAL TILT CAB<RWZ> L=1000 		8-97892-743-0 01 1 0212-0501 ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> L=1000 		8-97892-743-0 01 1 0212-0501 ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0212-0501 ● ●
364 16.545 FINISHER; ENG COVER SIDE
EXC. MANUAL TILT CAB<RWZ> L=1000 		8-97892-743-0 01 1 0502-0506 ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> L=1000 		8-97892-743-0 01 1 0502-0506 ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0502-0506 ●
364 16.545 FINISHER; ENG COVER SIDE
EXC. MANUAL TILT CAB<RWZ> L=1000 		8-97892-743-0 01 1 0507-0709 ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> L=1000 		8-97892-743-0 01 1 0507-0709 ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0507-0709 ●
364 16.545 FINISHER; ENG COVER SIDE
EXC. MANUAL TILT CAB<RWZ> L=1000 		8-97892-743-0 01 1 0710- ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> L=1000 		8-97892-743-0 01 1 0710- ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0710- ●

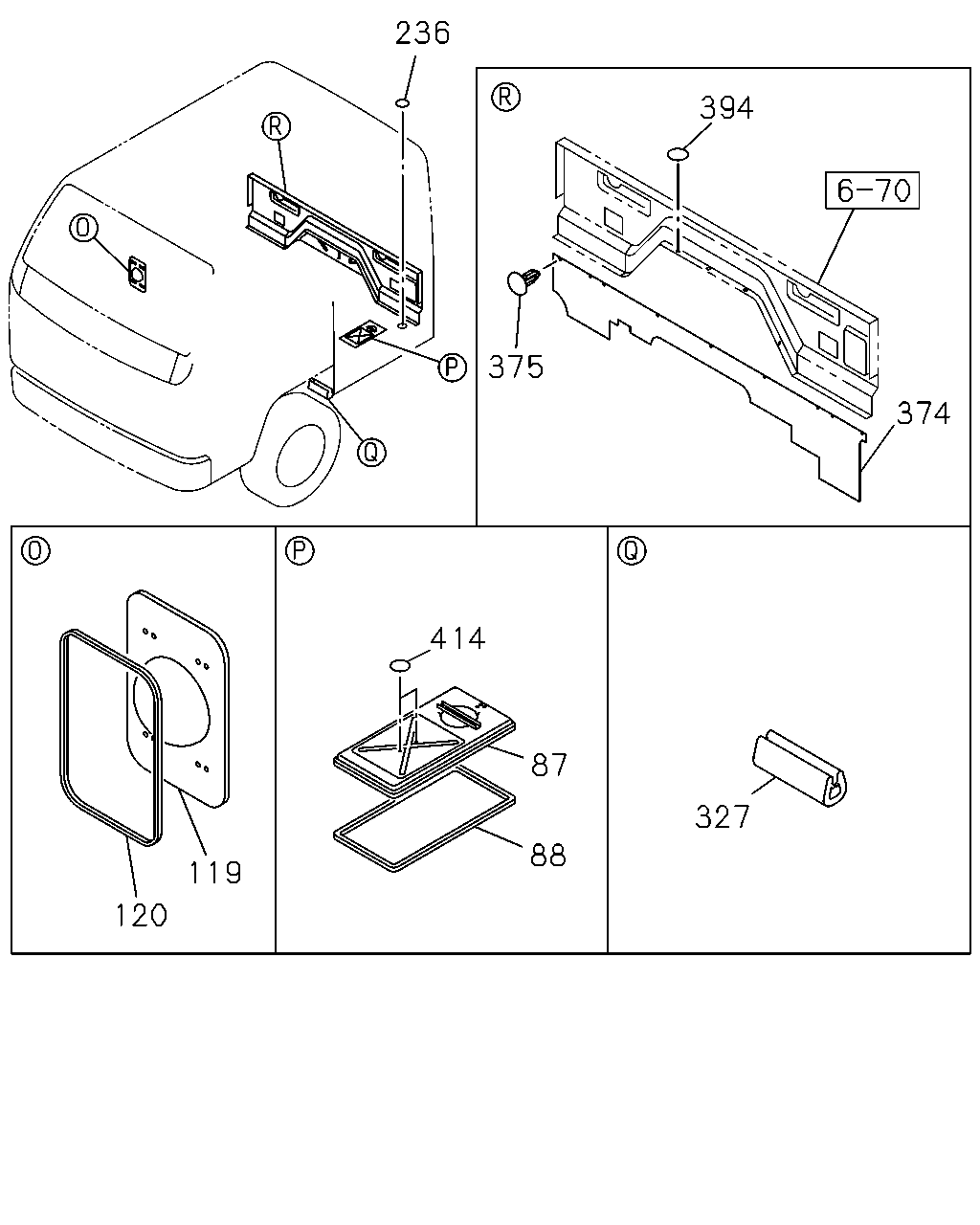

çizim 52807
236 394 375 374 414 87 327 88 119 120
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
87 16.549 COVER; BATTERY CHECK HOLE 8-97856-332-4 01 1 0211-0409 ●
87 16.549 COVER; BATTERY CHECK HOLE 8-97410-416-0 01 1 0410- ●
88 16.549 SEAL; BATTERY CHECK HOLE COVER 8-97853-725-1 01 1 0211- ●
119 16.090 LID; P/S OIL TANK 8-97853-440-2 01 1 0211- ●
120 16.090 SEAL; LID,P/S 8-97853-441-1 01 1 0211- ●
236 16.549 SEAL; CHECK HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0211- ●
327 16.545 FINISHER; CTR PILLAR,LWR 8-97857-257-1 02 1 0211- ●
374 16.549 COVER; ENG,RR LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97994-696-0 01 1 0211-0304 ●
374 16.549 COVER; ENG,RR LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX) 		8-97994-696-0 01 1 0305-0501 ●
375 16.549 CLIP; COVER,ENG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 16.320 OD=8.3 		8-94279-989-0 09 1 0211-0304 ●
375 16.549 CLIP; COVER,ENG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX) 16.320 OD=8.3 		8-94279-989-0 09 1 0305-0501 ●
394 16.549 SEAL; FIXING HOLE
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0211-0501 ●
414 16.549 SEAL; BATTERY COVER
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0410- ●
çizim 52814
10 364 74 84 338 34 57 243 37 38 7 10 39 39 337 331 8 46 330 310 8 343 317 324 1 318
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.850 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 0211- ● ● ● ●
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 AR 1 0211-0506 ● ● ● ● ● ●
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 AR 1 0507- ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97850-897-0 01 1 0211-0501 ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97850-897-0 01 1 0211-0501 ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97850-897-0 01 1 0502- ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97850-897-0 01 1 0502- ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 0211-0211 ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97850-896-0 01 1 0211-0211 ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 0212-0501 ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 0502-0506 ●
7 16.545 INSULATOR; SUPPORT COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 0507-0709 ● ●
7 16.545 INSULATOR; SUPPORT COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 0710- ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-606-1 01 1 0211-0501 ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-661-3 01 1 0502- ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-605-2 01 1 0211-0501 ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-660-3 01 1 0502- ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0710- ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0710-0710 ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) INTERIOR DELUXE<RBB> 16.545 (B) OD=32 BLACK 		8-98031-126-0 01 1 0711- ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-4 01 1 0211-0211 ● ● ●
10 16.549 SEAL; ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97853-267-4 01 1 0211-0211 ● ● ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97853-267-5 01 1 0212-0305 ● ● ● ●
10 16.549 SEAL; ENG COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) 		8-97853-267-5 01 1 0212-0305 ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-5 01 1 0212-0305 ● ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97581-109-0 01 1 0306-0501 ● ● ● ●
10 16.549 SEAL; ENG COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) 		8-97581-109-0 01 1 0306-0501 ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-0 01 1 0306-0501 ● ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0502-0506 ● ● ● ●
10 16.549 SEAL; ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0502-0506 ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0502-0506 ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0507-0709 ● ● ● ●
10 16.549 SEAL; ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0507-0709 ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0507-0709 ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0710- ● ● ● ●
10 16.549 SEAL; ENG COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0710- ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0710- ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0211-0501 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR MI DDLE BRONZE GREEN(909),BODY COLOR HIGHWAY YELLOW(916) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0211-0501 ● ● ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (F) L=886 		8-97996-183-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) L=566 		8-97996-184-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) L=512 		8-97996-185-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) L=481 		8-97582-088-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=519 		8-97995-003-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G) L=519 		8-97995-003-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=543 		8-97582-085-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G) L=543 		8-97582-085-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
(G) L=543 		8-97582-085-0 01 1 0502- ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=804 		8-97995-004-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) L=804 		8-97995-004-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=804 		8-97582-086-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) L=804 		8-97582-086-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
(C) L=804 		8-97582-086-0 01 1 0502- ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=519 		8-97995-005-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) (D) L=519 		8-97995-005-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
(D) L=519 		8-97995-005-0 01 1 0502- ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=467 		8-97995-006-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) (E) L=467 		8-97995-006-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=436 		8-97582-087-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) (E) L=436 		8-97582-087-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
(E) L=436 		8-97582-087-0 01 1 0502- ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(A) 		8-97850-679-1 01 1 0211-0211 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97850-679-1 01 1 0211-0211 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0212-0501 ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0212-0501 ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(A) 		8-97850-679-1 01 1 0212-0501 ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0502-0506 ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0502-0506 ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(A) 		8-97850-679-1 01 1 0502-0506 ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0507-0709 ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0507-0709 ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(A) 		8-97850-679-1 01 1 0507-0709 ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0710- ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0710- ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(A) 		8-97850-679-1 01 1 0710- ●
34 16.549 COVER ASM; ENG,CAB FLOOR
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97850-893-1 01 1 0211-0211 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) (B) 		8-97850-893-1 01 1 0212-0501 ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> (B) 		8-97850-893-2 01 1 0502-0506 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (B) 		8-97850-893-2 01 1 0502-0506 ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> (B) 		8-97850-893-2 01 1 0507-0709 ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (B) 		8-97850-893-2 01 1 0507-0709 ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) (B) 		8-97850-893-2 01 1 0710- ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0211-0211 ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.155 OD=30 T=10 		5-74917-001-2 02 1 0211-0211 ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0212-0501 ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0212-0501 ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0212-0501 ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0502-0506 ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0502-0506 ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0502-0506 ●
37 16.549 RUBBER; BUFFER,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0507-0709 ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0507-0709 ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0507-0709 ●
37 16.549 RUBBER; BUFFER,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0710- ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0710- ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0710- ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0211-0211 ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97856-450-3 01 1 0211-0211 ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0212-0501 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0212-0501 ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0212-0501 ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0502-0506 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0502-0506 ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0502-0506 ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0507-0709 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0507-0709 ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0507-0709 ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0710- ● ● ● ●
38 16.549 INSULATOR; ENG COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0710- ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0710- ●
38 16.549 INSULATOR; ENG COVER
SAUDI ARABIA EQUIPMENT(EU2) (C) 		1-65380-234-3 01 1 0211-0211 ● ● ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) (C) 		1-65380-234-3 01 1 0212-0501 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> (C) 		1-65380-234-3 01 1 0502-0506 ● ● ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (C) 		1-65380-234-3 01 1 0502-0506 ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> (C) 		1-65380-234-3 01 1 0507-0709 ● ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (C) 		1-65380-234-3 01 1 0507-0709 ● ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) (C) 		1-65380-234-3 01 1 0710- ● ● ● ●
38 16.549 INSULATOR; ENG COVER
4HE1 ENG(RLY) (B) 		8-97856-803-0 01 1 0211-0501 ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 06 1 0211-0501 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 06 1 0211-0501 ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 06 1 0502- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 06 1 0502- ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 09 1 0211-0211 ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) OD=30 		8-94279-952-0 09 1 0211-0211 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0212-0501 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0212-0501 ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 05 1 0212-0501 ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0502-0506 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0502-0506 ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 05 1 0502-0506 ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0507-0709 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0507-0709 ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 05 1 0507-0709 ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0710- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0710- ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 05 1 0710- ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 05 1 0211-0211 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) OD=30 		8-94279-952-0 05 1 0211-0211 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 09 1 0212-0501 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 09 1 0502-0506 ●
39 16.549 CLIP; INSULATOR,COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 09 1 0507-0709 ● ●
39 16.549 CLIP; INSULATOR,COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 09 1 0710- ● ● ●
39 16.549 CLIP; INSULATOR,COVER
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-94279-996-0 11 1 0211-0211 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) (B) 		8-94279-996-0 11 1 0212-0501 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (B) 		8-94279-996-0 11 1 0502-0506 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (B) 		8-94279-996-0 11 1 0502-0506 ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (B) 		8-94279-996-0 11 1 0507-0709 ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (B) 		8-94279-996-0 11 1 0507-0709 ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) (B) 		8-94279-996-0 11 1 0710- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
4HE1 ENG(RLY) (A) OD=30 		8-94279-952-0 02 1 0211-0501 ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0211-0212 ● ● ●
46 16.549 HOOK ASM; ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97853-632-2 02 1 0211-0212 ● ● ●
46 16.549 HOOK ASM; ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-632-2 02 1 0301-0501 ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 		8-97853-632-2 02 1 0301-0501 ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0301-0501 ● ●
46 16.549 HOOK ASM; ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-632-2 02 1 0502-0506 ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97853-632-2 02 1 0502-0506 ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0502-0506 ●
46 16.549 HOOK ASM; ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-632-2 02 1 0507-0709 ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97853-632-2 02 1 0507-0709 ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0507-0709 ●
46 16.549 HOOK ASM; ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-632-2 02 1 0710- ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97853-632-2 02 1 0710- ● ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0710- ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-889-0 01 1 0211-0501 ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97850-889-0 01 1 0211-0501 ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-889-0 01 1 0502- ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97850-889-0 01 1 0502- ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 0211-0211 ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97850-888-0 01 1 0211-0211 ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 0212-0501 ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 0502-0506 ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 0507-0709 ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 0710- ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0211-0211 ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) 02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0211-0211 ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0212-0501 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0212-0501 ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0212-0501 ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0502-0506 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0502-0506 ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0502-0506 ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0507-0512 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0507-0512 ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0507-0512 ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE 		0-28650-820-0 05 1 0601-0709 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE 		0-28650-820-0 05 1 0601-0709 ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 05 1 0601-0709 ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE 		0-28650-820-0 05 1 0710- ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE 		0-28650-820-0 05 1 0710- ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 05 1 0710- ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0211 ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0211 ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0212-0501 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0212-0501 ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0212-0501 ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0709 ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0709 ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0709 ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
EXC. MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0211-0211 ● ● ●
84 16.549 BOLT; ENG COVER HINGE
EXC. SAUDI ARABIA EQUIPMENT(EU2) 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0211-0211 ● ● ●
84 16.549 BOLT; ENG COVER HINGE
EXC. MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0212-0501 ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0212-0501 ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0212-0501 ● ●
84 16.549 BOLT; ENG COVER HINGE
EXC. MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0502-0506 ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0502-0506 ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0502-0506 ●
84 16.549 BOLT; ENG COVER HINGE
EXC. MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512 ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512 ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512 ●
84 16.549 BOLT; ENG COVER HINGE
EXC. MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601-0709 ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601-0709 ● ●
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601-0709 ●
84 16.549 BOLT; ENG COVER HINGE
EXC. MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0710- ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0710- ● ● ●
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0710- ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0211-0501 ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0502- ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0211-0501 ● ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0211-0501 ● ● ●
310 16.549 SCREW; ENG COVER HOOK
EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0502-0612 ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0502-0612 ●
310 16.549 SCREW; ENG COVER HOOK
EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ●
310 16.549 SCREW; ENG COVER HOOK
EXC. SAUDI ARABIA EQUIPMENT(EU2) 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-0 01 1 0211-0211 ● ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
EXC. MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0212-0501 ● ● ● ●
317 16.549 BAND; ENGINE COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0212-0501 ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0212-0501 ● ●
317 16.549 BAND; ENGINE COVER
EXC. MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0502-0506 ● ● ● ●
317 16.549 BAND; ENGINE COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0502-0506 ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0502-0506 ●
317 16.549 BAND; ENGINE COVER
EXC. MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0507-0709 ● ● ● ●
317 16.549 BAND; ENGINE COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0507-0709 ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0507-0709 ●
317 16.549 BAND; ENGINE COVER
EXC. MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0710- ● ● ● ●
317 16.549 BAND; ENGINE COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0710- ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0710- ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0211 ● ● ● ● ● ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0212-0501 ● ● ● ●
318 16.549 SCREW; BAND
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0212-0501 ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0212-0501 ● ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0502-0506 ● ● ● ●
318 16.549 SCREW; BAND
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0502-0506 ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0502-0506 ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0507-0604 ● ● ● ●
318 16.549 SCREW; BAND
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0507-0604 ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0507-0604 ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ●
318 16.549 SCREW; BAND
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ●
318 16.549 SCREW; BAND
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0701-0709 ● ● ● ●
318 16.549 SCREW; BAND
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0701-0709 ● ●
318 16.549 SCREW; BAND
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0701-0709 ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0710- ● ● ● ●
318 16.549 SCREW; BAND
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0710- ● ● ●
318 16.549 SCREW; BAND
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0710- ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0211-0211 ● ● ●
324 16.545 FINISHER; FLOOR PANEL
EXC. SAUDI ARABIA EQUIPMENT(EU2) L=140 		8-97892-742-0 01 1 0211-0211 ● ● ●
324 16.545 FINISHER; FLOOR PANEL
EXC. MANUAL TILT CAB<RWZ> L=140 		8-97892-742-0 01 1 0212-0501 ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> L=140 		8-97892-742-0 01 1 0212-0501 ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0212-0501 ● ●
324 16.545 FINISHER; FLOOR PANEL
EXC. MANUAL TILT CAB<RWZ> L=140 		8-97892-742-0 01 1 0502-0506 ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> L=140 		8-97892-742-0 01 1 0502-0506 ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0502-0506 ●
324 16.545 FINISHER; FLOOR PANEL
EXC. MANUAL TILT CAB<RWZ> L=140 		8-97892-742-0 01 1 0507-0709 ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> L=140 		8-97892-742-0 01 1 0507-0709 ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0507-0709 ●
324 16.545 FINISHER; FLOOR PANEL
EXC. MANUAL TILT CAB<RWZ> L=140 		8-97892-742-0 01 1 0710- ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> L=140 		8-97892-742-0 01 1 0710- ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0710- ●
330 16.545 BOLT; BRKT
BRAZIL EQUIPMENT(RWF) 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 0211-0501 ● ●
331 16.545 NUT; BRKT
BRAZIL EQUIPMENT(RWF) 16.570 M6 POP NUT 		8-94279-537-0 03 1 0211-0501 ● ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0211-0501 ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
4HF1-S ENG(RLS) 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0211-0501 ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0502-0610 ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0502-0610 ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0211-0501 ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0502- ● ● ● ● ●
338 16.545 SEAL; CHECK ARM
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0211-0501 ● ● ●
338 16.545 SEAL; CHECK ARM
EXC. BRAZIL EQUIPMENT(RWF) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0211-0501 ● ●
338 16.545 SEAL; CHECK ARM
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0502- ● ● ● ●
343 16.587 BRACKET; FIRE EXTINGUISHER
BRAZIL EQUIPMENT(RWF) 		8-97859-427-1 01 1 0211-0501 ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0211-0211 ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
EXC. SAUDI ARABIA EQUIPMENT(EU2) L=1000 		8-97892-743-0 01 1 0211-0211 ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
EXC. MANUAL TILT CAB<RWZ> L=1000 		8-97892-743-0 01 1 0212-0501 ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> L=1000 		8-97892-743-0 01 1 0212-0501 ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0212-0501 ● ●
364 16.545 FINISHER; ENG COVER SIDE
EXC. MANUAL TILT CAB<RWZ> L=1000 		8-97892-743-0 01 1 0502-0506 ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> L=1000 		8-97892-743-0 01 1 0502-0506 ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0502-0506 ●
364 16.545 FINISHER; ENG COVER SIDE
EXC. MANUAL TILT CAB<RWZ> L=1000 		8-97892-743-0 01 1 0507-0709 ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> L=1000 		8-97892-743-0 01 1 0507-0709 ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0507-0709 ●
364 16.545 FINISHER; ENG COVER SIDE
EXC. MANUAL TILT CAB<RWZ> L=1000 		8-97892-743-0 01 1 0710- ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> L=1000 		8-97892-743-0 01 1 0710- ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0710- ●
çizim 53601
18 18 338 10 243 34 39 337 38 8 317 1 8 318
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.850 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 0211- ● ● ● ●
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 AR 1 0211-0506 ● ● ● ● ● ●
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 AR 1 0507- ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-606-1 01 1 0211-0501 ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-661-3 01 1 0502- ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-605-2 01 1 0211-0501 ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-660-3 01 1 0502- ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0710- ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0710-0710 ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) INTERIOR DELUXE<RBB> 16.545 (B) OD=32 BLACK 		8-98031-126-0 01 1 0711- ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-4 01 1 0211-0211 ● ● ●
10 16.549 SEAL; ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97853-267-4 01 1 0211-0211 ● ● ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97853-267-5 01 1 0212-0305 ● ● ● ●
10 16.549 SEAL; ENG COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) 		8-97853-267-5 01 1 0212-0305 ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-5 01 1 0212-0305 ● ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97581-109-0 01 1 0306-0501 ● ● ● ●
10 16.549 SEAL; ENG COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) 		8-97581-109-0 01 1 0306-0501 ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-0 01 1 0306-0501 ● ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0502-0506 ● ● ● ●
10 16.549 SEAL; ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0502-0506 ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0502-0506 ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0507-0709 ● ● ● ●
10 16.549 SEAL; ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0507-0709 ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0507-0709 ●
10 16.549 SEAL; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0710- ● ● ● ●
10 16.549 SEAL; ENG COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0710- ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0710- ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0211-0501 ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR MI DDLE BRONZE GREEN(909),BODY COLOR HIGHWAY YELLOW(916) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0211-0501 ● ● ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (F) L=886 		8-97996-183-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) L=566 		8-97996-184-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) L=512 		8-97996-185-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) L=481 		8-97582-088-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=519 		8-97995-003-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G) L=519 		8-97995-003-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=543 		8-97582-085-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G) L=543 		8-97582-085-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
(G) L=543 		8-97582-085-0 01 1 0502- ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=804 		8-97995-004-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) L=804 		8-97995-004-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=804 		8-97582-086-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) L=804 		8-97582-086-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
(C) L=804 		8-97582-086-0 01 1 0502- ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=519 		8-97995-005-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) (D) L=519 		8-97995-005-0 01 1 0211-0501 ●
10 16.549 SEAL; ENG COVER
(D) L=519 		8-97995-005-0 01 1 0502- ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=467 		8-97995-006-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) (E) L=467 		8-97995-006-0 01 1 0211-0305 ●
10 16.549 SEAL; ENG COVER
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) L=436 		8-97582-087-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) (E) L=436 		8-97582-087-0 01 1 0306-0501 ●
10 16.549 SEAL; ENG COVER
(E) L=436 		8-97582-087-0 01 1 0502- ●
18 16.549 BOLT; ENG COVER
SAUDI ARABIA EQUIPMENT(EU2) 02.664 (A) M8X20 FLANGE 		0-28680-820-0 09 1 0211-0211 ● ● ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 02.664 (A) M8X20 FLANGE 		0-28680-820-0 09 1 0212-0501 ● ● ● ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> 02.664 (A) M8X20 FLANGE 		0-28680-820-0 09 1 0502-0506 ● ● ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 02.664 (A) M8X20 FLANGE 		0-28680-820-0 09 1 0502-0506 ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> 02.664 (A) M8X20 FLANGE 		0-28680-820-0 09 1 0507-0512 ● ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 02.664 (A) M8X20 FLANGE 		0-28680-820-0 09 1 0507-0512 ● ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> 01.531 (A) M8X20 FLANGE 		0-28650-820-0 09 1 0601-0709 ● ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 09 1 0601-0709 ● ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 09 1 0710- ● ● ● ●
18 16.549 BOLT; ENG COVER
SAUDI ARABIA EQUIPMENT(EU2) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0211 ● ● ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 0212-0501 ● ● ● ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 0502-0506 ● ● ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 0502-0506 ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ● ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ● ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0709 ● ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0709 ● ●
18 16.549 BOLT; ENG COVER
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(A) 		8-97850-679-1 01 1 0211-0211 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97850-679-1 01 1 0211-0211 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0212-0501 ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0212-0501 ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(A) 		8-97850-679-1 01 1 0212-0501 ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0502-0506 ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0502-0506 ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(A) 		8-97850-679-1 01 1 0502-0506 ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0507-0709 ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0507-0709 ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(A) 		8-97850-679-1 01 1 0507-0709 ●
34 16.549 COVER ASM; ENG,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0710- ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97850-679-1 01 1 0710- ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
(A) 		8-97850-679-1 01 1 0710- ●
34 16.549 COVER ASM; ENG,CAB FLOOR
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97850-893-1 01 1 0211-0211 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) (B) 		8-97850-893-1 01 1 0212-0501 ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> (B) 		8-97850-893-2 01 1 0502-0506 ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (B) 		8-97850-893-2 01 1 0502-0506 ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> (B) 		8-97850-893-2 01 1 0507-0709 ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (B) 		8-97850-893-2 01 1 0507-0709 ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) (B) 		8-97850-893-2 01 1 0710- ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0211-0211 ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97856-450-3 01 1 0211-0211 ● ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0212-0501 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0212-0501 ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0212-0501 ● ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0502-0506 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0502-0506 ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0502-0506 ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0507-0709 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0507-0709 ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0507-0709 ●
38 16.549 INSULATOR; ENG COVER
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0710- ● ● ● ●
38 16.549 INSULATOR; ENG COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0710- ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0710- ●
38 16.549 INSULATOR; ENG COVER
SAUDI ARABIA EQUIPMENT(EU2) (C) 		1-65380-234-3 01 1 0211-0211 ● ● ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) (C) 		1-65380-234-3 01 1 0212-0501 ● ● ● ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> (C) 		1-65380-234-3 01 1 0502-0506 ● ● ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (C) 		1-65380-234-3 01 1 0502-0506 ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> (C) 		1-65380-234-3 01 1 0507-0709 ● ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (C) 		1-65380-234-3 01 1 0507-0709 ● ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) (C) 		1-65380-234-3 01 1 0710- ● ● ● ●
38 16.549 INSULATOR; ENG COVER
4HE1 ENG(RLY) (B) 		8-97856-803-0 01 1 0211-0501 ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 06 1 0211-0501 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 06 1 0211-0501 ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 06 1 0502- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 06 1 0502- ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 09 1 0211-0211 ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) OD=30 		8-94279-952-0 09 1 0211-0211 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0212-0501 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0212-0501 ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 05 1 0212-0501 ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0502-0506 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0502-0506 ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 05 1 0502-0506 ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0507-0709 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0507-0709 ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 05 1 0507-0709 ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0710- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 05 1 0710- ● ● ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 05 1 0710- ●
39 16.549 CLIP; INSULATOR,COVER
(A) OD=30 		8-94279-952-0 05 1 0211-0211 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) OD=30 		8-94279-952-0 05 1 0211-0211 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 09 1 0212-0501 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 09 1 0502-0506 ●
39 16.549 CLIP; INSULATOR,COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 09 1 0507-0709 ● ●
39 16.549 CLIP; INSULATOR,COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> (A) OD=30 		8-94279-952-0 09 1 0710- ● ● ●
39 16.549 CLIP; INSULATOR,COVER
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-94279-996-0 11 1 0211-0211 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) (B) 		8-94279-996-0 11 1 0212-0501 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (B) 		8-94279-996-0 11 1 0502-0506 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (B) 		8-94279-996-0 11 1 0502-0506 ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> (B) 		8-94279-996-0 11 1 0507-0709 ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (B) 		8-94279-996-0 11 1 0507-0709 ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) (B) 		8-94279-996-0 11 1 0710- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
4HE1 ENG(RLY) (A) OD=30 		8-94279-952-0 02 1 0211-0501 ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0211-0501 ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0502- ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-0 01 1 0211-0211 ● ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
EXC. MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0212-0501 ● ● ● ●
317 16.549 BAND; ENGINE COVER
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0212-0501 ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0212-0501 ● ●
317 16.549 BAND; ENGINE COVER
EXC. MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0502-0506 ● ● ● ●
317 16.549 BAND; ENGINE COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0502-0506 ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0502-0506 ●
317 16.549 BAND; ENGINE COVER
EXC. MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0507-0709 ● ● ● ●
317 16.549 BAND; ENGINE COVER
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0507-0709 ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0507-0709 ●
317 16.549 BAND; ENGINE COVER
EXC. MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0710- ● ● ● ●
317 16.549 BAND; ENGINE COVER
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0710- ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0710- ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0211 ● ● ● ● ● ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0212-0501 ● ● ● ●
318 16.549 SCREW; BAND
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0212-0501 ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0212-0501 ● ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0502-0506 ● ● ● ●
318 16.549 SCREW; BAND
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0502-0506 ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0502-0506 ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0507-0604 ● ● ● ●
318 16.549 SCREW; BAND
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0507-0604 ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0507-0604 ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ●
318 16.549 SCREW; BAND
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ●
318 16.549 SCREW; BAND
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0701-0709 ● ● ● ●
318 16.549 SCREW; BAND
TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0701-0709 ● ●
318 16.549 SCREW; BAND
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0701-0709 ●
318 16.549 SCREW; BAND
EXC. MANUAL TILT CAB<RWZ> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0710- ● ● ● ●
318 16.549 SCREW; BAND
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0710- ● ● ●
318 16.549 SCREW; BAND
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0710- ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0211-0501 ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
4HF1-S ENG(RLS) 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0211-0501 ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0502-0610 ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0502-0610 ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0211-0501 ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0502- ● ● ● ● ●
338 16.545 SEAL; CHECK ARM
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0211-0501 ● ● ●
338 16.545 SEAL; CHECK ARM
EXC. BRAZIL EQUIPMENT(RWF) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0211-0501 ● ●
338 16.545 SEAL; CHECK ARM
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0502- ● ● ● ●
çizim 55233
190 286 360 248
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
190 16.549 LID
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX) 		8-97180-904-1 01 1 0211-0501 ● ● ●
190 16.549 LID
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97180-904-1 01 1 0502-0506 ● ● ●
190 16.549 LID
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97180-904-1 01 1 0507-0507 ● ● ●
190 16.549 LID
EXC. FRONT BUMPER PAINTED<VB5> 		8-97180-904-1 01 1 0507-0606 ● ● ● ● ●
190 16.549 LID
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 		8-97180-904-1 01 1 0607- ● ● ●
248 16.850 SEAL; EXT,FRT & RR
02.580 OD=36 T=0.05 BLACK 		5-76777-035-0 04 1 0307-0501 ● ● ● ● ● ●
286 16.545 BOLT; LID
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX) 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0211-0501 ● ● ●
286 16.545 BOLT; LID
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0502-0506 ● ● ●
286 16.545 BOLT; LID
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0507-0507 ● ● ●
286 16.545 BOLT; LID
EXC. FRONT BUMPER PAINTED<VB5> 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0507-0512 ● ● ● ● ●
286 16.545 BOLT; LID
EXC. FRONT BUMPER PAINTED<VB5> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0601-0606 ● ● ● ● ●
286 16.545 BOLT; LID
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0607- ● ● ●
360 16.549 COVER; LWR
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. ISRAEL EQUIPMENT(7LX) 		8-97183-607-2 01 1 0211-0501 ● ● ●
360 16.549 COVER; LWR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97183-607-2 01 1 0502-0506 ● ● ●
360 16.549 COVER; LWR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97183-607-2 01 1 0507-0507 ● ● ●
360 16.549 COVER; LWR
EXC. FRONT BUMPER PAINTED<VB5> 		8-97183-607-2 01 1 0507-0606 ● ● ● ● ●
360 16.549 COVER; LWR
4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. TAIWAN EQUIPMENT(RWV) 		8-97183-607-2 01 1 0607- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
