6-70 — FLOOR PANEL (#45542) — 473 parça

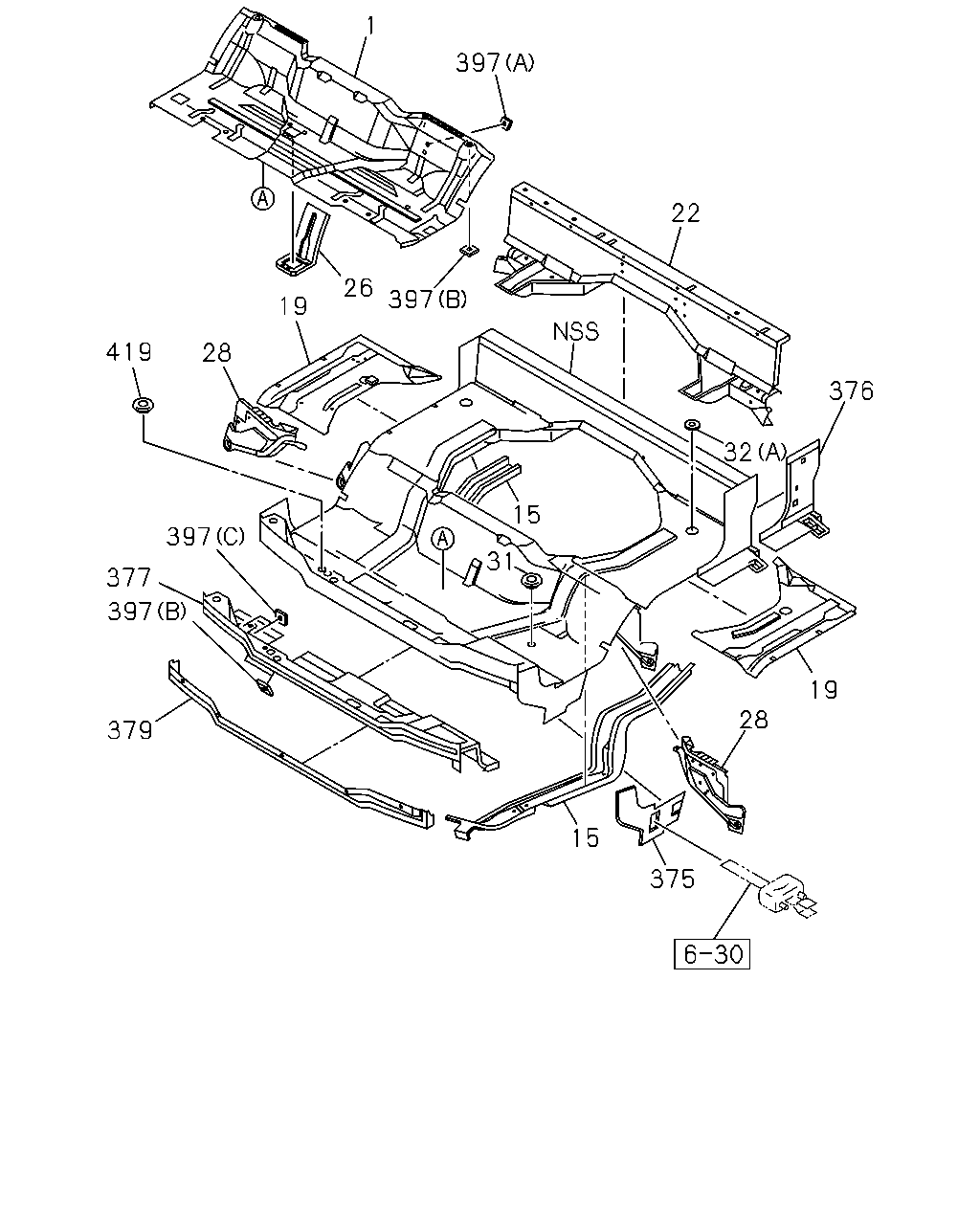

çizim 51973
1 397 22 26 397 19 419 28 376 32 15 397 31 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.545 PANEL; FLOOR 8-97850-402-6 01 1 0211-0501 ● ● ● ●
1 16.545 PANEL; FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-402-6 01 1 0211-0501 ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-402-6 01 1 0211-0501 ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-402-6 01 1 0211-0501 ● ●
1 16.545 PANEL; FLOOR 8-97850-402-6 01 1 0502-0506 ● ● ● ●
1 16.545 PANEL; FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-402-6 01 1 0502-0506 ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-402-6 01 1 0502-0506 ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-402-6 01 1 0502-0506 ●
1 16.545 PANEL; FLOOR 8-97850-402-6 01 1 0507-0809 ● ● ●
1 16.545 PANEL; FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-402-6 01 1 0507-0809 ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-402-6 01 1 0507-0809 ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-402-6 01 1 0507-0809 ● ●
1 16.545 PANEL; FLOOR 8-97850-402-6 01 1 0810- ● ● ●
1 16.545 PANEL; FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-402-6 01 1 0810- ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-402-6 01 1 0810- ● ●
1 16.545 PANEL; FLOOR
UKRAINE COUNTRY(CU0) MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-402-6 01 1 0810- ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-402-6 01 1 0810- ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-511-5 01 1 0211-0501 ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-511-5 01 1 0502-0506 ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-511-5 01 1 0507-0809 ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> EXC. UKRAINE COUNTRY(CU0) 		8-97850-511-5 01 1 0810- ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 0211-0501 ● ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 0502- ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 0211-0501 ● ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 0502-0505 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-98013-405-0 01 1 0506- ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-405-9 01 1 0211-0501 ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-405-9 01 1 0502-1106 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97840-393-0 01 1 1107- ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 0211-0211 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-335-4 01 1 0211-0211 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97850-335-4 01 1 0211-0211 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-335-4 01 1 0212-0501 ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 		8-97850-335-4 01 1 0212-0501 ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 0212-0501 ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-335-4 01 1 0502-0506 ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) 		8-97850-335-4 01 1 0502-0506 ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 0502-0506 ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-335-4 01 1 0507-0709 ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) 		8-97850-335-4 01 1 0507-0709 ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 0507-0709 ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-335-5 01 1 0710- ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97850-335-5 01 1 0710- ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-5 01 1 0710- ●
19 16.545 PANEL; FLOOR SIDE,REAR
SAUDI ARABIA EQUIPMENT(EU2) MANUAL TILT CAB<RWZ> 		8-97850-456-3 01 1 0211-0211 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 		8-97850-456-3 01 1 0212-0501 ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-456-3 01 1 0502-0506 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-456-3 01 1 0502-0506 ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-456-3 01 1 0507-0709 ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-456-3 01 1 0507-0709 ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 		8-97850-456-4 01 1 0710- ● ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-535-8 01 1 0211-0501 ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-535-9 01 1 0502-0712 ● ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-98110-616-3 01 1 0801- ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-408-8 01 1 0211-0211 ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97850-408-8 01 1 0211-0211 ● ● ●
22 16.545 FRAME; FLOOR REAR
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 		8-97850-408-9 01 1 0212-0412 ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-408-9 01 1 0212-0412 ●
22 16.545 FRAME; FLOOR REAR
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 		8-98002-169-0 01 1 0501-0501 ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-98002-169-0 01 1 0501-0501 ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) 		8-98002-169-0 01 1 0502-0506 ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) 		8-98002-169-0 01 1 0507-0709 ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 		8-98002-169-5 01 1 0710- ● ● ●
22 16.545 FRAME; FLOOR REAR
SAUDI ARABIA EQUIPMENT(EU2) MANUAL TILT CAB<RWZ> 		8-97997-861-0 01 1 0211-0211 ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 		8-97997-861-2 01 1 0212-0501 ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97997-861-2 01 1 0502-0506 ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97997-861-2 01 1 0502-0506 ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97997-861-2 01 1 0507-0709 ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97997-861-2 01 1 0507-0709 ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 		8-97997-861-7 01 1 0710- ● ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-502-9 01 1 0211-1102 ●
22 16.545 FRAME; FLOOR REAR 8-98190-252-2 01 1 1103- ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 0211-0501 ● ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 0502- ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0211-0501 ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0502-1106 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-98170-771-0 01 1 1107- ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0211-0501 ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0502-1106 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-98170-770-0 01 1 1107- ● ● ● ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 0211-0501 ● ● ● ● ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 0502- ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 0211-0501 ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 0502- ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
15.222 (B) OD=35 		8-94122-971-0 04 1 0211- ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 0211-0501 ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-4 01 1 0502- ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 0211-0501 ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-5 01 1 0502- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 0211-0501 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 0502- ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 0211-0501 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 0502- ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97850-187-3 01 1 0211-0501 ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-187-3 01 1 0502- ●
376 16.545 CLOSING; PILLAR,LWR
4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97850-186-3 01 1 0211-0501 ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-186-3 01 1 0502- ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0211-0501 ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. MANUAL TILT CAB<RWZ> 		8-97850-776-2 01 1 0211-0501 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-776-2 01 1 0211-0501 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-776-2 01 1 0211-0501 ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0502-0506 ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. MANUAL TILT CAB<RWZ> 		8-97850-776-2 01 1 0502-0506 ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-776-2 01 1 0502-0506 ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-776-2 01 1 0502-0506 ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0507-0809 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. MANUAL TILT CAB<RWZ> 		8-97850-776-2 01 1 0507-0809 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-776-2 01 1 0507-0809 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-776-2 01 1 0507-0809 ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0810- ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. MANUAL TILT CAB<RWZ> 		8-97850-776-2 01 1 0810- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-776-2 01 1 0810- ● ●
377 16.545 RAIL ASM; MTG,FRT
UKRAINE COUNTRY(CU0) MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-776-2 01 1 0810- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-776-2 01 1 0810- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97898-315-2 01 1 0211-0501 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97898-315-2 01 1 0502-0506 ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97898-315-2 01 1 0507-0809 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> EXC. UKRAINE COUNTRY(CU0) 		8-97898-315-2 01 1 0810- ● ●
379 16.545 PANEL 8-97850-129-2 01 1 0211-0307 ● ● ● ● ● ●
379 16.545 PANEL 8-97581-640-0 01 1 0308-0501 ● ● ● ● ● ●
379 16.545 PANEL 8-97581-640-0 01 1 0502- ● ● ● ● ●
397 16.545 NUT; PIERCE
(C) M10 		9-09114-030-0 03 1 0211-0501 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (C) M10 		9-09114-030-0 03 1 0211-0501 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) M10 		9-09114-030-0 03 1 0211-0501 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (C) M10 		9-09114-030-0 03 1 0211-0501 ● ●
397 16.545 NUT; PIERCE
(C) M10 		9-09114-030-0 03 1 0502-0506 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (C) M10 		9-09114-030-0 03 1 0502-0506 ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (C) M10 		9-09114-030-0 03 1 0502-0506 ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) M10 		9-09114-030-0 03 1 0502-0506 ●
397 16.545 NUT; PIERCE
(C) M10 		9-09114-030-0 03 1 0507-0809 ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (C) M10 		9-09114-030-0 03 1 0507-0809 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (C) M10 		9-09114-030-0 03 1 0507-0809 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) M10 		9-09114-030-0 03 1 0507-0809 ● ●
397 16.545 NUT; PIERCE
(C) M10 		9-09114-030-0 03 1 0810- ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (C) M10 		9-09114-030-0 03 1 0810- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (C) M10 		9-09114-030-0 03 1 0810- ● ●
397 16.545 NUT; PIERCE
UKRAINE COUNTRY(CU0) MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> (C) M10 		9-09114-030-0 03 1 0810- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) M10 		9-09114-030-0 03 1 0810- ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 04 1 0211-0501 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 04 1 0211-0501 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 04 1 0211-0501 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 04 1 0211-0501 ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 04 1 0502-0506 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 04 1 0502-0506 ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 04 1 0502-0506 ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 04 1 0502-0506 ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 04 1 0507-0809 ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 04 1 0507-0809 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 04 1 0507-0809 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 04 1 0507-0809 ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 04 1 0810- ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 04 1 0810- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 04 1 0810- ● ●
397 16.545 NUT; PIERCE
UKRAINE COUNTRY(CU0) MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 04 1 0810- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 04 1 0810- ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0211-0211 ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0211-0211 ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURKISH EQUIPMENT(S6S) (A) M6 		9-09114-046-0 04 1 0211-0211 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M6 		9-09114-046-0 04 1 0211-0211 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) M6 		9-09114-046-0 04 1 0211-0211 ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0212-0501 ● ● ● ●
397 16.545 NUT; PIERCE
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0212-0501 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M6 		9-09114-046-0 04 1 0212-0501 ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0212-0501 ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0502-0506 ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M6 		9-09114-046-0 04 1 0502-0506 ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0502-0506 ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0507-0709 ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M6 		9-09114-046-0 04 1 0507-0709 ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0507-0709 ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0710-0809 ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M6 		9-09114-046-0 04 1 0710-0809 ● ●
397 16.545 NUT; PIERCE
RUSSIA EQUIPMENT(B12) MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0710-0809 ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0710-0809 ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0810- ● ● ● ●
397 16.545 NUT; PIERCE
UKRAINE COUNTRY(CU0) MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> (A) M6 		9-09114-046-0 04 1 0810- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M6 		9-09114-046-0 04 1 0810- ● ●
397 16.545 NUT; PIERCE
RUSSIA EQUIPMENT(B12) MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0810- ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0810- ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 0211-0211 ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0211-0211 ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 03 1 0211-0211 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 03 1 0211-0211 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.588 (B) M8 		9-09114-048-0 03 1 0211-0211 ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0212-0501 ● ● ● ●
397 16.545 NUT; PIERCE
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0212-0501 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 03 1 0212-0501 ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 0212-0501 ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0502-0506 ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 03 1 0502-0506 ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 0502-0506 ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0507-0709 ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 03 1 0507-0709 ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 0507-0709 ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0710-0809 ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 03 1 0710-0809 ● ●
397 16.545 NUT; PIERCE
RUSSIA EQUIPMENT(B12) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0710-0809 ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 0710-0809 ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0810- ● ● ● ●
397 16.545 NUT; PIERCE
UKRAINE COUNTRY(CU0) MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 03 1 0810- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 03 1 0810- ● ●
397 16.545 NUT; PIERCE
RUSSIA EQUIPMENT(B12) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0810- ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 0810- ●
397 16.545 NUT; PIERCE
SAUDI ARABIA EQUIPMENT(EU2) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 05 1 0211-0211 ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 16.588 (B) M8 		9-09114-048-0 05 1 0212-0501 ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 05 1 0502-0506 ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 05 1 0502-0506 ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 05 1 0507-0709 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 05 1 0507-0709 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 05 1 0710- ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 0211-0501 ● ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
16.802 OD=36 		1-09983-092-0 01 1 0211-0501 ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 0502- ● ● ● ● ●

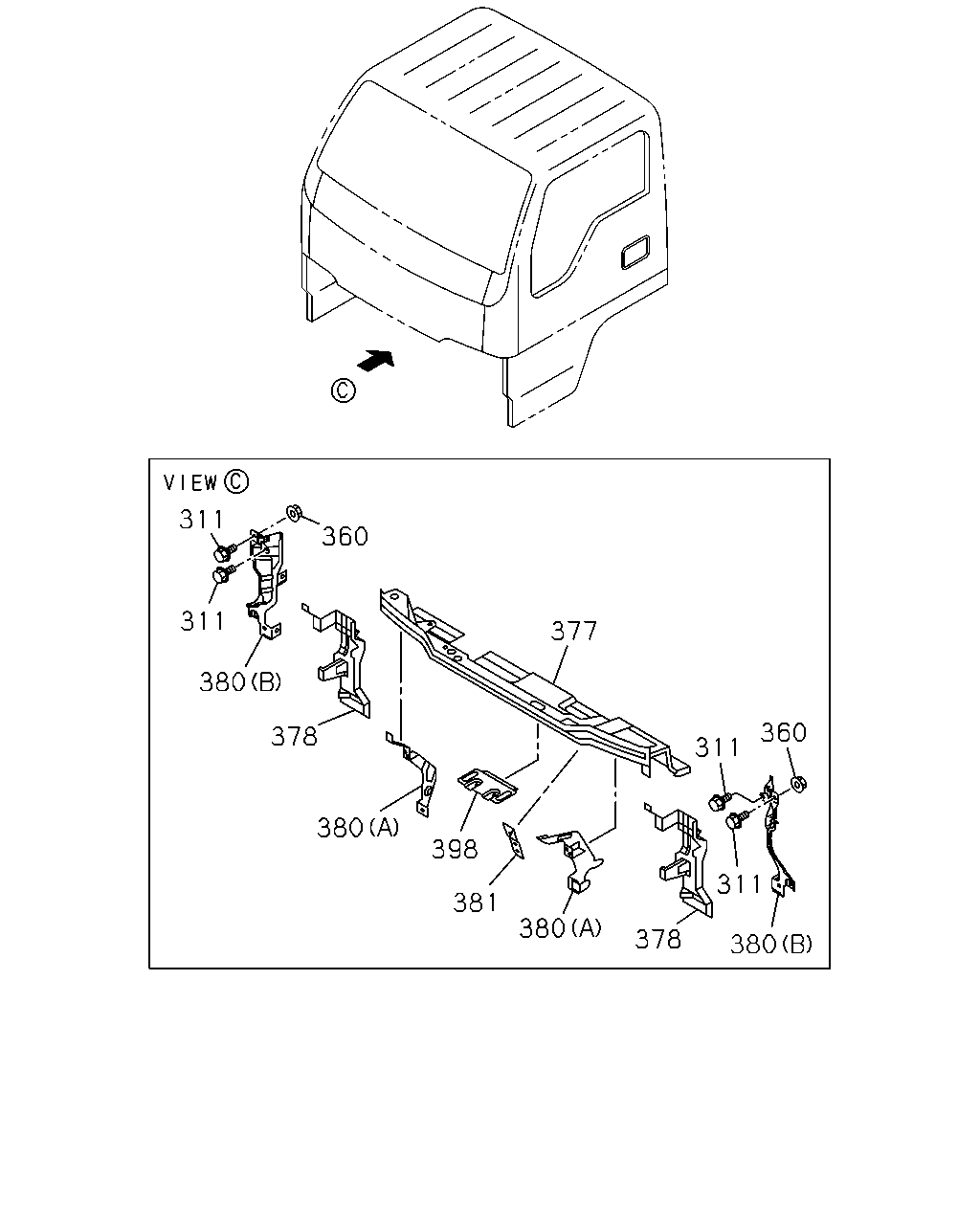

çizim 52486
311 360 311 377 380 360 378 311 380 398 311 381 380 378 380
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
311 16.545 BOLT; BRKT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0502-0804 ● ● ● ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0805- ● ● ● ● ●
360 16.545 NUT; BRKT
16.570 M6 POP NUT 		8-94279-537-0 02 1 0502-0805 ● ● ● ● ●
360 16.545 NUT; BRKT
09.786 M6 POP NUT 		8-98013-752-0 02 1 0806- ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0211-0501 ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. MANUAL TILT CAB<RWZ> 		8-97850-776-2 01 1 0211-0501 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-776-2 01 1 0211-0501 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-776-2 01 1 0211-0501 ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0502-0506 ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. MANUAL TILT CAB<RWZ> 		8-97850-776-2 01 1 0502-0506 ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-776-2 01 1 0502-0506 ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-776-2 01 1 0502-0506 ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0507-0809 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. MANUAL TILT CAB<RWZ> 		8-97850-776-2 01 1 0507-0809 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-776-2 01 1 0507-0809 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-776-2 01 1 0507-0809 ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0810- ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. MANUAL TILT CAB<RWZ> 		8-97850-776-2 01 1 0810- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-776-2 01 1 0810- ● ●
377 16.545 RAIL ASM; MTG,FRT
UKRAINE COUNTRY(CU0) MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-776-2 01 1 0810- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-776-2 01 1 0810- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97898-315-2 01 1 0211-0501 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97898-315-2 01 1 0502-0506 ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97898-315-2 01 1 0507-0809 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> EXC. UKRAINE COUNTRY(CU0) 		8-97898-315-2 01 1 0810- ● ●
378 16.545 GASSET; LWR 8-97850-672-1 01 1 0211-0305 ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-97581-828-1 01 1 0306-0501 ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-97581-828-2 01 1 0502- ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-671-0 01 1 0211-0305 ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-97581-827-1 01 1 0306-0501 ● ● ● ● ● ●
378 16.545 GASSET; LWR 8-97581-827-2 01 1 0502- ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97850-359-1 01 1 0211-0501 ● ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97850-359-1 01 1 0502- ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97850-704-0 01 1 0211-0501 ● ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97850-704-0 01 1 0502- ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
02.726 (B) 		8-98006-088-0 01 1 0502- ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
02.726 (B) 		8-98006-087-0 01 1 0502- ● ● ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-352-1 01 1 0211-0501 ● ● ● ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-352-1 01 1 0502- ● ● ● ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 0211-0501 ● ● ● ● ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 0502- ● ● ● ● ●

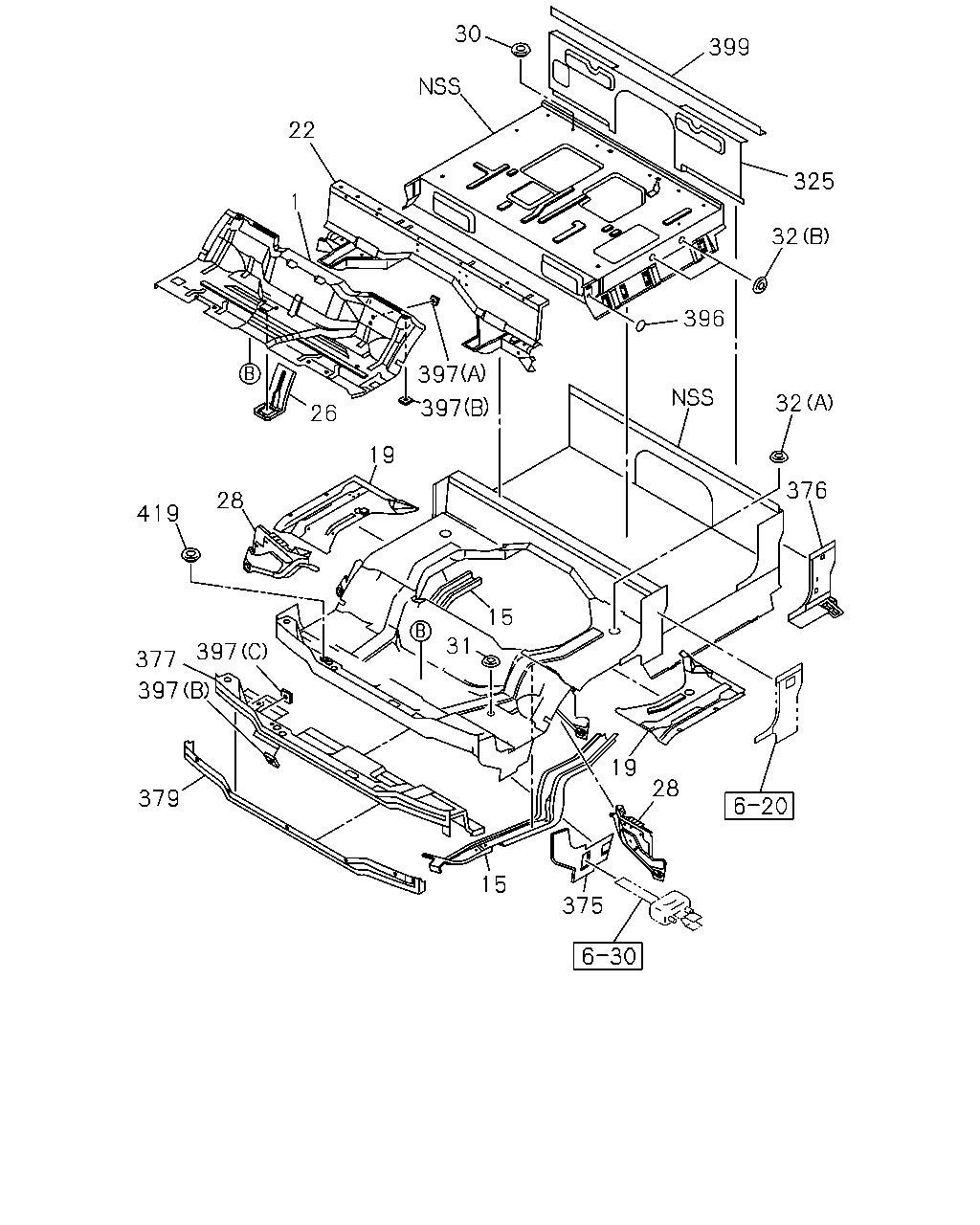

çizim 52487
30 399 22 325 1 32 396 397 32 397 26 19 376 28 419 15 31 397 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.545 PANEL; FLOOR 8-97850-402-6 01 1 0211-0501 ● ● ● ●
1 16.545 PANEL; FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-402-6 01 1 0211-0501 ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-402-6 01 1 0211-0501 ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-402-6 01 1 0211-0501 ● ●
1 16.545 PANEL; FLOOR 8-97850-402-6 01 1 0502-0506 ● ● ● ●
1 16.545 PANEL; FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-402-6 01 1 0502-0506 ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-402-6 01 1 0502-0506 ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-402-6 01 1 0502-0506 ●
1 16.545 PANEL; FLOOR 8-97850-402-6 01 1 0507-0809 ● ● ●
1 16.545 PANEL; FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-402-6 01 1 0507-0809 ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-402-6 01 1 0507-0809 ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-402-6 01 1 0507-0809 ● ●
1 16.545 PANEL; FLOOR 8-97850-402-6 01 1 0810- ● ● ●
1 16.545 PANEL; FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-402-6 01 1 0810- ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-402-6 01 1 0810- ● ●
1 16.545 PANEL; FLOOR
UKRAINE COUNTRY(CU0) MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-402-6 01 1 0810- ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-402-6 01 1 0810- ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-511-5 01 1 0211-0501 ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-511-5 01 1 0502-0506 ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-511-5 01 1 0507-0809 ● ●
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> EXC. UKRAINE COUNTRY(CU0) 		8-97850-511-5 01 1 0810- ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 0211-0501 ● ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 0502- ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 0211-0501 ● ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 0502-0505 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-98013-405-0 01 1 0506- ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-405-9 01 1 0211-0501 ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-405-9 01 1 0502-1106 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97840-393-0 01 1 1107- ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 0211-0211 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-335-4 01 1 0211-0211 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97850-335-4 01 1 0211-0211 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-335-4 01 1 0212-0501 ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 		8-97850-335-4 01 1 0212-0501 ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 0212-0501 ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-335-4 01 1 0502-0506 ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) 		8-97850-335-4 01 1 0502-0506 ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 0502-0506 ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-335-4 01 1 0507-0709 ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) 		8-97850-335-4 01 1 0507-0709 ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 0507-0709 ●
19 16.545 PANEL; FLOOR SIDE,REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-335-5 01 1 0710- ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) MANUAL TILT CAB<RWZ> 		8-97850-335-5 01 1 0710- ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-5 01 1 0710- ●
19 16.545 PANEL; FLOOR SIDE,REAR
SAUDI ARABIA EQUIPMENT(EU2) MANUAL TILT CAB<RWZ> 		8-97850-456-3 01 1 0211-0211 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 		8-97850-456-3 01 1 0212-0501 ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-456-3 01 1 0502-0506 ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-456-3 01 1 0502-0506 ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-456-3 01 1 0507-0709 ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-456-3 01 1 0507-0709 ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 		8-97850-456-4 01 1 0710- ● ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-535-8 01 1 0211-0501 ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-535-9 01 1 0502-0712 ● ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-98110-616-3 01 1 0801- ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-408-8 01 1 0211-0211 ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97850-408-8 01 1 0211-0211 ● ● ●
22 16.545 FRAME; FLOOR REAR
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 		8-97850-408-9 01 1 0212-0412 ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-408-9 01 1 0212-0412 ●
22 16.545 FRAME; FLOOR REAR
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 		8-98002-169-0 01 1 0501-0501 ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-98002-169-0 01 1 0501-0501 ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) 		8-98002-169-0 01 1 0502-0506 ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) 		8-98002-169-0 01 1 0507-0709 ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 		8-98002-169-5 01 1 0710- ● ● ●
22 16.545 FRAME; FLOOR REAR
SAUDI ARABIA EQUIPMENT(EU2) MANUAL TILT CAB<RWZ> 		8-97997-861-0 01 1 0211-0211 ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 		8-97997-861-2 01 1 0212-0501 ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97997-861-2 01 1 0502-0506 ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97997-861-2 01 1 0502-0506 ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97997-861-2 01 1 0507-0709 ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97997-861-2 01 1 0507-0709 ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 		8-97997-861-7 01 1 0710- ● ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-502-9 01 1 0211-1102 ●
22 16.545 FRAME; FLOOR REAR 8-98190-252-2 01 1 1103- ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 0211-0501 ● ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 0502- ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0211-0501 ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0502-1106 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-98170-771-0 01 1 1107- ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0211-0501 ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0502-1106 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-98170-770-0 01 1 1107- ● ● ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=74 		8-94279-731-0 02 1 0211- ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 0211-0501 ● ● ● ● ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 0502- ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 0211-0501 ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 0502- ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
15.222 (B) OD=35 		8-94122-971-0 04 1 0211- ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97997-518-0 01 1 0211-0501 ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97997-518-0 01 1 0211-0501 ●
325 16.545 REINFORCEMENT ASM; RR MTG 8-97997-518-1 01 1 0502- ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 0211-0501 ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-4 01 1 0502- ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 0211-0501 ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-5 01 1 0502- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 0211-0501 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 0502- ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 0211-0501 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 0502- ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97850-187-3 01 1 0211-0501 ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-187-3 01 1 0502- ●
376 16.545 CLOSING; PILLAR,LWR
4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97850-186-3 01 1 0211-0501 ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-186-3 01 1 0502- ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0211-0501 ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. MANUAL TILT CAB<RWZ> 		8-97850-776-2 01 1 0211-0501 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-776-2 01 1 0211-0501 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-776-2 01 1 0211-0501 ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0502-0506 ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. MANUAL TILT CAB<RWZ> 		8-97850-776-2 01 1 0502-0506 ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-776-2 01 1 0502-0506 ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-776-2 01 1 0502-0506 ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0507-0809 ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. MANUAL TILT CAB<RWZ> 		8-97850-776-2 01 1 0507-0809 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-776-2 01 1 0507-0809 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-776-2 01 1 0507-0809 ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0810- ● ● ●
377 16.545 RAIL ASM; MTG,FRT
EXC. MANUAL TILT CAB<RWZ> 		8-97850-776-2 01 1 0810- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 		8-97850-776-2 01 1 0810- ● ●
377 16.545 RAIL ASM; MTG,FRT
UKRAINE COUNTRY(CU0) MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-776-2 01 1 0810- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97850-776-2 01 1 0810- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97898-315-2 01 1 0211-0501 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97898-315-2 01 1 0502-0506 ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 		8-97898-315-2 01 1 0507-0809 ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> EXC. UKRAINE COUNTRY(CU0) 		8-97898-315-2 01 1 0810- ● ●
379 16.545 PANEL 8-97850-129-2 01 1 0211-0307 ● ● ● ● ● ●
379 16.545 PANEL 8-97581-640-0 01 1 0308-0501 ● ● ● ● ● ●
379 16.545 PANEL 8-97581-640-0 01 1 0502- ● ● ● ● ●
396 16.547 GROMMET; LOCATION HOLE 1-09983-049-0 02 1 0211- ●
397 16.545 NUT; PIERCE
(C) M10 		9-09114-030-0 03 1 0211-0501 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (C) M10 		9-09114-030-0 03 1 0211-0501 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) M10 		9-09114-030-0 03 1 0211-0501 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (C) M10 		9-09114-030-0 03 1 0211-0501 ● ●
397 16.545 NUT; PIERCE
(C) M10 		9-09114-030-0 03 1 0502-0506 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (C) M10 		9-09114-030-0 03 1 0502-0506 ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (C) M10 		9-09114-030-0 03 1 0502-0506 ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) M10 		9-09114-030-0 03 1 0502-0506 ●
397 16.545 NUT; PIERCE
(C) M10 		9-09114-030-0 03 1 0507-0809 ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (C) M10 		9-09114-030-0 03 1 0507-0809 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (C) M10 		9-09114-030-0 03 1 0507-0809 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) M10 		9-09114-030-0 03 1 0507-0809 ● ●
397 16.545 NUT; PIERCE
(C) M10 		9-09114-030-0 03 1 0810- ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (C) M10 		9-09114-030-0 03 1 0810- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) (C) M10 		9-09114-030-0 03 1 0810- ● ●
397 16.545 NUT; PIERCE
UKRAINE COUNTRY(CU0) MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> (C) M10 		9-09114-030-0 03 1 0810- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) M10 		9-09114-030-0 03 1 0810- ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 04 1 0211-0501 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 04 1 0211-0501 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 04 1 0211-0501 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 04 1 0211-0501 ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 04 1 0502-0506 ● ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 04 1 0502-0506 ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 04 1 0502-0506 ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 04 1 0502-0506 ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 04 1 0507-0809 ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 04 1 0507-0809 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 04 1 0507-0809 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 04 1 0507-0809 ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 04 1 0810- ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 04 1 0810- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 04 1 0810- ● ●
397 16.545 NUT; PIERCE
UKRAINE COUNTRY(CU0) MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 04 1 0810- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 04 1 0810- ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0211-0211 ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0211-0211 ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURKISH EQUIPMENT(S6S) (A) M6 		9-09114-046-0 04 1 0211-0211 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M6 		9-09114-046-0 04 1 0211-0211 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) (A) M6 		9-09114-046-0 04 1 0211-0211 ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0212-0501 ● ● ● ●
397 16.545 NUT; PIERCE
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0212-0501 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M6 		9-09114-046-0 04 1 0212-0501 ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0212-0501 ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0502-0506 ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M6 		9-09114-046-0 04 1 0502-0506 ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0502-0506 ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0507-0709 ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M6 		9-09114-046-0 04 1 0507-0709 ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0507-0709 ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0710-0809 ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M6 		9-09114-046-0 04 1 0710-0809 ● ●
397 16.545 NUT; PIERCE
RUSSIA EQUIPMENT(B12) MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0710-0809 ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0710-0809 ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0810- ● ● ● ●
397 16.545 NUT; PIERCE
UKRAINE COUNTRY(CU0) MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> (A) M6 		9-09114-046-0 04 1 0810- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) M6 		9-09114-046-0 04 1 0810- ● ●
397 16.545 NUT; PIERCE
RUSSIA EQUIPMENT(B12) MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0810- ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0810- ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 0211-0211 ● ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0211-0211 ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2), TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 03 1 0211-0211 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 03 1 0211-0211 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.588 (B) M8 		9-09114-048-0 03 1 0211-0211 ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0212-0501 ● ● ● ●
397 16.545 NUT; PIERCE
ISRAEL EQUIPMENT(7LX) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0212-0501 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 03 1 0212-0501 ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 0212-0501 ● ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0502-0506 ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 03 1 0502-0506 ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 0502-0506 ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0507-0709 ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 03 1 0507-0709 ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 0507-0709 ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0710-0809 ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 03 1 0710-0809 ● ●
397 16.545 NUT; PIERCE
RUSSIA EQUIPMENT(B12) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0710-0809 ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 0710-0809 ●
397 16.545 NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0810- ● ● ● ●
397 16.545 NUT; PIERCE
UKRAINE COUNTRY(CU0) MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 03 1 0810- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> TURKISH EQUIPMENT(S6S) EXC. IDENTIFICATION LABEL FOR KD<6UT> 16.588 (B) M8 		9-09114-048-0 03 1 0810- ● ●
397 16.545 NUT; PIERCE
RUSSIA EQUIPMENT(B12) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 0810- ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 0810- ●
397 16.545 NUT; PIERCE
SAUDI ARABIA EQUIPMENT(EU2) MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 05 1 0211-0211 ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 16.588 (B) M8 		9-09114-048-0 05 1 0212-0501 ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 05 1 0502-0506 ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 05 1 0502-0506 ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 05 1 0507-0709 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 05 1 0507-0709 ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> EXC. RUSSIA EQUIPMENT(B12),TURKISH EQUIPMENT(S6S) 16.588 (B) M8 		9-09114-048-0 05 1 0710- ● ● ● ●
399 16.545 PANEL; EXTENSION,RR MTG RAIL 8-97850-224-1 01 1 0211- ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 0211-0501 ● ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
16.802 OD=36 		1-09983-092-0 01 1 0211-0501 ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 0502- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
