6-43 — SIDE TRIM (#45533) — 67 parça

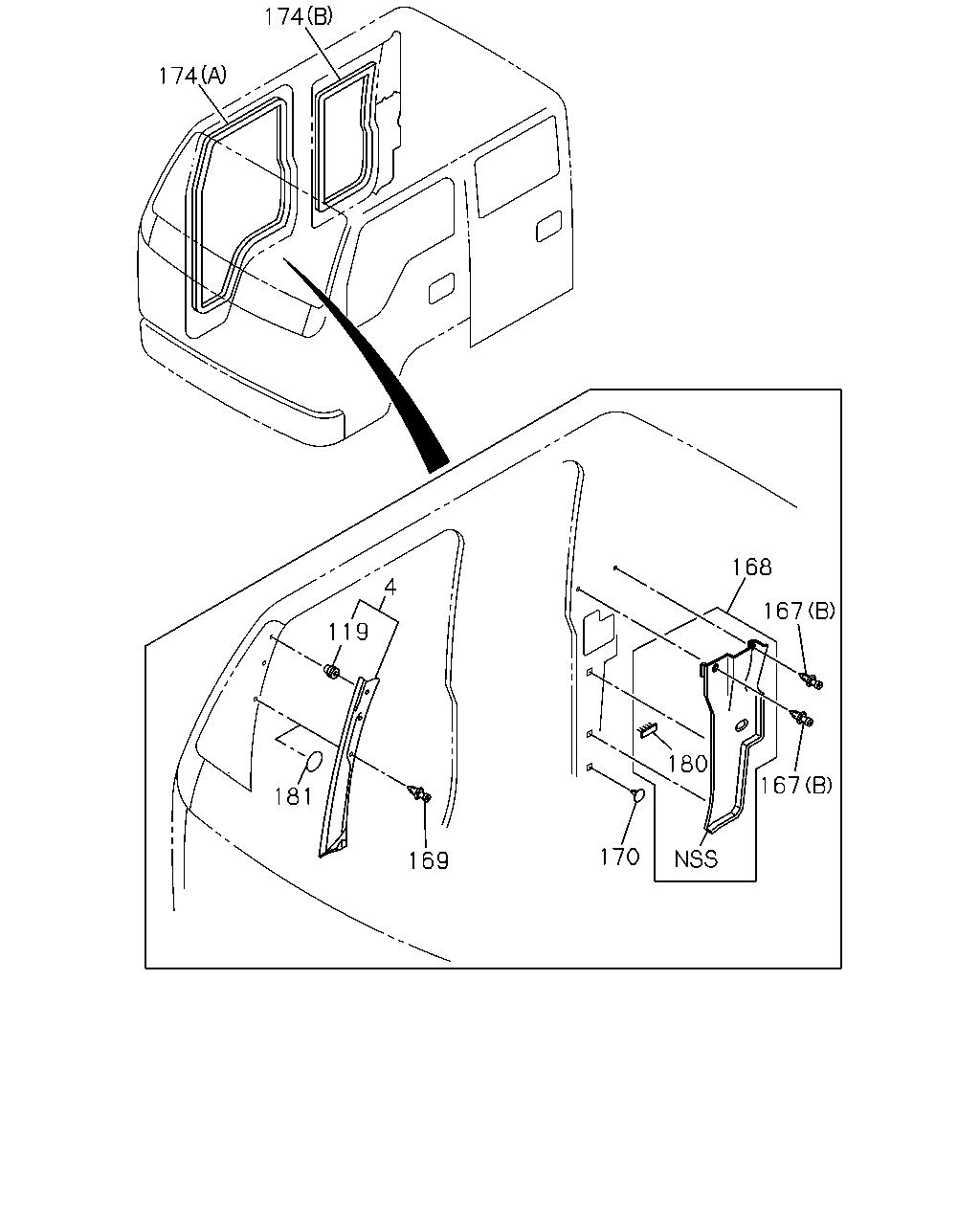

çizim 51144
174 174 168 4 167 119 180 167 181 170 169
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97859-853-3 01 1 0211-0501 ● ● ● ● ● ●
4 16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> GRAY 		8-97582-198-3 01 1 0502- ● ● ● ● ●
4 16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97859-852-3 01 1 0211-0501 ● ● ● ● ● ●
4 16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> GRAY 		8-97582-197-3 01 1 0502- ● ● ● ● ●
119 16.165 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> 16.742 		1-73318-278-0 02 1 0502- ● ● ● ● ●
119 16.165 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> 16.742 		1-73318-278-0 02 1 0211-0501 ● ● ● ● ● ●
167 16.578 CLIP; TRIM,RR PILLAR
INTERIOR DELUXE<RBB> 16.742 (A) 		1-73318-278-0 04 1 0710- ● ●
167 16.578 CLIP; TRIM,RR PILLAR
(B) DARK GRAY 		8-97857-211-0 04 1 0211-0501 ● ● ● ● ● ●
167 16.578 CLIP; TRIM,RR PILLAR
(B) GRAY 		8-97582-265-0 04 1 0502-0610 ● ● ● ● ●
167 16.578 CLIP; TRIM,RR PILLAR
(B) GRAY 		8-97406-439-0 04 1 0611- ● ● ● ● ●
167 16.578 CLIP; TRIM,RR PILLAR
INTERIOR DELUXE<RBB> 16.742 (A) 		1-73318-278-0 04 1 0211-0501 ● ● ●
168 16.578 COVER; SEAT BELT RETRACTOR
4HF1-S ENG(RLS),4HE1 ENG(RLY) DARK GRAY 		8-97867-616-0 01 1 0211-0501 ●
168 16.578 COVER; SEAT BELT RETRACTOR
GRAY 		8-97582-264-0 01 1 0502-0708 ●
168 16.578 COVER; SEAT BELT RETRACTOR
GRAY 		8-97406-438-1 01 1 0709- ●
168 16.578 COVER; SEAT BELT RETRACTOR
4HF1-S ENG(RLS),4HE1 ENG(RLY) DARK GRAY 		8-97867-615-0 01 1 0211-0501 ●
168 16.578 COVER; SEAT BELT RETRACTOR
GRAY 		8-97582-263-0 01 1 0502-0708 ●
168 16.578 COVER; SEAT BELT RETRACTOR
GRAY 		8-97406-437-1 01 1 0709- ●
169 16.578 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X19 PUSH RIVET 		8-97857-210-0 02 1 0211-0501 ● ● ● ● ● ●
169 16.578 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X16 PUSH RIVET 		8-97582-245-0 02 1 0502- ● ● ● ● ●
170 16.578 CLIP; HOLE
EXC. TRAY ROOF HEAD<7EJ> 03.602 		8-94244-922-0 02 1 0211-0501 ● ● ● ● ● ●
170 16.578 CLIP; HOLE
EXC. TRAY ROOF HEAD<7EJ> 03.602 		8-94244-922-0 02 1 0502- ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
(A) L=2982 DARK GRAY 		8-97857-206-4 01 1 0211-0501 ● ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
(A) L=2982 GRAY 		8-97582-256-5 01 1 0502- ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
(A) L=2982 DARK GRAY 		8-97857-205-4 01 1 0211-0501 ● ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
(A) L=2982 GRAY 		8-97582-255-5 01 1 0502- ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
(B) L=3120 DARK GRAY 		8-97867-195-5 02 1 0211-0501 ●
174 16.507 FINISHER; BODY SIDE
(B) L=3120 GRAY 		8-97582-252-6 02 1 0502- ●
180 16.578 FASTENER; COVER 8-94353-002-2 02 1 0211- ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0211-0501 ● ● ● ● ● ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0502-0610 ● ● ● ● ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ● ● ● ● ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR MI DDLE BRONZE GREEN(909),BODY COLOR HIGHWAY YELLOW(916) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0211-0501 ● ● ● ● ● ●
181 16.165 SEAL; FRT PILLAR
EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0502- ● ● ● ●

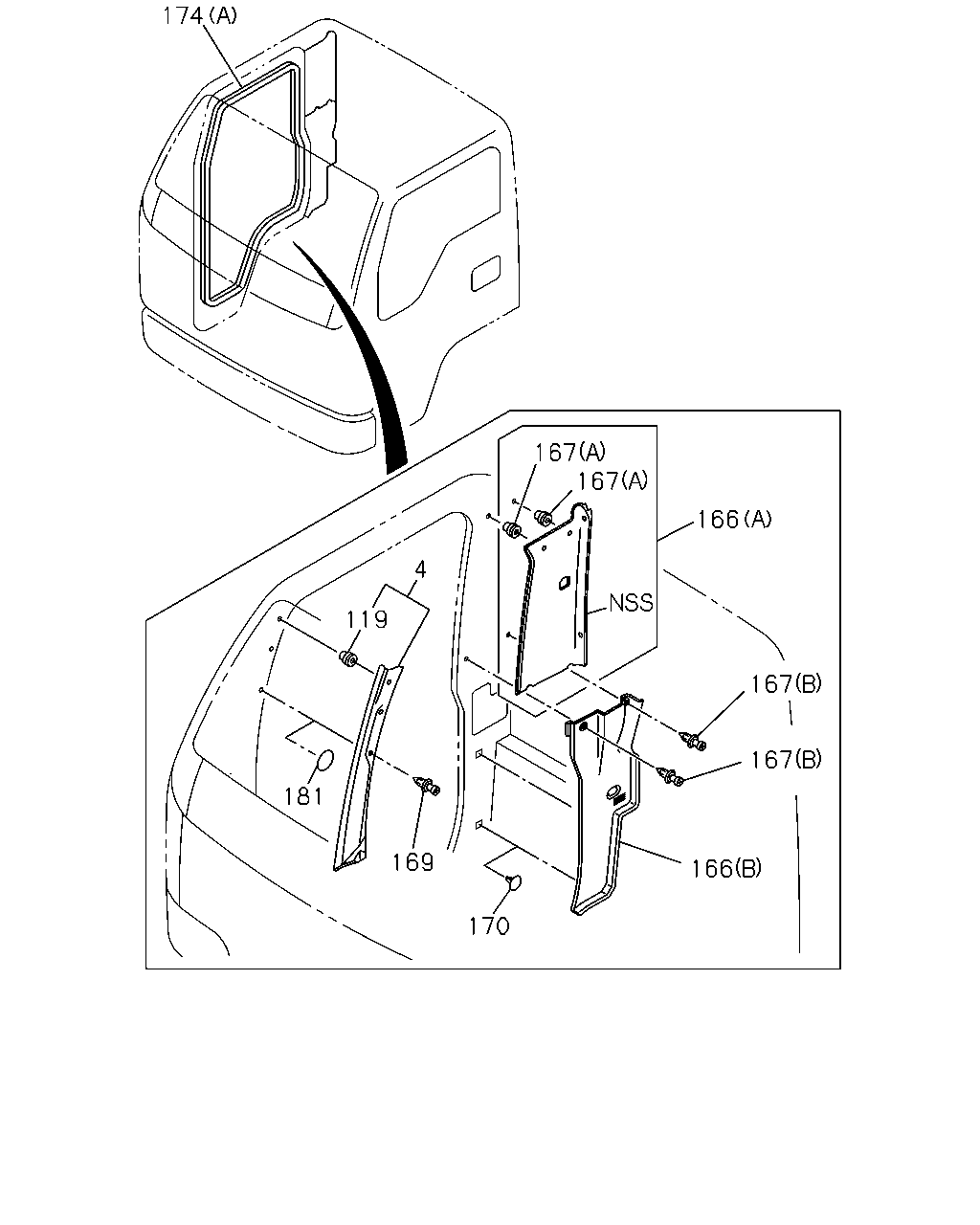

çizim 52014
174 167 167 166 119 167 167 181 169 166 170
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
119 16.165 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> 16.742 		1-73318-278-0 02 1 0502- ● ● ● ● ●
119 16.165 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> 16.742 		1-73318-278-0 02 1 0211-0501 ● ● ● ● ● ●
166 16.578 TRIM; RR PILLAR
INTERIOR DELUXE<RBB> RUSSIA EQUIPMENT(B12) (A) GRAY 		8-97582-269-5 01 1 0712- ● ●
166 16.578 TRIM; RR PILLAR
INTERIOR DELUXE<RBB> RUSSIA EQUIPMENT(B12) (A) GRAY 		8-97588-866-1 01 1 0712- ● ●
166 16.578 TRIM; RR PILLAR
INTERIOR DELUXE<RBB> (A) GRAY 		8-97582-267-5 01 1 0710-0711 ● ●
166 16.578 TRIM; RR PILLAR
INTERIOR DELUXE<RBB> EXC. RUSSIA EQUIPMENT(B12) (A) GRAY 		8-97582-267-5 01 1 0712- ● ●
166 16.578 TRIM; RR PILLAR
INTERIOR DELUXE<RBB> (A) GRAY 		8-97588-865-2 01 1 0710-0711 ● ●
166 16.578 TRIM; RR PILLAR
INTERIOR DELUXE<RBB> EXC. RUSSIA EQUIPMENT(B12) (A) GRAY 		8-97588-865-2 01 1 0712- ● ●
166 16.578 TRIM; RR PILLAR
(B) DARK GRAY 		8-97859-870-5 01 1 0211-0501 ● ● ● ● ●
166 16.578 TRIM; RR PILLAR
(B) GRAY 		8-97582-260-5 01 1 0502- ● ● ● ●
166 16.578 TRIM; RR PILLAR
(B) DARK GRAY 		8-97868-653-3 01 1 0211-0501 ● ● ● ● ●
166 16.578 TRIM; RR PILLAR
(B) GRAY 		8-97582-262-3 01 1 0502- ● ● ● ●
166 16.578 TRIM; RR PILLAR
INTERIOR DELUXE<RBB> (A) LIGHT GRAY 		8-97859-873-5 01 1 0211-0501 ● ● ●
166 16.578 TRIM; RR PILLAR
INTERIOR DELUXE<RBB> (A) LIGHT GRAY 		8-97868-432-2 01 1 0211-0501 ● ● ●
167 16.578 CLIP; TRIM,RR PILLAR
INTERIOR DELUXE<RBB> 16.742 (A) 		1-73318-278-0 04 1 0710- ● ●
167 16.578 CLIP; TRIM,RR PILLAR
(B) DARK GRAY 		8-97857-211-0 04 1 0211-0501 ● ● ● ● ● ●
167 16.578 CLIP; TRIM,RR PILLAR
(B) GRAY 		8-97582-265-0 04 1 0502-0610 ● ● ● ● ●
167 16.578 CLIP; TRIM,RR PILLAR
(B) GRAY 		8-97406-439-0 04 1 0611- ● ● ● ● ●
167 16.578 CLIP; TRIM,RR PILLAR
INTERIOR DELUXE<RBB> 16.742 (A) 		1-73318-278-0 04 1 0211-0501 ● ● ●
169 16.578 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X19 PUSH RIVET 		8-97857-210-0 02 1 0211-0501 ● ● ● ● ● ●
169 16.578 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X16 PUSH RIVET 		8-97582-245-0 02 1 0502- ● ● ● ● ●
170 16.578 CLIP; HOLE
EXC. TRAY ROOF HEAD<7EJ> 03.602 		8-94244-922-0 02 1 0211-0501 ● ● ● ● ● ●
170 16.578 CLIP; HOLE
EXC. TRAY ROOF HEAD<7EJ> 03.602 		8-94244-922-0 02 1 0502- ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
(A) L=2982 DARK GRAY 		8-97857-206-4 01 1 0211-0501 ● ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
(A) L=2982 GRAY 		8-97582-256-5 01 1 0502- ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
(A) L=2982 DARK GRAY 		8-97857-205-4 01 1 0211-0501 ● ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
(A) L=2982 GRAY 		8-97582-255-5 01 1 0502- ● ● ● ● ●
174 16.507 FINISHER; BODY SIDE
(B) L=3120 DARK GRAY 		8-97867-195-5 02 1 0211-0501 ●
174 16.507 FINISHER; BODY SIDE
(B) L=3120 GRAY 		8-97582-252-6 02 1 0502- ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0211-0501 ● ● ● ● ● ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0502-0610 ● ● ● ● ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ● ● ● ● ●
181 16.165 SEAL; FRT PILLAR
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR MI DDLE BRONZE GREEN(909),BODY COLOR HIGHWAY YELLOW(916) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0211-0501 ● ● ● ● ● ●
181 16.165 SEAL; FRT PILLAR
EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0502- ● ● ● ●
