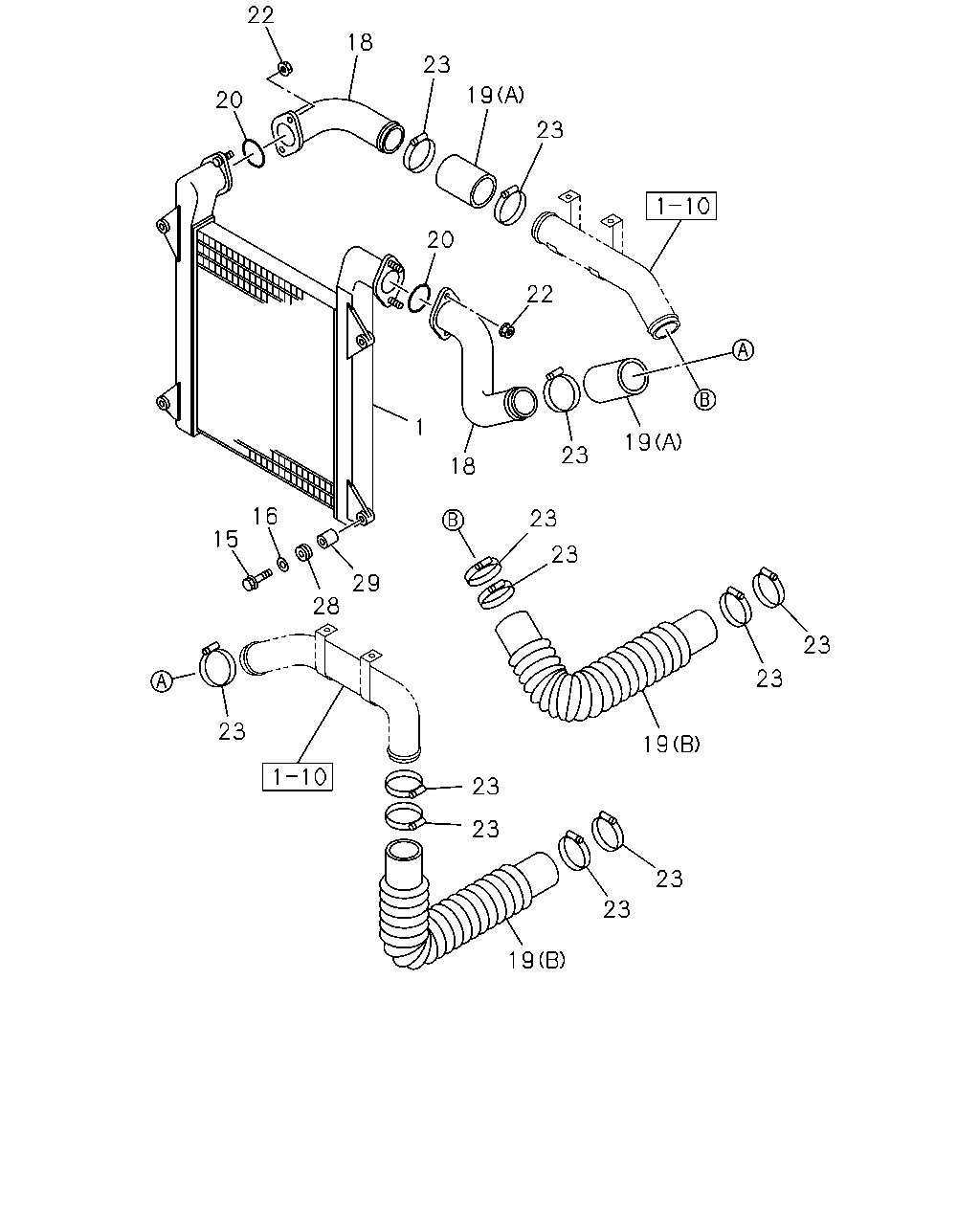

1-35 — CHARGE AIR COOLER
(#4553) — 14 parça
22
18
23
19
20
23
20
22
1
19
23
18
16
23
15
23
29
28
23
23
23
19
23
23
23
23
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COOLER; CHARGE AIR
1-14431-042-1
01
1
9712-
15
BOLT; CHARGE AIR COOLER
M8X50 FLANGE
0-28080-850-0
04
1
9712-
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
9-09164-810-0
04
1
9712-
18
ADAPTER
1-14112-685-0
01
1
9712-
18
ADAPTER
1-14112-684-0
01
1
9712-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A)
1-09360-797-1
02
1
9712-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
8-94395-023-1
01
1
9712-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
1-09360-911-0
01
1
9712-
20
GASKET
ID=84.6
1-09623-431-0
02
1
9712-
22
NUT
M10 FLANGE
0-91150-210-0
04
1
9712-
23
CLIP; HOSE
ID=58-79
8-94126-771-0
12
1
9712-
28
RUBBER; MTG,CHARGE AIR COOLER
1-21467-015-1
04
1
9712-9909
28
RUBBER; MTG,CHARGE AIR COOLER
1-21467-018-0
08
1
9910-
29
COLLAR; MTG RUBBER,CAC BRKT
1-21469-100-0
04
1
9712-
