◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#45528) — 541 parça

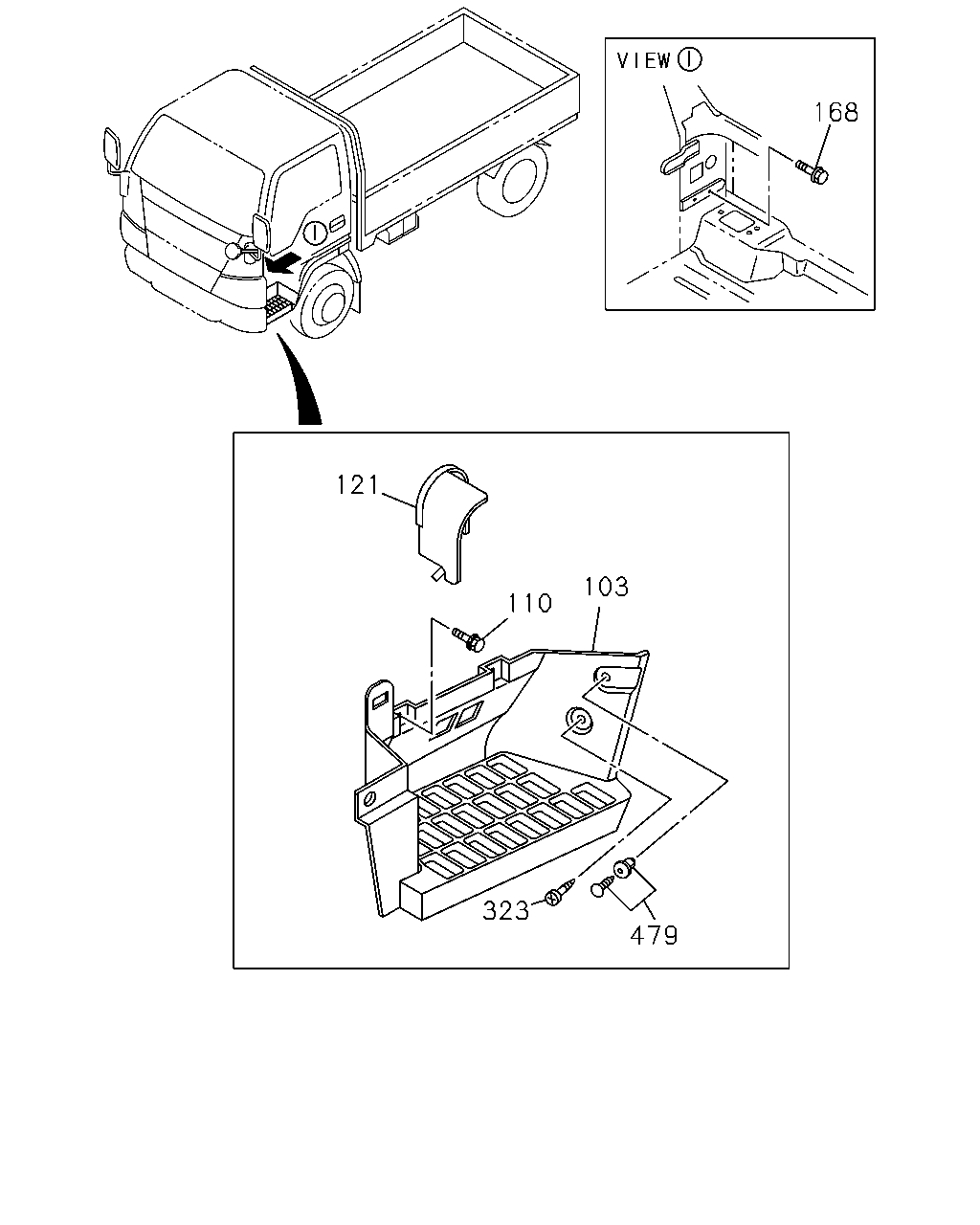

çizim 9954
168 121 103 110 323 479
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
103 08.228 PLATE; STEP 8-97867-969-0 01 1 0211-0305 ● ● ● ● ● ●
103 08.228 PLATE; STEP 8-97867-968-0 01 1 0211-0305 ● ● ● ● ● ●
103 08.228 PLATE; STEP 8-97867-969-1 01 1 0306-0501 ● ●
103 08.228 PLATE; STEP
EXC. ISRAEL EQUIPMENT(7LX) 		8-97867-969-1 01 1 0306-0501 ● ● ●
103 08.228 PLATE; STEP 8-97997-854-0 01 1 0502-1505 ● ● ● ● ●
103 08.228 PLATE; STEP 8-98242-608-0 01 1 1506- ● ● ● ● ●
103 08.228 PLATE; STEP 8-97867-968-1 01 1 0306-0501 ● ●
103 08.228 PLATE; STEP
EXC. ISRAEL EQUIPMENT(7LX) 		8-97867-968-1 01 1 0306-0501 ● ● ●
103 08.228 PLATE; STEP 8-97997-853-0 01 1 0502- ● ● ● ● ●
103 08.228 PLATE; STEP
ISRAEL EQUIPMENT(7LX) 		8-97892-072-1 01 1 0306-0501 ● ● ●
103 08.228 PLATE; STEP 8-97892-072-1 01 1 0306-0501 ●
103 08.228 PLATE; STEP
ISRAEL EQUIPMENT(7LX) 		8-97892-071-1 01 1 0306-0501 ● ● ●
103 08.228 PLATE; STEP 8-97892-071-1 01 1 0306-0501 ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0211-0501 ● ● ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0502-0908 ● ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
08.225 M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909- ● ● ● ● ●
121 08.228 COVER; STEP PLATE 8-97997-856-0 01 1 0502- ● ● ● ● ●
121 08.228 COVER; STEP PLATE 8-97997-855-0 01 1 0502- ● ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0211-0501 ● ● ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0502- ● ● ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 0211-0501 ● ● ● ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 0502- ● ● ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 0211-0501 ● ● ● ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 0502- ● ● ● ● ●

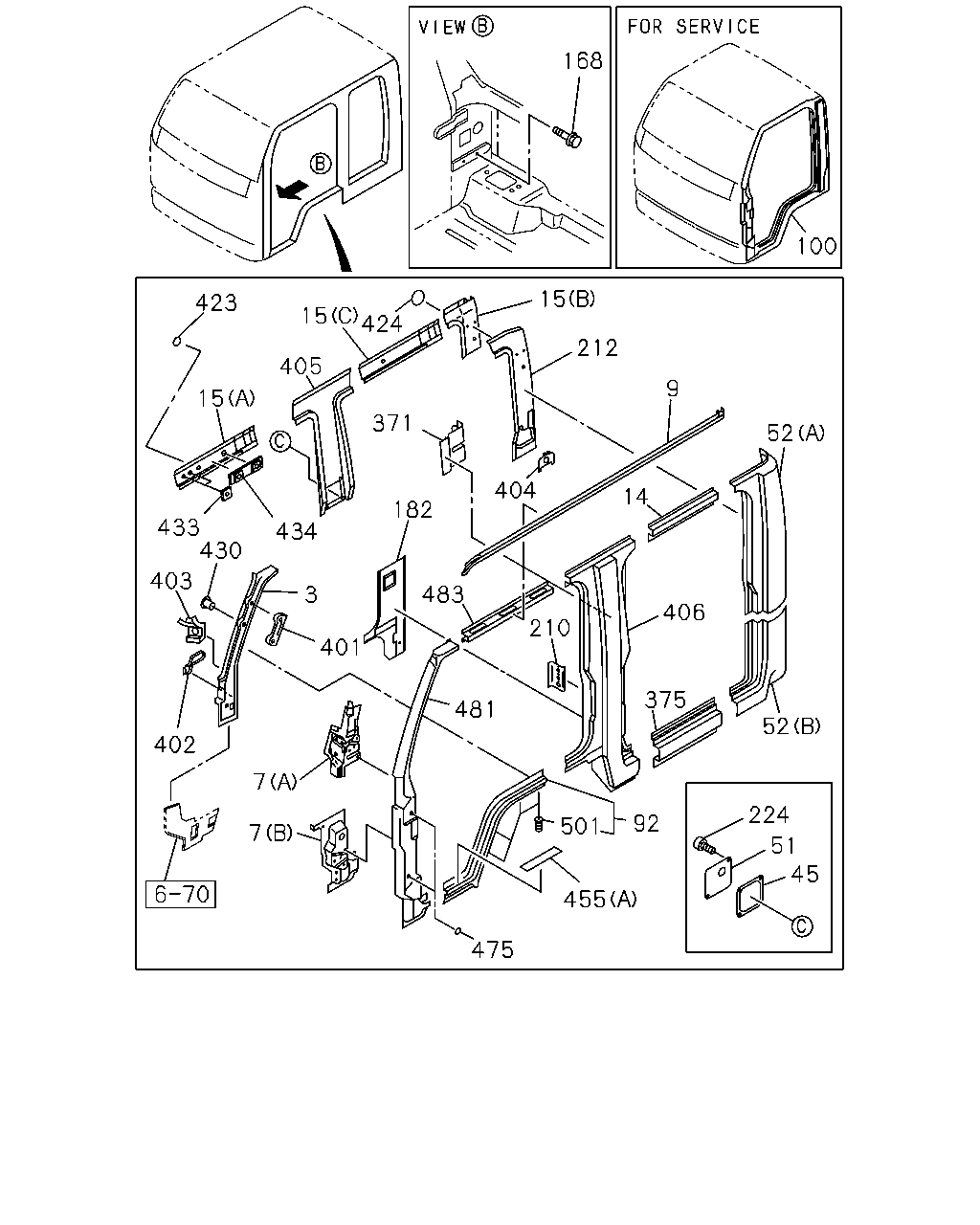

çizim 10199
168 100 15 423 15 424 212 405 9 15 371 52 404 14 182 433 430 434 403 483 3 406 210 401 375 481 52 402 7 224 92 501 7 51 45 455 475
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-358-4 01 1 0211-0501 ● ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-358-4 01 1 0502- ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-357-4 01 1 0211-0501 ● ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-357-4 01 1 0502- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 0211-0501 ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 0502- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-354-1 01 1 0211-0501 ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-354-2 01 1 0502- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-4 01 1 0211-0501 ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 0502- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-353-0 01 1 0211-0501 ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-353-2 01 1 0502- ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-020-9 01 1 0211-0501 ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-020-9 01 1 0502-1106 ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-624-0 01 1 1107- ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-019-9 01 1 0211-0501 ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-019-9 01 1 0502-1106 ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-623-0 01 1 1107- ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-208-9 01 1 0211-1106 ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-626-0 01 1 1107- ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-207-9 01 1 0211-1106 ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-625-0 01 1 1107- ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97851-223-1 01 1 0211- ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97851-222-1 01 1 0211- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-4 01 1 0211-0501 ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-5 01 1 0502- ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-4 01 1 0211-0501 ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-5 01 1 0502- ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-5 01 1 0211-0501 ● ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-6 01 1 0502- ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-5 01 1 0211-0501 ● ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-6 01 1 0502- ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-504-0 01 1 0211-0501 ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-504-0 01 1 0211-0501 ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-229-5 01 1 0211- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-228-4 01 1 0211-0501 ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-504-0 01 1 0502- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-504-0 01 1 0502- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-228-5 01 1 0502- ●
45 16.570 SEAL; B-C POST 8-97853-731-2 02 1 0211-0606 ●
45 16.570 SEAL; B-C POST 8-97853-731-2 02 1 0607- ●
51 16.570 COVER; HOLE,B-C POST 8-94262-078-0 02 1 0211-0606 ●
51 16.570 COVER; HOLE,B-C POST 8-94262-078-0 02 1 0607- ●
52 16.588 PANEL; D-POST UPR
(B) LOWER 		8-97851-174-8 01 1 0211- ●
52 16.588 PANEL; D-POST UPR
(A) UPPER 		8-97851-227-7 01 1 0211- ●
52 16.588 PANEL; D-POST UPR
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) UPPER 		8-97892-721-1 01 1 0211-0501 ●
52 16.588 PANEL; D-POST UPR
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (B) LOWER 		8-97892-722-1 01 1 0211-0501 ●
52 16.588 PANEL; D-POST UPR
4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B) LOWER 		8-97851-173-7 01 1 0211-0501 ●
52 16.588 PANEL; D-POST UPR
(B) LOWER 		8-97851-173-8 01 1 0502- ●
52 16.588 PANEL; D-POST UPR
4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A) UPPER 		8-97851-226-6 01 1 0211-0501 ●
52 16.588 PANEL; D-POST UPR
(A) UPPER 		8-97851-226-7 01 1 0502- ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 0211- ● ● ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 0211- ● ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-408-1 01 1 0710- ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97890-400-1 01 1 0211-0501 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF) 		8-97890-400-1 01 1 0211-0501 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97890-400-1 01 1 0502- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. ISRAEL EQUIPMENT(7LX) 		8-97890-395-0 01 1 0211-0303 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-395-0 01 1 0211-0303 ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHINA EQUIPMENT(YT2) 		8-97890-395-0 01 1 0211-0303 ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-395-0 01 1 0211-0303 ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97890-395-1 01 1 0304-0501 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. ISRAEL EQUIPMENT(7LX) 		8-97890-395-1 01 1 0304-0501 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-395-1 01 1 0502-0709 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97890-395-1 01 1 0710- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> EXC. RUSSIA EQUIPMENT(B12) 		8-97890-395-1 01 1 0710- ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 		8-97890-396-1 01 1 0211-0501 ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-396-1 01 1 0211-0501 ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-396-1 01 1 0502-0506 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-396-1 01 1 0502-0506 ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-396-1 01 1 0507- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-396-1 01 1 0507- ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> CHINA EQUIPMENT(YT2) 		8-97890-413-0 01 1 0211-0303 ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) SAUDI ARABIA EQUIPMENT(EU2),BRAZIL EQUIPMENT(RWF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-407-1 01 1 0211-0501 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) SAUDI ARABIA EQUIPMENT(EU2) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-407-1 01 1 0502- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-408-1 01 1 0211-0501 ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-396-1 01 1 0211- ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 		8-97890-408-1 01 1 0211-0501 ●
100 16.570 PANEL ASM; BODY SIDE
4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-395-1 01 1 0211-0501 ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-395-1 01 1 0502- ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0211-0501 ● ● ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0502- ● ● ● ● ●
182 16.570 PANEL; CLOSING,CTR PILLAR LWR 8-97850-177-7 01 1 0211-0606 ●
182 16.570 PANEL; CLOSING,CTR PILLAR LWR 8-97850-177-7 01 1 0607- ●
182 16.570 PANEL; CLOSING,CTR PILLAR LWR 8-97850-176-7 01 1 0211-0606 ●
182 16.570 PANEL; CLOSING,CTR PILLAR LWR 8-97850-176-7 01 1 0607- ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97851-446-1 02 1 0211- ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97851-445-1 02 1 0211- ●
212 16.588 CLOSING; PILLAR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-458-4 01 1 0710- ● ●
212 16.588 CLOSING; PILLAR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. ISRAEL EQUIPMENT(7LX) 		8-97890-452-2 01 1 0211-0303 ● ● ● ●
212 16.588 CLOSING; PILLAR
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-452-2 01 1 0211-0303 ● ● ●
212 16.588 CLOSING; PILLAR
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHINA EQUIPMENT(YT2) 		8-97890-452-2 01 1 0211-0303 ● ●
212 16.588 CLOSING; PILLAR 8-97890-452-2 01 1 0211-0303 ●
212 16.588 CLOSING; PILLAR
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97890-452-2 01 1 0304-0501 ● ● ● ●
212 16.588 CLOSING; PILLAR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. ISRAEL EQUIPMENT(7LX) 		8-97890-452-2 01 1 0304-0501 ● ● ● ●
212 16.588 CLOSING; PILLAR
4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-452-2 01 1 0304-0501 ●
212 16.588 CLOSING; PILLAR 8-97890-452-4 01 1 0502-0709 ● ● ● ● ●
212 16.588 CLOSING; PILLAR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97890-452-4 01 1 0710- ● ● ● ●
212 16.588 CLOSING; PILLAR
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> EXC. RUSSIA EQUIPMENT(B12) 		8-97890-452-4 01 1 0710- ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-452-4 01 1 0710- ●
212 16.588 CLOSING; PILLAR 8-97890-453-2 01 1 0211-0501 ● ● ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-453-4 01 1 0502- ● ● ● ● ●
212 16.588 CLOSING; PILLAR
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> CHINA EQUIPMENT(YT2) 		8-97890-460-2 01 1 0211-0303 ● ●
212 16.588 CLOSING; PILLAR
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-458-2 01 1 0211-0501 ● ● ● ●
224 16.570 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0211-0604 ●
224 16.570 SCREW; COVER
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0605-0612 ●
224 16.570 SCREW; COVER
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0701-1012 ●
224 16.570 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1101- ●
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 0211-0501 ● ● ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 0502- ● ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 0211-0501 ● ● ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 0502- ● ● ● ● ●
375 16.507 PANEL; SIDE SILL RR,CAB 8-97851-159-7 01 1 0211- ●
375 16.507 PANEL; SIDE SILL RR,CAB 8-97851-159-7 01 1 0211- ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0211-0303 ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0211-0303 ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR
4HE1 ENG(RLY) 		8-97851-301-1 01 1 0211-0303 ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97851-301-1 01 1 0304-0501 ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-301-1 01 1 0304-0501 ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97851-301-1 01 1 0304-0501 ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 		8-97851-301-1 01 1 0304-0501 ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0502- ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0502- ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 0211-0501 ● ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 0502- ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 0211-0501 ● ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 0502- ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 0211-0501 ● ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 0502- ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 0211-0501 ● ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 0502- ● ● ● ● ●
404 16.570 BRACKET
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. ISRAEL EQUIPMENT(7LX) 		8-97890-318-1 01 1 0211-0303 ● ● ● ●
404 16.570 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-318-1 01 1 0211-0303 ● ●
404 16.570 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHINA EQUIPMENT(YT2) 		8-97890-318-1 01 1 0211-0303 ● ●
404 16.570 BRACKET 8-97890-318-1 01 1 0211-0303 ●
404 16.570 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97890-318-1 01 1 0304-0501 ● ● ● ●
404 16.570 BRACKET
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. ISRAEL EQUIPMENT(7LX) 		8-97890-318-1 01 1 0304-0501 ● ● ● ●
404 16.570 BRACKET 8-97890-318-1 01 1 0502-0709 ● ● ● ●
404 16.570 BRACKET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97890-318-1 01 1 0710- ● ● ● ●
404 16.570 BRACKET
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> EXC. RUSSIA EQUIPMENT(B12) 		8-97890-318-1 01 1 0710- ● ● ●
404 16.570 BRACKET
SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0211-0303 ● ● ●
404 16.570 BRACKET
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0211-0303 ● ● ●
404 16.570 BRACKET
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0211-0303 ● ● ●
404 16.570 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF) SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0211-0303 ● ●
404 16.570 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) SAUDI ARABIA EQUIPMENT(EU2),BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2) AIR INTAKE REAR VERTICAL<KJ3> SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0211-0303 ● ●
404 16.570 BRACKET
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0211-0303 ●
404 16.570 BRACKET
4HG1 ENG(RJH) SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0211-0303 ●
404 16.570 BRACKET
SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0211-0303 ●
404 16.570 BRACKET
4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0211-0303 ●
404 16.570 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0304-0501 ● ● ● ● ● ●
404 16.570 BRACKET
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0304-0501 ● ● ● ● ●
404 16.570 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0304-0501 ● ●
404 16.570 BRACKET
SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0304-0501 ●
404 16.570 BRACKET
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0304-0501 ●
404 16.570 BRACKET
SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0502- ● ● ● ● ●
404 16.570 BRACKET
SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0502- ●
405 16.570 PANEL; CLOSING,CTR PILLAR 8-97890-314-3 01 1 0211- ●
405 16.570 PANEL; CLOSING,CTR PILLAR 8-97890-420-3 01 1 0211- ●
406 16.570 PILLAR; CENTER 8-97851-240-8 01 1 0211- ●
406 16.570 PILLAR; CENTER 8-97851-239-8 01 1 0211- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0211-0501 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0502-0610 ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR MI DDLE BRONZE GREEN(909),BODY COLOR HIGHWAY YELLOW(916) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0211-0501 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0502-0709 ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0710- ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR MI DDLE BRONZE GREEN(909),BODY COLOR HIGHWAY YELLOW(916) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0211-0501 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0502- ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 0211-0501 ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 0211-0501 ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) OD=20 T=0.05 WHITE 		8-97856-832-2 06 1 0502-0610 ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 0611-0709 ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 0710- ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0211-0610 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0211- ●
424 16.570 SEAL; CLOSING
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR MI DDLE BRONZE GREEN(909),BODY COLOR HIGHWAY YELLOW(916) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0211-0501 ● ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0502-0709 ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0710- ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 0211-0501 ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 0211-0501 ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0502-0610 ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611-0709 ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0710- ● ● ● ● ●
430 16.570 NUT; PANEL
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> M8 POP NUT 		8-94279-538-0 02 1 0211-0501 ● ● ● ●
430 16.570 NUT; PANEL
AIR INTAKE REAR VERTICAL<KJ3> M8 POP NUT 		8-94279-538-0 02 1 0502-0805 ● ● ● ●
430 16.570 NUT; PANEL
AIR INTAKE REAR VERTICAL<KJ3> 16.549 M8 POP NUT 		8-98021-404-0 02 1 0806- ● ● ● ●
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 0211-0501 ● ● ● ● ● ●
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 0502-0805 ● ● ● ● ●
430 16.570 NUT; PANEL
09.786 M6 POP NUT 		8-98013-752-0 01 1 0806- ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0211- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0211- ●
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 0211-0501 ● ● ● ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 0502- ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0211-0501 ● ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0211-0501 ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0502-0511 ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0502-0511 ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0512-0705 ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0512-0705 ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0706- ● ● ● ● ●
455 08.228 PROTECTOR; STEP
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-736-4 01 1 0211-0501 ●
475 16.570 GROMMET; CTR PILLAR
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0304-0501 ● ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98268-138-0 01 1 0211- ● ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98268-139-0 01 1 0211- ● ● ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 0211- ● ● ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 0211- ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0211-0303 ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0211-0303 ● ● ● ●
501 16.570 PIN; STUD
4HE1 ENG(RLY) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0211-0303 ● ●
501 16.570 PIN; STUD
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0304-0501 ● ● ● ● ● ●
501 16.570 PIN; STUD
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0304-0501 ● ● ● ● ●
501 16.570 PIN; STUD
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0304-0501 ● ●
501 16.570 PIN; STUD
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0304-0501 ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0502- ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0502- ● ● ● ● ●

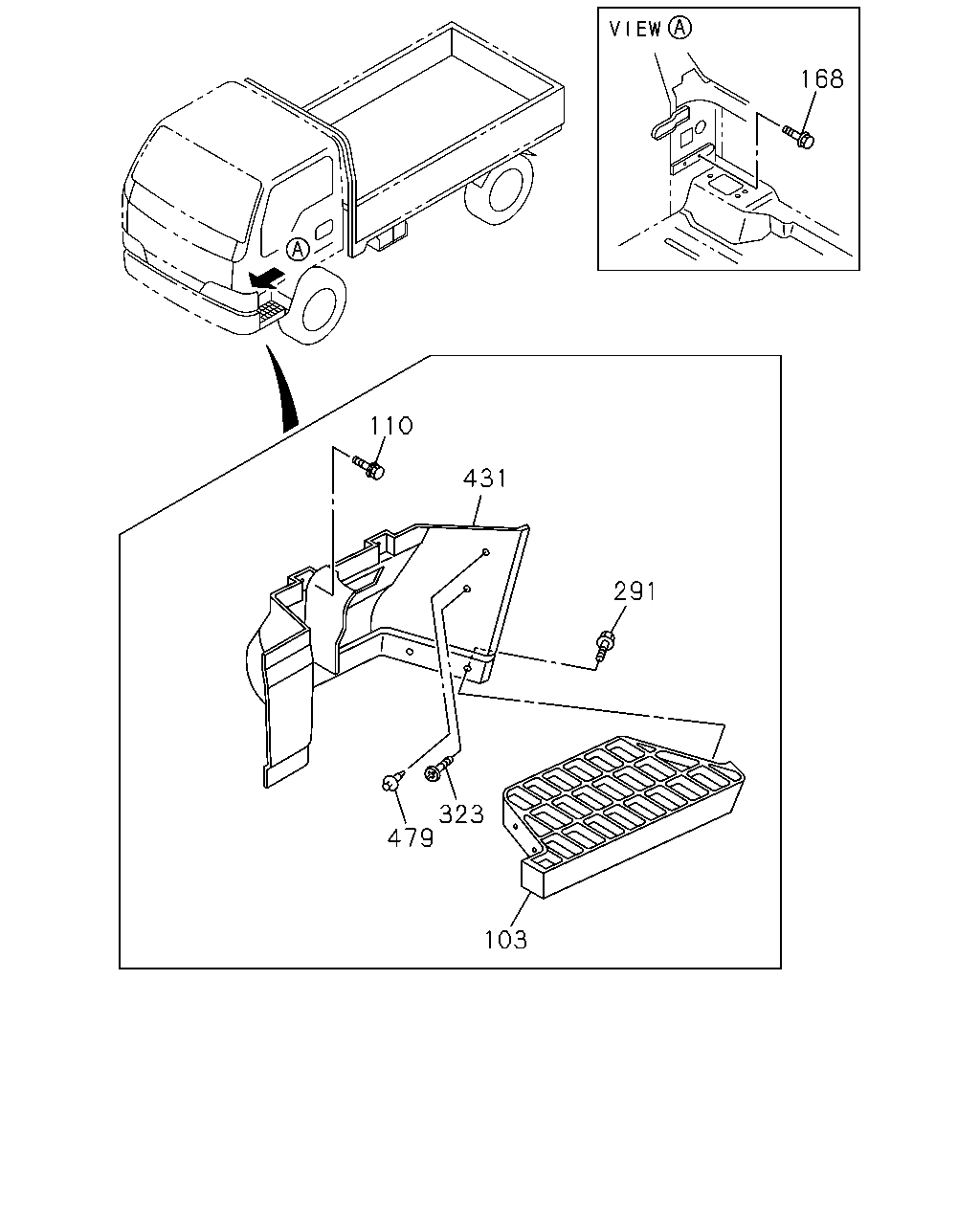

çizim 13006
168 110 431 291 323 479 103
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
103 08.228 PLATE; STEP 8-97867-969-0 01 1 0211-0305 ● ● ● ● ● ●
103 08.228 PLATE; STEP 8-97867-968-0 01 1 0211-0305 ● ● ● ● ● ●
103 08.228 PLATE; STEP 8-97867-969-1 01 1 0306-0501 ● ●
103 08.228 PLATE; STEP
EXC. ISRAEL EQUIPMENT(7LX) 		8-97867-969-1 01 1 0306-0501 ● ● ●
103 08.228 PLATE; STEP 8-97997-854-0 01 1 0502-1505 ● ● ● ● ●
103 08.228 PLATE; STEP 8-98242-608-0 01 1 1506- ● ● ● ● ●
103 08.228 PLATE; STEP 8-97867-968-1 01 1 0306-0501 ● ●
103 08.228 PLATE; STEP
EXC. ISRAEL EQUIPMENT(7LX) 		8-97867-968-1 01 1 0306-0501 ● ● ●
103 08.228 PLATE; STEP 8-97997-853-0 01 1 0502- ● ● ● ● ●
103 08.228 PLATE; STEP
ISRAEL EQUIPMENT(7LX) 		8-97892-072-1 01 1 0306-0501 ● ● ●
103 08.228 PLATE; STEP 8-97892-072-1 01 1 0306-0501 ●
103 08.228 PLATE; STEP
ISRAEL EQUIPMENT(7LX) 		8-97892-071-1 01 1 0306-0501 ● ● ●
103 08.228 PLATE; STEP 8-97892-071-1 01 1 0306-0501 ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0211-0501 ● ● ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0502-0908 ● ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
08.225 M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909- ● ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0211-0501 ● ● ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0502- ● ● ● ● ●
291 08.225 BOLT; STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0211-0501 ● ● ● ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 0211-0501 ● ● ● ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 0502- ● ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97892-966-1 01 1 0211-0501 ● ● ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97892-965-1 01 1 0211-0501 ● ● ● ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 0211-0501 ● ● ● ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 0502- ● ● ● ● ●

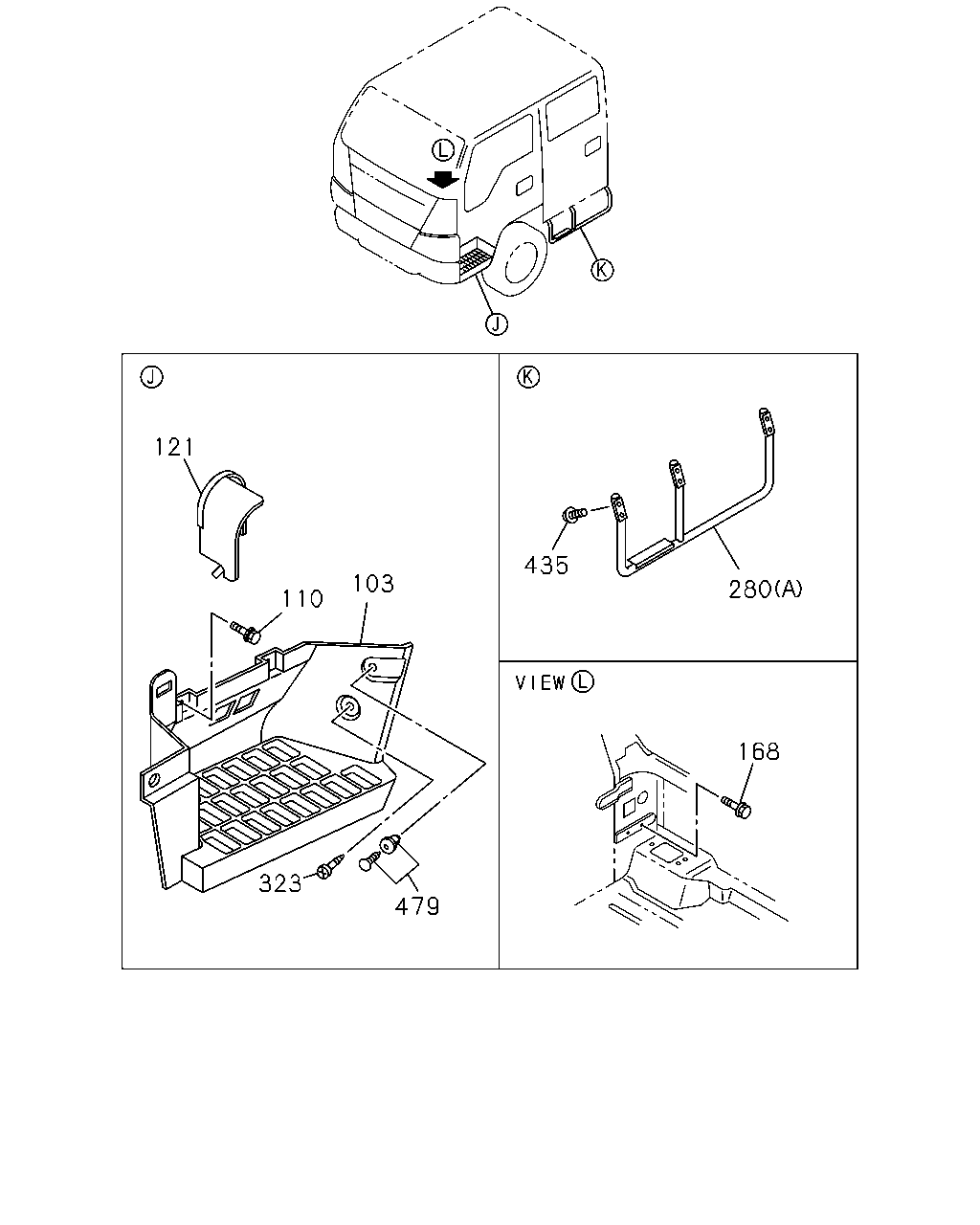

çizim 52336
121 435 103 280 110 168 323 479
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
103 08.228 PLATE; STEP 8-97867-969-0 01 1 0211-0305 ● ● ● ● ● ●
103 08.228 PLATE; STEP 8-97867-968-0 01 1 0211-0305 ● ● ● ● ● ●
103 08.228 PLATE; STEP 8-97867-969-1 01 1 0306-0501 ● ●
103 08.228 PLATE; STEP
EXC. ISRAEL EQUIPMENT(7LX) 		8-97867-969-1 01 1 0306-0501 ● ● ●
103 08.228 PLATE; STEP 8-97997-854-0 01 1 0502-1505 ● ● ● ● ●
103 08.228 PLATE; STEP 8-98242-608-0 01 1 1506- ● ● ● ● ●
103 08.228 PLATE; STEP 8-97867-968-1 01 1 0306-0501 ● ●
103 08.228 PLATE; STEP
EXC. ISRAEL EQUIPMENT(7LX) 		8-97867-968-1 01 1 0306-0501 ● ● ●
103 08.228 PLATE; STEP 8-97997-853-0 01 1 0502- ● ● ● ● ●
103 08.228 PLATE; STEP
ISRAEL EQUIPMENT(7LX) 		8-97892-072-1 01 1 0306-0501 ● ● ●
103 08.228 PLATE; STEP 8-97892-072-1 01 1 0306-0501 ●
103 08.228 PLATE; STEP
ISRAEL EQUIPMENT(7LX) 		8-97892-071-1 01 1 0306-0501 ● ● ●
103 08.228 PLATE; STEP 8-97892-071-1 01 1 0306-0501 ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0211-0501 ● ● ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0502-0908 ● ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
08.225 M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909- ● ● ● ● ●
121 08.228 COVER; STEP PLATE 8-97997-856-0 01 1 0502- ● ● ● ● ●
121 08.228 COVER; STEP PLATE 8-97997-855-0 01 1 0502- ● ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0211-0501 ● ● ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0502- ● ● ● ● ●
280 08.225 STEP ASM; RR
(A) 		8-97853-659-4 01 1 0211-0302 ●
280 08.225 STEP ASM; RR
EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97853-659-4 01 1 0303-0501 ●
280 08.225 STEP ASM; RR
(A) 		8-97853-659-4 01 1 0502-0606 ●
280 08.225 STEP ASM; RR
(A) 		8-97853-659-4 01 1 0607- ●
280 08.225 STEP ASM; RR
ISRAEL EQUIPMENT(7LX) (A) 		8-97894-146-1 01 1 0303-0501 ●
280 08.225 STEP ASM; RR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-735-2 01 1 0211-0501 ●
280 08.225 STEP ASM; RR
4HF1-S ENG(RLS) (A) 		8-97853-658-4 01 1 0211-0501 ●
280 08.225 STEP ASM; RR
(A) 		8-97853-658-4 01 1 0502-0606 ●
280 08.225 STEP ASM; RR
(A) 		8-97853-658-4 01 1 0607- ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 0211-0501 ● ● ● ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 0502- ● ● ● ● ●
435 08.225 BOLT; RR STEP
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 10 1 0211-0501 ●
435 08.225 BOLT; RR STEP
4HF1-S ENG(RLS) 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 12 1 0211-0501 ●
435 08.225 BOLT; RR STEP
02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 12 1 0502-0606 ●
435 08.225 BOLT; RR STEP
02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 12 1 0607- ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 0211-0501 ● ● ● ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 0502- ● ● ● ● ●

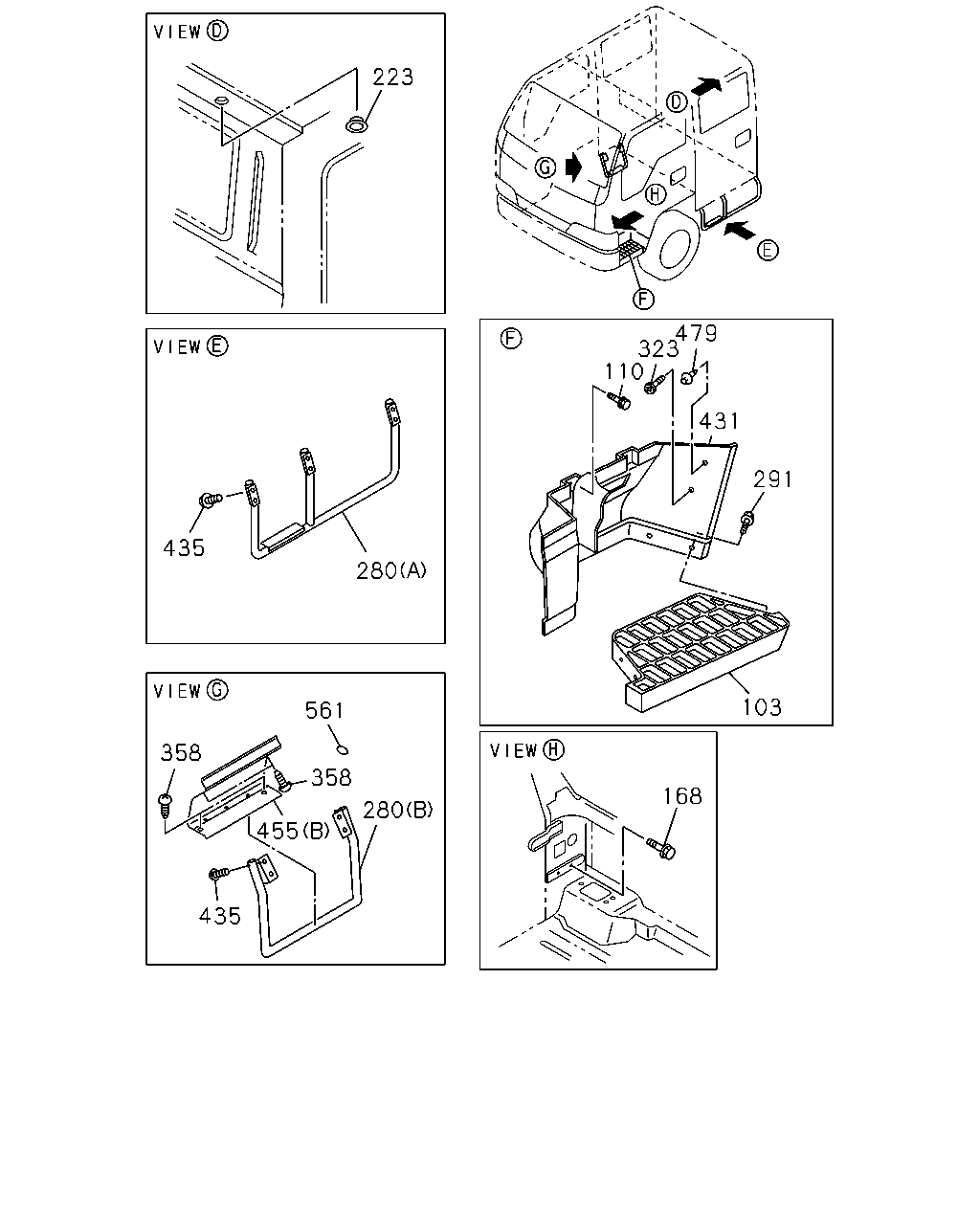

çizim 55362
223 479 323 110 431 291 435 280 103 561 358 358 168 280 455 435
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
103 08.228 PLATE; STEP 8-97867-969-0 01 1 0211-0305 ● ● ● ● ● ●
103 08.228 PLATE; STEP 8-97867-968-0 01 1 0211-0305 ● ● ● ● ● ●
103 08.228 PLATE; STEP 8-97867-969-1 01 1 0306-0501 ● ●
103 08.228 PLATE; STEP
EXC. ISRAEL EQUIPMENT(7LX) 		8-97867-969-1 01 1 0306-0501 ● ● ●
103 08.228 PLATE; STEP 8-97997-854-0 01 1 0502-1505 ● ● ● ● ●
103 08.228 PLATE; STEP 8-98242-608-0 01 1 1506- ● ● ● ● ●
103 08.228 PLATE; STEP 8-97867-968-1 01 1 0306-0501 ● ●
103 08.228 PLATE; STEP
EXC. ISRAEL EQUIPMENT(7LX) 		8-97867-968-1 01 1 0306-0501 ● ● ●
103 08.228 PLATE; STEP 8-97997-853-0 01 1 0502- ● ● ● ● ●
103 08.228 PLATE; STEP
ISRAEL EQUIPMENT(7LX) 		8-97892-072-1 01 1 0306-0501 ● ● ●
103 08.228 PLATE; STEP 8-97892-072-1 01 1 0306-0501 ●
103 08.228 PLATE; STEP
ISRAEL EQUIPMENT(7LX) 		8-97892-071-1 01 1 0306-0501 ● ● ●
103 08.228 PLATE; STEP 8-97892-071-1 01 1 0306-0501 ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0211-0501 ● ● ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0502-0908 ● ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
08.225 M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909- ● ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0211-0501 ● ● ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0502- ● ● ● ● ●
223 16.570 GROMMET; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> 		8-94279-724-0 02 1 0211- ●
280 08.225 STEP ASM; RR
(A) 		8-97853-659-4 01 1 0211-0302 ●
280 08.225 STEP ASM; RR
EXC. ISRAEL EQUIPMENT(7LX) (A) 		8-97853-659-4 01 1 0303-0501 ●
280 08.225 STEP ASM; RR
(A) 		8-97853-659-4 01 1 0502-0606 ●
280 08.225 STEP ASM; RR
(A) 		8-97853-659-4 01 1 0607- ●
280 08.225 STEP ASM; RR
ISRAEL EQUIPMENT(7LX) (A) 		8-97894-146-1 01 1 0303-0501 ●
280 08.225 STEP ASM; RR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-735-2 01 1 0211-0501 ●
280 08.225 STEP ASM; RR
4HF1-S ENG(RLS) (A) 		8-97853-658-4 01 1 0211-0501 ●
280 08.225 STEP ASM; RR
(A) 		8-97853-658-4 01 1 0502-0606 ●
280 08.225 STEP ASM; RR
(A) 		8-97853-658-4 01 1 0607- ●
291 08.225 BOLT; STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0211-0501 ● ● ● ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 0211-0501 ● ● ● ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 0502- ● ● ● ● ●
358 08.228 SCREW; PROTECTOR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.269 M8X16.5 		1-09104-027-1 04 1 0211-0501 ●
431 08.228 SUPPORT ASM; STEP 8-97892-966-1 01 1 0211-0501 ● ● ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97892-965-1 01 1 0211-0501 ● ● ● ● ● ●
435 08.225 BOLT; RR STEP
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 10 1 0211-0501 ●
435 08.225 BOLT; RR STEP
4HF1-S ENG(RLS) 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 12 1 0211-0501 ●
435 08.225 BOLT; RR STEP
02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 12 1 0502-0606 ●
435 08.225 BOLT; RR STEP
02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 12 1 0607- ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0211-0501 ● ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0211-0501 ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0502-0511 ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0502-0511 ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0512-0705 ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0512-0705 ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0706- ● ● ● ● ●
455 08.228 PROTECTOR; STEP
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-736-4 01 1 0211-0501 ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 0211-0501 ● ● ● ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 0502- ● ● ● ● ●
561 08.154 SEAL; HOLE,STEP
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0211-0501 ●

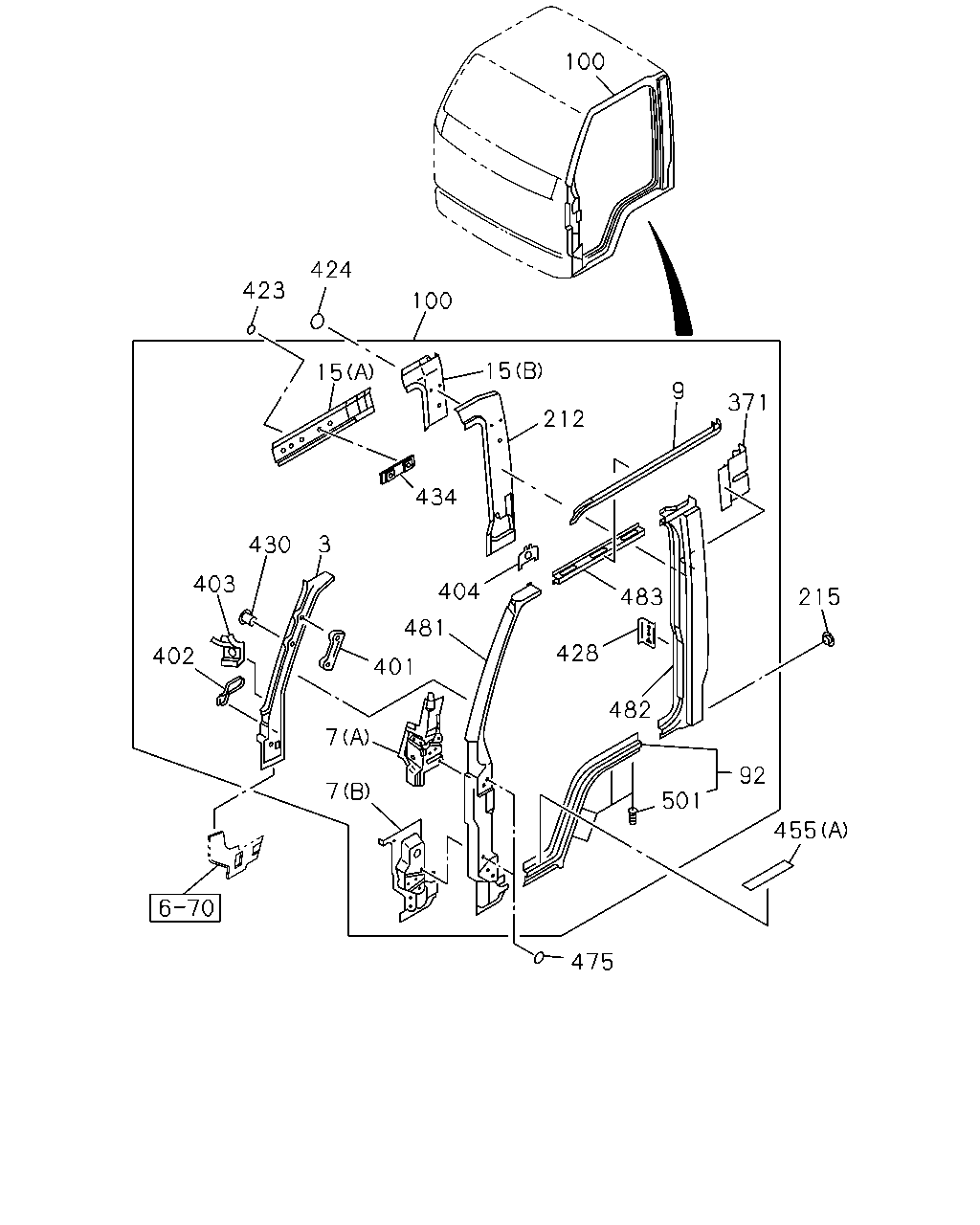

çizim 55567
100 424 423 100 15 15 9 371 212 434 3 430 403 404 215 483 481 428 402 401 482 7 92 7 501 455 475
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-358-4 01 1 0211-0501 ● ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-358-4 01 1 0502- ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-357-4 01 1 0211-0501 ● ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-357-4 01 1 0502- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 0211-0501 ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 0502- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-354-1 01 1 0211-0501 ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-354-2 01 1 0502- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-4 01 1 0211-0501 ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 0502- ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-353-0 01 1 0211-0501 ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-353-2 01 1 0502- ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-020-9 01 1 0211-0501 ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-020-9 01 1 0502-1106 ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-624-0 01 1 1107- ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-019-9 01 1 0211-0501 ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-019-9 01 1 0502-1106 ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-623-0 01 1 1107- ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-208-9 01 1 0211-1106 ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-626-0 01 1 1107- ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-207-9 01 1 0211-1106 ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-625-0 01 1 1107- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-4 01 1 0211-0501 ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-5 01 1 0502- ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-4 01 1 0211-0501 ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-5 01 1 0502- ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-5 01 1 0211-0501 ● ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-6 01 1 0502- ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-5 01 1 0211-0501 ● ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-6 01 1 0502- ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-504-0 01 1 0211-0501 ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-504-0 01 1 0211-0501 ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-229-5 01 1 0211- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-228-4 01 1 0211-0501 ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-504-0 01 1 0502- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-504-0 01 1 0502- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-228-5 01 1 0502- ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 0211- ● ● ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 0211- ● ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-408-1 01 1 0710- ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97890-400-1 01 1 0211-0501 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF) 		8-97890-400-1 01 1 0211-0501 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97890-400-1 01 1 0502- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. ISRAEL EQUIPMENT(7LX) 		8-97890-395-0 01 1 0211-0303 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-395-0 01 1 0211-0303 ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHINA EQUIPMENT(YT2) 		8-97890-395-0 01 1 0211-0303 ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-395-0 01 1 0211-0303 ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97890-395-1 01 1 0304-0501 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. ISRAEL EQUIPMENT(7LX) 		8-97890-395-1 01 1 0304-0501 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-395-1 01 1 0502-0709 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97890-395-1 01 1 0710- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> EXC. RUSSIA EQUIPMENT(B12) 		8-97890-395-1 01 1 0710- ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 		8-97890-396-1 01 1 0211-0501 ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-396-1 01 1 0211-0501 ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-396-1 01 1 0502-0506 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-396-1 01 1 0502-0506 ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-396-1 01 1 0507- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-396-1 01 1 0507- ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> CHINA EQUIPMENT(YT2) 		8-97890-413-0 01 1 0211-0303 ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) SAUDI ARABIA EQUIPMENT(EU2),BRAZIL EQUIPMENT(RWF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-407-1 01 1 0211-0501 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1-S ENG(RLS) SAUDI ARABIA EQUIPMENT(EU2) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-407-1 01 1 0502- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-408-1 01 1 0211-0501 ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-396-1 01 1 0211- ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 		8-97890-408-1 01 1 0211-0501 ●
100 16.570 PANEL ASM; BODY SIDE
4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-395-1 01 1 0211-0501 ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-395-1 01 1 0502- ●
212 16.588 CLOSING; PILLAR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-458-4 01 1 0710- ● ●
212 16.588 CLOSING; PILLAR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. ISRAEL EQUIPMENT(7LX) 		8-97890-452-2 01 1 0211-0303 ● ● ● ●
212 16.588 CLOSING; PILLAR
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-452-2 01 1 0211-0303 ● ● ●
212 16.588 CLOSING; PILLAR
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHINA EQUIPMENT(YT2) 		8-97890-452-2 01 1 0211-0303 ● ●
212 16.588 CLOSING; PILLAR 8-97890-452-2 01 1 0211-0303 ●
212 16.588 CLOSING; PILLAR
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97890-452-2 01 1 0304-0501 ● ● ● ●
212 16.588 CLOSING; PILLAR
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. ISRAEL EQUIPMENT(7LX) 		8-97890-452-2 01 1 0304-0501 ● ● ● ●
212 16.588 CLOSING; PILLAR
4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-452-2 01 1 0304-0501 ●
212 16.588 CLOSING; PILLAR 8-97890-452-4 01 1 0502-0709 ● ● ● ● ●
212 16.588 CLOSING; PILLAR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97890-452-4 01 1 0710- ● ● ● ●
212 16.588 CLOSING; PILLAR
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> EXC. RUSSIA EQUIPMENT(B12) 		8-97890-452-4 01 1 0710- ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-452-4 01 1 0710- ●
212 16.588 CLOSING; PILLAR 8-97890-453-2 01 1 0211-0501 ● ● ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-453-4 01 1 0502- ● ● ● ● ●
212 16.588 CLOSING; PILLAR
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> CHINA EQUIPMENT(YT2) 		8-97890-460-2 01 1 0211-0303 ● ●
212 16.588 CLOSING; PILLAR
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-458-2 01 1 0211-0501 ● ● ● ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 0211-0501 ● ● ● ● ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 0502- ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 0211-0501 ● ● ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 0502- ● ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 0211-0501 ● ● ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 0502- ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0211-0303 ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0211-0303 ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR
4HE1 ENG(RLY) 		8-97851-301-1 01 1 0211-0303 ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) 		8-97851-301-1 01 1 0304-0501 ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-301-1 01 1 0304-0501 ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97851-301-1 01 1 0304-0501 ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 		8-97851-301-1 01 1 0304-0501 ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0502- ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0502- ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 0211-0501 ● ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 0502- ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 0211-0501 ● ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 0502- ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 0211-0501 ● ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 0502- ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 0211-0501 ● ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 0502- ● ● ● ● ●
404 16.570 BRACKET
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. ISRAEL EQUIPMENT(7LX) 		8-97890-318-1 01 1 0211-0303 ● ● ● ●
404 16.570 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-318-1 01 1 0211-0303 ● ●
404 16.570 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHINA EQUIPMENT(YT2) 		8-97890-318-1 01 1 0211-0303 ● ●
404 16.570 BRACKET 8-97890-318-1 01 1 0211-0303 ●
404 16.570 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97890-318-1 01 1 0304-0501 ● ● ● ●
404 16.570 BRACKET
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. ISRAEL EQUIPMENT(7LX) 		8-97890-318-1 01 1 0304-0501 ● ● ● ●
404 16.570 BRACKET 8-97890-318-1 01 1 0502-0709 ● ● ● ●
404 16.570 BRACKET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 		8-97890-318-1 01 1 0710- ● ● ● ●
404 16.570 BRACKET
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) AIR INTAKE REAR VERTICAL<KJ3> EXC. RUSSIA EQUIPMENT(B12) 		8-97890-318-1 01 1 0710- ● ● ●
404 16.570 BRACKET
SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0211-0303 ● ● ●
404 16.570 BRACKET
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0211-0303 ● ● ●
404 16.570 BRACKET
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0211-0303 ● ● ●
404 16.570 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. SAUDI ARABIA EQUIPMENT(EU2), BRAZIL EQUIPMENT(RWF) SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0211-0303 ● ●
404 16.570 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) SAUDI ARABIA EQUIPMENT(EU2),BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2) AIR INTAKE REAR VERTICAL<KJ3> SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0211-0303 ● ●
404 16.570 BRACKET
4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0211-0303 ●
404 16.570 BRACKET
4HG1 ENG(RJH) SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0211-0303 ●
404 16.570 BRACKET
SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0211-0303 ●
404 16.570 BRACKET
4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0211-0303 ●
404 16.570 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0304-0501 ● ● ● ● ● ●
404 16.570 BRACKET
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0304-0501 ● ● ● ● ●
404 16.570 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0304-0501 ● ●
404 16.570 BRACKET
SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0304-0501 ●
404 16.570 BRACKET
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0304-0501 ●
404 16.570 BRACKET
SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0502- ● ● ● ● ●
404 16.570 BRACKET
SGL CAB=LH,DBL CAB=RH/LH 		8-97890-317-1 01 1 0502- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0211-0501 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0502-0610 ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR MI DDLE BRONZE GREEN(909),BODY COLOR HIGHWAY YELLOW(916) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0211-0501 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0502-0709 ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0710- ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR MI DDLE BRONZE GREEN(909),BODY COLOR HIGHWAY YELLOW(916) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0211-0501 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0502- ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 0211-0501 ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 0211-0501 ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) OD=20 T=0.05 WHITE 		8-97856-832-2 06 1 0502-0610 ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 0611-0709 ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 0710- ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0211-0610 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0211- ●
424 16.570 SEAL; CLOSING
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR MI DDLE BRONZE GREEN(909),BODY COLOR HIGHWAY YELLOW(916) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0211-0501 ● ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0502-0709 ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0710- ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 0211-0501 ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 0211-0501 ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0502-0610 ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR POLAR SILVER MET(845), BODYCOLOR MARINE BLUE(890),BODY COLOR HI GHWAY YELLOW(916) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611-0709 ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0710- ● ● ● ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-446-1 01 1 0211-0501 ● ● ● ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-446-1 01 1 0502- ● ● ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-445-1 01 1 0211-0501 ● ● ● ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-445-1 01 1 0502- ● ● ● ●
430 16.570 NUT; PANEL
AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> M8 POP NUT 		8-94279-538-0 02 1 0211-0501 ● ● ● ●
430 16.570 NUT; PANEL
AIR INTAKE REAR VERTICAL<KJ3> M8 POP NUT 		8-94279-538-0 02 1 0502-0805 ● ● ● ●
430 16.570 NUT; PANEL
AIR INTAKE REAR VERTICAL<KJ3> 16.549 M8 POP NUT 		8-98021-404-0 02 1 0806- ● ● ● ●
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 0211-0501 ● ● ● ● ● ●
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 0502-0805 ● ● ● ● ●
430 16.570 NUT; PANEL
09.786 M6 POP NUT 		8-98013-752-0 01 1 0806- ● ● ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 0211-0501 ● ● ● ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 0502- ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0211-0501 ● ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0211-0501 ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0502-0511 ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 0502-0511 ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0512-0705 ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0512-0705 ●
455 08.228 PROTECTOR; STEP
(A) 		8-98027-816-0 02 1 0706- ● ● ● ● ●
455 08.228 PROTECTOR; STEP
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-736-4 01 1 0211-0501 ●
475 16.570 GROMMET; CTR PILLAR
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0304-0501 ● ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98268-138-0 01 1 0211- ● ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98268-139-0 01 1 0211- ● ● ● ● ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-97859-052-2 01 1 0211- ● ● ● ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 0211- ● ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 0211- ● ● ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 0211- ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0211-0303 ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0211-0303 ● ● ● ●
501 16.570 PIN; STUD
4HE1 ENG(RLY) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0211-0303 ● ●
501 16.570 PIN; STUD
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0304-0501 ● ● ● ● ● ●
501 16.570 PIN; STUD
4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0304-0501 ● ● ● ● ●
501 16.570 PIN; STUD
4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0304-0501 ● ●
501 16.570 PIN; STUD
4HE1 ENG(RLY) ISRAEL EQUIPMENT(7LX) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0304-0501 ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0502- ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0502- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
