6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#45527) — 71 parça

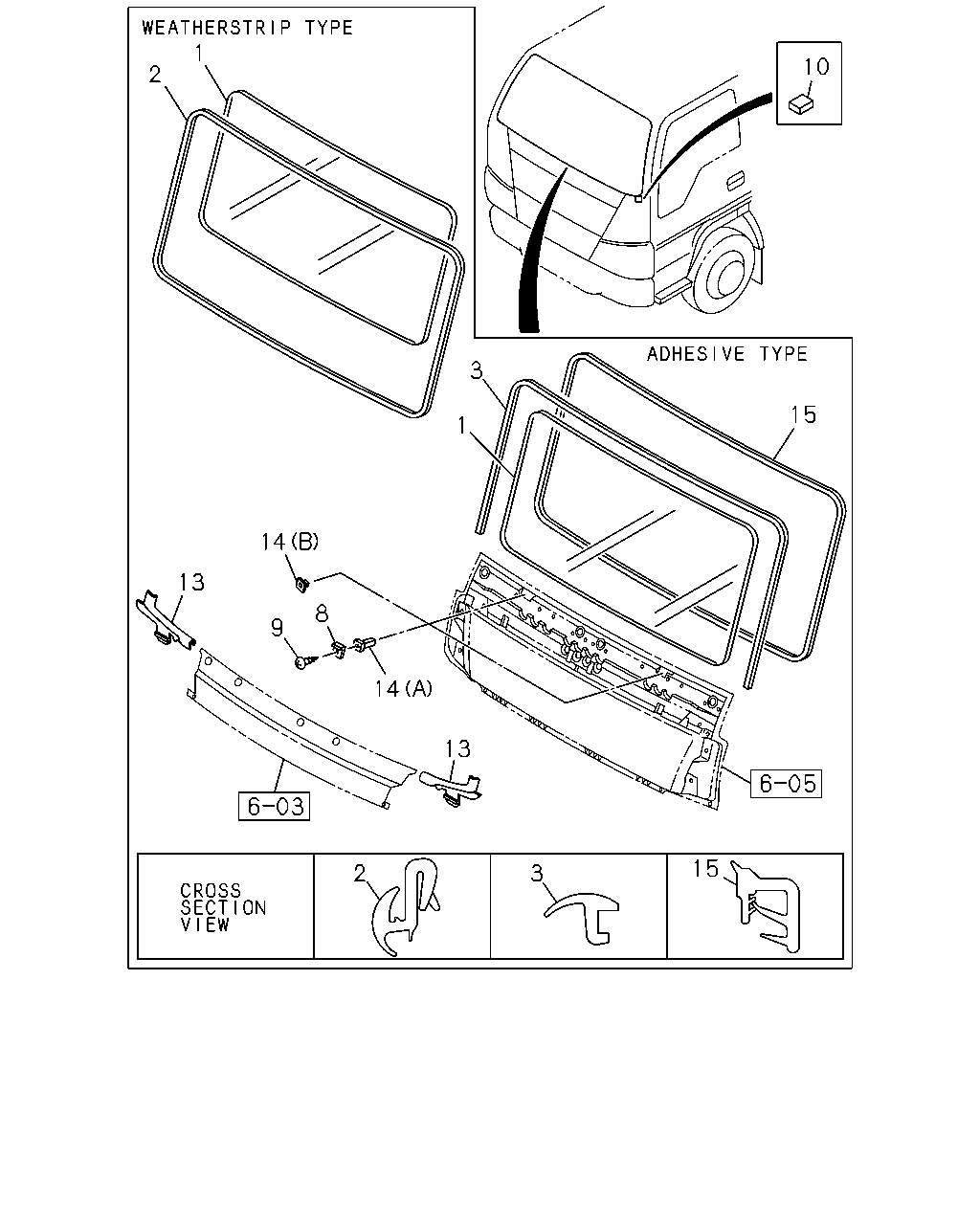

1 2 3 1 15 14 13 9 8 14 14 2 3 15 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.005 GLASS; WINDSHIELD RUSSIA EQUIPMENT(B12) T=6.3	8-97997-945-2	01	1	0710-0805	●	●
1	16.005 GLASS; WINDSHIELD T=6.3	8-97997-945-2	01	1	0806-	●	●	●	●	●
1	16.005 GLASS; WINDSHIELD T=6.3	8-97869-127-0	01	1	0211-0302	●	●	●	●	●	●
1	16.005 GLASS; WINDSHIELD T=6.3	8-97869-127-1	01	1	0303-0501		●	●
1	16.005 GLASS; WINDSHIELD EXC. ISRAEL EQUIPMENT(7LX) T=6.3	8-97869-127-1	01	1	0303-0501	●			●	●
1	16.005 GLASS; WINDSHIELD T=6.3	8-97869-127-1	01	1	0502-0709	●	●	●	●	●
1	16.005 GLASS; WINDSHIELD T=6.3	8-97869-127-1	01	1	0710-0805			●	●	●
1	16.005 GLASS; WINDSHIELD EXC. RUSSIA EQUIPMENT(B12) T=6.3	8-97869-127-1	01	1	0710-0805	●	●
1	16.005 GLASS; WINDSHIELD ISRAEL EQUIPMENT(7LX) T=6.3	8-97997-945-2	01	1	0303-0501	●			●	●
1	16.005 GLASS; WINDSHIELD T=6.3	8-97997-945-2	01	1	0303-0501						●
2	16.040 WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-350-3	01	1	0211-0501	●	●	●	●	●	●
2	16.040 WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-350-4	01	1	0502-	●	●	●	●	●
3	16.470 MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-215-2	01	1	0211-0501	●	●	●	●	●	●
3	16.470 MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-624-3	01	1	0502-	●	●	●	●	●
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97859-215-0	02	1	0211-0305	●	●	●	●		●
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-0	02	1	0211-0305					●
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	0306-0501	●	●	●	●	●	●
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	0502-1304	●	●	●	●	●
8	16.041 STOPPER; WINDSHIELD GLASS KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	1305-	●	●	●	●	●
9	16.041 SCREW; STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14	8-94279-325-0	02	1	0211-0501	●	●	●	●	●	●
9	16.041 SCREW; STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14	8-94279-325-0	02	1	0502-1304	●	●	●	●	●
9	16.041 SCREW; STOPPER KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14	8-94279-325-0	02	1	1305-	●	●	●	●	●
10	08.160 SPACER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 10.027 10X10	8-94174-466-0	01	1	0509-	●	●	●	●
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-787-4	01	1	0211-0501	●	●	●	●	●	●
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-618-3	01	1	0502-	●	●	●	●	●
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-786-3	01	1	0211-0501	●	●	●	●	●	●
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-617-4	01	1	0502-	●	●	●	●	●
14	16.041 GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>,KD PREPARATORY PACK VAR.4<7TV> 12.182 (B) D=7.9X7.9 L=11.4 M5	8-94367-528-0	02	1	1305-	●	●	●	●	●
14	16.041 GROMMET; SCREW,STOPPER WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 (A) 14.5X14.5 BLACK	8-94279-714-0	04	1	0211-0501	●	●	●	●	●	●
14	16.041 GROMMET; SCREW,STOPPER WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 (A) 14.5X14.5 BLACK	8-94279-714-0	04	1	0502-	●	●	●	●	●
14	16.041 GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0211-0305					●
14	16.041 GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0306-0501	●	●	●	●	●	●
14	16.041 GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0502-1304	●	●	●	●	●
14	16.041 GROMMET; SCREW,STOPPER KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	1305-	●	●	●	●	●
15	16.041 FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY	8-97857-048-5	01	1	0211-0501	●	●	●	●	●	●
15	16.041 FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY	8-97582-815-7	01	1	0502-	●	●	●	●	●

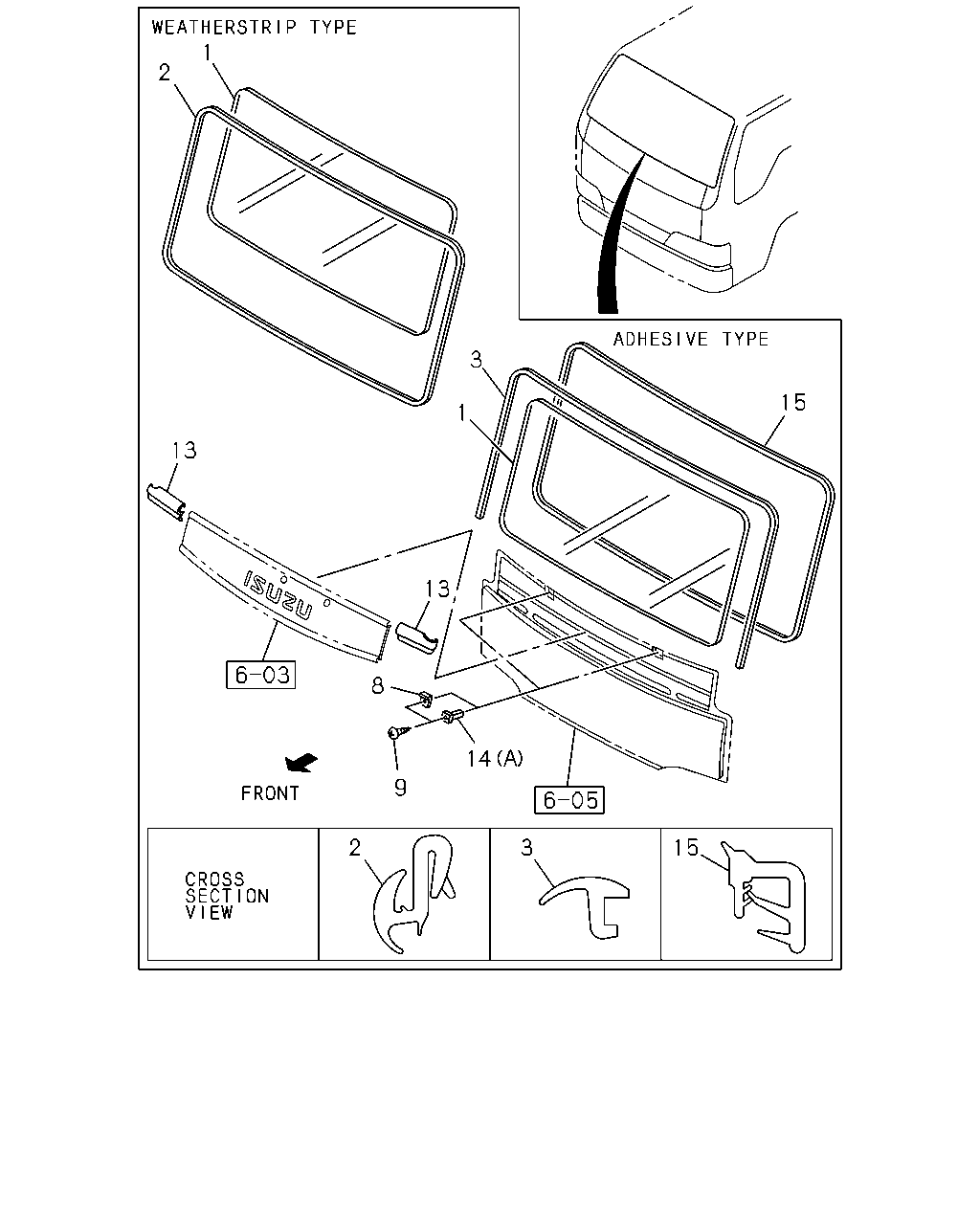

1 2 3 1 13 13 8 9 15 15 3 2 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.005 GLASS; WINDSHIELD RUSSIA EQUIPMENT(B12) T=6.3	8-97997-945-2	01	1	0710-0805	●	●
1	16.005 GLASS; WINDSHIELD T=6.3	8-97997-945-2	01	1	0806-	●	●	●	●	●
1	16.005 GLASS; WINDSHIELD T=6.3	8-97869-127-0	01	1	0211-0302	●	●	●	●	●	●
1	16.005 GLASS; WINDSHIELD T=6.3	8-97869-127-1	01	1	0303-0501		●	●
1	16.005 GLASS; WINDSHIELD EXC. ISRAEL EQUIPMENT(7LX) T=6.3	8-97869-127-1	01	1	0303-0501	●			●	●
1	16.005 GLASS; WINDSHIELD T=6.3	8-97869-127-1	01	1	0502-0709	●	●	●	●	●
1	16.005 GLASS; WINDSHIELD T=6.3	8-97869-127-1	01	1	0710-0805			●	●	●
1	16.005 GLASS; WINDSHIELD EXC. RUSSIA EQUIPMENT(B12) T=6.3	8-97869-127-1	01	1	0710-0805	●	●
1	16.005 GLASS; WINDSHIELD ISRAEL EQUIPMENT(7LX) T=6.3	8-97997-945-2	01	1	0303-0501	●			●	●
1	16.005 GLASS; WINDSHIELD T=6.3	8-97997-945-2	01	1	0303-0501						●
2	16.040 WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-350-3	01	1	0211-0501	●	●	●	●	●	●
2	16.040 WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-350-4	01	1	0502-	●	●	●	●	●
3	16.470 MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-215-2	01	1	0211-0501	●	●	●	●	●	●
3	16.470 MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-624-3	01	1	0502-	●	●	●	●	●
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97859-215-0	02	1	0211-0305	●	●	●	●		●
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-0	02	1	0211-0305					●
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	0306-0501	●	●	●	●	●	●
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	0502-1304	●	●	●	●	●
8	16.041 STOPPER; WINDSHIELD GLASS KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	1305-	●	●	●	●	●
9	16.041 SCREW; STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14	8-94279-325-0	02	1	0211-0501	●	●	●	●	●	●
9	16.041 SCREW; STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14	8-94279-325-0	02	1	0502-1304	●	●	●	●	●
9	16.041 SCREW; STOPPER KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14	8-94279-325-0	02	1	1305-	●	●	●	●	●
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-787-4	01	1	0211-0501	●	●	●	●	●	●
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-618-3	01	1	0502-	●	●	●	●	●
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-786-3	01	1	0211-0501	●	●	●	●	●	●
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-617-4	01	1	0502-	●	●	●	●	●
14	16.041 GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>,KD PREPARATORY PACK VAR.4<7TV> 12.182 (B) D=7.9X7.9 L=11.4 M5	8-94367-528-0	02	1	1305-	●	●	●	●	●
14	16.041 GROMMET; SCREW,STOPPER WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 (A) 14.5X14.5 BLACK	8-94279-714-0	04	1	0211-0501	●	●	●	●	●	●
14	16.041 GROMMET; SCREW,STOPPER WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 (A) 14.5X14.5 BLACK	8-94279-714-0	04	1	0502-	●	●	●	●	●
14	16.041 GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0211-0305					●
14	16.041 GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0306-0501	●	●	●	●	●	●
14	16.041 GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0502-1304	●	●	●	●	●
14	16.041 GROMMET; SCREW,STOPPER KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	1305-	●	●	●	●	●
15	16.041 FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY	8-97857-048-5	01	1	0211-0501	●	●	●	●	●	●
15	16.041 FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY	8-97582-815-7	01	1	0502-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
