Sayfa 5-20 - Isuzu EPC

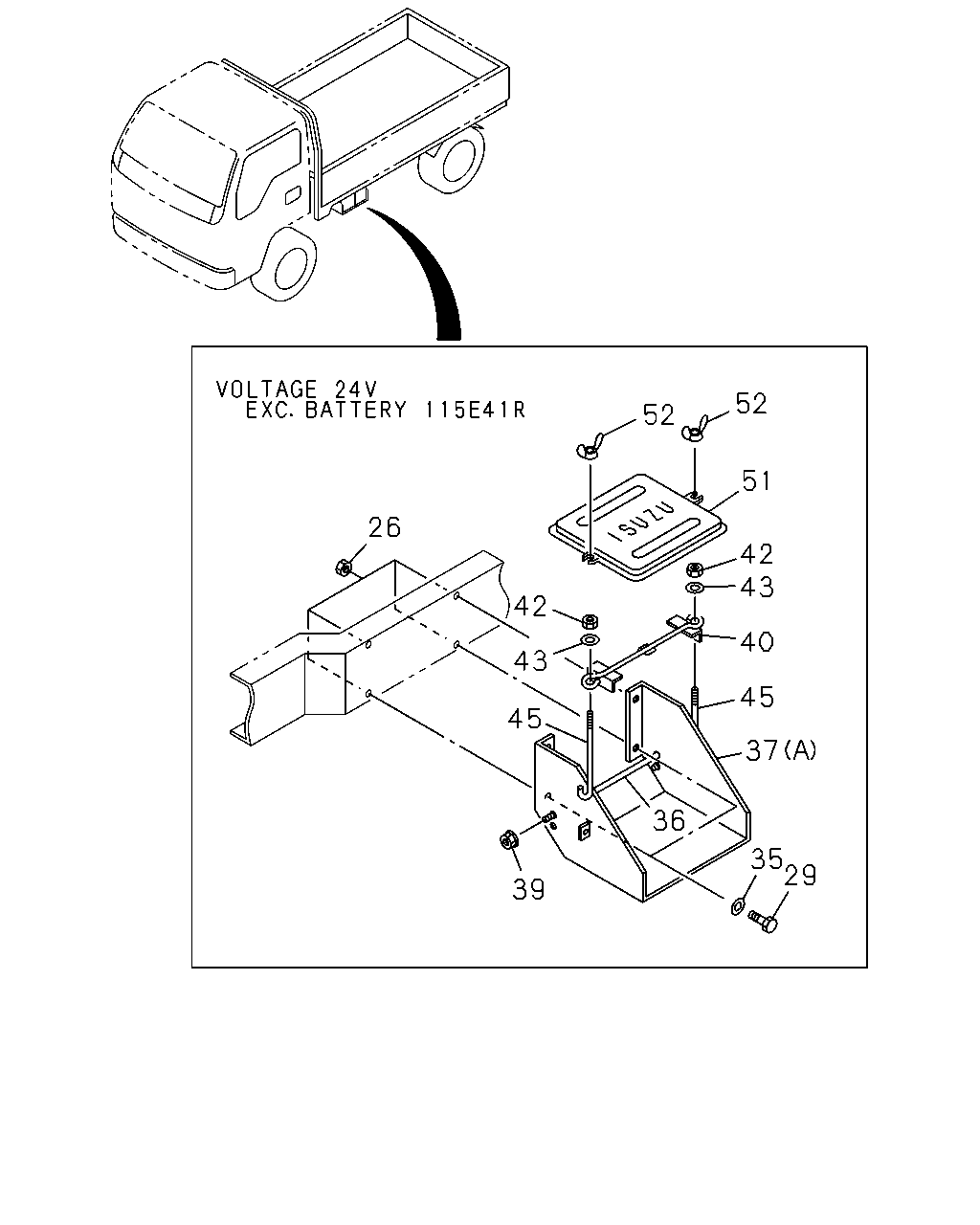

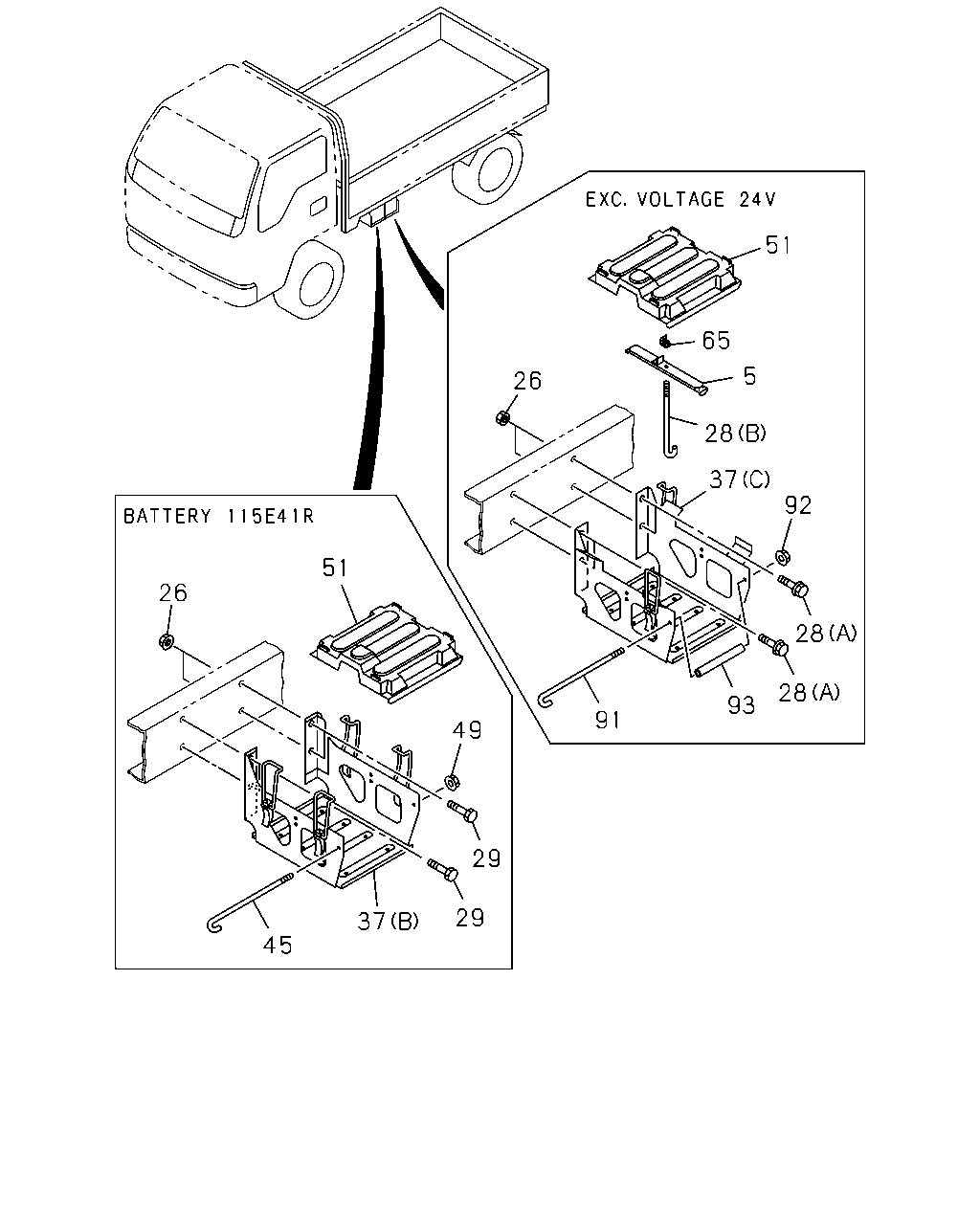

5-20 — BATTERY CARRIER (#45521) — 378 parça

51 65 5 26 28 37 92 51 26 28 28 93 91 49 29 29 37 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	02.333 BRACKET; BATTERY RELAY 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE>	8-94370-299-1	01	1	0211-0501	●	●	●
5	02.333 BRACKET; BATTERY RELAY 4HG1-T ENG(RDP) EXC. VOLTAGE 24V<7AE>	8-94370-299-1	01	1	0502-0502	●	●
5	02.333 BRACKET; BATTERY RELAY 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE>	8-94370-299-1	01	1	0503-0612	●	●
5	02.333 BRACKET; BATTERY RELAY 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE>	8-94370-299-1	01	1	0503-0612			●
5	02.333 BRACKET; BATTERY RELAY 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE>	8-94370-299-1	01	1	0701-	●	●	●
26	02.334 NUT; BRKT 4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	03	1	0211-0501				●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0506				●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0506	●	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0506	●	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0506			●
26	02.334 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0506					●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602				●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602	●	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS), 4HF1-NENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602		●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602			●
26	02.334 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602					●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606				●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606	●	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS), 4HF1-NENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606		●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606			●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606					●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-0612				●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-0612	●	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-0612	●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S EN G(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-0612		●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-0612			●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-0612					●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0701-				●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0701-	●	●	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0701-	●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S EN G(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0701-		●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0701-			●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	02	1	0701-					●
26	02.334 NUT; BRKT 4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501				●
26	02.334 NUT; BRKT 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501	●	●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501	●	●
26	02.334 NUT; BRKT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501			●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501			●
26	02.334 NUT; BRKT 4HF1-S ENG(RLS),4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501					●
26	02.334 NUT; BRKT 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	03	1	0502-0602				●
26	02.334 NUT; BRKT 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	03	1	0603-				●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 08.917 M10 FLANGE	0-91150-210-0	04	1	0211-0501	●	●	●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0211-0501	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0211-0501			●
26	02.334 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	04	1	0211-0501						●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0502-0502	●	●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP) EXC. VOLTAGE 24V<7AE> 08.917 M10 FLANGE	0-91150-210-0	04	1	0502-0502	●	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 08.917 M10 FLANGE	0-91150-210-0	04	1	0502-0502			●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0503-0602	●	●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 08.917 M10 FLANGE	0-91150-210-0	04	1	0503-0602	●	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 08.917 M10 FLANGE	0-91150-210-0	04	1	0503-0602			●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 08.917 M10 FLANGE	0-91150-210-0	04	1	0503-0602			●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-0606	●	●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-0606	●	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-0606			●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-0606			●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 04.085 M10 FLANGE	0-91180-210-0	04	1	0607-0612	●	●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	0607-0612	●	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 04.085 M10 FLANGE	0-91180-210-0	04	1	0607-0612			●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 04.085 M10 FLANGE	0-91180-210-0	04	1	0607-0612			●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 04.085 M10 FLANGE	0-91180-210-0	04	1	0701-	●	●	●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	0701-	●	●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 04.085 M10 FLANGE	0-91180-210-0	04	1	0701-			●
28	02.334 BOLT; BRKT,BATTERY CARRIER 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 03.162 (A) M10X35 FLANGE	0-28681-035-0	04	1	0211-0501	●	●	●
28	02.334 BOLT; BRKT,BATTERY CARRIER 4HG1-T ENG(RDP) EXC. VOLTAGE 24V<7AE> 03.162 (A) M10X35 FLANGE	0-28681-035-0	04	1	0502-0502	●	●
28	02.334 BOLT; BRKT,BATTERY CARRIER 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 03.162 (A) M10X35 FLANGE	0-28681-035-0	04	1	0503-0512	●	●
28	02.334 BOLT; BRKT,BATTERY CARRIER 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 03.162 (A) M10X35 FLANGE	0-28681-035-0	04	1	0503-0512			●
28	02.334 BOLT; BRKT,BATTERY CARRIER 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 02.277 (A) M10X35 FLANGE	0-28651-035-0	04	1	0601-0612	●	●
28	02.334 BOLT; BRKT,BATTERY CARRIER 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 02.277 (A) M10X35 FLANGE	0-28651-035-0	04	1	0601-0612			●
28	02.334 BOLT; BRKT,BATTERY CARRIER 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 02.277 (A) M10X35 FLANGE	0-28651-035-0	04	1	0701-	●	●	●
28	02.334 BOLT; BRKT,BATTERY CARRIER 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> (B) L=250	1-53616-081-0	01	1	0211-0501	●	●	●
28	02.334 BOLT; BRKT,BATTERY CARRIER 4HG1-T ENG(RDP) EXC. VOLTAGE 24V<7AE> (B) L=250	1-53616-081-0	01	1	0502-0502	●	●
28	02.334 BOLT; BRKT,BATTERY CARRIER 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> (B) L=250	1-53616-081-0	01	1	0503-0612	●	●
28	02.334 BOLT; BRKT,BATTERY CARRIER 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> (B) L=250	1-53616-081-0	01	1	0503-0612			●
28	02.334 BOLT; BRKT,BATTERY CARRIER 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> (B) L=250	1-53616-081-0	01	1	0701-1003	●	●	●
28	02.334 BOLT; BRKT,BATTERY CARRIER 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> (B) L=250	1-53616-108-0	01	1	1004-	●	●	●
29	02.334 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS),4HE1 ENG(RLY) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0501				●
29	02.334 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0501	●	●
29	02.334 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0501			●
29	02.334 BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0501						●
29	02.334 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0501					●
29	02.334 BOLT; BRKT TO FRAME 4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502				●
29	02.334 BOLT; BRKT TO FRAME 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502	●	●
29	02.334 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502	●	●
29	02.334 BOLT; BRKT TO FRAME 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502			●
29	02.334 BOLT; BRKT TO FRAME 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502					●
29	02.334 BOLT; BRKT TO FRAME 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0503-0512				●	●
29	02.334 BOLT; BRKT TO FRAME VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0503-0512	●	●	●
29	02.334 BOLT; BRKT TO FRAME 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-				●	●
29	02.334 BOLT; BRKT TO FRAME VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-	●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 06.168 M10X35 FLANGE	0-28691-035-0	04	1	0211-0501	●	●	●		●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 06.168 M10X35 FLANGE	0-28691-035-0	04	1	0502-0512	●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0601-	●	●	●
37	02.333 BRACKET; BATTERY 4HF1-S ENG(RLS),4HE1 ENG(RLY) (A)	8-97356-174-0	01	1	0211-0501				●
37	02.333 BRACKET; BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0211-0501	●	●
37	02.333 BRACKET; BATTERY 4HG1 ENG(RJH),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0211-0501			●
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0211-0501						●
37	02.333 BRACKET; BATTERY 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0211-0501					●
37	02.333 BRACKET; BATTERY 4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A)	8-97356-174-0	01	1	0502-0502				●
37	02.333 BRACKET; BATTERY 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97356-174-0	01	1	0502-0502	●	●
37	02.333 BRACKET; BATTERY 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0502-0502	●	●
37	02.333 BRACKET; BATTERY 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) (A)	8-97356-174-0	01	1	0502-0502			●
37	02.333 BRACKET; BATTERY (A)	8-97356-174-0	01	1	0502-0502					●
37	02.333 BRACKET; BATTERY (A)	8-97356-174-0	01	1	0503-0610				●	●
37	02.333 BRACKET; BATTERY VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0503-0610	●	●	●
37	02.333 BRACKET; BATTERY (A)	8-97384-068-2	01	1	0611-0612				●	●
37	02.333 BRACKET; BATTERY VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> (A)	8-97384-068-2	01	1	0611-0612	●	●	●
37	02.333 BRACKET; BATTERY (A)	8-97384-067-2	01	1	0701-				●	●
37	02.333 BRACKET; BATTERY VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> (A)	8-97384-067-2	01	1	0701-	●	●	●
37	02.333 BRACKET; BATTERY 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> (C)	8-97254-597-1	01	1	0211-0501	●	●	●
37	02.333 BRACKET; BATTERY 4HG1-T ENG(RDP) EXC. VOLTAGE 24V<7AE> (C)	8-97254-597-1	01	1	0502-0502	●	●
37	02.333 BRACKET; BATTERY 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> (C)	8-97254-597-1	01	1	0503-0612	●	●
37	02.333 BRACKET; BATTERY 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> (C)	8-97254-597-1	01	1	0503-0612			●
37	02.333 BRACKET; BATTERY 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> (C)	8-97254-597-1	01	1	0701-	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-97134-838-0	01	1	0211-0501	●	●	●		●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-97134-838-0	01	1	0502-0706	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-98091-497-0	01	1	0707-	●	●	●
45	02.334 ROD; TENSION,BATTERY 4HF1-S ENG(RLS),4HE1 ENG(RLY) L=120	9-53616-615-0	02	1	0211-0501				●
45	02.334 ROD; TENSION,BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0211-0501	●	●
45	02.334 ROD; TENSION,BATTERY 4HG1 ENG(RJH),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0211-0501			●
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0211-0501						●
45	02.334 ROD; TENSION,BATTERY 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0211-0501					●
45	02.334 ROD; TENSION,BATTERY 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=120	9-53616-615-0	02	1	0502-0502				●
45	02.334 ROD; TENSION,BATTERY 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> L=120	9-53616-615-0	02	1	0502-0502	●	●
45	02.334 ROD; TENSION,BATTERY 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0502-0502	●	●
45	02.334 ROD; TENSION,BATTERY 4HG1 ENG(RJH) EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0502-0502			●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0502-0502					●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0503-				●	●
45	02.334 ROD; TENSION,BATTERY VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0503-	●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD> L=430	8-97134-740-0	02	1	0211-0501	●	●	●		●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD> L=430	8-97134-740-0	02	1	0502-	●	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 115E41R<6XD> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●	●		●	●
49	02.334 NUT; ROD,BATTERY BATTERY 115E41R<6XD> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 115E41R<6XD> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
51	02.335 COVER; BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	0211-0501	●	●	●	●	●	●
51	02.335 COVER; BATTERY 4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS)	8-97120-747-0	01	1	0502-0502				●
51	02.335 COVER; BATTERY 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	0502-0502	●	●
51	02.335 COVER; BATTERY 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97120-747-0	01	1	0502-0502	●	●
51	02.335 COVER; BATTERY 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH)	8-97120-747-0	01	1	0502-0502			●
51	02.335 COVER; BATTERY	8-97120-747-0	01	1	0502-0502					●
51	02.335 COVER; BATTERY	8-97120-747-0	01	1	0503-				●	●
51	02.335 COVER; BATTERY VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	0503-	●	●	●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD>	9-53612-072-0	01	1	0211-0501	●	●	●		●	●
51	02.335 COVER; BATTERY 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD>,VOLTAGE 24V<7AE>	9-53612-072-0	01	1	0211-0501	●	●	●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD>	9-53612-072-0	01	1	0502-0502	●	●	●
51	02.335 COVER; BATTERY 4HG1-T ENG(RDP) EXC. BATTERY 115E41R<6XD>,VOLTAGE 24V<7AE>	9-53612-072-0	01	1	0502-0502	●	●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD>	9-53612-072-1	01	1	0503-0612	●	●	●
51	02.335 COVER; BATTERY 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. BATTERY 115E41R<6XD>,VOLTAGE 24V<7AE>	9-53612-072-1	01	1	0503-0612	●	●
51	02.335 COVER; BATTERY 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. BATTERY 115E41R<6XD>,VOLTAGE 24V<7AE>	9-53612-072-1	01	1	0503-0612			●
51	02.335 COVER; BATTERY 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. BATTERY 115E41R<6XD>,VOLTAGE 24V<7AE>	9-53612-072-1	01	1	0701-	●	●	●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD>	9-53612-072-1	01	1	0701-	●	●	●
65	02.333 PLATE; LOCK,BATTERY BRKT 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 02.335	1-53618-040-0	01	1	0211-0501	●	●	●
65	02.333 PLATE; LOCK,BATTERY BRKT 4HG1-T ENG(RDP) EXC. VOLTAGE 24V<7AE> 02.335	1-53618-040-0	01	1	0502-0502	●	●
65	02.333 PLATE; LOCK,BATTERY BRKT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 02.335	1-53618-040-0	01	1	0503-0612	●	●
65	02.333 PLATE; LOCK,BATTERY BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 02.335	1-53618-040-0	01	1	0503-0612			●
65	02.333 PLATE; LOCK,BATTERY BRKT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 02.335	1-53618-040-0	01	1	0701-	●	●	●
91	02.334 BOLT; BRKT TO BRKT,BATTERY 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> L=365	8-97122-608-0	01	1	0211-0501	●	●	●
91	02.334 BOLT; BRKT TO BRKT,BATTERY 4HG1-T ENG(RDP) EXC. VOLTAGE 24V<7AE> L=365	8-97122-608-0	01	1	0502-0502	●	●
91	02.334 BOLT; BRKT TO BRKT,BATTERY 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> L=365	8-97122-608-0	01	1	0503-0612	●	●
91	02.334 BOLT; BRKT TO BRKT,BATTERY 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> L=365	8-97122-608-0	01	1	0503-0612			●
91	02.334 BOLT; BRKT TO BRKT,BATTERY 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> L=365	8-97122-608-0	01	1	0701-	●	●	●
92	02.334 NUT; BRKT,BATTERY 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●
92	02.334 NUT; BRKT,BATTERY 4HG1-T ENG(RDP) EXC. VOLTAGE 24V<7AE> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0502	●	●
92	02.334 NUT; BRKT,BATTERY 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 07.633 M8 FLANGE	0-91150-108-0	01	1	0503-0602	●	●
92	02.334 NUT; BRKT,BATTERY 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 07.633 M8 FLANGE	0-91150-108-0	01	1	0503-0602			●
92	02.334 NUT; BRKT,BATTERY 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0612	●	●
92	02.334 NUT; BRKT,BATTERY 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0612			●
92	02.334 NUT; BRKT,BATTERY 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 01.062 M8 FLANGE	0-91180-108-0	01	1	0701-	●	●	●
93	02.335 SPACER; BOLT,BRKT,BATTERY 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE>	8-97124-125-0	01	1	0211-0501	●	●	●
93	02.335 SPACER; BOLT,BRKT,BATTERY 4HG1-T ENG(RDP) EXC. VOLTAGE 24V<7AE>	8-97124-125-0	01	1	0502-0502	●	●
93	02.335 SPACER; BOLT,BRKT,BATTERY 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE>	8-97124-125-0	01	1	0503-0612	●	●
93	02.335 SPACER; BOLT,BRKT,BATTERY 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE>	8-97124-125-0	01	1	0503-0612			●
93	02.335 SPACER; BOLT,BRKT,BATTERY 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE>	8-97124-125-0	01	1	0701-	●	●	●

52 52 51 26 42 43 42 40 43 45 45 37 36 35 29 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
26	02.334 NUT; BRKT 4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	03	1	0211-0501				●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0506				●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0506	●	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0506	●	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0506			●
26	02.334 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0506					●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602				●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602	●	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS), 4HF1-NENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602		●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602			●
26	02.334 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602					●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606				●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606	●	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS), 4HF1-NENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606		●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606			●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606					●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-0612				●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-0612	●	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-0612	●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S EN G(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-0612		●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-0612			●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-0612					●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0701-				●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0701-	●	●	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0701-	●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S EN G(RLS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0701-		●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0701-			●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	02	1	0701-					●
26	02.334 NUT; BRKT 4HF1-S ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501				●
26	02.334 NUT; BRKT 4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501	●	●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501	●	●
26	02.334 NUT; BRKT 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501			●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501			●
26	02.334 NUT; BRKT 4HF1-S ENG(RLS),4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501					●
26	02.334 NUT; BRKT 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	03	1	0502-0602				●
26	02.334 NUT; BRKT 4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	03	1	0603-				●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 08.917 M10 FLANGE	0-91150-210-0	04	1	0211-0501	●	●	●
26	02.334 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0211-0501	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0211-0501			●
26	02.334 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	04	1	0211-0501						●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0502-0502	●	●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP) EXC. VOLTAGE 24V<7AE> 08.917 M10 FLANGE	0-91150-210-0	04	1	0502-0502	●	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 08.917 M10 FLANGE	0-91150-210-0	04	1	0502-0502			●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0503-0602	●	●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 08.917 M10 FLANGE	0-91150-210-0	04	1	0503-0602	●	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 08.917 M10 FLANGE	0-91150-210-0	04	1	0503-0602			●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 08.917 M10 FLANGE	0-91150-210-0	04	1	0503-0602			●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-0606	●	●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-0606	●	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-0606			●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-0606			●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 04.085 M10 FLANGE	0-91180-210-0	04	1	0607-0612	●	●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	0607-0612	●	●
26	02.334 NUT; BRKT 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 04.085 M10 FLANGE	0-91180-210-0	04	1	0607-0612			●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 04.085 M10 FLANGE	0-91180-210-0	04	1	0607-0612			●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> 04.085 M10 FLANGE	0-91180-210-0	04	1	0701-	●	●	●
26	02.334 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	0701-	●	●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) 04.085 M10 FLANGE	0-91180-210-0	04	1	0701-			●
29	02.334 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS),4HE1 ENG(RLY) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0501				●
29	02.334 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0501	●	●
29	02.334 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0501			●
29	02.334 BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0501						●
29	02.334 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0211-0501					●
29	02.334 BOLT; BRKT TO FRAME 4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502				●
29	02.334 BOLT; BRKT TO FRAME 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502	●	●
29	02.334 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502	●	●
29	02.334 BOLT; BRKT TO FRAME 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502			●
29	02.334 BOLT; BRKT TO FRAME 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0502-0502					●
29	02.334 BOLT; BRKT TO FRAME 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0503-0512				●	●
29	02.334 BOLT; BRKT TO FRAME VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0503-0512	●	●	●
29	02.334 BOLT; BRKT TO FRAME 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-				●	●
29	02.334 BOLT; BRKT TO FRAME VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-	●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 06.168 M10X35 FLANGE	0-28691-035-0	04	1	0211-0501	●	●	●		●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 06.168 M10X35 FLANGE	0-28691-035-0	04	1	0502-0512	●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0601-	●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 4HF1-S ENG(RLS),4HE1 ENG(RLY) 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0211-0501				●
35	02.334 WASHER; PL,BATTERY CARRIER 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0211-0501	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 4HG1 ENG(RJH),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0211-0501			●
35	02.334 WASHER; PL,BATTERY CARRIER EXC. BATTERY 115E41R<6XD> 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0211-0501						●
35	02.334 WASHER; PL,BATTERY CARRIER 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0211-0501					●
35	02.334 WASHER; PL,BATTERY CARRIER 4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0502-0502				●
35	02.334 WASHER; PL,BATTERY CARRIER 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0502-0502	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0502-0502	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0502-0502			●
35	02.334 WASHER; PL,BATTERY CARRIER 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0502-0502					●
35	02.334 WASHER; PL,BATTERY CARRIER 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0503-0605				●	●
35	02.334 WASHER; PL,BATTERY CARRIER VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0503-0605	●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0606-				●	●
35	02.334 WASHER; PL,BATTERY CARRIER VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0606-	●	●	●
36	02.334 STOPPER; BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	8-94145-894-0	01	1	0211-	●	●	●	●	●
37	02.333 BRACKET; BATTERY 4HF1-S ENG(RLS),4HE1 ENG(RLY) (A)	8-97356-174-0	01	1	0211-0501				●
37	02.333 BRACKET; BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0211-0501	●	●
37	02.333 BRACKET; BATTERY 4HG1 ENG(RJH),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0211-0501			●
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0211-0501						●
37	02.333 BRACKET; BATTERY 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0211-0501					●
37	02.333 BRACKET; BATTERY 4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) (A)	8-97356-174-0	01	1	0502-0502				●
37	02.333 BRACKET; BATTERY 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) (A)	8-97356-174-0	01	1	0502-0502	●	●
37	02.333 BRACKET; BATTERY 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0502-0502	●	●
37	02.333 BRACKET; BATTERY 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) (A)	8-97356-174-0	01	1	0502-0502			●
37	02.333 BRACKET; BATTERY (A)	8-97356-174-0	01	1	0502-0502					●
37	02.333 BRACKET; BATTERY (A)	8-97356-174-0	01	1	0503-0610				●	●
37	02.333 BRACKET; BATTERY VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0503-0610	●	●	●
37	02.333 BRACKET; BATTERY (A)	8-97384-068-2	01	1	0611-0612				●	●
37	02.333 BRACKET; BATTERY VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> (A)	8-97384-068-2	01	1	0611-0612	●	●	●
37	02.333 BRACKET; BATTERY (A)	8-97384-067-2	01	1	0701-				●	●
37	02.333 BRACKET; BATTERY VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> (A)	8-97384-067-2	01	1	0701-	●	●	●
37	02.333 BRACKET; BATTERY 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> (C)	8-97254-597-1	01	1	0211-0501	●	●	●
37	02.333 BRACKET; BATTERY 4HG1-T ENG(RDP) EXC. VOLTAGE 24V<7AE> (C)	8-97254-597-1	01	1	0502-0502	●	●
37	02.333 BRACKET; BATTERY 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> (C)	8-97254-597-1	01	1	0503-0612	●	●
37	02.333 BRACKET; BATTERY 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> (C)	8-97254-597-1	01	1	0503-0612			●
37	02.333 BRACKET; BATTERY 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. VOLTAGE 24V<7AE> (C)	8-97254-597-1	01	1	0701-	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-97134-838-0	01	1	0211-0501	●	●	●		●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-97134-838-0	01	1	0502-0706	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-98091-497-0	01	1	0707-	●	●	●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0602	●	●	●	●	●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●	●
40	02.335 CLAMP; BATTERY 4HF1-S ENG(RLS),4HE1 ENG(RLY)	5-53615-004-1	01	1	0211-0501				●
40	02.335 CLAMP; BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	5-53615-004-1	01	1	0211-0501	●	●
40	02.335 CLAMP; BATTERY 4HG1 ENG(RJH),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	5-53615-004-1	01	1	0211-0501			●
40	02.335 CLAMP; BATTERY EXC. BATTERY 115E41R<6XD>	5-53615-004-1	01	1	0211-0501						●
40	02.335 CLAMP; BATTERY 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD>	5-53615-004-1	01	1	0211-0501					●
40	02.335 CLAMP; BATTERY 4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	5-53615-004-1	01	1	0502-0502				●
40	02.335 CLAMP; BATTERY 4HG1-T ENG(RDP) VOLTAGE 24V<7AE>	5-53615-004-1	01	1	0502-0502	●	●
40	02.335 CLAMP; BATTERY 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	5-53615-004-1	01	1	0502-0502	●	●
40	02.335 CLAMP; BATTERY 4HG1 ENG(RJH) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	5-53615-004-1	01	1	0502-0502			●
40	02.335 CLAMP; BATTERY	5-53615-004-1	01	1	0502-0502					●
40	02.335 CLAMP; BATTERY	5-53615-004-1	01	1	0503-				●	●
40	02.335 CLAMP; BATTERY VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	5-53615-004-1	01	1	0503-	●	●	●
42	02.334 NUT; CLAMP 4HF1-S ENG(RLS),4HE1 ENG(RLY) 02.559 M8	9-09110-408-0	02	1	0211-0501				●
42	02.334 NUT; CLAMP 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 02.559 M8	9-09110-408-0	02	1	0211-0501	●	●
42	02.334 NUT; CLAMP 4HG1 ENG(RJH),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 02.559 M8	9-09110-408-0	02	1	0211-0501			●
42	02.334 NUT; CLAMP EXC. BATTERY 115E41R<6XD> 02.559 M8	9-09110-408-0	02	1	0211-0501						●
42	02.334 NUT; CLAMP 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> 02.559 M8	9-09110-408-0	02	1	0211-0501					●
42	02.334 NUT; CLAMP 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 02.559 M8	9-09110-408-0	02	1	0502-0502				●
42	02.334 NUT; CLAMP 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> 02.559 M8	9-09110-408-0	02	1	0502-0502	●	●
42	02.334 NUT; CLAMP 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 02.559 M8	9-09110-408-0	02	1	0502-0502	●	●
42	02.334 NUT; CLAMP 4HG1 ENG(RJH) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 02.559 M8	9-09110-408-0	02	1	0502-0502			●
42	02.334 NUT; CLAMP 02.559 M8	9-09110-408-0	02	1	0502-0502					●
42	02.334 NUT; CLAMP 02.559 M8	9-09110-408-0	02	1	0503-0512				●	●
42	02.334 NUT; CLAMP VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 02.559 M8	9-09110-408-0	02	1	0503-0512	●	●	●
42	02.334 NUT; CLAMP M8	0-91110-508-0	02	1	0601-				●	●
42	02.334 NUT; CLAMP VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> M8	0-91110-508-0	02	1	0601-	●	●	●
43	02.334 WASHER; PL,CLAMP 4HF1-S ENG(RLS),4HE1 ENG(RLY) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0211-0501				●
43	02.334 WASHER; PL,CLAMP 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0211-0501	●	●
43	02.334 WASHER; PL,CLAMP 4HG1 ENG(RJH),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0211-0501			●
43	02.334 WASHER; PL,CLAMP EXC. BATTERY 115E41R<6XD> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0211-0501						●
43	02.334 WASHER; PL,CLAMP 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0211-0501					●
43	02.334 WASHER; PL,CLAMP 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0502-0502				●
43	02.334 WASHER; PL,CLAMP 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0502-0502	●	●
43	02.334 WASHER; PL,CLAMP 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. BATTERY 115E41R<6XD> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0502-0502	●	●
43	02.334 WASHER; PL,CLAMP 4HG1 ENG(RJH) EXC. BATTERY 115E41R<6XD> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0502-0502			●
43	02.334 WASHER; PL,CLAMP 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0502-0502					●
43	02.334 WASHER; PL,CLAMP 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0503-0605				●	●
43	02.334 WASHER; PL,CLAMP VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0503-0605	●	●	●
43	02.334 WASHER; PL,CLAMP 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0606-				●	●
43	02.334 WASHER; PL,CLAMP VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0606-	●	●	●
45	02.334 ROD; TENSION,BATTERY 4HF1-S ENG(RLS),4HE1 ENG(RLY) L=120	9-53616-615-0	02	1	0211-0501				●
45	02.334 ROD; TENSION,BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0211-0501	●	●
45	02.334 ROD; TENSION,BATTERY 4HG1 ENG(RJH),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0211-0501			●
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0211-0501						●
45	02.334 ROD; TENSION,BATTERY 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0211-0501					●
45	02.334 ROD; TENSION,BATTERY 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) L=120	9-53616-615-0	02	1	0502-0502				●
45	02.334 ROD; TENSION,BATTERY 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> L=120	9-53616-615-0	02	1	0502-0502	●	●
45	02.334 ROD; TENSION,BATTERY 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0502-0502	●	●
45	02.334 ROD; TENSION,BATTERY 4HG1 ENG(RJH) EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0502-0502			●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0502-0502					●
45	02.334 ROD; TENSION,BATTERY L=120	9-53616-615-0	02	1	0503-				●	●
45	02.334 ROD; TENSION,BATTERY VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> L=120	9-53616-615-0	02	1	0503-	●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD> L=430	8-97134-740-0	02	1	0211-0501	●	●	●		●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD> L=430	8-97134-740-0	02	1	0502-	●	●	●
51	02.335 COVER; BATTERY 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	0211-0501	●	●	●	●	●	●
51	02.335 COVER; BATTERY 4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS)	8-97120-747-0	01	1	0502-0502				●
51	02.335 COVER; BATTERY 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	0502-0502	●	●
51	02.335 COVER; BATTERY 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS)	8-97120-747-0	01	1	0502-0502	●	●
51	02.335 COVER; BATTERY 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH)	8-97120-747-0	01	1	0502-0502			●
51	02.335 COVER; BATTERY	8-97120-747-0	01	1	0502-0502					●
51	02.335 COVER; BATTERY	8-97120-747-0	01	1	0503-				●	●
51	02.335 COVER; BATTERY VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	0503-	●	●	●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD>	9-53612-072-0	01	1	0211-0501	●	●	●		●	●
51	02.335 COVER; BATTERY 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD>,VOLTAGE 24V<7AE>	9-53612-072-0	01	1	0211-0501	●	●	●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD>	9-53612-072-0	01	1	0502-0502	●	●	●
51	02.335 COVER; BATTERY 4HG1-T ENG(RDP) EXC. BATTERY 115E41R<6XD>,VOLTAGE 24V<7AE>	9-53612-072-0	01	1	0502-0502	●	●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD>	9-53612-072-1	01	1	0503-0612	●	●	●
51	02.335 COVER; BATTERY 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. BATTERY 115E41R<6XD>,VOLTAGE 24V<7AE>	9-53612-072-1	01	1	0503-0612	●	●
51	02.335 COVER; BATTERY 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) EXC. BATTERY 115E41R<6XD>,VOLTAGE 24V<7AE>	9-53612-072-1	01	1	0503-0612			●
51	02.335 COVER; BATTERY 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS) EXC. BATTERY 115E41R<6XD>,VOLTAGE 24V<7AE>	9-53612-072-1	01	1	0701-	●	●	●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD>	9-53612-072-1	01	1	0701-	●	●	●
52	02.335 NUT; WING,COVER FIX 4HF1-S ENG(RLS),4HE1 ENG(RLY) M8 WING NUT	9-09118-408-0	02	1	0211-0501				●
52	02.335 NUT; WING,COVER FIX 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> M8 WING NUT	9-09118-408-0	02	1	0211-0501	●	●
52	02.335 NUT; WING,COVER FIX 4HG1 ENG(RJH),4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> M8 WING NUT	9-09118-408-0	02	1	0211-0501			●
52	02.335 NUT; WING,COVER FIX EXC. BATTERY 115E41R<6XD> M8 WING NUT	9-09118-408-0	02	1	0211-0501						●
52	02.335 NUT; WING,COVER FIX 4HF1-S ENG(RLS),4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD> M8 WING NUT	9-09118-408-0	02	1	0211-0501					●
52	02.335 NUT; WING,COVER FIX 4HE1-TCN ENG(RDR),4HF1-N ENG(RJZ), 4HF1-S ENG(RLS) M8 WING NUT	9-09118-408-0	02	1	0502-0502				●
52	02.335 NUT; WING,COVER FIX 4HG1-T ENG(RDP) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> M8 WING NUT	9-09118-408-0	02	1	0502-0502	●	●
52	02.335 NUT; WING,COVER FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) M8 WING NUT	9-09118-408-0	02	1	0502-0502	●	●
52	02.335 NUT; WING,COVER FIX 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HG1 ENG(RJH) M8 WING NUT	9-09118-408-0	02	1	0502-0502			●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	9-09118-408-0	02	1	0502-0502					●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	9-09118-408-0	02	1	0503-0512				●	●
52	02.335 NUT; WING,COVER FIX VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> M8 WING NUT	9-09118-408-0	02	1	0503-0512	●	●	●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	0-91118-408-0	02	1	0601-				●	●
52	02.335 NUT; WING,COVER FIX VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> M8 WING NUT	0-91118-408-0	02	1	0601-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
