Isuzu WW
▶
BUSES
▶
LV
▶
10695 - LV233(THAI)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶

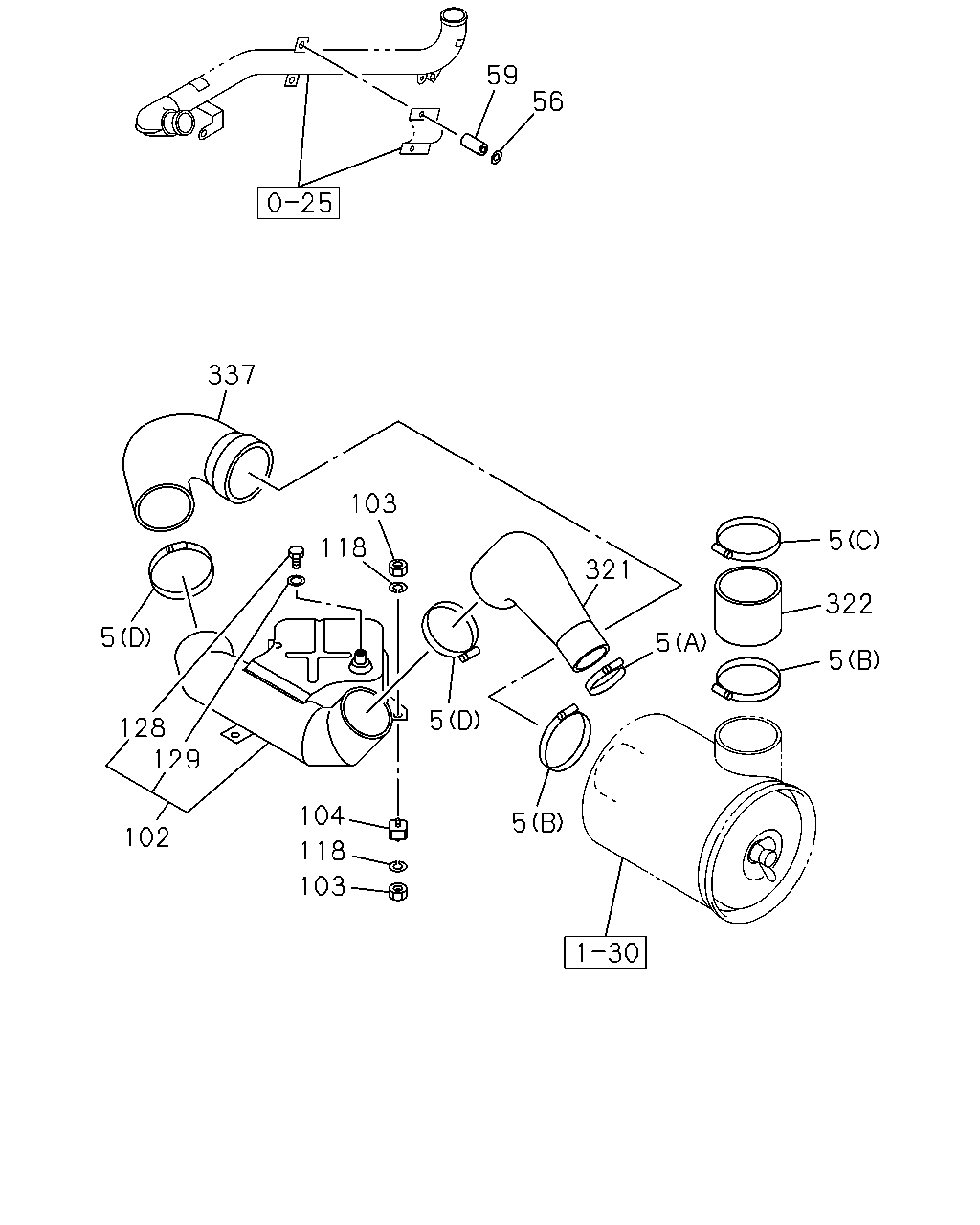

1-31 — AIR DUCT
(#4552) — 18 parça
59
56
337
103
5
118
321
322
5
5
5
5
128
129
104
5
102
118
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(A) ID=77-95
1-09707-114-0
01
1
9712-
5
CLIP; AIR DUCT
(B) ID=130-169
1-09707-157-0
02
1
9712-
5
CLIP; AIR DUCT
(C) ID=155-184
1-09707-182-0
01
1
9712-
5
CLIP; AIR DUCT
(D)
1-09707-184-0
02
1
9712-
56
WASHER; LK,AIR INT DUCT
T=5.5
1-14149-042-0
02
1
9712-
59
TUBE; DIST,AIR INT DUCT
L=43
1-14149-048-1
02
1
9712-
59
TUBE; DIST,AIR INT DUCT
L=55
1-14149-166-0
02
1
9712-
102
RESONATOR; AIR INT
1-14260-022-0
01
1
9712-
103
NUT; RESONATOR
M8
9-09110-508-0
06
1
9712-
104
RUBBER; MOUNTING,RESONATOR
1-22226-002-0
03
1
9712-
118
WASHER; PL,RESONATOR
ID=8.4
9-09160-508-0
06
1
9712-
128
PLUG; RESONATOR
M10
1-09000-105-0
02
1
9712-
129
GASKET; PLUG,RESONATOR
ID=9.8
1-09623-055-0
02
1
9712-
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28681-025-0
04
1
9808-
211
NUT; BRKT
M10 FLANGE
0-91150-210-0
04
1
9804-9807
321
HOSE; RUBBER,ACL TO ENG
1-14231-791-0
01
1
9712-
322
HOSE; RUBBER,ACL TO RESONATOR
1-14231-998-0
01
1
9712-
337
HOSE; CONN,DUCT TO RESONATOR
1-14232-005-0
01
1
9712-
