4-65D — REAR LEAF SPRING (#45514) — 88 parça

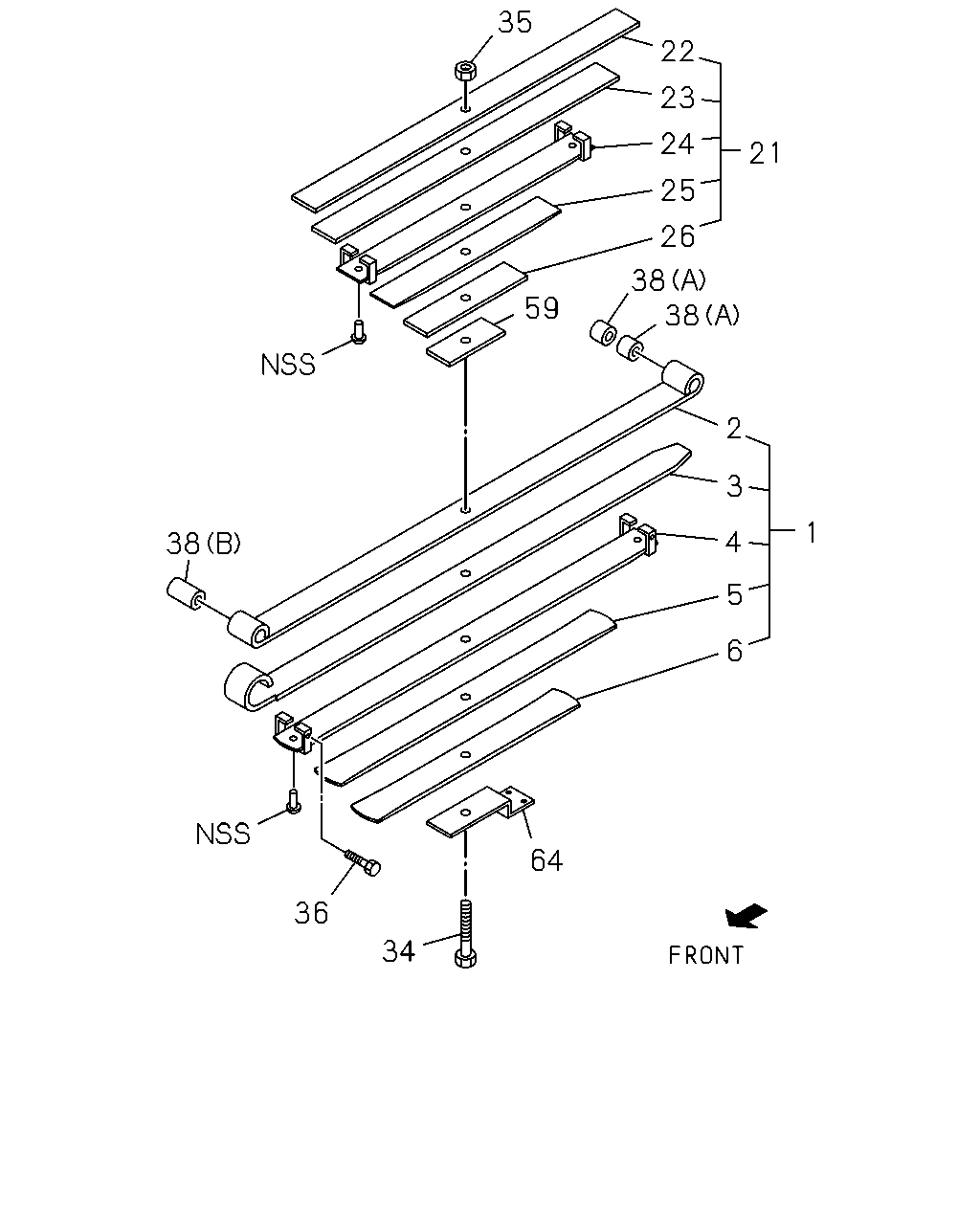

35 22 23 24 21 25 26 38 38 59 2 3 1 4 38 5 6 64 36 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-97073-224-1, 97073224	8-97103-035-0	01	1	-
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: B = 8-97092-458-1, 97092458	8-97103-048-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97073-224-1, 97073224	8-97103-036-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97092-458-1, 97092458	8-97103-049-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-97147-111-0, 97147111	8-97174-328-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: D = 8-97251-443-0, 97251443	8-97312-485-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97073-224-1, 97073224	8-97103-037-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97092-458-1, 97092458	8-97103-050-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97147-111-0, 97147111	8-97174-329-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97251-443-0, 97251443	8-97312-486-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97073-224-1, 97073224	8-97103-038-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97092-458-1, 97092458	8-97103-051-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97147-111-0, 97147111	8-97174-330-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97251-443-0, 97251443	8-97312-487-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-97073-224-1, 97073224	8-97103-039-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-97092-458-1, 97092458	8-97103-052-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 8-97147-111-0, 97147111	8-97174-331-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: D = 8-97251-443-0, 97251443	8-97312-488-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-97073-224-1, 97073224	8-97103-041-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-97092-458-1, 97092458	8-97103-053-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 8-97147-111-0, 97147111	8-97174-332-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: D = 8-97251-443-0, 97251443	8-97312-489-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: A = 8-97073-224-1, 97073224	8-97103-042-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: B = 8-97092-458-1, 97092458	8-97103-054-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97073-224-1, 97073224	8-97103-043-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97092-458-1, 97092458	8-97103-055-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97073-224-1, 97073224	8-97103-044-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97092-458-1, 97092458	8-97103-056-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB ASM PART: A = 8-97073-224-1, 97073224	8-97103-045-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB ASM PART: B = 8-97092-458-1, 97092458	8-97103-057-0	01	1	-
25	07.505 SPRING; LEAF,NO 4,RR SUB ASM PART: A = 8-97073-224-1, 97073224	8-97103-046-0	01	1	-
25	07.505 SPRING; LEAF,NO 4,RR SUB ASM PART: B = 8-97092-458-1, 97092458	8-97103-058-0	01	1	-
26	07.505 SPRING; LEAF,NO 5,RR SUB ASM PART: A = 8-97073-224-1, 97073224	8-97103-047-0	01	1	-
26	07.505 SPRING; LEAF,NO 5,RR SUB ASM PART: B = 8-97092-458-1, 97092458	8-97103-059-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=125 ASM PART: A = 8-97073-224-1, 97073224, C = 8-97147-111-0, 97147111	8-94165-311-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=130 ASM PART: B = 8-97092-458-1, 97092458	8-94165-312-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=135 ASM PART: D = 8-97251-443-0, 97251443	8-94165-313-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-97073-224-1, 97073224, B = 8-97092-458-1, 97092458, C = 8-97147-111-0, 97147111, D = 8-97251-443-0, 97251443	9-99110-512-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X89 ASM PART: C = 8-97147-111-0, 97147111, D = 8-97251-443-0, 97251443	8-97129-689-0	02	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X89 ASM PART: B = 8-97092-458-1, 97092458	8-97129-689-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), BEST VALUE PARTS ASM PART: A = 8-97073-224-1, 97073224, B = 8-97092-458-1, 97092458, C = 8-97147-111-0, 97147111, D = 8-97251-443-0, 97251443	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (A) ASM PART: A = 8-97073-224-1, 97073224, B = 8-97092-458-1, 97092458, C = 8-97147-111-0, 97147111, D = 8-97251-443-0, 97251443	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), OD=42 L=81 ASM PART: A = 8-97073-224-1, 97073224, B = 8-97092-458-1, 97092458, C = 8-97147-111-0, 97147111, D = 8-97251-443-0, 97251443	8-97074-826-0	01	1	-
59	07.513 SEAT; RR SPRING,SUB 07.518, T=6 ASM PART: A = 8-97073-224-1, 97073224, B = 8-97092-458-1, 97092458	8-94367-965-1	01	1	-
64	07.513 SUPPORT; RR SPR ASM PART: B = 8-97092-458-1, 97092458	8-94342-863-0	01	1	-
64	07.513 SUPPORT; RR SPR ASM PART: D = 8-97251-443-0, 97251443	8-97225-579-1	01	1	-

38 38 35 2 38 3 4 5 37 37 6 7 8 9 36 10 11 64 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97073-224-1, 97073224	8-97103-036-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97092-458-1, 97092458	8-97103-049-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-97147-111-0, 97147111	8-97174-328-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: D = 8-97251-443-0, 97251443	8-97312-485-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97073-224-1, 97073224	8-97103-037-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97092-458-1, 97092458	8-97103-050-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97147-111-0, 97147111	8-97174-329-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97251-443-0, 97251443	8-97312-486-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97073-224-1, 97073224	8-97103-038-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97092-458-1, 97092458	8-97103-051-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97147-111-0, 97147111	8-97174-330-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97251-443-0, 97251443	8-97312-487-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-97073-224-1, 97073224	8-97103-039-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-97092-458-1, 97092458	8-97103-052-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 8-97147-111-0, 97147111	8-97174-331-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: D = 8-97251-443-0, 97251443	8-97312-488-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-97073-224-1, 97073224	8-97103-041-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-97092-458-1, 97092458	8-97103-053-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 8-97147-111-0, 97147111	8-97174-332-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: D = 8-97251-443-0, 97251443	8-97312-489-0	01	1	-
7	07.505 SPRING; LEAF,NO 6,RR MAIN ASM PART: C = 8-97147-111-0, 97147111	8-97174-333-0	01	1	-
7	07.505 SPRING; LEAF,NO 6,RR MAIN ASM PART: D = 8-97251-443-0, 97251443	8-97312-490-0	01	1	-
8	07.505 SPRING; LEAF,NO 7,RR MAIN ASM PART: C = 8-97147-111-0, 97147111	8-97174-334-0	01	1	-
8	07.505 SPRING; LEAF,NO 7,RR MAIN ASM PART: D = 8-97251-443-0, 97251443	8-97312-491-0	01	1	-
9	07.505 SPRING; LEAF,NO 8,RR MAIN ASM PART: C = 8-97147-111-0, 97147111	8-97174-335-0	01	1	-
9	07.505 SPRING; LEAF,NO 8,RR MAIN ASM PART: D = 8-97251-443-0, 97251443	8-97312-492-0	01	1	-
10	07.505 SPRING; LEAF,NO 9,RR MAIN ASM PART: C = 8-97147-111-0, 97147111	8-97174-336-0	01	1	-
10	07.505 SPRING; LEAF,NO 9,RR MAIN ASM PART: D = 8-97251-443-0, 97251443	8-97312-493-0	01	1	-
11	07.505 SPRING; LEAF,NO 10,RR MAIN ASM PART: C = 8-97147-111-0, 97147111	8-97174-337-0	01	1	-
11	07.505 SPRING; LEAF,NO 10,RR MAIN ASM PART: D = 8-97251-443-0, 97251443	8-97312-494-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=125 ASM PART: A = 8-97073-224-1, 97073224, C = 8-97147-111-0, 97147111	8-94165-311-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=130 ASM PART: B = 8-97092-458-1, 97092458	8-94165-312-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=135 ASM PART: D = 8-97251-443-0, 97251443	8-94165-313-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-97073-224-1, 97073224, B = 8-97092-458-1, 97092458, C = 8-97147-111-0, 97147111, D = 8-97251-443-0, 97251443	9-99110-512-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X89 ASM PART: C = 8-97147-111-0, 97147111, D = 8-97251-443-0, 97251443	8-97129-689-0	02	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X89 ASM PART: B = 8-97092-458-1, 97092458	8-97129-689-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: D = 8-97251-443-0, 97251443	8-97084-102-0	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), BEST VALUE PARTS ASM PART: A = 8-97073-224-1, 97073224, B = 8-97092-458-1, 97092458, C = 8-97147-111-0, 97147111, D = 8-97251-443-0, 97251443	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (A) ASM PART: A = 8-97073-224-1, 97073224, B = 8-97092-458-1, 97092458, C = 8-97147-111-0, 97147111, D = 8-97251-443-0, 97251443	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), OD=42 L=81 ASM PART: A = 8-97073-224-1, 97073224, B = 8-97092-458-1, 97092458, C = 8-97147-111-0, 97147111, D = 8-97251-443-0, 97251443	8-97074-826-0	01	1	-
64	07.513 SUPPORT; RR SPR ASM PART: B = 8-97092-458-1, 97092458	8-94342-863-0	01	1	-
64	07.513 SUPPORT; RR SPR ASM PART: D = 8-97251-443-0, 97251443	8-97225-579-1	01	1	-
