◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#45510) — 79 parça

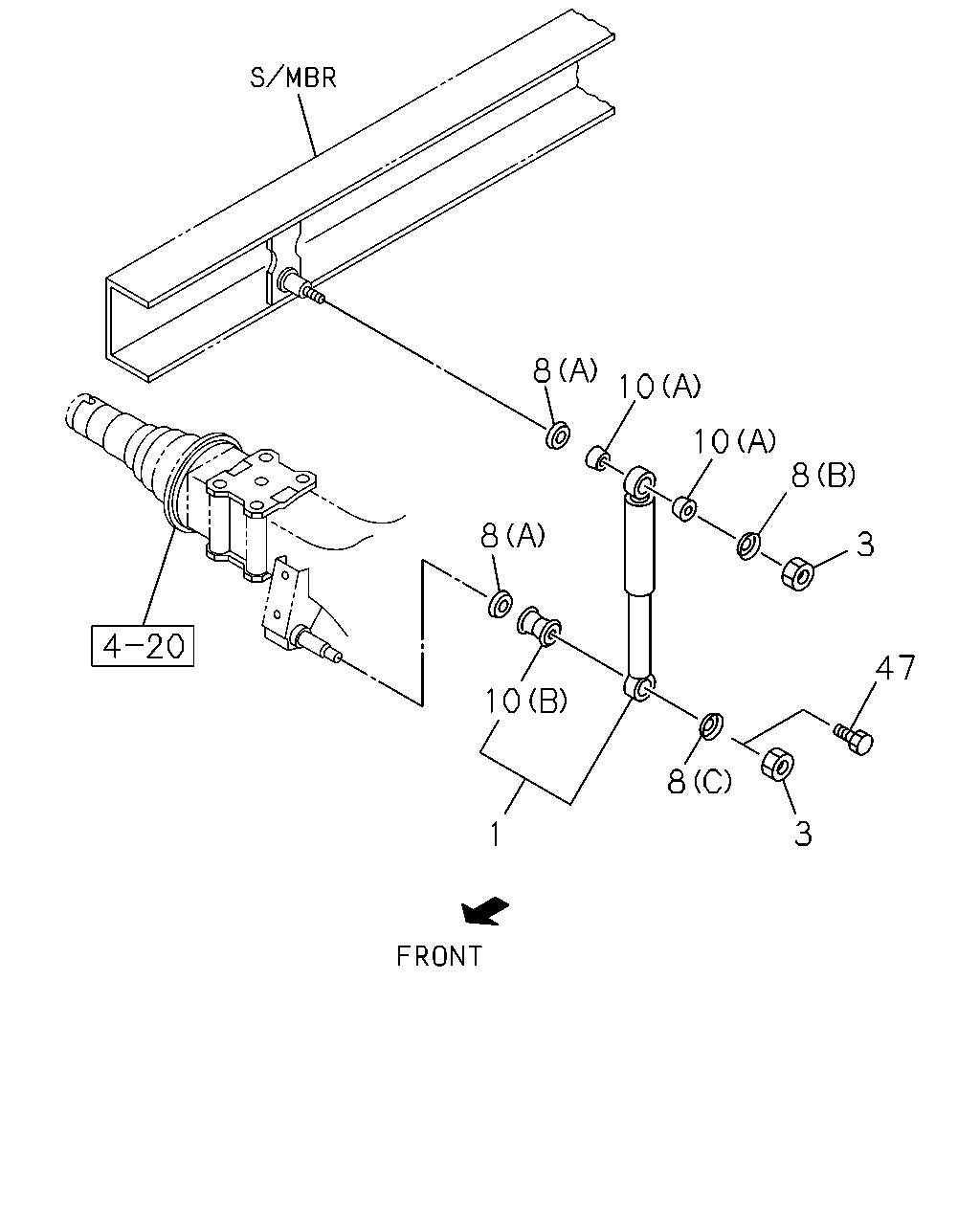

çizim 53637
8 10 10 8 8 3 47 10 8 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.395 ABSORBER ASM; SHOCK,RR
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 		8-97253-651-0 02 1 0211-0501 ● ● ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-0 02 1 0211-0501 ● ● ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. EGYPT EQUIPMENT(YJ4) 		8-97253-651-0 02 1 0211-0501 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-0 02 1 0211-0501 ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-97253-651-2 02 1 0502-1506 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-2 02 1 0502-1506 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 		8-97253-651-2 02 1 0502-1506 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. EGYPT EQUIPMENT(YJ4) 		8-97253-651-2 02 1 0502-1506 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-2 02 1 0502-1506 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-2 02 1 0502-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> 		8-97253-662-0 02 1 0211-0501 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. EGYPT EQUIPMENT(YJ4) 		8-97253-662-0 02 1 0211-0501 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> 		8-97253-662-2 02 1 0502- ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. EGYPT EQUIPMENT(YJ4) 		8-97253-662-2 02 1 0502- ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 		8-97253-662-2 02 1 0502- ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-156-0 02 1 0502- ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. EGYPT EQUIPMENT(YJ4) BEST VALUE PARTS 		5-87610-156-0 02 1 0502- ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-156-0 02 1 0502- ●
1 07.395 ABSORBER ASM; SHOCK,RR
BEST VALUE PARTS 		5-87610-132-0 02 1 0502-1506 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-132-0 02 1 0502-1506 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) BEST VALUE PARTS 		5-87610-132-0 02 1 0502-1506 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. EGYPT EQUIPMENT(YJ4) BEST VALUE PARTS 		5-87610-132-0 02 1 0502-1506 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-132-0 02 1 0502-1506 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-132-0 02 1 0502-1506 ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-98316-233-0 02 1 1507- ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98316-233-0 02 1 1507- ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 		8-98316-233-0 02 1 1507- ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. EGYPT EQUIPMENT(YJ4) 		8-98316-233-0 02 1 1507- ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> 		8-98316-233-0 02 1 1507- ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 		8-98316-233-0 02 1 1507- ●
3 07.347 NUT; S/ABS
06.172 M14 		9-99111-414-0 02 1 0211-0501 ● ● ● ● ● ●
3 07.347 NUT; S/ABS
FRAME STRAIGHT TYPE<7KJ> 06.172 M14 		9-99111-414-0 02 1 0211-0501 ●
3 07.347 NUT; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> 06.172 M14 		9-99111-414-0 02 1 0211-0501 ● ● ●
3 07.347 NUT; S/ABS
06.172 M14 		9-99111-414-0 02 1 0502-0512 ● ● ● ● ●
3 07.347 NUT; S/ABS
FRAME STRAIGHT TYPE<7KJ> 06.172 M14 		9-99111-414-0 02 1 0502-0512 ●
3 07.347 NUT; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> 06.172 M14 		9-99111-414-0 02 1 0502-0512 ● ●
3 07.347 NUT; S/ABS
06.515 M14 		0-91111-514-0 02 1 0601-0612 ● ● ● ● ●
3 07.347 NUT; S/ABS
FRAME STRAIGHT TYPE<7KJ> 06.515 M14 		0-91111-514-0 02 1 0601-0612 ●
3 07.347 NUT; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> 06.515 M14 		0-91111-514-0 02 1 0601-0612 ● ●
3 07.347 NUT; S/ABS
07.833 M14 		0-91110-514-0 02 1 0701- ● ● ● ● ●
3 07.347 NUT; S/ABS
FRAME STRAIGHT TYPE<7KJ> 07.833 M14 		0-91110-514-0 02 1 0701- ●
3 07.347 NUT; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> 07.833 M14 		0-91110-514-0 02 1 0701- ● ●
8 07.347 WASHER; S/ABS
(B) ID=15.0 		9-51679-012-0 02 1 0211-0501 ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
FRAME STRAIGHT TYPE<7KJ> (B) ID=15.0 		9-51679-012-0 02 1 0211-0501 ●
8 07.347 WASHER; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> (B) ID=15.0 		9-51679-012-0 02 1 0211-0501 ● ● ●
8 07.347 WASHER; S/ABS
(B) ID=15.0 		9-51679-012-0 02 1 0502-0611 ● ● ● ● ●
8 07.347 WASHER; S/ABS
FRAME STRAIGHT TYPE<7KJ> (B) ID=15.0 		9-51679-012-0 02 1 0502-0611 ●
8 07.347 WASHER; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> (B) ID=15.0 		9-51679-012-0 02 1 0502-0611 ● ●
8 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 0612- ● ● ● ● ●
8 07.347 WASHER; S/ABS
FRAME STRAIGHT TYPE<7KJ> (B) ID=15 		8-97360-056-0 02 1 0612- ●
8 07.347 WASHER; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> (B) ID=15 		8-97360-056-0 02 1 0612- ● ●
8 07.347 WASHER; S/ABS
(A) ID=20.0 		9-51679-013-0 04 1 0211-0501 ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(A) ID=20.0 		9-51679-013-0 04 1 0502-0611 ● ● ● ● ●
8 07.347 WASHER; S/ABS
(A) ID=20.0 		8-97360-057-0 04 1 0612- ● ● ● ● ●
8 07.347 WASHER; S/ABS
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		9-51679-603-0 02 1 0211-0501 ● ● ● ●
8 07.347 WASHER; S/ABS
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		9-51679-603-0 02 1 0211-0501 ● ● ●
8 07.347 WASHER; S/ABS
(C) ID=10.5 		9-51679-603-0 02 1 0211-0501 ● ●
8 07.347 WASHER; S/ABS
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		9-51679-603-0 02 1 0502-0611 ● ● ●
8 07.347 WASHER; S/ABS
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		9-51679-603-0 02 1 0502-0611 ● ●
8 07.347 WASHER; S/ABS
(C) ID=10.5 		9-51679-603-0 02 1 0502-0611 ● ●
8 07.347 WASHER; S/ABS
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		8-97360-058-0 02 1 0612- ● ● ●
8 07.347 WASHER; S/ABS
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		8-97360-058-0 02 1 0612- ● ●
8 07.347 WASHER; S/ABS
(C) ID=10.5 		8-97360-058-0 02 1 0612- ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 0211-0501 ● ● ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 0502- ● ●
10 07.388 BUSHING; RUBBER,S/ABS
EXC. FRAME STRAIGHT TYPE<7KJ> (B) TOKICO 		8-94382-149-0 02 1 0502- ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (B) TOKICO 		8-94382-149-0 02 1 0502- ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (B) TOKICO 		8-94382-149-0 02 1 0502- ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 0211-0501 ● ● ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 0502- ● ● ● ● ●
47 07.347 PIN; S/ABS SETTING
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 02 1 0211-0501 ● ● ● ●
47 07.347 PIN; S/ABS SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 02 1 0211-0501 ● ● ●
47 07.347 PIN; S/ABS SETTING
02.559 M10X16 FLANGE 		0-28081-016-0 02 1 0211-0501 ● ●
47 07.347 PIN; S/ABS SETTING
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 02 1 0502-0512 ● ● ●
47 07.347 PIN; S/ABS SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 02 1 0502-0512 ● ●
47 07.347 PIN; S/ABS SETTING
02.559 M10X16 FLANGE 		0-28081-016-0 02 1 0502-0512 ● ●
47 07.347 PIN; S/ABS SETTING
EXC. FRAME STRAIGHT TYPE<7KJ> 02.483 M10X16 FLANGE 		0-28051-016-0 02 1 0601- ● ● ●
47 07.347 PIN; S/ABS SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 02.483 M10X16 FLANGE 		0-28051-016-0 02 1 0601- ● ●
47 07.347 PIN; S/ABS SETTING
02.483 M10X16 FLANGE 		0-28051-016-0 02 1 0601- ● ●
