Sayfa 4-60 - Isuzu EPC

4-60 — REAR SUSPENSION (#45509) — 246 parça

227 230 225 225 225 317 323 62 25 318 323 314 274 294 308 320 285 285 318 308 330

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	07.241 BAR ASM; STAB,RR SUSP STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ>	8-97225-578-0	01	1	0211-0501	●	●	●	●
25	07.241 BAR ASM; STAB,RR SUSP STABILIZER REAR<GN1>	8-97225-578-0	01	1	0211-0501					●
25	07.241 BAR ASM; STAB,RR SUSP STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ>	8-97225-578-0	01	1	0502-0912	●	●	●
25	07.241 BAR ASM; STAB,RR SUSP STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ>	8-98067-239-0	01	1	1001-	●	●	●
25	07.241 BAR ASM; STAB,RR SUSP STABILIZER REAR<GN1> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97174-089-0	01	1	0211-0501	●	●	●	●
25	07.241 BAR ASM; STAB,RR SUSP STABILIZER REAR<GN1> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97174-089-0	01	1	0502-	●	●	●
62	07.243 BUSHING; LINK ROD STABILIZER REAR<GN1>	8-97239-911-0	02	1	0211-0501	●	●	●	●	●
62	07.243 BUSHING; LINK ROD STABILIZER REAR<GN1>	8-97239-911-0	02	1	0502-	●	●	●
225	07.535 RUBBER; CUSHION,RR SPR FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP> (B)	8-94379-470-1	02	1	0211-0501	●	●	●	●	●	●
225	07.535 RUBBER; CUSHION,RR SPR G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. EGYPT EQUIPMENT(YJ4) (B)	8-94379-470-1	02	1	0211-0501	●	●	●
225	07.535 RUBBER; CUSHION,RR SPR G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (B)	8-94379-470-1	02	1	0211-0501	●	●	●
225	07.535 RUBBER; CUSHION,RR SPR G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> (B)	8-94379-470-1	02	1	0211-0501			●
225	07.535 RUBBER; CUSHION,RR SPR FRAME STRAIGHT TYPE<7KJ> (B)	8-94379-470-1	02	1	0502-1103						●
225	07.535 RUBBER; CUSHION,RR SPR FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (B)	8-94379-470-1	02	1	0502-1103	●	●	●
225	07.535 RUBBER; CUSHION,RR SPR FRAME STRAIGHT TYPE<7KJ> (B)	8-98187-342-0	02	1	1104-						●
225	07.535 RUBBER; CUSHION,RR SPR FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (B)	8-98187-342-0	02	1	1104-	●	●	●
225	07.535 RUBBER; CUSHION,RR SPR EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94118-510-4	02	1	0211-0501	●	●	●	●		●
225	07.535 RUBBER; CUSHION,RR SPR EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94118-510-5	02	1	0502-	●	●	●			●
225	07.535 RUBBER; CUSHION,RR SPR (A)	8-94118-510-5	02	1	0502-				●
225	07.535 RUBBER; CUSHION,RR SPR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. EGYPT EQUIPMENT(YJ4),TIRE SIZE 8.25-16<7QP> (C)	5-53366-013-0	02	1	0211-0501	●	●	●
225	07.535 RUBBER; CUSHION,RR SPR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. MINI BUS CHASSIS(V4B) (C)	5-53366-013-0	02	1	0211-0501	●	●	●
225	07.535 RUBBER; CUSHION,RR SPR MINI BUS CHASSIS(V4B) EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (C)	5-53366-013-0	02	1	0211-0501			●
225	07.535 RUBBER; CUSHION,RR SPR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (C)	5-53366-013-0	02	1	0502-1103	●	●	●
225	07.535 RUBBER; CUSHION,RR SPR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (C)	8-98187-337-0	02	1	1104-	●	●	●
227	07.535 NUT; CUSHION RUBBER 05.586 M12 FLANGE	0-91150-112-0	02	1	0211-0501	●	●	●	●	●	●
227	07.535 NUT; CUSHION RUBBER 05.586 M12 FLANGE	0-91150-112-0	02	1	0502-0602	●	●	●	●		●
227	07.535 NUT; CUSHION RUBBER 02.042 M12 FLANGE	0-91180-112-0	02	1	0603-	●	●	●	●		●
230	07.518 SPACER; CUSHION RUBBER STABILIZER REAR<GN1> G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ>	8-97136-852-0	02	1	0211-	●	●	●
274	07.243 BUSHING; RR STAB BAR TO LINK STABILIZER REAR<GN1>	8-94440-793-0	02	1	0211-0501	●	●	●	●	●
274	07.243 BUSHING; RR STAB BAR TO LINK STABILIZER REAR<GN1>	8-94440-793-0	02	1	0502-	●	●	●
285	07.243 BUSHING; STAB BAR TO RR AXLE STABILIZER REAR<GN1> L=18	8-97089-556-0	02	1	0211-0501	●	●	●	●	●
285	07.243 BUSHING; STAB BAR TO RR AXLE STABILIZER REAR<GN1> L=18	8-97089-556-0	02	1	0502-	●	●	●
285	07.243 BUSHING; STAB BAR TO RR AXLE STABILIZER REAR<GN1> L=29	8-97089-557-0	02	1	0211-0501	●	●	●	●	●
285	07.243 BUSHING; STAB BAR TO RR AXLE STABILIZER REAR<GN1> L=29	8-97089-557-0	02	1	0502-	●	●	●
294	07.242 BOLT; STAB BAR TO RR AXLE STABILIZER REAR<GN1> 04.686	8-94342-082-0	02	1	0211-0501	●	●	●	●	●
294	07.242 BOLT; STAB BAR TO RR AXLE STABILIZER REAR<GN1> 04.686	8-94342-082-0	02	1	0502-0610	●	●	●
294	07.242 BOLT; STAB BAR TO RR AXLE STABILIZER REAR<GN1>	8-97360-120-0	02	1	0611-	●	●	●
308	07.243 PLATE; END,RUBBER BUSHING STABILIZER REAR<GN1> 07.242	8-94342-084-0	04	1	0211-0501	●	●	●	●	●
308	07.243 PLATE; END,RUBBER BUSHING STABILIZER REAR<GN1> 07.242	8-94342-084-0	04	1	0502-0610	●	●	●
308	07.243 PLATE; END,RUBBER BUSHING STABILIZER REAR<GN1> 07.242 ID=12.5	8-97360-055-0	04	1	0611-	●	●	●
314	07.242 WASHER; LK,STAB TO BRKT STABILIZER REAR<GN1> 00.796 ID=14.2	9-09150-514-0	02	1	0211-0501	●	●	●	●	●
314	07.242 WASHER; LK,STAB TO BRKT STABILIZER REAR<GN1> 00.796 ID=14.2	9-09150-514-0	02	1	0502-0603	●	●	●
314	07.242 WASHER; LK,STAB TO BRKT STABILIZER REAR<GN1> 05.605 ID=14.2	0-91510-514-0	02	1	0604-	●	●	●
317	07.240 ROD LINK ASM; STABILIZER,RR STABILIZER REAR<GN1>	8-97239-907-0	02	1	0211-0501	●	●	●	●	●
317	07.240 ROD LINK ASM; STABILIZER,RR STABILIZER REAR<GN1>	8-97239-907-0	02	1	0502-	●	●	●
318	07.242 BOLT; LINK ROD STABILIZER REAR<GN1> 03.405 (B) M10X25 FLANGE	0-28681-025-0	04	1	0211-0501	●	●	●	●	●
318	07.242 BOLT; LINK ROD STABILIZER REAR<GN1> 03.405 (B) M10X25 FLANGE	0-28681-025-0	04	1	0502-0512	●	●	●
318	07.242 BOLT; LINK ROD STABILIZER REAR<GN1> 00.029 (B) M10X25 FLANGE	0-28651-025-0	04	1	0601-	●	●	●
318	07.242 BOLT; LINK ROD STABILIZER REAR<GN1> (A) M14X70 FLANGE	0-28881-470-0	02	1	0211-0501	●	●	●	●	●
318	07.242 BOLT; LINK ROD STABILIZER REAR<GN1> (A) M14X70 FLANGE	0-28881-470-0	02	1	0502-0512	●	●	●
318	07.242 BOLT; LINK ROD STABILIZER REAR<GN1> (A) M14X70 FLANGE	0-28851-470-0	02	1	0601-	●	●	●
320	07.242 CAP; LINK ROD STABILIZER REAR<GN1>	8-94178-430-2	02	1	0211-0501	●	●	●	●	●
320	07.242 CAP; LINK ROD STABILIZER REAR<GN1>	8-94178-430-2	02	1	0502-	●	●	●
323	07.242 NUT; LINK ROD STABILIZER REAR<GN1> 03.613 (A) M14 FLANGE	0-91150-114-0	02	1	0211-0306	●	●	●	●	●
323	07.242 NUT; LINK ROD STABILIZER REAR<GN1> 07.417 (A) M14 FLANGE	8-94137-483-0	02	1	0307-0501	●	●	●	●	●
323	07.242 NUT; LINK ROD STABILIZER REAR<GN1> 07.417 (A) M14 FLANGE	8-94137-483-0	02	1	0502-0610	●	●	●
323	07.242 NUT; LINK ROD STABILIZER REAR<GN1> 06.174 (A) M14 FLANGE	8-97360-124-0	02	1	0611-	●	●	●
323	07.242 NUT; LINK ROD STABILIZER REAR<GN1> 08.917 (B) M10 FLANGE	0-91150-210-0	04	1	0211-0501	●	●	●	●	●
323	07.242 NUT; LINK ROD STABILIZER REAR<GN1> 08.917 (B) M10 FLANGE	0-91150-210-0	04	1	0502-0602	●	●	●
323	07.242 NUT; LINK ROD STABILIZER REAR<GN1> 04.085 (B) M10 FLANGE	0-91180-210-0	04	1	0603-	●	●	●
330	07.242 NUT; STAB STABILIZER REAR<GN1> 08.917 M12 LOCK NUT	9-09131-512-0	02	1	0211-0501	●	●	●	●	●
330	07.242 NUT; STAB STABILIZER REAR<GN1> 08.917 M12 LOCK NUT	9-09131-512-0	02	1	0502-0603	●	●	●
330	07.242 NUT; STAB STABILIZER REAR<GN1> M12 LOCK NUT	0-91370-012-0	02	1	0604-	●	●	●

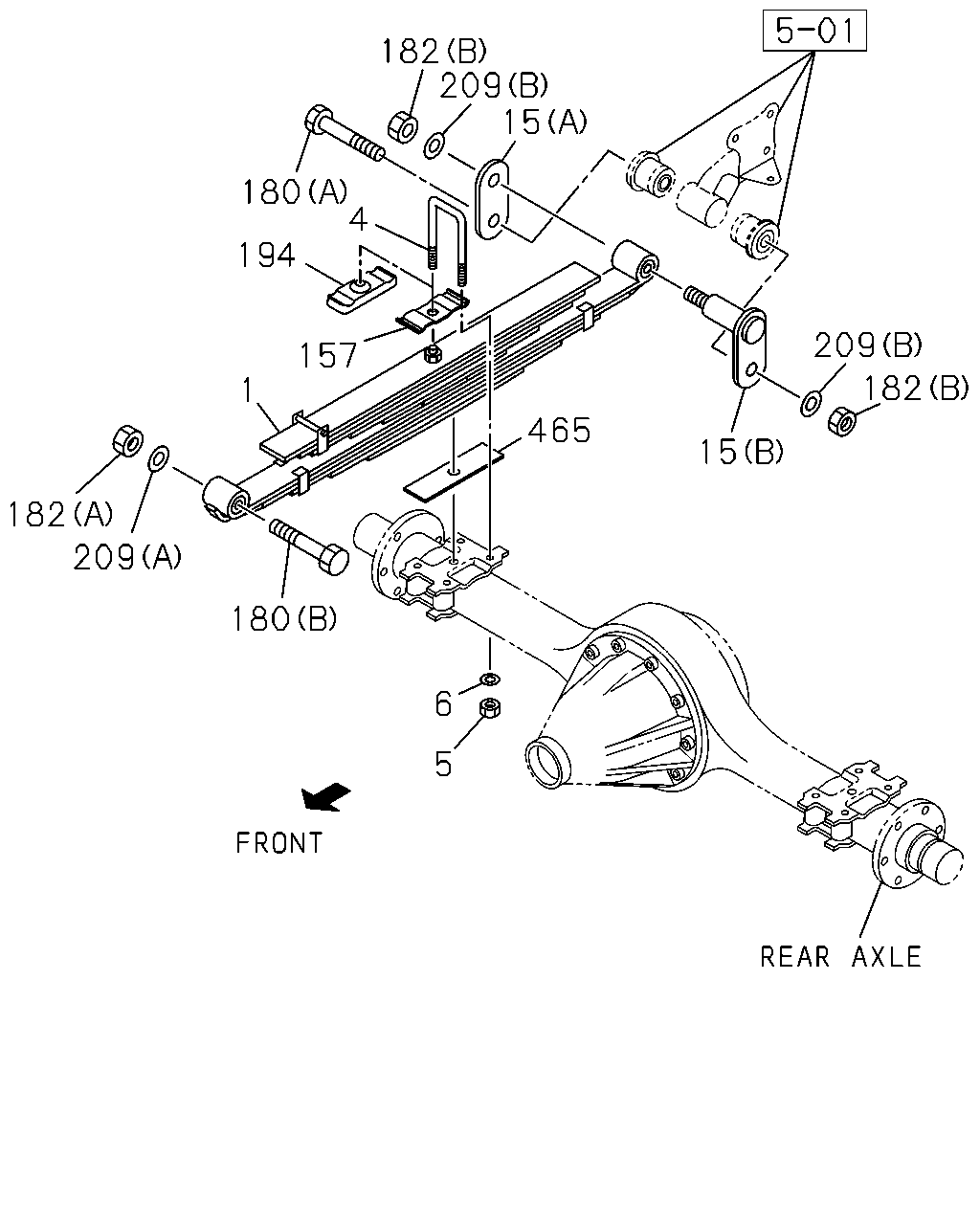

182 209 15 180 4 194 209 157 182 1 465 15 182 209 180 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 12-LEAF	8-97225-581-0	02	1	1008-	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 12-LEAF	8-97225-581-0	02	1	1008-	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 16-LEAF	8-97073-225-2	02	1	0211-0401	●	●	●			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 16-LEAF	8-97073-225-2	02	1	0402-0501	●	●				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ),G.V.W. 7.5-8.0TON(RPY) TURKISH EQUIPMENT(S6S) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 16-LEAF	8-97073-225-2	02	1	0402-0501	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 16-LEAF	8-97073-225-2	02	1	0502-0506						●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 16-LEAF	8-97073-225-2	02	1	0502-0506	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ),G.V.W. 7.5-8.0TON(RPY) TURKISH EQUIPMENT(S6S) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 16-LEAF	8-97073-225-2	02	1	0502-0506	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 16-LEAF	8-97073-225-2	02	1	0507-	●	●				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ),G.V.W. 7.5-8.0TON(RPY) TURKISH EQUIPMENT(S6S) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 16-LEAF	8-97073-225-2	02	1	0507-	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 12-LEAF	8-97122-382-0	02	1	0211-0211	●	●	●		●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,TURKISH EQUIPMENT(S6S),MINI BUS CHASSIS(V4B) 12-LEAF	8-97122-382-0	02	1	0212-0501	●	●	●		●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,TURKISH EQUIPMENT(S6S),MINI BUS CHASSIS(V4B) 12-LEAF	8-97122-382-0	02	1	0502-	●	●	●			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),ISRAEL EQUIPMENT(7LX) 12-LEAF	8-97174-307-0	02	1	0211-0501	●	●		●		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 12-LEAF	8-97174-307-0	02	1	0502-						●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 12-LEAF	8-97174-307-0	02	1	0502-	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT(7LX) 10-LEAF	8-97073-224-1	02	1	0211-0501	●	●		●		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. SAUDI ARABIA EQUIPMENT(EU2), FRAME STRAIGHT TYPE<7KJ> 10-LEAF	8-97073-224-1	02	1	0502-						●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. SAUDI ARABIA EQUIPMENT(EU2), STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 10-LEAF	8-97073-224-1	02	1	0502-	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF	8-97073-224-1	02	1	0502-				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. ISRAEL EQUIPMENT(7LX) G.V.W. 3.5-4.0TON(RPQ) 2-LEAF	8-97353-118-0	02	1	0402-0501	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 10-LEAF	8-97147-111-0	02	1	0211-0501	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 10-LEAF	8-97147-111-0	02	1	0211-0501			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 10-LEAF	8-97147-111-0	02	1	0502-	●	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 10-LEAF	8-97251-443-0	02	1	0211-0501	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> 10-LEAF	8-97251-443-0	02	1	0211-0501			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. EGYPT EQUIPMENT(YJ4) 10-LEAF	8-97251-443-0	02	1	0211-0501			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> 10-LEAF	8-97251-443-0	02	1	0502-	●		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. EGYPT EQUIPMENT(YJ4) 10-LEAF	8-97251-443-0	02	1	0502-	●		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 10-LEAF	8-97251-443-0	02	1	0502-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. ISRAEL EQUIPMENT(7LX) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 8-LEAF	8-97214-124-1	02	1	0211-0501	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. ISRAEL EQUIPMENT(7LX) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 8-LEAF	8-97214-124-1	02	1	0211-0501				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 8-LEAF	8-97225-580-0	02	1	0211-0501	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. ISRAEL EQUIPMENT(7LX) STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> 8-LEAF	8-97225-580-0	02	1	0211-0501				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT(7LX) 10-LEAF	8-97092-458-1	02	1	0211-0501	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> EXC. FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT(7LX) 10-LEAF	8-97092-458-1	02	1	0211-0501				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-97033-562-3	02	1	0502-	●	●				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 16-LEAF	8-97092-459-1	02	1	0211-	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97096-576-0	02	1	0211-0211	●	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97096-576-0	02	1	0211-0211			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97096-576-0	02	1	0212-0501	●	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) TURKISH EQUIPMENT(S6S) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 12-LEAF	8-97096-576-0	02	1	0212-0501	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97096-576-0	02	1	0212-0501			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97096-576-0	02	1	0502-0506	●	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97096-576-0	02	1	0502-0506	●		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) TURKISH EQUIPMENT(S6S) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 12-LEAF	8-97096-576-0	02	1	0502-0506	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97096-576-0	02	1	0507-	●	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) TURKISH EQUIPMENT(S6S) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 12-LEAF	8-97096-576-0	02	1	0507-	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97096-576-0	02	1	0507-	●		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. MINI BUS CHASSIS(V4B) 12-LEAF	8-97184-493-0	02	1	0211-0501	●	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97184-493-0	02	1	0211-0501			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. MINI BUS CHASSIS(V4B) 12-LEAF	8-97184-493-0	02	1	0502-	●	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97184-493-0	02	1	0502-	●		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97287-992-0	02	1	0211-	●	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 12-LEAF	8-97225-581-0	02	1	0211-0501	●	●	●		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 292MM(G73) STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=315	8-97300-763-0	04	1	1008-	●	●
4	07.516 U-BOLT; RR SPR G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> L=265	8-94127-923-2	04	1	0211-0501						●
4	07.516 U-BOLT; RR SPR G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=265	8-94127-923-2	04	1	0211-0501	●	●
4	07.516 U-BOLT; RR SPR SAUDI ARABIA EQUIPMENT(EU2) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> L=265	8-94127-923-3	04	1	0502-	●	●				●
4	07.516 U-BOLT; RR SPR 4HF1-N ENG(RJZ) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> L=265	8-94127-923-3	04	1	0502-						●
4	07.516 U-BOLT; RR SPR 4HF1-N ENG(RJZ) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=265	8-94127-923-3	04	1	0502-	●	●
4	07.516 U-BOLT; RR SPR G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=305	8-94412-505-0	04	1	0211-1007						●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=305	8-94412-505-0	04	1	0211-1007	●	●
4	07.516 U-BOLT; RR SPR G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=305	8-94412-505-0	04	1	1008-						●
4	07.516 U-BOLT; RR SPR G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=305	8-94412-505-0	04	1	1008-						●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> L=305	8-94412-505-0	04	1	1008-	●	●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> L=305	8-94412-505-0	04	1	1008-	●	●
4	07.516 U-BOLT; RR SPR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=325	8-94175-946-0	04	1	0211-0401	●	●	●			●
4	07.516 U-BOLT; RR SPR G.V.W. 7.0-7.5TON(RPX) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=325	8-94175-946-0	04	1	0402-0501	●	●				●
4	07.516 U-BOLT; RR SPR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 7.5-8.0TON(RPY) TURKISH EQUIPMENT(S6S) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=325	8-94175-946-0	04	1	0402-0501	●	●
4	07.516 U-BOLT; RR SPR G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> L=325	8-94175-946-1	04	1	0502-0506						●
4	07.516 U-BOLT; RR SPR G.V.W. 7.0-7.5TON(RPX) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=325	8-94175-946-1	04	1	0502-0506	●	●
4	07.516 U-BOLT; RR SPR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 7.5-8.0TON(RPY) TURKISH EQUIPMENT(S6S) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=325	8-94175-946-1	04	1	0502-0506	●
4	07.516 U-BOLT; RR SPR G.V.W. 7.0-7.5TON(RPX) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=325	8-94175-946-1	04	1	0507-	●	●				●
4	07.516 U-BOLT; RR SPR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 7.5-8.0TON(RPY) TURKISH EQUIPMENT(S6S) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=325	8-94175-946-1	04	1	0507-	●	●
4	07.516 U-BOLT; RR SPR G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT(7LX),E NGINE POWER N-SPEC(7QV) L=285	8-97141-874-0	04	1	0211-0501	●	●		●		●
4	07.516 U-BOLT; RR SPR G.V.W. 6.0-6.5TON(RPV) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> L=285	8-97141-874-0	04	1	0211-0501	●	●
4	07.516 U-BOLT; RR SPR 4HF1-S ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. SAUDI ARABIA EQUIPMENT(EU2), FRAME STRAIGHT TYPE<7KJ> L=285	8-97141-874-0	04	1	0502-						●
4	07.516 U-BOLT; RR SPR 4HG1-T ENG(RDP),4HF1-S ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. SAUDI ARABIA EQUIPMENT(EU2), STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=285	8-97141-874-0	04	1	0502-	●	●
4	07.516 U-BOLT; RR SPR L=285	8-97141-874-0	04	1	0502-				●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) L=295	8-94132-358-2	04	1	0211-0501	●	●		●		●
4	07.516 U-BOLT; RR SPR G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> L=295	8-94132-358-3	04	1	0502-						●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) L=295	8-94132-358-3	04	1	0502-	●	●
4	07.516 U-BOLT; RR SPR ISRAEL EQUIPMENT(7LX) G.V.W. 3.5-4.0TON(RPQ) L=225	8-94127-919-2	04	1	0402-0501	●
4	07.516 U-BOLT; RR SPR STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> L=275	8-94127-924-2	04	1	0211-0501	●	●
4	07.516 U-BOLT; RR SPR 4HF1-N ENG(RJZ) STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> L=275	8-94127-924-3	04	1	0502-	●	●
4	07.516 U-BOLT; RR SPR STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> L=355	8-94119-686-4	04	1	0211-0501	●	●
4	07.516 U-BOLT; RR SPR STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> L=335	8-97213-253-0	04	1	0502-	●	●
4	07.516 U-BOLT; RR SPR G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> L=315	1-51371-194-2	04	1	0211-0501	●	●	●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) L=315	1-51371-194-2	04	1	0211-0501	●	●		●
4	07.516 U-BOLT; RR SPR G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. EGYPT EQUIPMENT(YJ4) L=315	1-51371-194-2	04	1	0211-0501			●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> L=315	1-51371-194-2	04	1	0502-	●	●
4	07.516 U-BOLT; RR SPR G.V.W. 7.5-8.0TON(RPY) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> L=315	1-51371-194-2	04	1	0502-	●		●
4	07.516 U-BOLT; RR SPR G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. EGYPT EQUIPMENT(YJ4) L=315	1-51371-194-2	04	1	0502-	●		●
4	07.516 U-BOLT; RR SPR G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> L=315	1-51371-194-2	04	1	0502-		●
4	07.516 U-BOLT; RR SPR G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. MINI BUS CHASSIS(V4B) L=360	1-51371-173-3	04	1	0211-0501	●	●	●
4	07.516 U-BOLT; RR SPR G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> L=360	1-51371-173-3	04	1	0211-0501			●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP> L=345	1-51371-195-2	04	1	0211-0501	●	●	●		●
4	07.516 U-BOLT; RR SPR G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> L=345	1-51371-195-2	04	1	0211-0501			●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) L=345	1-51371-195-2	04	1	0502-	●	●
4	07.516 U-BOLT; RR SPR G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) L=345	1-51371-195-2	04	1	0502-	●	●
4	07.516 U-BOLT; RR SPR G.V.W. 8.0-8.5TON(RPZ) MINI BUS CHASSIS(V4B) EGYPT EQUIPMENT(YJ4) FRAME STRAIGHT TYPE<7KJ> L=345	1-51371-195-2	04	1	0502-	●		●
4	07.516 U-BOLT; RR SPR G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) L=345	1-51371-195-2	04	1	0502-			●
5	07.529 NUT; U-BOLT,RR SPR 07.516 M16	8-94107-767-0	08	1	0211-0501						●
5	07.529 NUT; U-BOLT,RR SPR EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16	8-94107-767-0	08	1	0211-0501	●	●	●	●
5	07.529 NUT; U-BOLT,RR SPR REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> 07.516 M16	8-94107-767-0	08	1	0211-0501	●	●		●
5	07.529 NUT; U-BOLT,RR SPR 07.516 M16	8-94107-767-0	08	1	0502-0611				●		●
5	07.529 NUT; U-BOLT,RR SPR EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16	8-94107-767-0	08	1	0502-0611	●	●	●
5	07.529 NUT; U-BOLT,RR SPR REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> 07.516 M16	8-94107-767-0	08	1	0502-0611	●	●
5	07.529 NUT; U-BOLT,RR SPR 07.417 M16	8-97360-121-0	08	1	0612-				●		●
5	07.529 NUT; U-BOLT,RR SPR EXC. FRAME STRAIGHT TYPE<7KJ> 07.417 M16	8-97360-121-0	08	1	0612-	●	●	●
5	07.529 NUT; U-BOLT,RR SPR REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> 07.417 M16	8-97360-121-0	08	1	0612-	●	●
5	07.529 NUT; U-BOLT,RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE	1-09440-039-1	08	1	0211-0501	●	●		●
5	07.529 NUT; U-BOLT,RR SPR FRAME STRAIGHT TYPE<7KJ> M18 FLANGE	1-09440-039-1	08	1	0211-0501			●
5	07.529 NUT; U-BOLT,RR SPR M18 FLANGE	1-09440-039-1	08	1	0211-0501					●
5	07.529 NUT; U-BOLT,RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE	1-09440-039-1	08	1	0502-	●	●
5	07.529 NUT; U-BOLT,RR SPR FRAME STRAIGHT TYPE<7KJ> M18 FLANGE	1-09440-039-1	08	1	0502-			●
6	07.516 WASHER; PL,U-BOLT ID=16.4	8-94137-482-1	08	1	0211-0501						●
6	07.516 WASHER; PL,U-BOLT EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4	8-94137-482-1	08	1	0211-0501	●	●	●	●
6	07.516 WASHER; PL,U-BOLT REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> ID=16.4	8-94137-482-1	08	1	0211-0501	●	●		●
6	07.516 WASHER; PL,U-BOLT ID=16.4	8-94137-482-1	08	1	0502-0610				●		●
6	07.516 WASHER; PL,U-BOLT EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4	8-94137-482-1	08	1	0502-0610	●	●	●
6	07.516 WASHER; PL,U-BOLT REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> ID=16.4	8-94137-482-1	08	1	0502-0610	●	●
6	07.516 WASHER; PL,U-BOLT ID=16.4	8-97360-118-0	08	1	0611-				●		●
6	07.516 WASHER; PL,U-BOLT EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4	8-97360-118-0	08	1	0611-	●	●	●
6	07.516 WASHER; PL,U-BOLT REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> ID=16.4	8-97360-118-0	08	1	0611-	●	●
15	07.523 SHACKLE; RR SPR (A)	8-94118-511-3	02	1	0211-0501	●	●	●	●	●	●
15	07.523 SHACKLE; RR SPR (A)	8-94118-511-3	02	1	0502-	●	●	●	●		●
15	07.523 SHACKLE; RR SPR (B)	8-94118-512-4	02	1	0211-0501	●	●	●	●	●	●
15	07.523 SHACKLE; RR SPR (B)	8-94118-512-4	02	1	0502-0611	●	●	●	●		●
15	07.523 SHACKLE; RR SPR (B)	8-97360-011-0	02	1	0612-	●	●	●	●		●
157	07.518 CLAMP; UPR,RR SPR G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> L=130 T=4.5	8-94119-069-2	02	1	0211-0401	●	●				●
157	07.518 CLAMP; UPR,RR SPR G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> L=130 T=4.5	8-94119-069-2	02	1	0402-0501	●	●				●
157	07.518 CLAMP; UPR,RR SPR G.V.W. 3.5-4.0TON(RPQ) EXC. TURKISH EQUIPMENT(S6S),FRAME STRAIGHT TYPE<7KJ> L=130 T=4.5	8-94119-069-2	02	1	0402-0501	●
157	07.518 CLAMP; UPR,RR SPR 4HF1-N ENG(RJZ) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> L=130 T=4.5	8-94119-069-2	02	1	0502-	●	●				●
157	07.518 CLAMP; UPR,RR SPR G.V.W. 3.5-4.0TON(RPQ) EXC. TURKISH EQUIPMENT(S6S),FRAME STRAIGHT TYPE<7KJ> L=130 T=4.5	8-94119-069-2	02	1	0502-	●
157	07.518 CLAMP; UPR,RR SPR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) L=140 T=4.5	8-94118-509-1	02	1	0211-0401	●	●	●	●		●
157	07.518 CLAMP; UPR,RR SPR REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5	8-94118-509-1	02	1	0211-0401	●	●		●		●
157	07.518 CLAMP; UPR,RR SPR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) L=140 T=4.5	8-94118-509-1	02	1	0402-0501	●	●	●	●		●
157	07.518 CLAMP; UPR,RR SPR REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5	8-94118-509-1	02	1	0402-0501	●	●		●		●
157	07.518 CLAMP; UPR,RR SPR G.V.W. 3.5-4.0TON(RPQ) TURKISH EQUIPMENT(S6S) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5	8-94118-509-1	02	1	0402-0501	●
157	07.518 CLAMP; UPR,RR SPR 4HF1-S ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5	8-94118-509-1	02	1	0502-						●
157	07.518 CLAMP; UPR,RR SPR FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5	8-94118-509-1	02	1	0502-						●
157	07.518 CLAMP; UPR,RR SPR G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5	8-94118-509-1	02	1	0502-						●
157	07.518 CLAMP; UPR,RR SPR 4HG1-T ENG(RDP),4HF1-S ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5	8-94118-509-1	02	1	0502-	●	●
157	07.518 CLAMP; UPR,RR SPR REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5	8-94118-509-1	02	1	0502-	●	●
157	07.518 CLAMP; UPR,RR SPR G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5	8-94118-509-1	02	1	0502-	●	●
157	07.518 CLAMP; UPR,RR SPR G.V.W. 3.5-4.0TON(RPQ) TURKISH EQUIPMENT(S6S) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5	8-94118-509-1	02	1	0502-	●
157	07.518 CLAMP; UPR,RR SPR G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5	8-94118-509-1	02	1	0502-			●
157	07.518 CLAMP; UPR,RR SPR L=140 T=4.5	8-94118-509-1	02	1	0502-				●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-97033-967-0	02	1	0211-0501	●	●	●	●	●	●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-97033-967-0	02	1	0502-0611	●	●	●	●		●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> 07.427 (A) M16X122	8-98011-487-0	02	1	0612-	●	●	●	●		●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> 07.427 (A) M16X122	9-51361-602-2	02	1	0211-0501	●	●	●	●	●	●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> 07.427 (A) M16X122	9-51361-602-2	02	1	0502-0611	●	●	●	●		●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-98011-488-0	02	1	0612-	●	●	●	●		●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97076-848-0	02	1	0211-0501	●	●	●	●	●	●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97076-848-0	02	1	0502-0610	●	●	●	●		●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE	8-97360-110-0	02	1	0611-	●	●	●	●		●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97076-850-2	02	1	0211-0501	●	●	●	●	●	●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97076-850-2	02	1	0502-0610	●	●	●	●		●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97360-112-0	02	1	0611-	●	●	●	●		●
182	07.529 NUT; PIN,RR SPR 06.216 (A) M18	9-99110-518-0	02	1	0211-0501	●	●	●	●	●	●
182	07.529 NUT; PIN,RR SPR 06.216 (A) M18	9-99110-518-0	02	1	0502-0512	●	●	●	●		●
182	07.529 NUT; PIN,RR SPR (A) M18	0-91110-518-0	02	1	0601-	●	●	●	●		●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 08.915 (B) M16	9-99110-516-0	04	1	0211-0501	●	●	●	●	●	●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 08.915 (B) M16	9-99110-516-0	04	1	0502-0512	●	●	●	●		●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 06.509 (B) M16	0-91110-516-0	04	1	0601-	●	●	●	●		●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M16 FLANGE	8-97147-389-0	04	1	0211-0501	●	●	●	●	●	●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M16 FLANGE	8-97147-389-0	04	1	0502-0610	●	●	●	●		●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (B) M16 FLANGE	8-97360-125-0	04	1	0611-	●	●	●	●		●
194	07.158 PAD; CONTACT REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 07.518	1-51372-059-0	02	1	0211-0501	●	●		●
194	07.158 PAD; CONTACT FRAME STRAIGHT TYPE<7KJ> 07.518	1-51372-059-0	02	1	0211-0501			●
194	07.158 PAD; CONTACT 07.518	1-51372-059-0	02	1	0211-0501					●
194	07.158 PAD; CONTACT REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 07.518	1-51372-059-0	02	1	0502-	●	●
194	07.158 PAD; CONTACT FRAME STRAIGHT TYPE<7KJ> 07.518	1-51372-059-0	02	1	0502-			●
209	07.529 WASHER; PL (A) ID=19	8-97073-435-1	02	1	0211-0501	●	●	●	●	●	●
209	07.529 WASHER; PL (A) ID=19	8-97073-435-1	02	1	0502-0611	●	●	●	●		●
209	07.529 WASHER; PL (A) ID=19	8-97360-119-0	02	1	0612-	●	●	●	●		●
209	07.529 WASHER; PL KD PREPARATORY PACK<6HF> 07.172 (B) ID=16.5	8-97070-925-1	04	1	0211-0501	●	●	●	●	●	●
209	07.529 WASHER; PL KD PREPARATORY PACK<6HF> 07.172 (B) ID=16.5	8-97070-925-1	04	1	0502-0611	●	●	●	●		●
209	07.529 WASHER; PL KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5	8-98011-489-0	04	1	0612-	●	●	●	●		●
465	07.518 SHIM; ADJ RR BODY FLAT BED(RS6)	8-97072-589-0	AR	1	0211-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
