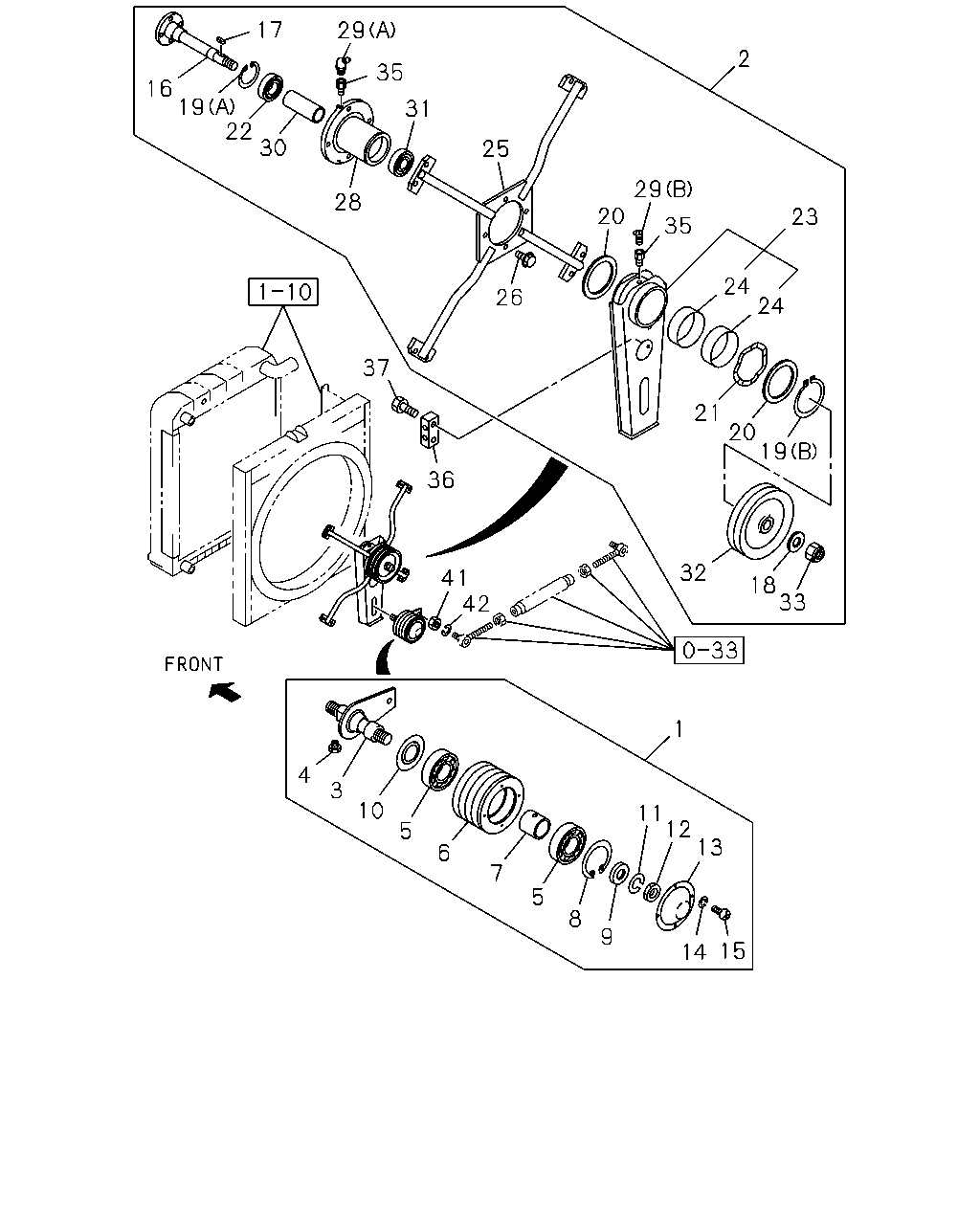

1 |
PULLEY ASM; IDLE,COOLING FAN DRIVE
|
1-21610-218-0 |
01 |
1 |
9712- |
| |
2 |
PULLEY ASM; FAN DRIVE,COOLING
|
1-21610-217-1 |
01 |
1 |
9712- |
| |
3 |
SPINDLE ASM; IDLE PULLEY,COOLING FAN
|
1-21611-051-0 |
01 |
1 |
9712- |
| |
4 |
NIPPLE; GREASE,IDLE PULLEY
H=20.0
|
9-83765-012-0 |
01 |
1 |
9712- |
| |
5 |
BEARING; IDLE PULLEY,COOLING FAN
|
1-09800-024-0 |
02 |
1 |
9712- |
| |
6 |
PULLEY; IDLE,COOLING FAN DRIVE
|
1-13663-093-0 |
01 |
1 |
9712- |
| |
7 |
SPACER; IDLE PULLEY BRG
|
1-21616-013-0 |
01 |
1 |
9712- |
| |
8 |
RING; SNAP,IDLE PULLEY BRG
OD=95.5
|
9-09180-590-0 |
01 |
1 |
9712- |
| |
9 |
WASHER; IDLE PULLEY,COOLING FAN
|
1-21619-003-0 |
01 |
1 |
9712- |
| |
10 |
PLATE; SEAL,IDLE PULLEY
|
1-21622-003-0 |
01 |
1 |
9712- |
| |
11 |
WASHER; LK,IDLE PULLEY
ID=24.5
|
9-09150-524-0 |
01 |
1 |
9712- |
| |
12 |
NUT; IDLE PULLEY TO SPINDLE
M24
|
9-09840-264-0 |
01 |
1 |
9712- |
| |
13 |
COVER; DUST,IDLE PULLEY,COOLING FAN
|
1-21622-007-0 |
01 |
1 |
9712- |
| |
14 |
WASHER; LK,DUST COVER,IDLE PULLEY
ID=4.1
|
9-09150-504-0 |
04 |
1 |
9712- |
| |
15 |
SCREW; DUST COVER,IDLE PULLEY
M4X6
|
9-93490-406-0 |
04 |
1 |
9712- |
| |
16 |
SHAFT; SWING ARM,COOLING FAN DRIVE
|
1-21611-024-0 |
01 |
1 |
9712- |
| |
17 |
KEY; FAN PULLEY
|
9-08000-720-0 |
01 |
1 |
9712- |
| |
18 |
WASHER; PL,FAN PULLEY
ID=21
|
9-09164-520-0 |
01 |
1 |
9712- |
| |
19 |
RING; SNAP,FAN PULLEY BRG
(B)
ID=74.5
|
9-09180-480-0 |
01 |
1 |
9712- |
| |
19 |
RING; SNAP,FAN PULLEY BRG
(A)
ID=57.9
|
9-09180-562-0 |
01 |
1 |
9712- |
| |
20 |
WASHER; SWING ARM,COOLING FAN DRIVE
|
1-09503-041-0 |
02 |
1 |
9712- |
| |
21 |
WASHER; WAVE,SWING ARM,COOLING FAN DRI
|
1-09550-004-0 |
01 |
1 |
9712- |
| |
22 |
BEARING; FAN SIDE,COOLING FAN DRIVE
|
1-09800-039-0 |
01 |
1 |
9712- |
| |
23 |
ARM ASM; SWING,COOLING FAN DRIVE PULLE
|
1-21625-069-0 |
01 |
1 |
9712- |
| |
24 |
BUSHING; SWING ARM
|
1-09330-005-0 |
02 |
1 |
9712- |
| |
25 |
STAY; DRIVE SHAFT CASE,FAN PULLEY
|
1-21625-071-1 |
01 |
1 |
9712- |
| |
26 |
BOLT; STAY TO CASE,COOLING FAN DRIVE
M10X25 FLANGE
|
0-28781-025-0 |
04 |
1 |
9712- |
| |
28 |
CASE; DRIVE SHAFT,COOLING FAN
|
1-21621-004-0 |
01 |
1 |
9712- |
| |
29 |
NIPPLE; GREASE,FAN PULLEY CAGE
(A)
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
01 |
1 |
9712- |
| |
29 |
NIPPLE; GREASE,FAN PULLEY CAGE
(B)
PT1/8 ELBOW
|
9-09031-210-0 |
02 |
1 |
9712- |
| |
30 |
PIECE; DIST,COOLING FAN DRIVE
|
1-21616-008-0 |
01 |
1 |
9712- |
| |
31 |
BEARING; PULLEY SIDE,FAN DRIVE
|
1-09800-038-0 |
01 |
1 |
9712- |
| |
32 |
PULLEY; COOLING FAN DRIVE
|
1-13663-069-1 |
01 |
1 |
9712-9906 |
| |
32 |
PULLEY; COOLING FAN DRIVE
|
1-13663-113-0 |
01 |
1 |
9907- |
| |
33 |
NUT; LK,FAN PULLEY
M20 LOCK NUT
|
9-09131-420-0 |
01 |
1 |
9712-9906 |
| |
33 |
NUT; LK,FAN PULLEY
M20 LOCK NUT
|
9-09131-520-0 |
01 |
1 |
9907- |
| |
35 |
ADAPTER; FAN DRIVE
PT1/8 STRAIGHT
|
9-09902-238-0 |
02 |
1 |
9712- |
| |
36 |
HOLDER; GREASE NIPPLE
|
1-59469-003-0 |
01 |
1 |
9712- |
| |
37 |
BOLT; NIPPLE HOLDER
M6X25 FLANGE
|
0-28680-625-0 |
02 |
1 |
9712- |
| |
41 |
NUT; FLANGE
M14
|
9-99110-414-0 |
02 |
1 |
9712- |
| |
42 |
WASHER; LK,FLANGE
ID=14.2
|
9-09150-514-0 |
02 |
1 |
9712- |
