0-66 — GENERATOR (#455) — 149 parça

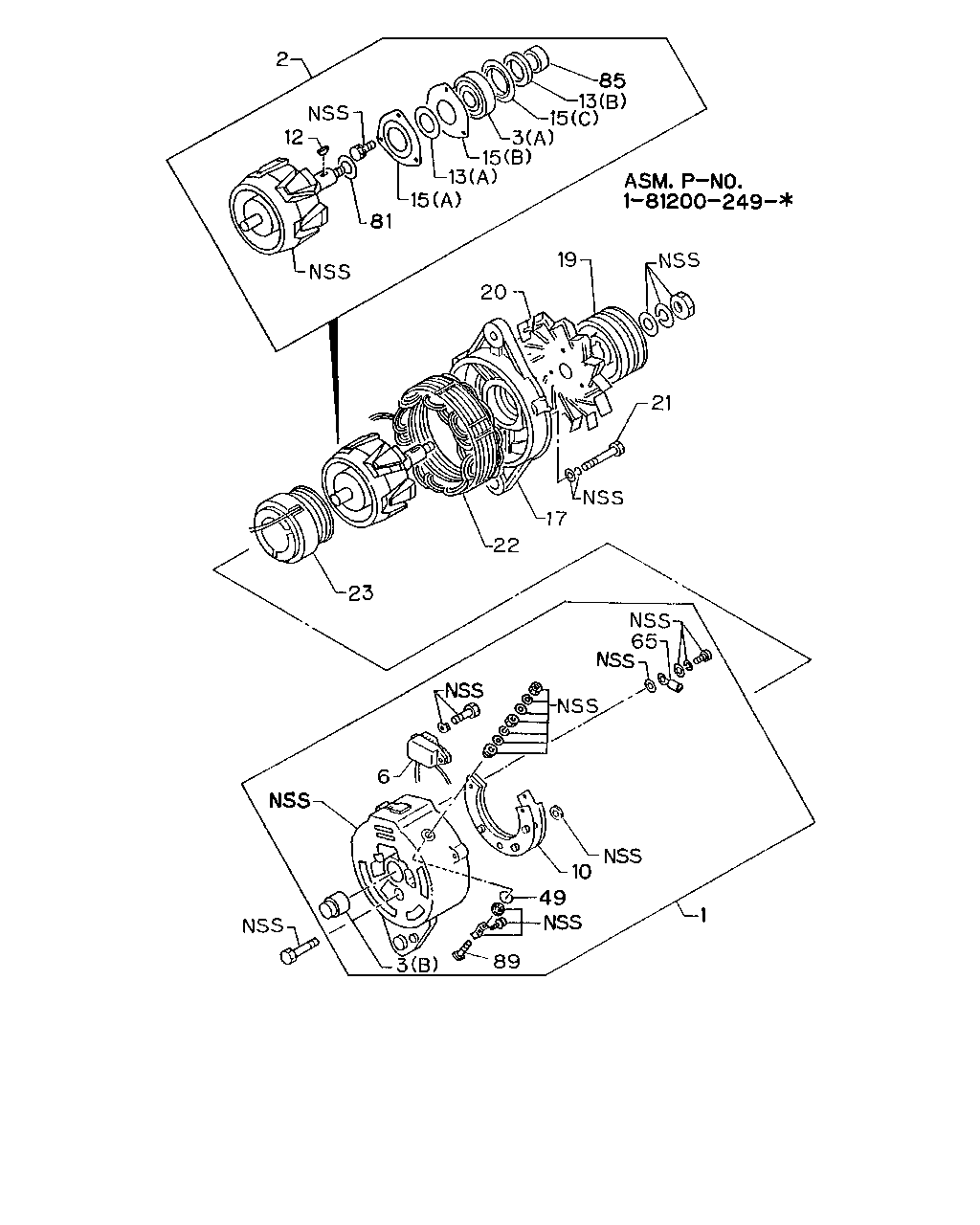

15 13 85 2 13 15 81 12 3 15 18 19 20 21 17 22 23 1 89 49 6 65 7 71 4 43 11 3 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-249-3	1-81214-175-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-359-0	1-81214-236-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 1-81200-420-2	1-81214-316-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81221-056-0	01	1	-
2	ROTOR; GEN ASM PART: B = 1-81200-359-0	1-81221-072-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 1-81200-359-0	1-81229-225-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-249-3	1-81229-380-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81229-381-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: C = 1-81200-420-2	1-81229-514-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 1-81200-359-0	8-94173-054-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: C = 1-81200-420-2	1-81229-540-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: B = 1-81200-359-0	1-81229-571-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81270-001-1	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 1-81200-359-0	1-81270-005-0	01	1	-
7	WASHER; INSULATE,RECTIFIER,GEN ASM PART: C = 1-81200-420-2	1-81129-031-0	01	1	-
7	WASHER; INSULATE,RECTIFIER,GEN ASM PART: B = 1-81200-359-0	9-82115-413-0	01	1	-
10	RECTIFIER; GEN 40A ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81219-056-1	01	1	-
10	RECTIFIER; GEN 25A ASM PART: B = 1-81200-359-0	8-94173-064-0	01	1	-
11	COVER; RR,GEN ASM PART: B = 1-81200-359-0	1-81214-239-0	01	1	-
11	COVER; RR,GEN ASM PART: C = 1-81200-420-2	1-81214-317-0	01	1	-
12	KEY; ROTOR,GEN ASM PART: A = 1-81200-249-3, B = 1-81200-359-0, C = 1-81200-420-2	9-82215-867-0	01	1	-
13	GASKET; ROTOR,GEN (A) ASM PART: B = 1-81200-359-0	1-81229-383-0	02	1	-
13	GASKET; ROTOR,GEN (A) ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81229-383-0	01	1	-
13	GASKET; ROTOR,GEN (B) ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81229-384-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 1-81200-249-3	1-81229-375-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: A = 1-81200-249-3, B = 1-81200-359-0, C = 1-81200-420-2	1-81229-376-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81229-377-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: B = 1-81200-359-0, C = 1-81200-420-2	1-81229-513-0	01	1	-
15	RETAINER; ROTOR,GEN (D) ASM PART: B = 1-81200-359-0	1-81229-526-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: B = 1-81200-359-0	8-94173-060-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-249-3	1-81213-052-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 1-81200-359-0	1-81213-067-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 1-81200-420-2	1-81213-082-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: C = 1-81200-420-2	1-81229-474-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-249-3, B = 1-81200-359-0, C = 1-81200-420-2	1-81222-055-0	01	1	-
20	FAN; GEN ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81223-005-0	01	1	-
20	FAN; GEN ASM PART: B = 1-81200-359-0	1-81223-009-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81229-382-0	03	1	-
22	STATOR; GEN ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81211-062-0	01	1	-
22	STATOR; GEN ASM PART: B = 1-81200-359-0	1-81211-088-0	01	1	-
23	COIL; ROTOR GEN 40A ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81212-003-0	01	1	-
43	SCREW; RR END COVER ASM PART: C = 1-81200-420-2	1-81229-473-0	03	1	-
49	BUSHING; RECTIFIER,GEN ASM PART: A = 1-81200-249-3	1-81229-042-0	02	1	-
49	BUSHING; RECTIFIER,GEN (A) ASM PART: B = 1-81200-359-0	1-81229-248-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) ASM PART: B = 1-81200-359-0	1-81229-570-0	01	1	-
49	BUSHING; RECTIFIER,GEN ASM PART: C = 1-81200-420-2	1-81229-592-0	01	1	-
65	CONDENSER; GEN ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81229-539-0	01	1	-
71	HOLDER; TERMINAL,GEN ASM PART: C = 1-81200-420-2	1-81217-053-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81229-373-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81229-374-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: B = 1-81200-359-0	1-81229-547-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: C = 1-81200-420-2	1-81229-591-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: A = 1-81200-249-3	5-81229-192-0	01	1	-

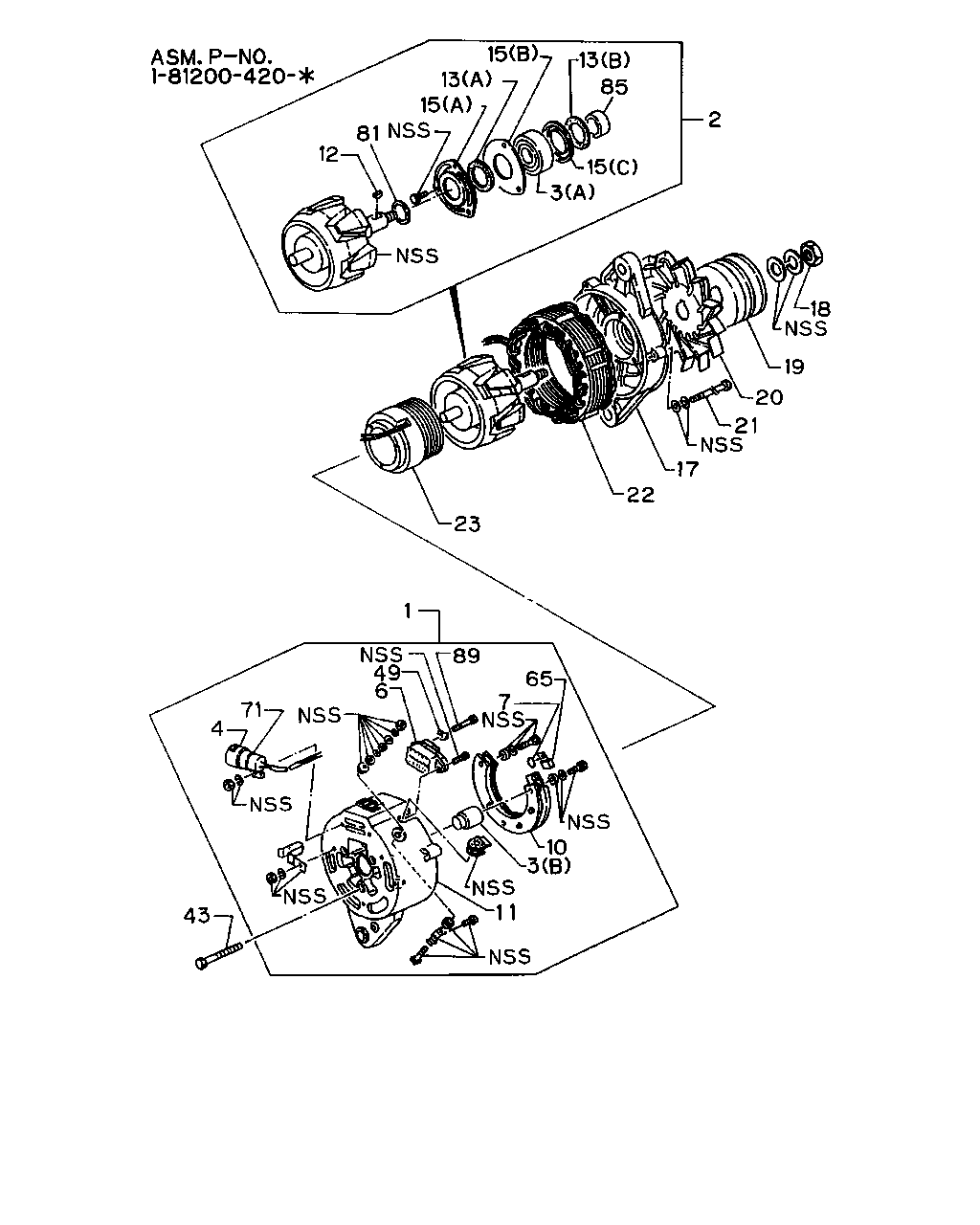

2 12 85 13 15 81 15 13 3 15 19 20 21 17 22 23 65 6 10 1 49 3 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-249-3	1-81214-175-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-359-0	1-81214-236-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 1-81200-420-2	1-81214-316-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81221-056-0	01	1	-
2	ROTOR; GEN ASM PART: B = 1-81200-359-0	1-81221-072-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 1-81200-359-0	1-81229-225-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-249-3	1-81229-380-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81229-381-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: C = 1-81200-420-2	1-81229-514-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 1-81200-359-0	8-94173-054-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81270-001-1	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 1-81200-359-0	1-81270-005-0	01	1	-
10	RECTIFIER; GEN 40A ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81219-056-1	01	1	-
10	RECTIFIER; GEN 25A ASM PART: B = 1-81200-359-0	8-94173-064-0	01	1	-
12	KEY; ROTOR,GEN ASM PART: A = 1-81200-249-3, B = 1-81200-359-0, C = 1-81200-420-2	9-82215-867-0	01	1	-
13	GASKET; ROTOR,GEN (A) ASM PART: B = 1-81200-359-0	1-81229-383-0	02	1	-
13	GASKET; ROTOR,GEN (A) ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81229-383-0	01	1	-
13	GASKET; ROTOR,GEN (B) ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81229-384-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 1-81200-249-3	1-81229-375-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: A = 1-81200-249-3, B = 1-81200-359-0, C = 1-81200-420-2	1-81229-376-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81229-377-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: B = 1-81200-359-0, C = 1-81200-420-2	1-81229-513-0	01	1	-
15	RETAINER; ROTOR,GEN (D) ASM PART: B = 1-81200-359-0	1-81229-526-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: B = 1-81200-359-0	8-94173-060-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-249-3	1-81213-052-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 1-81200-359-0	1-81213-067-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 1-81200-420-2	1-81213-082-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-249-3, B = 1-81200-359-0, C = 1-81200-420-2	1-81222-055-0	01	1	-
20	FAN; GEN ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81223-005-0	01	1	-
20	FAN; GEN ASM PART: B = 1-81200-359-0	1-81223-009-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81229-382-0	03	1	-
22	STATOR; GEN ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81211-062-0	01	1	-
22	STATOR; GEN ASM PART: B = 1-81200-359-0	1-81211-088-0	01	1	-
23	COIL; ROTOR GEN 40A ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81212-003-0	01	1	-
49	BUSHING; RECTIFIER,GEN ASM PART: A = 1-81200-249-3	1-81229-042-0	02	1	-
49	BUSHING; RECTIFIER,GEN (A) ASM PART: B = 1-81200-359-0	1-81229-248-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) ASM PART: B = 1-81200-359-0	1-81229-570-0	01	1	-
49	BUSHING; RECTIFIER,GEN ASM PART: C = 1-81200-420-2	1-81229-592-0	01	1	-
65	CONDENSER; GEN ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81229-539-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81229-373-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81229-374-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: B = 1-81200-359-0	1-81229-547-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: C = 1-81200-420-2	1-81229-591-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: A = 1-81200-249-3	5-81229-192-0	01	1	-

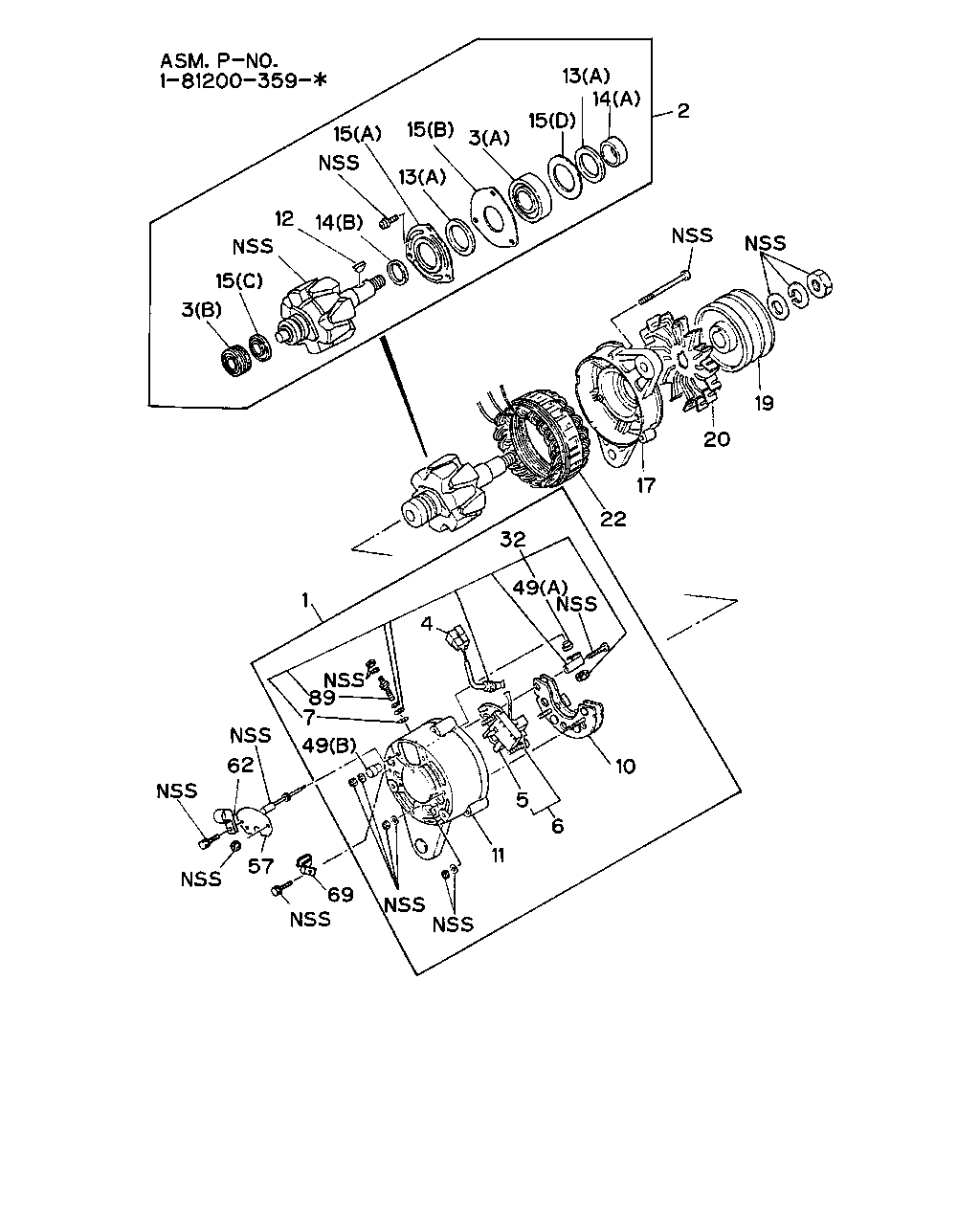

13 14 2 15 3 15 15 13 14 12 15 3 19 20 17 22 32 1 62 57 69 11 5 6 4 89 7 49 10 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-249-3	1-81214-175-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-359-0	1-81214-236-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: C = 1-81200-420-2	1-81214-316-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81221-056-0	01	1	-
2	ROTOR; GEN ASM PART: B = 1-81200-359-0	1-81221-072-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 1-81200-359-0	1-81229-225-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-249-3	1-81229-380-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81229-381-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: C = 1-81200-420-2	1-81229-514-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 1-81200-359-0	8-94173-054-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: C = 1-81200-420-2	1-81229-540-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: B = 1-81200-359-0	1-81229-571-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: B = 1-81200-359-0	1-81217-062-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81270-001-1	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 1-81200-359-0	1-81270-005-0	01	1	-
7	WASHER; INSULATE,RECTIFIER,GEN ASM PART: C = 1-81200-420-2	1-81129-031-0	01	1	-
7	WASHER; INSULATE,RECTIFIER,GEN ASM PART: B = 1-81200-359-0	9-82115-413-0	01	1	-
10	RECTIFIER; GEN 40A ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81219-056-1	01	1	-
10	RECTIFIER; GEN 25A ASM PART: B = 1-81200-359-0	8-94173-064-0	01	1	-
11	COVER; RR,GEN ASM PART: B = 1-81200-359-0	1-81214-239-0	01	1	-
11	COVER; RR,GEN ASM PART: C = 1-81200-420-2	1-81214-317-0	01	1	-
12	KEY; ROTOR,GEN ASM PART: A = 1-81200-249-3, B = 1-81200-359-0, C = 1-81200-420-2	9-82215-867-0	01	1	-
13	GASKET; ROTOR,GEN (A) ASM PART: B = 1-81200-359-0	1-81229-383-0	02	1	-
13	GASKET; ROTOR,GEN (A) ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81229-383-0	01	1	-
13	GASKET; ROTOR,GEN (B) ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81229-384-0	01	1	-
14	COLLAR; STEEL (A) ASM PART: B = 1-81200-359-0	1-81229-527-0	01	1	-
14	COLLAR; STEEL (B) ASM PART: B = 1-81200-359-0	1-81229-543-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 1-81200-249-3	1-81229-375-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: A = 1-81200-249-3, B = 1-81200-359-0, C = 1-81200-420-2	1-81229-376-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81229-377-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: B = 1-81200-359-0, C = 1-81200-420-2	1-81229-513-0	01	1	-
15	RETAINER; ROTOR,GEN (D) ASM PART: B = 1-81200-359-0	1-81229-526-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: B = 1-81200-359-0	8-94173-060-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-249-3	1-81213-052-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 1-81200-359-0	1-81213-067-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: C = 1-81200-420-2	1-81213-082-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-249-3, B = 1-81200-359-0, C = 1-81200-420-2	1-81222-055-0	01	1	-
20	FAN; GEN ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81223-005-0	01	1	-
20	FAN; GEN ASM PART: B = 1-81200-359-0	1-81223-009-0	01	1	-
22	STATOR; GEN ASM PART: A = 1-81200-249-3, C = 1-81200-420-2	1-81211-062-0	01	1	-
22	STATOR; GEN ASM PART: B = 1-81200-359-0	1-81211-088-0	01	1	-
32	TERMINAL; RECTIFIER,GEN ASM PART: B = 1-81200-359-0	1-81229-545-0	01	1	-
49	BUSHING; RECTIFIER,GEN ASM PART: A = 1-81200-249-3	1-81229-042-0	02	1	-
49	BUSHING; RECTIFIER,GEN (A) ASM PART: B = 1-81200-359-0	1-81229-248-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) ASM PART: B = 1-81200-359-0	1-81229-570-0	01	1	-
49	BUSHING; RECTIFIER,GEN ASM PART: C = 1-81200-420-2	1-81229-592-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: B = 1-81200-359-0	1-81229-544-0	01	1	-
62	CLIP; TERMINAL,BRUSH,GEN ASM PART: B = 1-81200-359-0	1-81229-122-0	01	1	-
69	CLIP; WIRE,GEN ASM PART: B = 1-81200-359-0	1-81229-516-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: B = 1-81200-359-0	1-81229-547-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: C = 1-81200-420-2	1-81229-591-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: A = 1-81200-249-3	5-81229-192-0	01	1	-
