◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#45494) — 173 parça

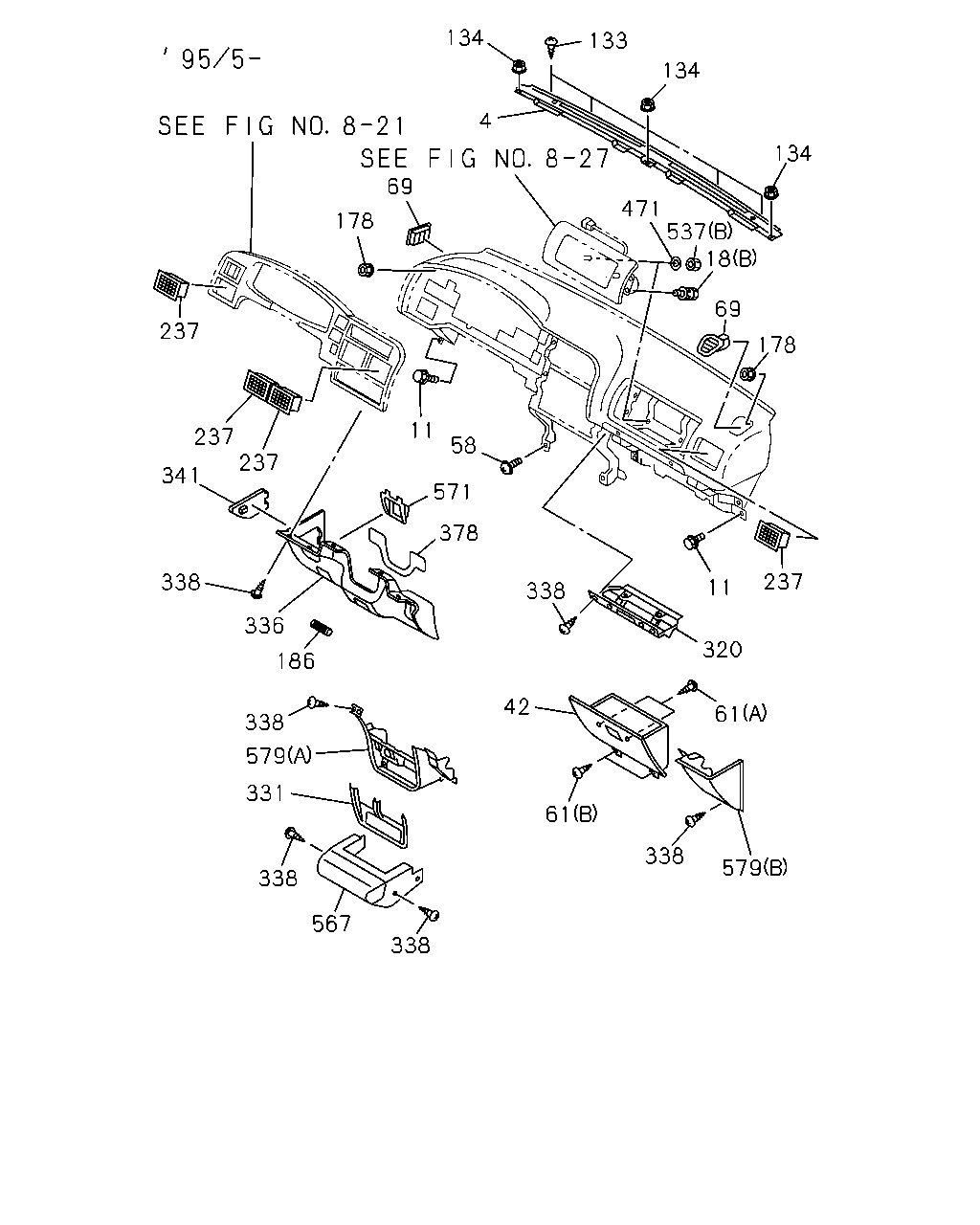

çizim 18225
134 133 134 134 471 537 18 69 178 237 11 320 61 579 338 61 42 338 378 571 58 11 178 69 237 237 237 341 338 336 186 338 579 331 338 567 338 4
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL
(B) 		8-97043-921-0 01 1 9301-9504
4 COVER; INST PNL 8-97107-575-2 01 1 9505-
4 COVER; INST PNL
(A) GRAY 		8-94373-622-0 01 1 9301-9504
4 COVER; INST PNL
(A) GRAY 		8-94373-619-1 01 1 9301-9504
11 BOLT; INST PNL
(A) M6X12 		8-94136-136-0 02 1 9301-9504
11 BOLT; INST PNL
(B) M6X16 W/LK&PL WASHER 		8-94139-963-0 05 1 9301-9302
11 BOLT; INST PNL
(B) M6X16 FLANGE 		8-97803-298-0 05 1 9303-9504
11 BOLT; INST PNL
M6X20 W/WASHER 		8-94112-987-1 08 1 9505-
18 BOLT; BRKT
(A) M6X16 FLANGE 		0-28280-616-0 04 1 9505-
18 BOLT; BRKT
(A) M6X20 W/WASHER 		8-94112-987-1 06 1 9505-
18 BOLT; BRKT
(B) M6X18 W/LK&PL WASHER 		8-97060-719-0 04 1 9505-
42 BOX; GLOVE,INST PNL
GRAY 		8-94373-547-3 01 1 9301-9504
42 BOX; GLOVE,INST PNL
GRAY 		8-97150-608-5 01 1 9505-
58 SCREW; INST PANEL
M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9505-
61 SCREW; GLOVE BOX
M4X8 CK-HEAD 		9-03094-408-0 02 1 9301-9504
61 SCREW; GLOVE BOX
(B) M5X16 		8-94279-312-0 02 1 9505-
61 SCREW; GLOVE BOX
(A) M4X14 TAPPING 		8-97111-555-0 02 1 9505-
69 GRILLE; SIDE,AIR OUTLET
(B) GRAY 		8-94373-505-0 02 1 9301-9504
69 GRILLE; SIDE,AIR OUTLET
GRADE S(RBA) (B) GRAY 		8-94373-505-0 02 1 9301-9504
69 GRILLE; SIDE,AIR OUTLET
(A) GRAY 		8-94373-529-0 01 1 9301-9504
69 GRILLE; SIDE,AIR OUTLET
GRAY 		8-97150-595-1 01 1 9505-
69 GRILLE; SIDE,AIR OUTLET
(A) GRAY 		8-94373-526-0 01 1 9301-9504
69 GRILLE; SIDE,AIR OUTLET
GRAY 		8-97150-594-5 01 1 9505-
69 GRILLE; SIDE,AIR OUTLET
GRADE LS(RBD) (C) GRAY 		8-94373-511-0 01 1 9301-9504
69 GRILLE; SIDE,AIR OUTLET
GRADE LS(RBD) (C) GRAY 		8-94373-508-0 01 1 9301-9504
133 SCREW; COVER,INST PNL
M6X14 		8-94152-833-0 05 1 9301-9408
133 SCREW; COVER,INST PNL
M6X16 		8-94479-534-0 05 1 9409-
134 NUT; FRT COVER,INST PANEL
M6 FLANGE 		0-91150-106-0 03 1 9301-9302
134 NUT; FRT COVER,INST PANEL
M6 FLANGE 		8-97063-399-0 03 1 9303-
178 NUT; INST PANEL
(B) M4 SPIRE 		8-94384-493-0 14 1 9301-9504
178 NUT; INST PANEL
(A) M6 FLANGE 		8-97063-399-0 03 1 9301-9504
178 NUT; INST PANEL
M6 W/DISHED WASHER 		8-94170-192-0 03 1 9505-
186 GRILLE; LAP VENTILATOR
BLACK 		8-97123-442-0 01 1 9505-
237 GRILLE; OUTLET
BLACK 		8-97151-986-2 04 1 9505-
320 COVER; GLOVE BOX
GRAY 		8-97150-599-4 01 1 9505-
331 CLUSTER; INST SIDE 8-97131-756-1 01 1 9505-
336 COVER; INST PANEL SIDE
GRAY 		8-97153-209-4 01 1 9505-
338 SCREW; COVER
M5X16 TAPPING 		9-09829-323-1 24 1 9505-
341 LID; FUSE BOX
GRAY 		8-97153-210-2 01 1 9505-9511
341 LID; FUSE BOX
GRAY 		8-97153-943-3 01 1 9512-
378 SEAL; INST PANEL 8-97120-129-0 01 1 9505-
471 WASHER; PL 1-09503-075-0 02 1 9505-
537 NUT; BRKT
(B) M6 W/DISHED WASHER 		8-94170-192-0 02 1 9505-
537 NUT; BRKT
EXC. AIR CONDITIONER(C60) (A) M6 W/DISHED WASHER 		8-94170-192-0 02 1 9301-9301
537 NUT; BRKT
EXC. AIR CONDITIONER(C60) (A) M6 FLANGE 		8-97063-399-0 02 1 9302-
567 COVER; CONT UNIT
GRAY 		8-97150-597-6 01 1 9505-
571 BEZEL; POCKET
GRAY 		8-97153-211-0 01 1 9505-
579 COVER; INST PNL
(B) GRAY 		8-97150-598-3 01 1 9505-
579 COVER; INST PNL
(A) GRAY 		8-97154-483-2 01 1 9505-

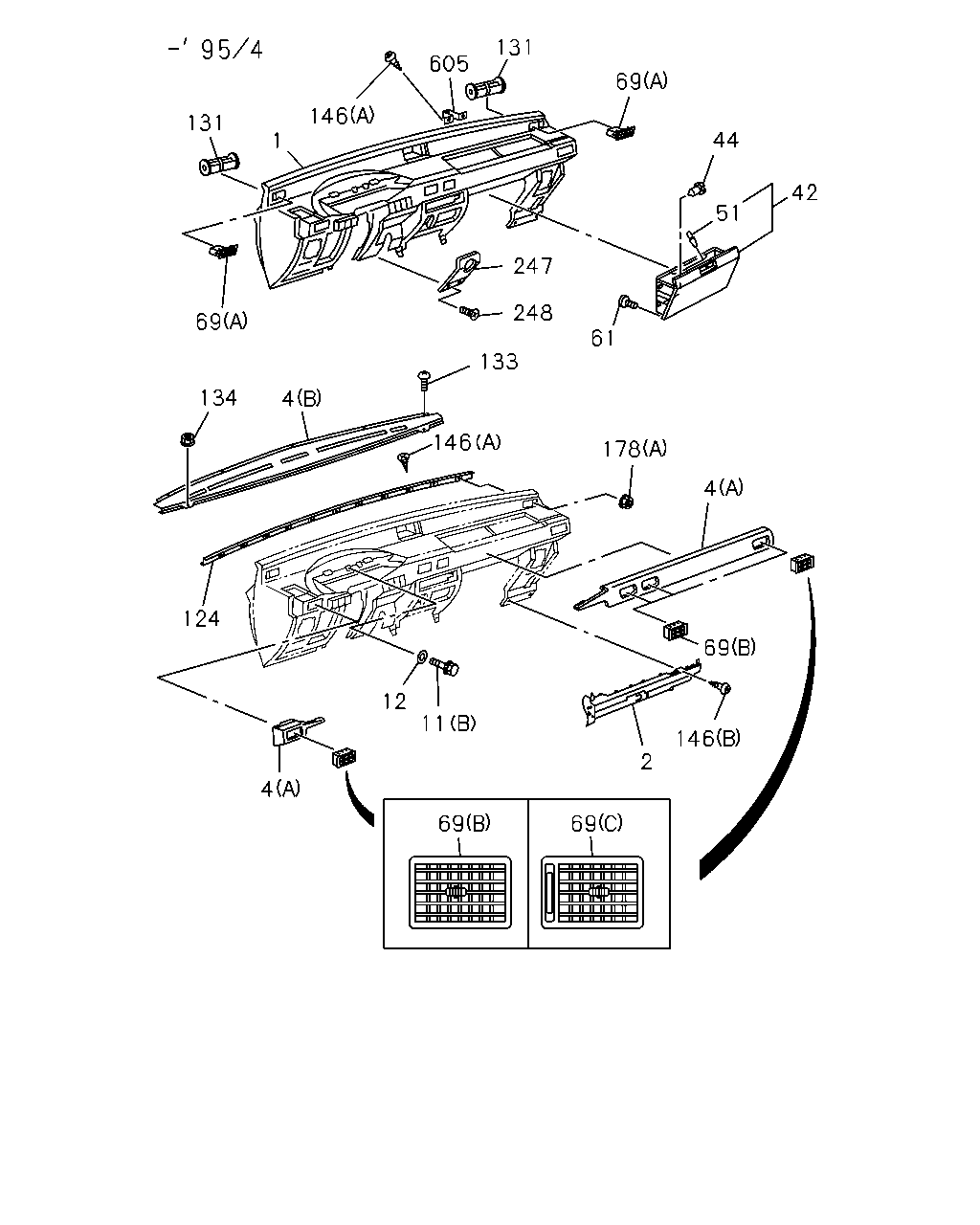

çizim 65363
131 1 146 605 131 69 44 42 51 61 248 247 133 146 178 4 69 146 2 69 69 11 12 4 124 134 4 69
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97082-885-0 01 1 9301-9306
1 PANEL; INST
GRAY 		8-97098-202-0 01 1 9307-9504
1 PANEL; INST
GRAY 		8-97150-584-5 01 1 9505-
2 REINFORCEMENT; INST PNL,LWR 8-94337-156-1 01 1 9301-9504
4 COVER; INST PNL
(B) 		8-97043-921-0 01 1 9301-9504
4 COVER; INST PNL 8-97107-575-2 01 1 9505-
4 COVER; INST PNL
(A) GRAY 		8-94373-622-0 01 1 9301-9504
4 COVER; INST PNL
(A) GRAY 		8-94373-619-1 01 1 9301-9504
11 BOLT; INST PNL
(A) M6X12 		8-94136-136-0 02 1 9301-9504
11 BOLT; INST PNL
(B) M6X16 W/LK&PL WASHER 		8-94139-963-0 05 1 9301-9302
11 BOLT; INST PNL
(B) M6X16 FLANGE 		8-97803-298-0 05 1 9303-9504
11 BOLT; INST PNL
M6X20 W/WASHER 		8-94112-987-1 08 1 9505-
12 WASHER; PL,INST PANEL
ID=6.4 OD=18 		9-09160-706-0 01 1 9301-9504
42 BOX; GLOVE,INST PNL
GRAY 		8-94373-547-3 01 1 9301-9504
42 BOX; GLOVE,INST PNL
GRAY 		8-97150-608-5 01 1 9505-
44 PIN; GLOVE BOX 8-94129-687-2 02 1 9301-9504
51 CUSHION; STOPPER,GLOVE BOX 8-97070-358-0 03 1 9301-9504
61 SCREW; GLOVE BOX
M4X8 CK-HEAD 		9-03094-408-0 02 1 9301-9504
61 SCREW; GLOVE BOX
(B) M5X16 		8-94279-312-0 02 1 9505-
61 SCREW; GLOVE BOX
(A) M4X14 TAPPING 		8-97111-555-0 02 1 9505-
69 GRILLE; SIDE,AIR OUTLET
(B) GRAY 		8-94373-505-0 02 1 9301-9504
69 GRILLE; SIDE,AIR OUTLET
GRADE S(RBA) (B) GRAY 		8-94373-505-0 02 1 9301-9504
69 GRILLE; SIDE,AIR OUTLET
(A) GRAY 		8-94373-529-0 01 1 9301-9504
69 GRILLE; SIDE,AIR OUTLET
GRAY 		8-97150-595-1 01 1 9505-
69 GRILLE; SIDE,AIR OUTLET
(A) GRAY 		8-94373-526-0 01 1 9301-9504
69 GRILLE; SIDE,AIR OUTLET
GRAY 		8-97150-594-5 01 1 9505-
69 GRILLE; SIDE,AIR OUTLET
GRADE LS(RBD) (C) GRAY 		8-94373-511-0 01 1 9301-9504
69 GRILLE; SIDE,AIR OUTLET
GRADE LS(RBD) (C) GRAY 		8-94373-508-0 01 1 9301-9504
124 REINFORCEMENT; INST PNL,UPR 8-94337-155-0 01 1 9301-9504
124 REINFORCEMENT; INST PNL,UPR 8-97107-029-3 01 1 9505-
131 GRILLE ASM; LAP VENT 8-94340-676-1 02 1 9301-9504
133 SCREW; COVER,INST PNL
M6X14 		8-94152-833-0 05 1 9301-9408
133 SCREW; COVER,INST PNL
M6X16 		8-94479-534-0 05 1 9409-
134 NUT; FRT COVER,INST PANEL
M6 FLANGE 		0-91150-106-0 03 1 9301-9302
134 NUT; FRT COVER,INST PANEL
M6 FLANGE 		8-97063-399-0 03 1 9303-
146 SCREW; TAP
(A),(B) M5X16 TAPPING 		9-09829-188-0 20 1 9301-9306
146 SCREW; TAP
(A) 		8-97101-879-0 16 1 9307-9504
146 SCREW; TAP
(B) M5X16 TAPPING 		9-09829-188-0 06 1 9307-9504
178 NUT; INST PANEL
(B) M4 SPIRE 		8-94384-493-0 14 1 9301-9504
178 NUT; INST PANEL
(A) M6 FLANGE 		8-97063-399-0 03 1 9301-9504
178 NUT; INST PANEL
M6 W/DISHED WASHER 		8-94170-192-0 03 1 9505-
247 COVER; HAND BRAKE LEVER,INST PANEL
GRAY 		8-97007-453-0 01 1 9301-9504
248 SCREW; HAND BRAKE LEVER COVER
M5X16 TAPPING 		9-09829-323-1 02 1 9301-9504
605 BRACKET; DUCT 8-97103-512-0 01 1 9307-9504

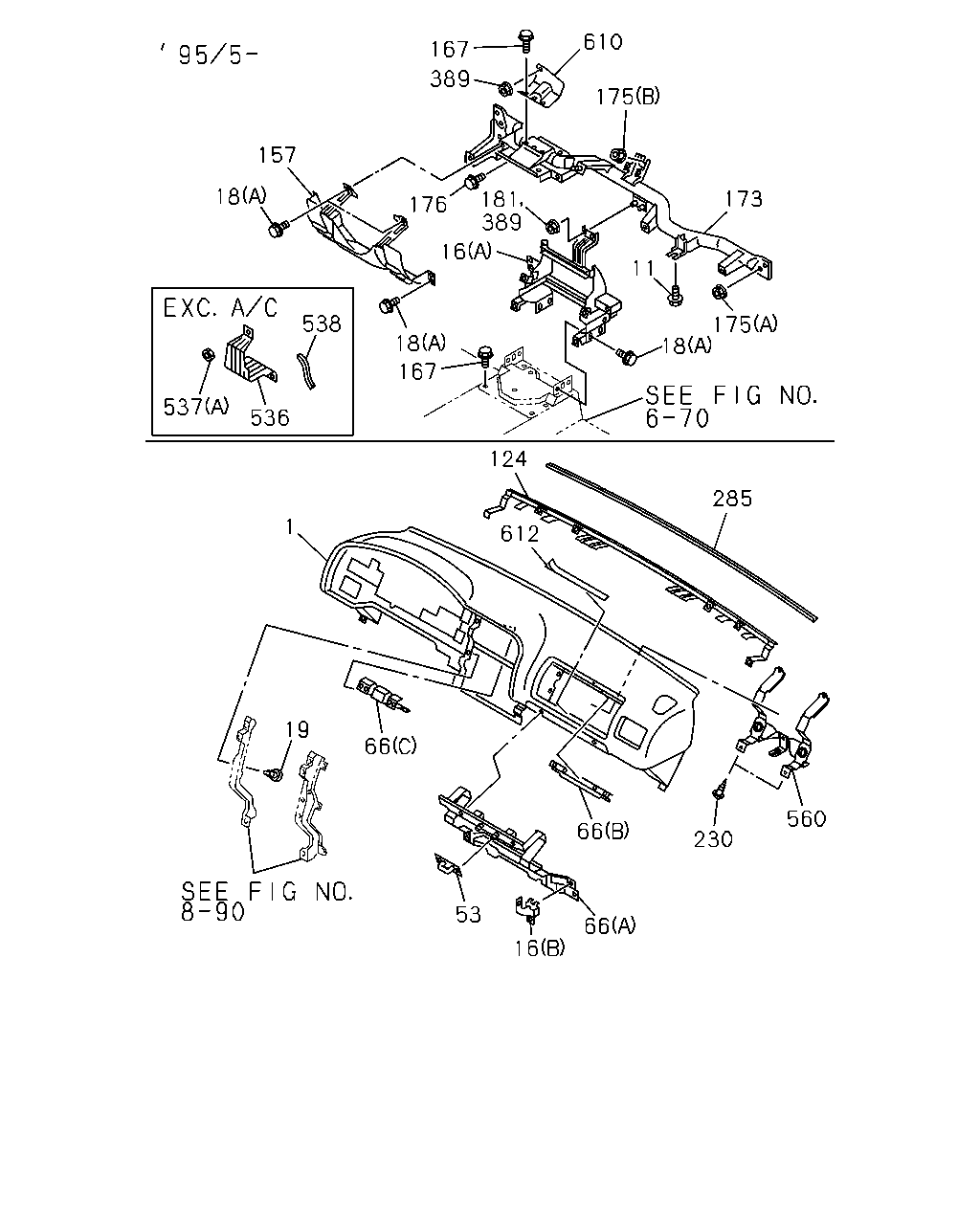

çizim 66045
167 389 610 175 173 11 175 18 167 18 16 389 181 176 157 18 538 536 537 1 124 612 285 560 230 66 66 16 53 66 19
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97082-885-0 01 1 9301-9306
1 PANEL; INST
GRAY 		8-97098-202-0 01 1 9307-9504
1 PANEL; INST
GRAY 		8-97150-584-5 01 1 9505-
11 BOLT; INST PNL
(A) M6X12 		8-94136-136-0 02 1 9301-9504
11 BOLT; INST PNL
(B) M6X16 W/LK&PL WASHER 		8-94139-963-0 05 1 9301-9302
11 BOLT; INST PNL
(B) M6X16 FLANGE 		8-97803-298-0 05 1 9303-9504
11 BOLT; INST PNL
M6X20 W/WASHER 		8-94112-987-1 08 1 9505-
16 BRACKET; INST PNL
(A) 		8-97107-579-6 01 1 9505-
16 BRACKET; INST PNL
(B) 		8-97114-331-1 01 1 9505-
18 BOLT; BRKT
(A) M6X16 FLANGE 		0-28280-616-0 04 1 9505-
18 BOLT; BRKT
(A) M6X20 W/WASHER 		8-94112-987-1 06 1 9505-
18 BOLT; BRKT
(B) M6X18 W/LK&PL WASHER 		8-97060-719-0 04 1 9505-
19 SCREW; BRKT
M5X16 TAPPING 		9-09829-323-1 06 1 9505-9511
19 SCREW; BRKT
M5X16 TAPPING 		9-09829-323-1 08 1 9512-
53 STRIKER; GLOVE BOX 8-94337-154-0 01 1 9301-9504
53 STRIKER; GLOVE BOX 8-97064-753-0 01 1 9505-
66 REINFORCEMENT; INST PANEL
(A) 		8-97107-571-7 01 1 9505-
66 REINFORCEMENT; INST PANEL
(B) 		8-97114-724-1 01 1 9505-
66 REINFORCEMENT; INST PANEL
(C) 		8-97114-725-0 01 1 9505-
124 REINFORCEMENT; INST PNL,UPR 8-94337-155-0 01 1 9301-9504
124 REINFORCEMENT; INST PNL,UPR 8-97107-029-3 01 1 9505-
157 PAD ASM; KNEE 8-97107-576-5 01 1 9505-9511
157 PAD ASM; KNEE 8-97134-846-0 01 1 9512-
167 BOLT; REINF TO INST
M6X12 FLANGE 		0-28280-612-0 09 1 9505-
173 BEAM ASM; CROSS,INST PANEL 8-97043-910-0 01 1 9301-9504
173 BEAM ASM; CROSS,INST PANEL 8-97107-578-6 01 1 9505-
175 NUT; CROSS BEAM
(A) M8 FLANGE 		8-94459-656-0 04 1 9301-9603
175 NUT; CROSS BEAM
(A) M8 FLANGE 		8-97065-435-0 04 1 9604-
175 NUT; CROSS BEAM
(B) M6 FLANGE 		8-97063-399-0 01 1 9301-
176 BOLT; CROSS BEAM
M8X18 W/LK&PL WASHER 		0-50140-818-0 01 1 9301-9504
176 BOLT; CROSS BEAM
M8X16 FLANGE 		0-28080-816-0 01 1 9505-
181 NUT; STAY,INST PANEL
M6 FLANGE 		8-97063-399-0 02 1 9301-9504
181 NUT; STAY,INST PANEL
M6 FLANGE 		8-97063-399-0 02 1 9512-
230 CLIP; INST
H=16.7 		8-97022-017-0 02 1 9505-
285 FINISHER; INST PANEL 8-97120-142-2 01 1 9505-
389 NUT; REINF
M6 FLANGE 		8-97063-399-0 04 1 9505-9511
389 NUT; REINF
M6 FLANGE 		8-97063-399-0 02 1 9512-
536 BRACKET; KNEE PROTECTOR
EXC. AIR CONDITIONER(C60) 		8-97085-813-1 01 1 9301-
537 NUT; BRKT
(B) M6 W/DISHED WASHER 		8-94170-192-0 02 1 9505-
537 NUT; BRKT
EXC. AIR CONDITIONER(C60) (A) M6 W/DISHED WASHER 		8-94170-192-0 02 1 9301-9301
537 NUT; BRKT
EXC. AIR CONDITIONER(C60) (A) M6 FLANGE 		8-97063-399-0 02 1 9302-
538 FINISHER; KNEE PROTECTOR
EXC. AIR CONDITIONER(C60) 		1-71997-513-1 01 1 9301-9504
538 FINISHER; KNEE PROTECTOR
EXC. AIR CONDITIONER(C60) SERVICED BY L=190 		1-71998-300-0 01 1 9505-9603
560 BRACKET 8-97107-572-1 01 1 9505-
610 REINFORCEMENT; STRG 8-97107-938-1 01 1 9505-
612 TAPE; SOFT 8-97113-907-0 01 1 9505-
çizim 68186
175 174 173 181 182 150 102 11 146 115 176 175 178 126 53 538 537 536
BalonParca AdiParca NoAdetTipApplied Date
11 BOLT; INST PNL
(A) M6X12 		8-94136-136-0 02 1 9301-9504
11 BOLT; INST PNL
(B) M6X16 W/LK&PL WASHER 		8-94139-963-0 05 1 9301-9302
11 BOLT; INST PNL
(B) M6X16 FLANGE 		8-97803-298-0 05 1 9303-9504
11 BOLT; INST PNL
M6X20 W/WASHER 		8-94112-987-1 08 1 9505-
53 STRIKER; GLOVE BOX 8-94337-154-0 01 1 9301-9504
53 STRIKER; GLOVE BOX 8-97064-753-0 01 1 9505-
102 BRACKET; INST PANEL TO FLOOR 8-94375-135-1 01 1 9301-9504
115 RETAINER; GLOVE BOX 8-94340-681-0 01 1 9301-9504
126 STAY; GLOVE BOX SIDE 8-94340-683-0 01 1 9301-9504
126 STAY; GLOVE BOX SIDE 8-94340-682-0 01 1 9301-9504
146 SCREW; TAP
(A),(B) M5X16 TAPPING 		9-09829-188-0 20 1 9301-9306
146 SCREW; TAP
(A) 		8-97101-879-0 16 1 9307-9504
146 SCREW; TAP
(B) M5X16 TAPPING 		9-09829-188-0 06 1 9307-9504
150 STAY; INST PNL 8-94375-136-1 01 1 9301-9504
173 BEAM ASM; CROSS,INST PANEL 8-97043-910-0 01 1 9301-9504
173 BEAM ASM; CROSS,INST PANEL 8-97107-578-6 01 1 9505-
174 BRACKET; BEAM SIDE 8-94375-073-2 01 1 9301-9504
175 NUT; CROSS BEAM
(A) M8 FLANGE 		8-94459-656-0 04 1 9301-9603
175 NUT; CROSS BEAM
(A) M8 FLANGE 		8-97065-435-0 04 1 9604-
175 NUT; CROSS BEAM
(B) M6 FLANGE 		8-97063-399-0 01 1 9301-
176 BOLT; CROSS BEAM
M8X18 W/LK&PL WASHER 		0-50140-818-0 01 1 9301-9504
176 BOLT; CROSS BEAM
M8X16 FLANGE 		0-28080-816-0 01 1 9505-
178 NUT; INST PANEL
(B) M4 SPIRE 		8-94384-493-0 14 1 9301-9504
178 NUT; INST PANEL
(A) M6 FLANGE 		8-97063-399-0 03 1 9301-9504
178 NUT; INST PANEL
M6 W/DISHED WASHER 		8-94170-192-0 03 1 9505-
181 NUT; STAY,INST PANEL
M6 FLANGE 		8-97063-399-0 02 1 9301-9504
181 NUT; STAY,INST PANEL
M6 FLANGE 		8-97063-399-0 02 1 9512-
182 BOLT; BRKT,INST PANEL
M6X16 W/LK&PL WASHER 		8-94452-505-0 02 1 9301-9504
536 BRACKET; KNEE PROTECTOR
EXC. AIR CONDITIONER(C60) 		8-97085-813-1 01 1 9301-
537 NUT; BRKT
(B) M6 W/DISHED WASHER 		8-94170-192-0 02 1 9505-
537 NUT; BRKT
EXC. AIR CONDITIONER(C60) (A) M6 W/DISHED WASHER 		8-94170-192-0 02 1 9301-9301
537 NUT; BRKT
EXC. AIR CONDITIONER(C60) (A) M6 FLANGE 		8-97063-399-0 02 1 9302-
538 FINISHER; KNEE PROTECTOR
EXC. AIR CONDITIONER(C60) 		1-71997-513-1 01 1 9301-9504
538 FINISHER; KNEE PROTECTOR
EXC. AIR CONDITIONER(C60) SERVICED BY L=190 		1-71998-300-0 01 1 9505-9603
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
