Isuzu WW
▶
SUV
▶
UC
▶
50688 - UC-LHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶

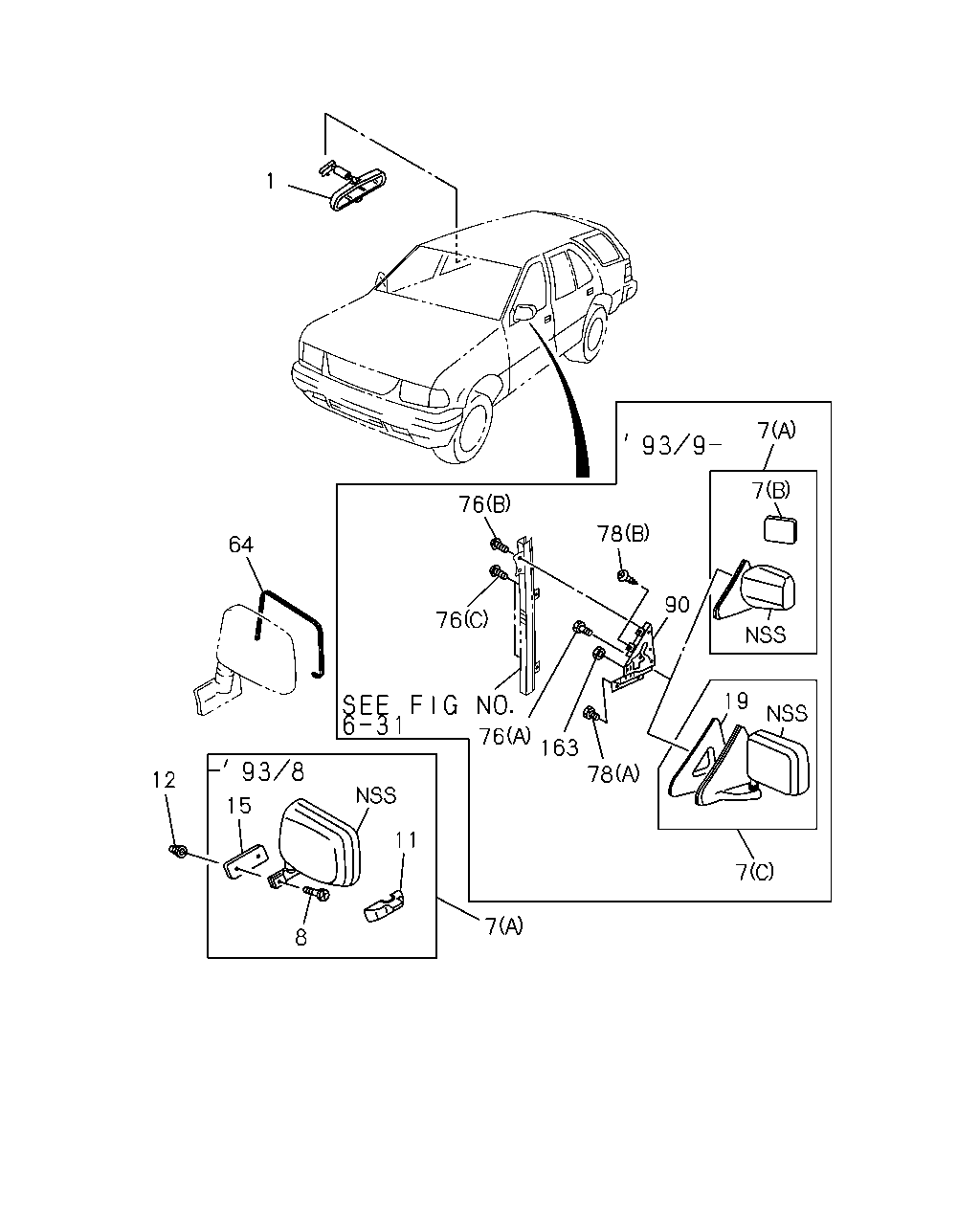

7-20 — MIRROR AND MIRROR STAY
(#45492) — 30 parça
1
76
78
7
7
19
7
78
163
76
76
11
7
8
15
12
64
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
8-97043-920-0
01
1
9301-
7
MIRROR ASM; DOOR
BRIGHT MIRROR<6LY> (A)
8-97085-111-1
01
1
9301-9308
7
MIRROR ASM; DOOR
DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2> (A)
8-97079-658-9
01
1
9309-
7
MIRROR ASM; DOOR
BRIGHT MIRROR<6LY> (A)
8-97085-110-1
01
1
9301-9308
7
MIRROR ASM; DOOR
DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2> (A)
8-97079-657-7
01
1
9309-
7
MIRROR ASM; DOOR
EXC. BRIGHT MIRROR<6LY> (A)
8-97085-109-1
01
1
9301-9308
7
MIRROR ASM; DOOR
DOOR MIRROR ELEC FOLDING BRIGHT W/DEF<7EU> (A)
8-97079-427-9
01
1
9309-
7
MIRROR ASM; DOOR
EXC. BRIGHT MIRROR<6LY> (A)
8-97085-108-1
01
1
9301-9308
7
MIRROR ASM; DOOR
DOOR MIRROR ELEC FOLDING BRIGHT W/DEF<7EU> (A)
8-97079-426-7
01
1
9309-
7
MIRROR ASM; DOOR
DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2> (B)
8-97102-915-2
01
1
9309-
7
MIRROR ASM; DOOR
DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2> (B)
8-97102-914-0
01
1
9309-
7
MIRROR ASM; DOOR
DOOR MIRROR ELEC FOLDING BRIGHT W/DEF<7EU> (B)
8-97102-909-2
01
1
9309-
7
MIRROR ASM; DOOR
DOOR MIRROR ELEC FOLDING BRIGHT W/DEF<7EU> (B)
8-97102-908-0
01
1
9309-
7
MIRROR ASM; DOOR
EXC. DOOR MIRROR ELEC FOLDING BRIGHT W/DEF<7EU> (C)
8-97085-372-3
01
1
9309-
7
MIRROR ASM; DOOR
EXC. DOOR MIRROR ELEC FOLDING BRIGHT W/DEF<7EU> (C)
8-97085-371-3
01
1
9309-
8
SCREW; DOOR MIRROR
8-94186-840-0
04
1
9301-9308
11
COVER; CONT KNOB,MIRROR
8-94186-841-0
02
1
9301-9308
12
NUT; DOOR MIRROR
M6 POP
8-94455-383-0
04
1
9301-9308
15
BASE; OUTSIDE RR VIEW
8-94323-988-1
02
1
9301-9308
19
GASKET; MIRROR
EXC. DOOR MIRROR ELEC FOLDING BRIGHT W/DEF<7EU>
8-97085-259-0
01
1
9309-
19
GASKET; MIRROR
EXC. DOOR MIRROR ELEC FOLDING BRIGHT W/DEF<7EU>
8-97085-258-0
01
1
9309-
64
SEAL; MIRROR
8-97085-132-1
02
1
9301-9312
76
BOLT; STAY BRKT
(B) M6X8
8-94155-893-0
04
1
9309-
76
BOLT; STAY BRKT
(A) M6X14 FLANGE
8-94327-380-0
06
1
9309-
76
BOLT; STAY BRKT
(C) M6X14 W/LK&PL WASHER
8-94382-066-1
04
1
9309-
78
SCREW; BRKT FIX
(A) M6X14
8-94113-240-1
02
1
9309-
78
SCREW; BRKT FIX
(B) M4X12 OVAL-HEAD
9-93297-412-0
04
1
9309-
90
BRACKET; MIRROR STAY
8-97081-415-3
01
1
9309-
90
BRACKET; MIRROR STAY
8-97081-414-3
01
1
9309-
163
NUT; MIRROR BRKT
M6 FLANGE
5-09440-004-0
02
1
9309-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
