◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#45490) — 17 parça

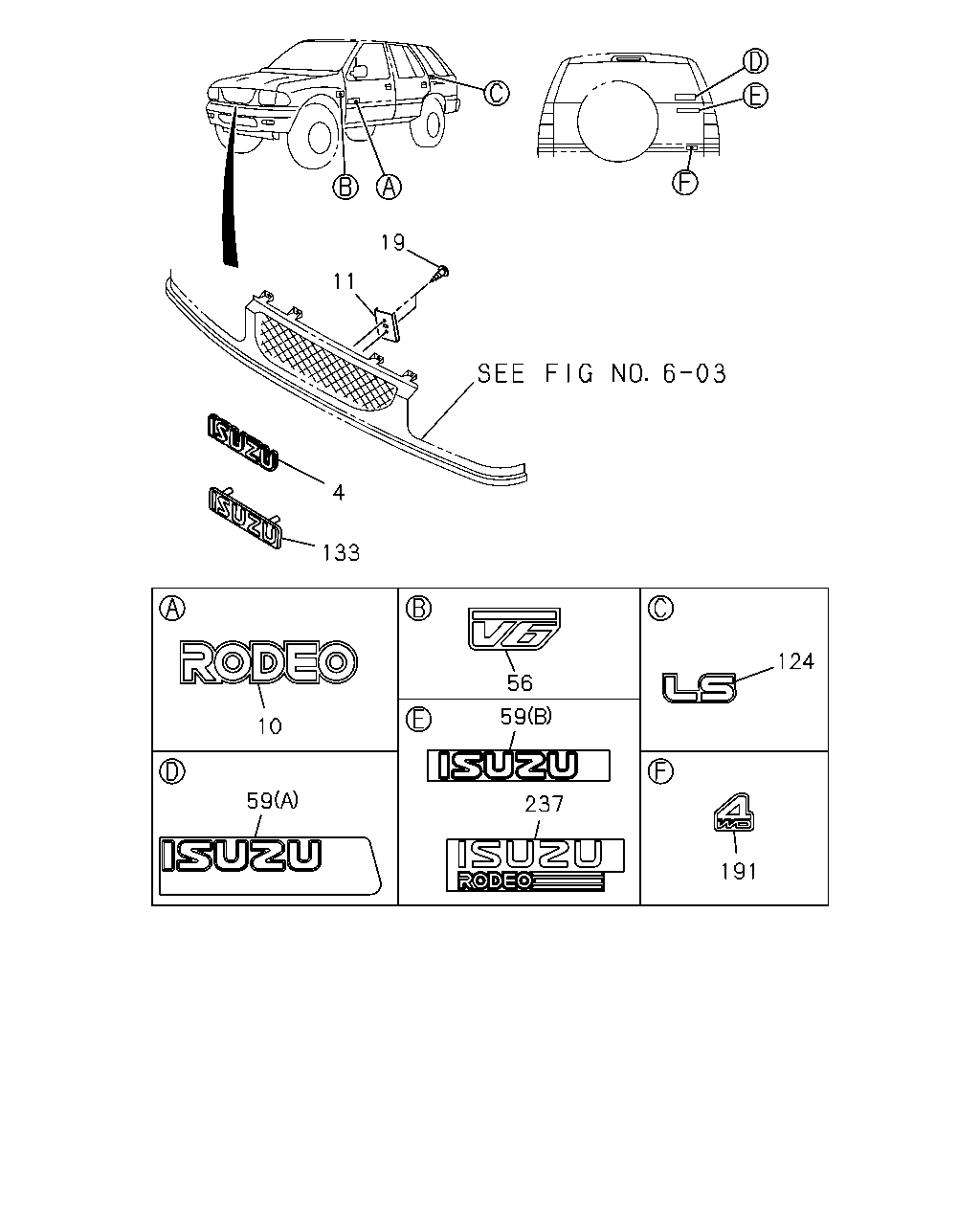

çizim 17121
19 11 4 133 10 59 56 59 237 191 124
BalonParca AdiParca NoAdetTipApplied Date A B
4 EMBLEM; RAD GRILLE 8-97085-090-0 01 1 9301-9308 ● ●
4 EMBLEM; RAD GRILLE 8-97093-589-1 01 1 9309-9504 ● ●
10 EMBLEM; DOOR 8-97044-743-1 02 1 9301- ● ●
11 RETAINER; EMBLEM 8-97084-196-0 01 1 9301- ● ●
11 RETAINER; EMBLEM 8-97084-195-0 01 1 9301- ● ●
19 SCREW; EMBLEM,RAD GRILLE
M5X16 		8-94380-268-0 04 1 9301- ● ●
56 DECAL; BODY SIDE 8-97073-408-1 02 1 9301-9308 ● ●
56 DECAL; BODY SIDE 8-97102-620-0 02 1 9309- ● ●
59 DECAL; TAIL GATE
(A) 		8-97071-919-0 01 1 9301-9308 ● ●
59 DECAL; TAIL GATE
(B) 		8-97095-320-0 01 1 9309-9511 ● ●
124 PLATE; NAME 8-94320-704-3 02 1 9301- ●
133 EMBLEM; "ISUZU",RAD GRILLE 8-97096-933-2 01 1 9505- ● ●
191 EMBLEM; 4WD 8-94493-582-2 01 1 9301-9308 ● ●
191 EMBLEM; 4WD 8-97093-591-0 01 1 9309- ● ●
237 DECAL; "ISUZU RODEO"
BODY COLOR LT. SILVER MET(714),BODY COLOR CREAM WHITE(752),BODY COLOR CREAM WHITE/LT. SILVER MET(769) DARK SILVER 		8-97154-538-0 01 1 9512- ● ●
237 DECAL; "ISUZU RODEO"
BODY COLOR STRATUS BLUE MICA(703),BODY COLOR CLARET RED MICA(731),BODY COLOR VIRIDIAN MICA(732), BODYCOLOR RADIANT RED(756),BODY COLOR CLARET RED MICA/LT. SILVER MET(767),BODY COLOR VIRIDIAN MICA/LT.SILVER MET(768),BODY COLOR EBONY BLACK/LT. SILVERMET(771),BODY COLOR STRATUS BLUE/LT. SILVER MET(781),BODY COLOR EBONY BLACK(826),BODY COLOR IRON GRAY MET(849) SILVER 		8-97154-539-0 01 1 9512-9607 ● ●
237 DECAL; "ISUZU RODEO"
BODY COLOR STRATUS BLUE MICA(703),BODY COLOR CLARET RED MICA(731),BODY COLOR SPRUCE GREEN MICA/LT. SILVER MET(743),BODY COLOR RADIANT RED(756),BODY COLOR CLARET RED MICA/LT. SILVER MET(767),BODY COLOREBONY BLACK/LT. SILVER MET(771),BODY COLOR STRATUS BLUE/LT. SILVER MET(781),BODY COLOR EBONY BLACK(826),BODY COLOR SPRUCE GREEN MICA(833),BODY COLORIRON GRAY MET(849) SILVER 		8-97154-539-0 01 1 9608- ● ●
