Isuzu WW
▶
BUSES
▶
LV
▶
10695 - LV233(THAI)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

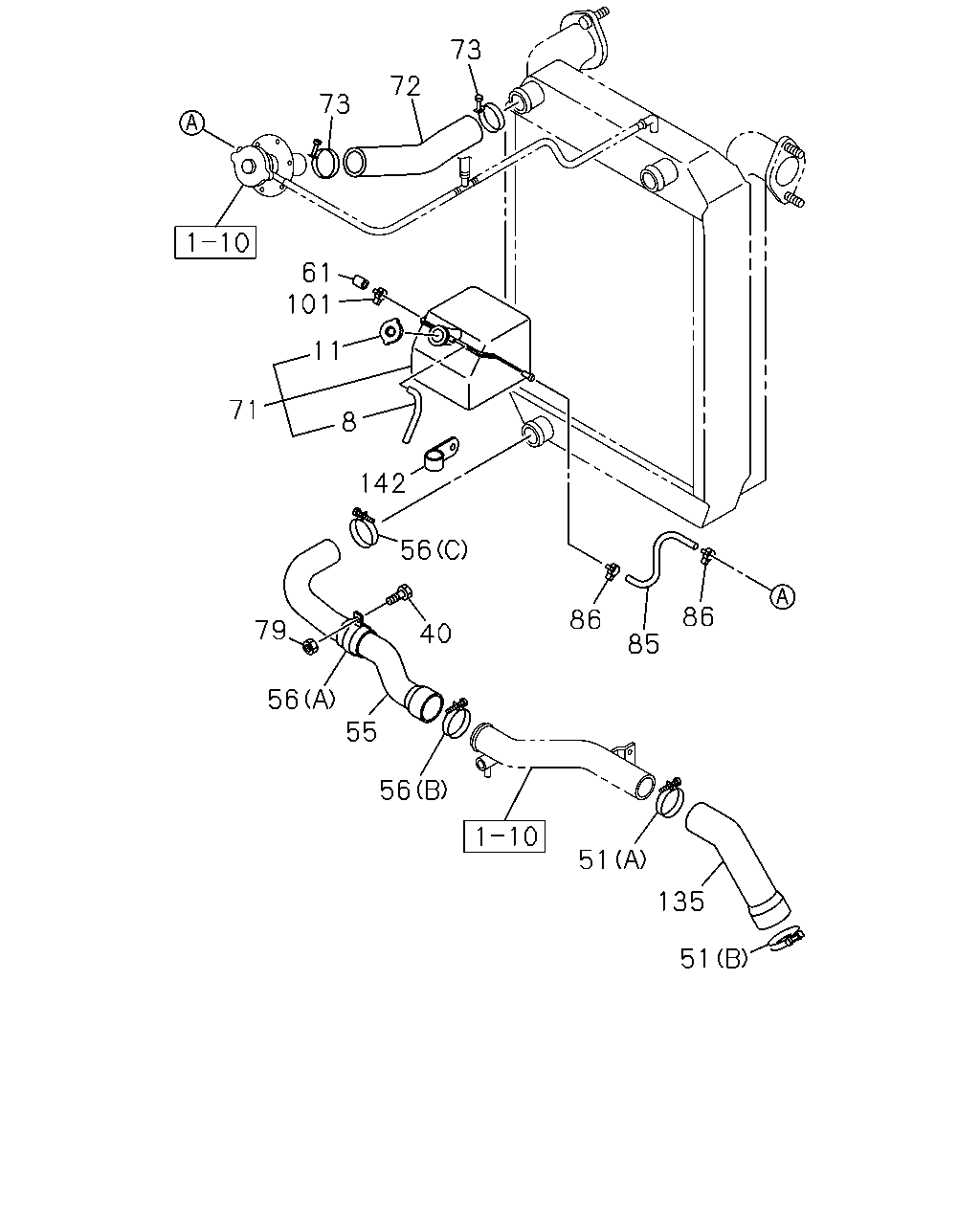

1-11 — RADIATOR HOSE AND SUB TANK
(#4549) — 26 parça
73
72
73
61
101
11
71
8
142
56
86
86
79
40
85
56
55
56
51
135
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
HOSE; VINYL
L=1400 SERVICED BY L=2850
1-09366-061-0
01
1
9712-
11
CAP; RESERVE TANK
1-21489-099-0
01
1
9712-0003
11
CAP; RESERVE TANK
1-21489-184-0
01
1
0004-
33
BOLT; BRKT
M8X20
0-20800-820-0
06
1
9809-
35
NUT
M8
9-09110-408-0
06
1
9809-
40
BOLT; CLIP
M8X16 FLANGE
0-28080-816-0
01
1
9712-
51
CLIP; WATER HOSE,RAD
(A) ID=76
1-09704-069-0
01
1
9712-
51
CLIP; WATER HOSE,RAD
(B) ID=66
1-09704-079-0
01
1
9712-9712
51
CLIP; WATER HOSE,RAD
(B) ID=68
1-09704-074-0
01
1
9801-
55
HOSE; WATER,RAD OUTLET
1-21437-673-1
01
1
9712-
56
CLIP; WATER HOSE,RAD
(A)
1-09701-202-0
01
1
9712-
56
CLIP; WATER HOSE,RAD
(B) ID=72
1-09704-068-0
01
1
9712-
56
CLIP; WATER HOSE,RAD
(C) ID=76
1-09704-069-0
01
1
9712-
61
CAP; DRAIN
8-94107-603-0
01
1
9712-
71
TANK ASM; RESERVE
1-21480-099-2
01
1
9712-
72
HOSE; RUBBER FILLER TO TANK
1-21437-671-1
01
1
9712-
73
CLIP; RUBBER HOSE
ID=44
1-09704-077-0
02
1
9712-
79
NUT; CLIP,HOSE
M8 FLANGE
0-91150-108-0
01
1
9712-
85
HOSE; RUB,WATER FILLER TO SURGE TANK
L=940 SERVICED BY L=3000
0-03257-300-0
01
1
9712-0103
85
HOSE; RUB,WATER FILLER TO SURGE TANK
L=940 SERVICED BY L=3000
0-03557-300-0
01
1
0104-
86
CLIP; RUB HOSE,WATER FILLER
ID=12
8-94238-610-0
02
1
9712-
101
CLIP; RUBBER HOSE & FILLER
ID=12
8-94238-610-0
01
1
9712-
135
HOSE; WATER,ENG TO CONN
1-21437-674-0
01
1
9712-
142
CLIP; VINYL HOSE
ID=7 L=28
9-09524-655-0
04
1
9712-9712
142
CLIP; VINYL HOSE
ID=9 L=28
9-09524-855-0
04
1
9801-
154
WASHER; LK,TANK
ID=8.2
9-09150-508-0
06
1
9809-
