◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-88 - HARD COVER AND TARPAULIN ▶
6-88 — HARD COVER AND TARPAULIN (#45488) — 29 parça

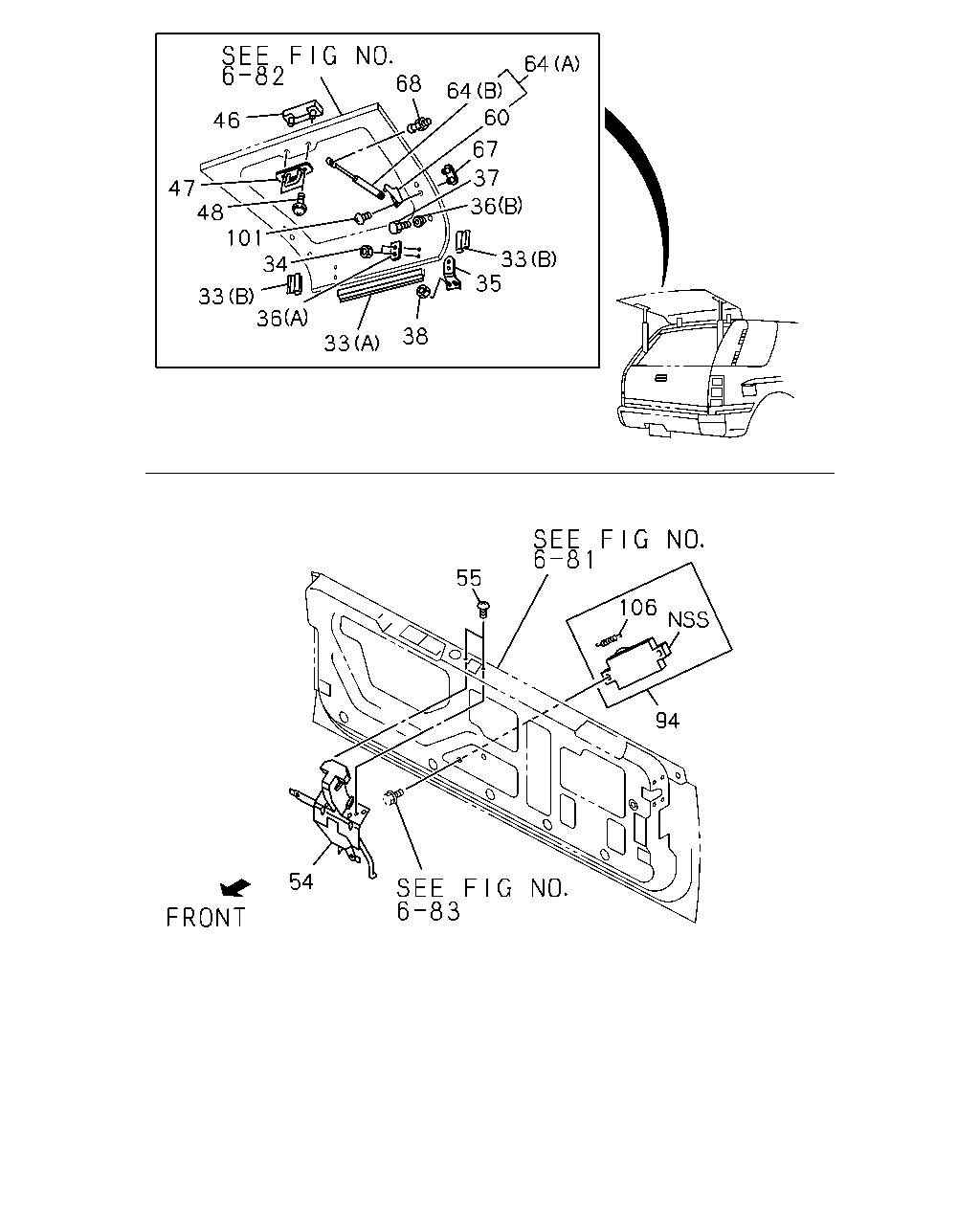

çizim 65877
64 68 64 60 67 37 36 33 35 38 33 36 33 34 101 48 47 46 55 106 94 54
BalonParca AdiParca NoAdetTipApplied Date
33 SEAL; HATCH GATE
(A) 		8-94318-643-0 01 1 9301-
33 SEAL; HATCH GATE
(B) 		8-97142-637-0 02 1 9604-
34 NUT; AIR DEFLECTOR
M6 		8-94343-366-1 04 1 9301-
35 HINGE; TONNEAU COVER 8-94318-649-1 01 1 9301-
35 HINGE; TONNEAU COVER 8-94318-648-1 01 1 9301-
36 COLLAR; AIR DEFLECTOR
(A) 		8-94318-652-4 02 1 9301-
36 COLLAR; AIR DEFLECTOR
(B) 		8-94338-621-0 02 1 9301-
37 BOLT; AIR DEFLECTOR 8-94365-129-0 02 1 9301-
38 NUT; HINGE
M6 W/DISHED WASHER 		8-94170-192-0 04 1 9301-
46 FASTENER; STRIKER 8-94332-479-2 01 1 9301-
47 STRIKER; TONNEAU COVER 8-94332-478-2 01 1 9301-9512
47 STRIKER; TONNEAU COVER
951211- 		8-97135-360-0 01 1 9512-9702
47 STRIKER; TONNEAU COVER 8-97166-568-0 01 1 9703-
48 SCREW; STRIKER 8-94364-514-0 02 1 9301-
54 LOCK ASM; TONNEAU COVER 8-97048-892-1 01 1 9301-9308
54 LOCK ASM; TONNEAU COVER 8-97094-538-0 01 1 9309-9502
54 LOCK ASM; TONNEAU COVER 8-97122-678-0 01 1 9503-
55 BOLT; TONNEAU COVER LOCK
M6X8 		8-94155-893-0 03 1 9301-
60 BRACKET; TONNEAU COVER STAY 8-97118-496-0 01 1 9606-
60 BRACKET; TONNEAU COVER STAY 8-97118-335-0 01 1 9606-
64 STAY ASM; GAS,HATCH GATE
(A) 		8-94342-178-1 01 1 9301-9605
64 STAY ASM; GAS,HATCH GATE
(A) 		8-94342-177-1 01 1 9301-9605
64 STAY ASM; GAS,HATCH GATE
(B) 		8-97121-983-0 02 1 9606-
67 FASTENER; GAS STAY 8-94318-656-1 02 1 9301-
68 STUD; BALL,GAS STAY 8-94372-155-0 02 1 9301-
94 ACTUATOR; HATCH GATE
AUTO DOOR LOCK<AU4> 		8-94318-664-1 01 1 9301-9508
94 ACTUATOR; HATCH GATE
AUTO DOOR LOCK<AU4> 		8-97138-289-0 01 1 9509-
101 SCREW; GAS STAY 8-94364-514-0 04 1 9301-
106 SPRING; ACTUATOR
AUTO DOOR LOCK<AU4> 		8-97138-290-0 01 1 9509-
