Isuzu WW
▶
SUV
▶
UC
▶
50688 - UC-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-86 - TRUNK OPENER AND FUEL LID
▶

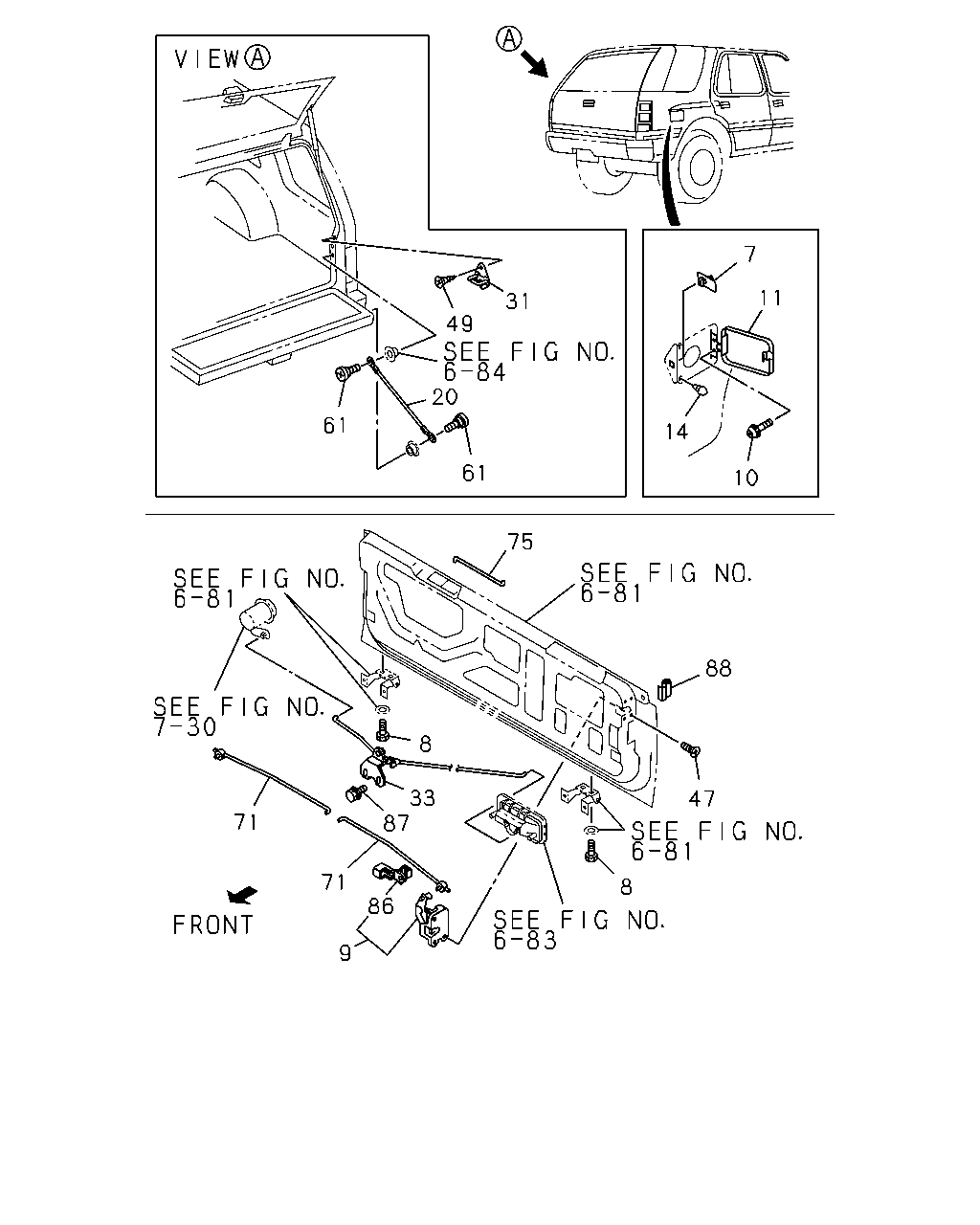

6-86 — TRUNK OPENER AND FUEL LID
(#45486) — 22 parça
31
49
20
61
61
10
14
11
7
75
88
47
8
9
86
87
33
8
71
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
RETAINER; FUEL FILLER DOOR
8-94115-951-0
01
1
9301-
8
BOLT; TAIL GATE LOCK
M8X23 FLANGE
8-94174-559-2
04
1
9301-9308
8
BOLT; TAIL GATE LOCK
M8X23 FLANGE
8-97105-376-0
04
1
9309-
9
LOCK; TRUNK LID
8-94318-660-2
01
1
9301-9412
9
LOCK; TRUNK LID
8-97123-118-2
01
1
9501-
9
LOCK; TRUNK LID
8-94318-659-2
01
1
9301-9412
9
LOCK; TRUNK LID
8-97123-117-2
01
1
9501-
10
BOLT; FUEL FILLER LID
M6X12 W/LK&PL WASHER
0-50140-612-0
02
1
9301-
11
LID; FUEL
8-94337-072-3
01
1
9301-
14
CUSHION; RUBBER,FUEL LID
8-94466-607-0
02
1
9301-
20
CABLE; TRUNK LID & FUEL FILLER
8-94318-675-1
02
1
9301-
31
STRIKER; TAIL GATE
8-97068-596-0
02
1
9301-
33
CRANK ASM; TAIL GATE LK
8-97087-661-0
01
1
9309-
47
SCREW; TAIL GATE LK
M6X16 OVAL-HD
8-94172-523-0
06
1
9301-
49
SCREW; STRIKER TO TAIL GATE
8-94122-560-0
04
1
9301-
61
SCREW; CABLE
8-94379-455-0
04
1
9301-
71
LINK; TAIL GATE
8-94318-663-2
01
1
9301-
71
LINK; TAIL GATE
8-94318-662-2
01
1
9301-
75
LINK; TAIL GATE KEY CYL
8-97073-934-1
01
1
9301-9308
86
HOLDER; LINK ROD
8-97085-220-0
02
1
9301-
87
BOLT; CRANK
M6X8
8-94155-893-0
02
1
9309-
88
PROTECTOR; TAIL GATE
8-97082-057-0
01
1
9309-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
