◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#45485) — 16 parça

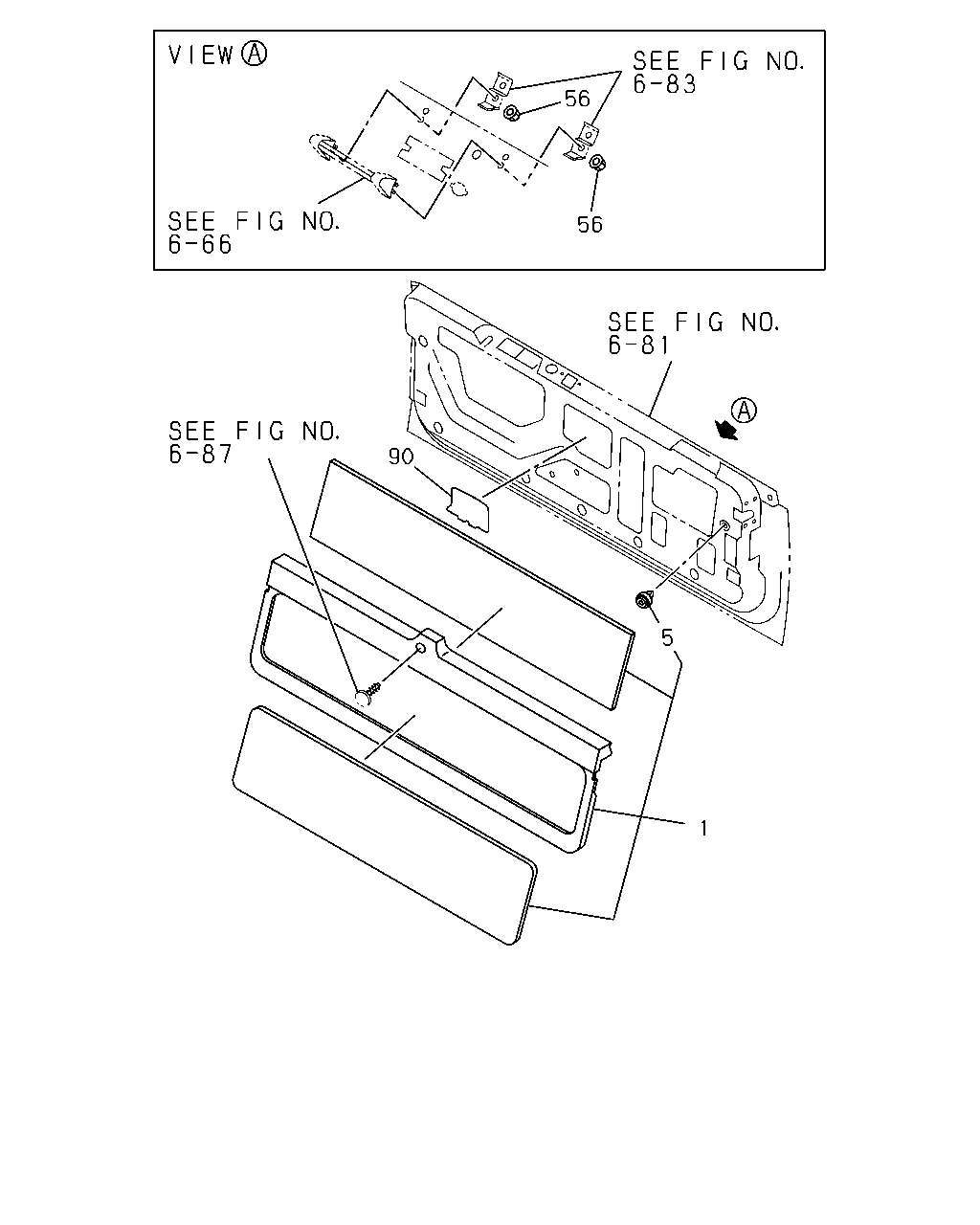

çizim 65881
56 56 90 5 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,BACK DOOR
GRAY 		8-94377-962-7 01 1 9301-9408 ●
1 PAD; TRIM,BACK DOOR
GRAY 		8-94377-962-7 01 1 9409-9504 ● ●
1 PAD; TRIM,BACK DOOR
GRAY 		8-97150-686-7 01 1 9505- ● ●
1 PAD; TRIM,BACK DOOR
GRAY 		8-97082-266-0 01 1 9301-9408 ●
5 CLIP; BACK DOOR TRIM
H=16.7 		8-97022-017-0 17 1 9301- ● ●
56 NUT; PROTECTOR
RR WIPER<C25> M6 FLANGE 		5-09440-004-0 02 1 9301- ● ●
90 SHEET; WATER PROOF,BACK DOOR 8-97040-976-1 01 1 9301- ● ●

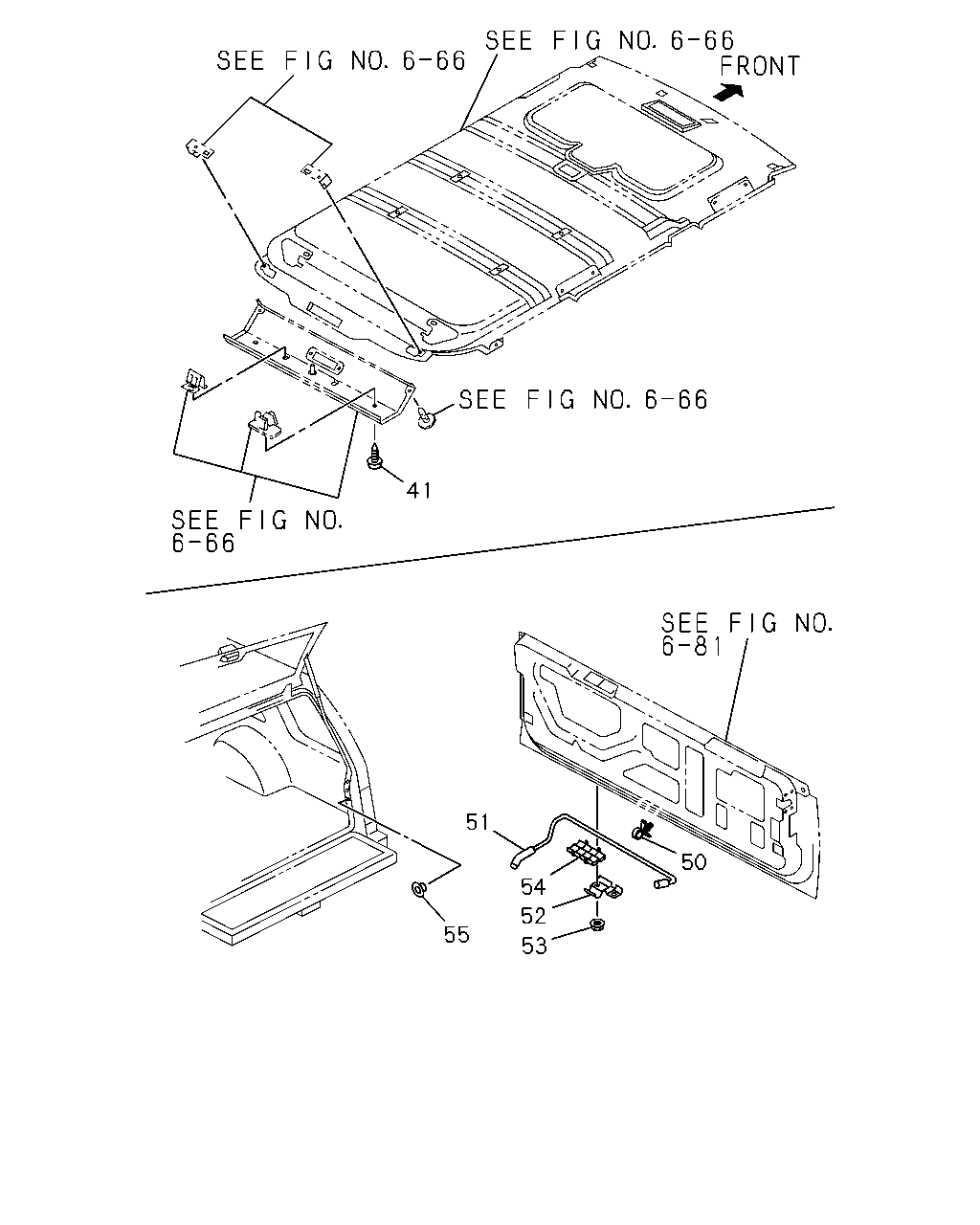

çizim 68302
41 51 54 52 53 50 55
BalonParca AdiParca NoAdetTipApplied Date A B
41 SCREW; SILENCER MAT
M5X16 		8-94243-069-0 02 1 9301- ● ●
50 ANTIRATTLER; TAIL GATE
ID=3.8 YELLOW 		8-94329-976-0 02 1 9301-9406 ● ●
50 ANTIRATTLER; TAIL GATE
ID=3.8 WHITE 		8-94217-699-0 02 1 9407- ● ●
51 BAR; TORSION,TAIL GATE 8-94318-672-1 01 1 9301- ● ●
52 BRACKET; TORSION BAR 8-94318-673-2 02 1 9301-9511 ● ●
52 BRACKET; TORSION BAR 8-97120-750-0 02 1 9512- ● ●
53 NUT; BRKT,TORSION BAR
M6 FLANGE 		8-97063-399-0 04 1 9301- ● ●
54 FASTENER; TORSION BAR 8-94332-594-2 02 1 9301- ● ●
55 COLLAR; TAIL GATE CABLE 8-94379-234-1 04 1 9301- ● ●
