1-10 — RADIATOR (#4548) — 117 parça

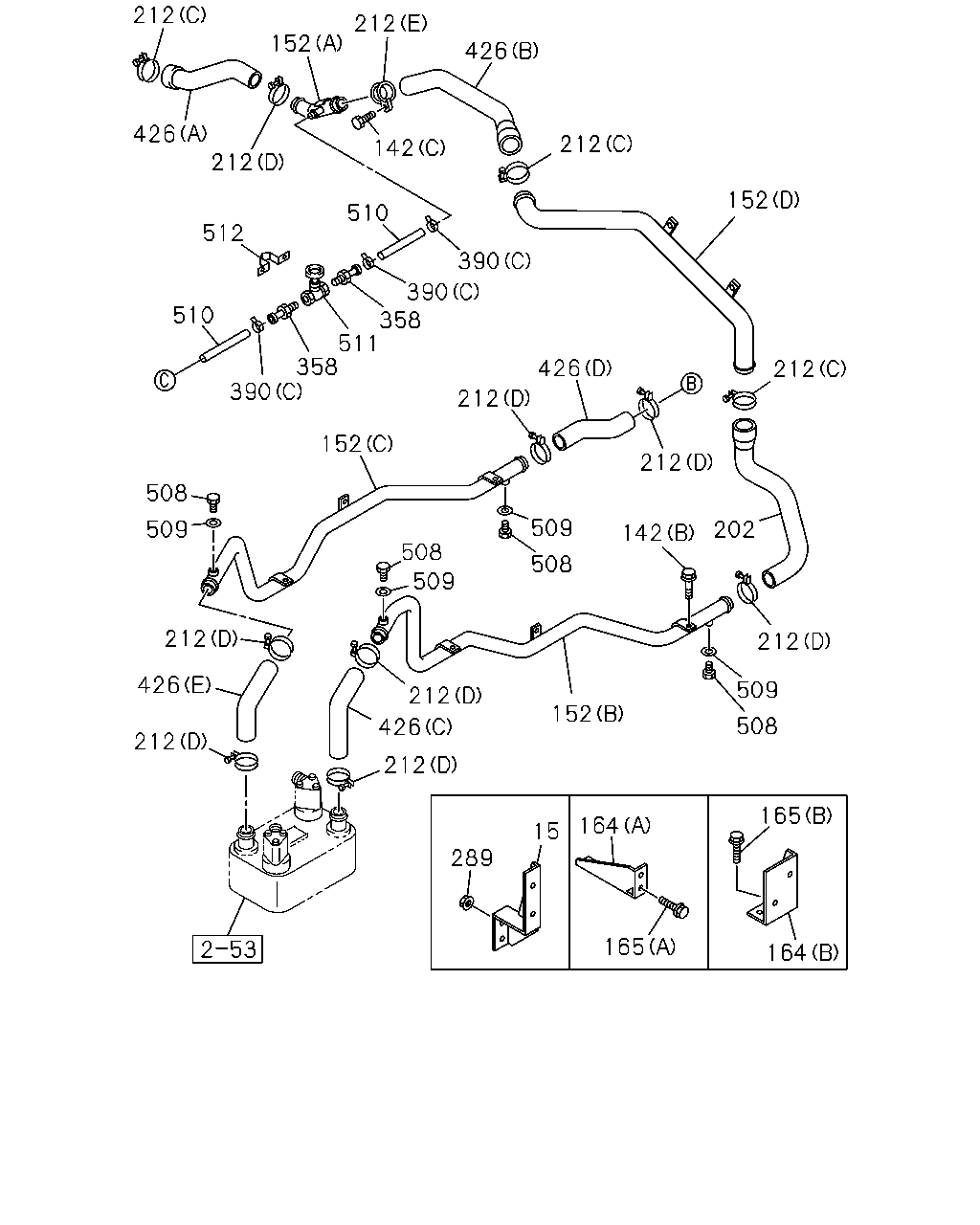

çizim 5266
212 212 152 426 426 212 212 142 152 510 512 390 390 358 511 358 390 510 426 212 212 152 212 508 509 509 202 142 508 508 509 212 212 426 509 212 152 508 426 212 212 165 164 15 289 165 164
BalonParca AdiParca NoAdetTipApplied Date
15 BRACKET; PIPE,RAD 1-21439-107-0 01 1 9712-
142 BOLT; PIPE
(C) M8X20 FLANGE 		0-28080-820-0 02 1 9712-9804
142 BOLT; PIPE
(B) M8X20 FLANGE 		0-28680-820-0 10 1 9712-
142 BOLT; PIPE
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9712-
152 PIPE; COOLER TO ENG
(A) 		1-21431-481-0 01 1 9712-
152 PIPE; COOLER TO ENG
(B) 		1-21431-507-0 01 1 9712-9712
152 PIPE; COOLER TO ENG
(B) 		1-21431-514-0 01 1 9801-
152 PIPE; COOLER TO ENG
(C) 		1-21431-508-0 01 1 9712-9712
152 PIPE; COOLER TO ENG
(C) 		1-21431-515-0 01 1 9801-
152 PIPE; COOLER TO ENG
(D) 		1-21431-509-0 01 1 9712-
152 PIPE; COOLER TO ENG
(E) 		1-21431-510-0 01 1 9712-
164 BRACKET; RAD PIPE TO C/MBR
(A) 		1-21439-101-0 01 1 9712-
164 BRACKET; RAD PIPE TO C/MBR
(B) 		1-21439-105-0 02 1 9712-
165 BOLT; BRKT TO C/MBR
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9712-
165 BOLT; BRKT TO C/MBR
(B) M10X25 FLANGE 		0-28681-025-0 09 1 9712-
202 HOSE; UPR 1-21437-716-0 01 1 9712-
212 CLIP; HOSE
(C) ID=72 		1-09704-068-0 02 1 9712-
212 CLIP; HOSE
(A) ID=14 		1-09704-102-0 04 1 9712-
212 CLIP; HOSE
(D) ID=63 		1-09704-106-0 04 1 9712-
212 CLIP; HOSE
(D) ID=63 		1-09704-106-0 07 1 9712-9804
212 CLIP; HOSE
(D) ID=63 		1-09704-106-0 06 1 9805-
212 CLIP; HOSE
(E) ID=68 		8-94224-262-0 01 1 9712-9804
212 CLIP; HOSE
(B) ID=19 		8-94238-569-0 01 1 9712-
215 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 04 1 9804-
266 DUCT; ENG TO RAD
(A) 		1-21431-497-0 01 1 9712-
266 DUCT; ENG TO RAD
(B) 		1-21431-498-0 01 1 9712-
289 NUT
M10 FLANGE 		0-91150-110-0 09 1 9712-
289 NUT
M8 		9-09110-408-0 01 1 9712-9804
289 NUT
M8 		9-09110-508-0 02 1 9805-
289 NUT
M4 		9-99110-404-0 06 1 9712-
358 JOINT; PIPE 4-60460-069-0 02 1 9712-9804
390 CLIP; RUBBER HOSE
(A) ID=72 		1-09704-068-0 01 1 9712-
390 CLIP; RUBBER HOSE
(B) ID=76 		1-09704-069-0 01 1 9712-
390 CLIP; RUBBER HOSE
(C) ID=19 		8-94238-569-0 03 1 9712-
426 HOSE; WATER
(D) 		1-21437-559-0 02 1 9712-
426 HOSE; WATER
(A) 		1-21437-712-0 01 1 9712-
426 HOSE; WATER
(B) 		1-21437-713-0 01 1 9712-
426 HOSE; WATER
(C) 		1-21437-714-0 01 1 9712-9712
426 HOSE; WATER
(C) 		1-21437-735-0 01 1 9801-
426 HOSE; WATER
(E) 		1-21437-715-0 01 1 9712-9712
426 HOSE; WATER
(E) 		1-21437-736-0 01 1 9801-
508 PLUG
M14 		8-94399-225-0 04 1 9801-
509 GASKET; JOINT BOLT
ID=14.2 OD=20.0 		9-09571-414-0 04 1 9801-
510 HOSE; RUBBER
L=800 		0-03112-800-0 02 1 9712-0103
510 HOSE; RUBBER
L=800 SERVICED BY L=3000 		0-03462-300-0 02 1 0104-
511 VALVE; STOP 4-60460-068-0 01 1 9712-9804
512 BRACKET; VLV,STOP 4-60460-146-0 02 1 9712-9804

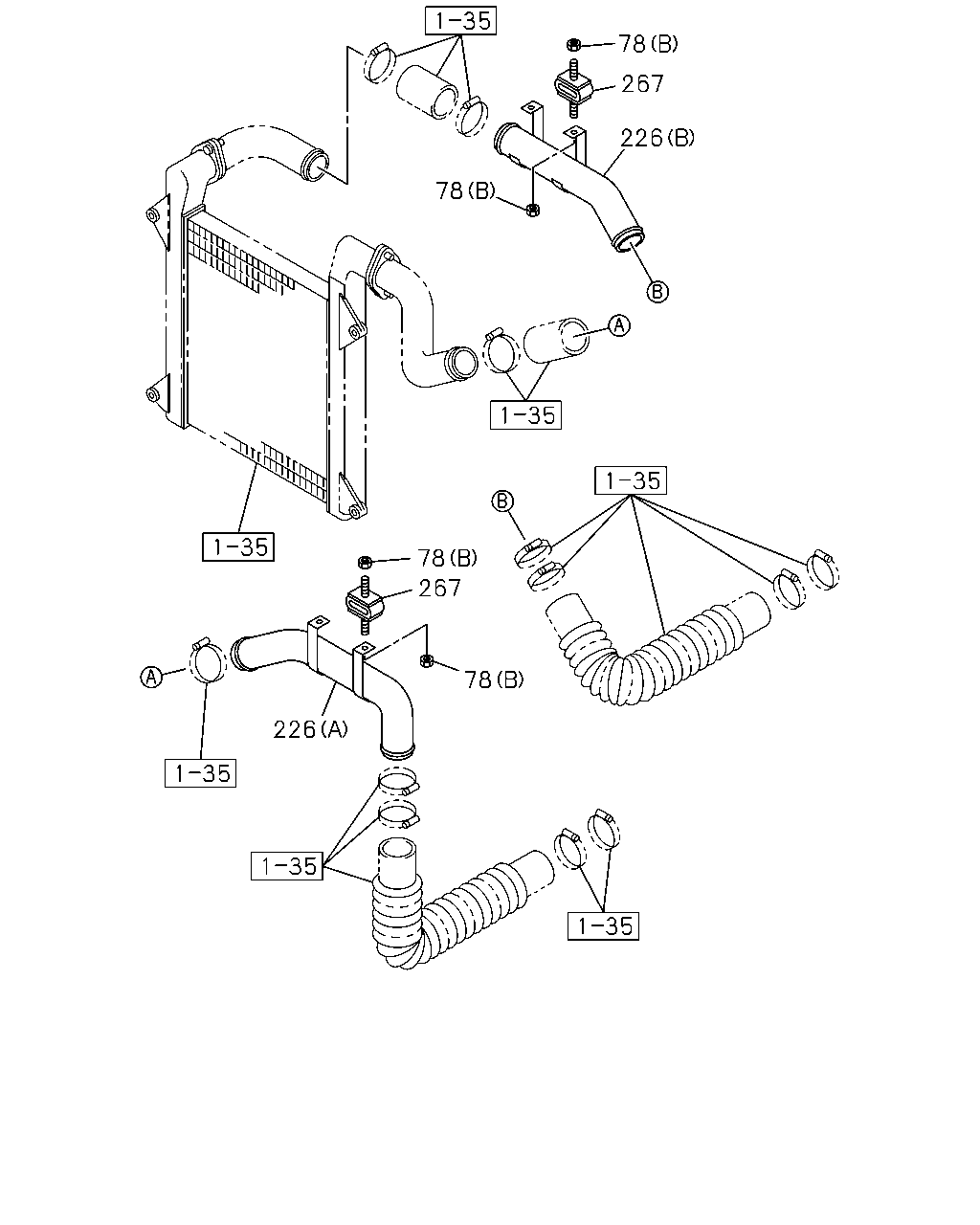

çizim 36412
78 267 226 78 78 267 78 226
BalonParca AdiParca NoAdetTipApplied Date
78 NUT; CUSHION RUBBER
(B) M8 FLANGE 		0-91150-108-0 08 1 9712-
78 NUT; CUSHION RUBBER
(A) M12 FLANGE 		0-91150-212-0 02 1 9712-
215 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 04 1 9804-
266 DUCT; ENG TO RAD
(A) 		1-21431-497-0 01 1 9712-
266 DUCT; ENG TO RAD
(B) 		1-21431-498-0 01 1 9712-
267 RUBBER; CUSHION 8-94394-268-1 04 1 9712-

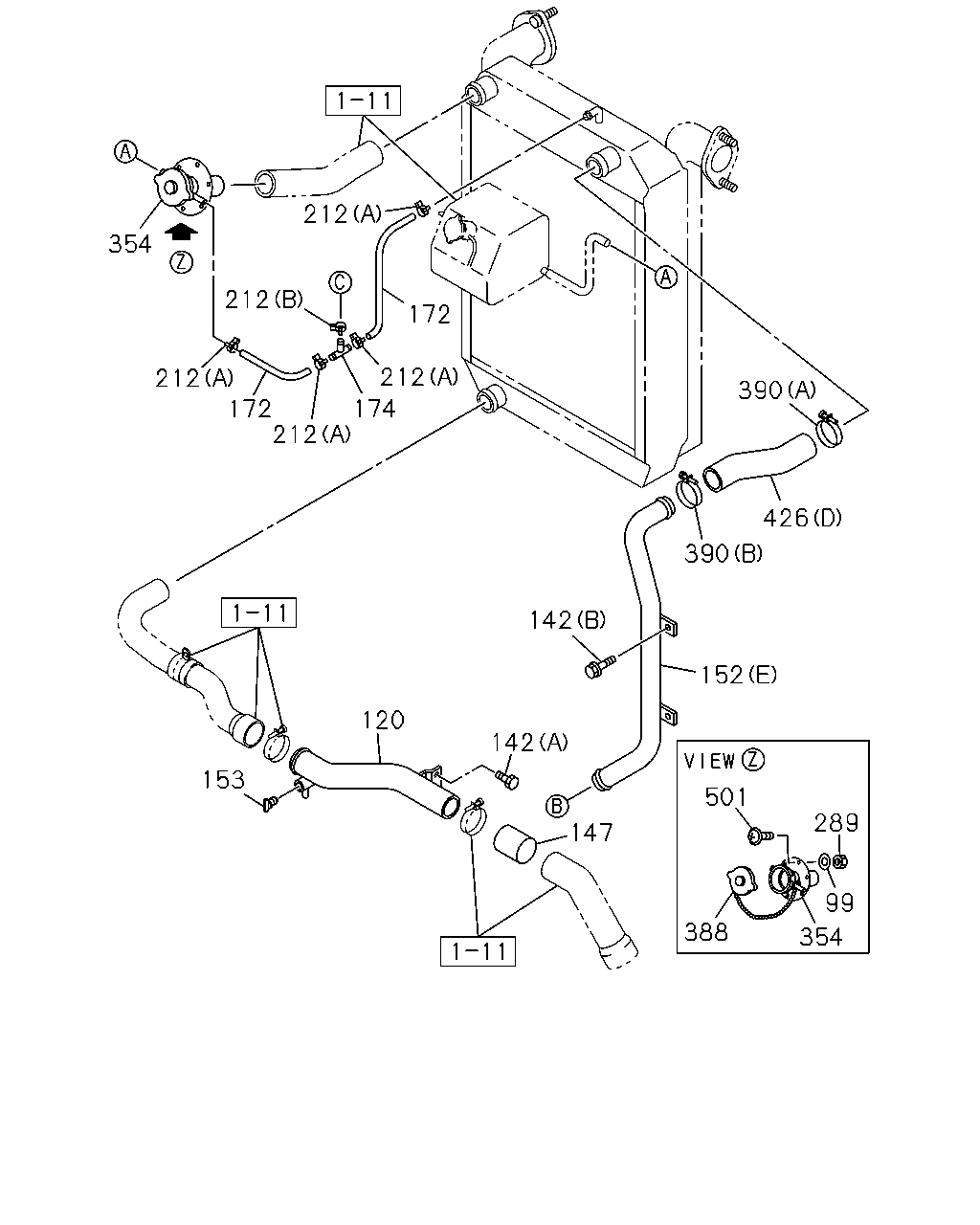

çizim 36883
212 354 212 172 212 212 172 212 390 174 426 390 142 152 120 142 153 501 147 289 99 388 354
BalonParca AdiParca NoAdetTipApplied Date
99 WASHER; PL
ID=4 OD=10 		8-94100-265-1 12 1 9712-
120 PIPE; HOSE TO HOSE,RAD OUTLET 1-21431-496-0 01 1 9712-
142 BOLT; PIPE
(C) M8X20 FLANGE 		0-28080-820-0 02 1 9712-9804
142 BOLT; PIPE
(B) M8X20 FLANGE 		0-28680-820-0 10 1 9712-
142 BOLT; PIPE
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9712-
147 PIPE; HOSE CONN,OUT 1-21431-453-1 01 1 9712-
152 PIPE; COOLER TO ENG
(A) 		1-21431-481-0 01 1 9712-
152 PIPE; COOLER TO ENG
(B) 		1-21431-507-0 01 1 9712-9712
152 PIPE; COOLER TO ENG
(B) 		1-21431-514-0 01 1 9801-
152 PIPE; COOLER TO ENG
(C) 		1-21431-508-0 01 1 9712-9712
152 PIPE; COOLER TO ENG
(C) 		1-21431-515-0 01 1 9801-
152 PIPE; COOLER TO ENG
(D) 		1-21431-509-0 01 1 9712-
152 PIPE; COOLER TO ENG
(E) 		1-21431-510-0 01 1 9712-
153 COCK; WATER DRAIN,RAD
W/GASKET 		1-09609-009-0 01 1 9712-
172 HOSE; RUBBER,BREATHER,SUB TANK
L=940 SERVICED BY L=3000 		0-03259-300-0 01 1 9712-0103
172 HOSE; RUBBER,BREATHER,SUB TANK
L=940 SERVICED BY L=3000 		0-03559-300-0 01 1 0104-
174 PIPE; 3 WAY 1-09669-050-1 01 1 9712-
212 CLIP; HOSE
(C) ID=72 		1-09704-068-0 02 1 9712-
212 CLIP; HOSE
(A) ID=14 		1-09704-102-0 04 1 9712-
212 CLIP; HOSE
(D) ID=63 		1-09704-106-0 04 1 9712-
212 CLIP; HOSE
(D) ID=63 		1-09704-106-0 07 1 9712-9804
212 CLIP; HOSE
(D) ID=63 		1-09704-106-0 06 1 9805-
212 CLIP; HOSE
(E) ID=68 		8-94224-262-0 01 1 9712-9804
212 CLIP; HOSE
(B) ID=19 		8-94238-569-0 01 1 9712-
215 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 04 1 9804-
266 DUCT; ENG TO RAD
(A) 		1-21431-497-0 01 1 9712-
266 DUCT; ENG TO RAD
(B) 		1-21431-498-0 01 1 9712-
289 NUT
M10 FLANGE 		0-91150-110-0 09 1 9712-
289 NUT
M8 		9-09110-408-0 01 1 9712-9804
289 NUT
M8 		9-09110-508-0 02 1 9805-
289 NUT
M4 		9-99110-404-0 06 1 9712-
354 FILLER; WATER 1-21450-125-1 01 1 9712-
388 CAP; FILLER,RAD WATER 1-21450-123-0 01 1 9712-
390 CLIP; RUBBER HOSE
(A) ID=72 		1-09704-068-0 01 1 9712-
390 CLIP; RUBBER HOSE
(B) ID=76 		1-09704-069-0 01 1 9712-
390 CLIP; RUBBER HOSE
(C) ID=19 		8-94238-569-0 03 1 9712-
426 HOSE; WATER
(D) 		1-21437-559-0 02 1 9712-
426 HOSE; WATER
(A) 		1-21437-712-0 01 1 9712-
426 HOSE; WATER
(B) 		1-21437-713-0 01 1 9712-
426 HOSE; WATER
(C) 		1-21437-714-0 01 1 9712-9712
426 HOSE; WATER
(C) 		1-21437-735-0 01 1 9801-
426 HOSE; WATER
(E) 		1-21437-715-0 01 1 9712-9712
426 HOSE; WATER
(E) 		1-21437-736-0 01 1 9801-
501 SCREW
M4X10 		9-03800-410-0 06 1 9712-

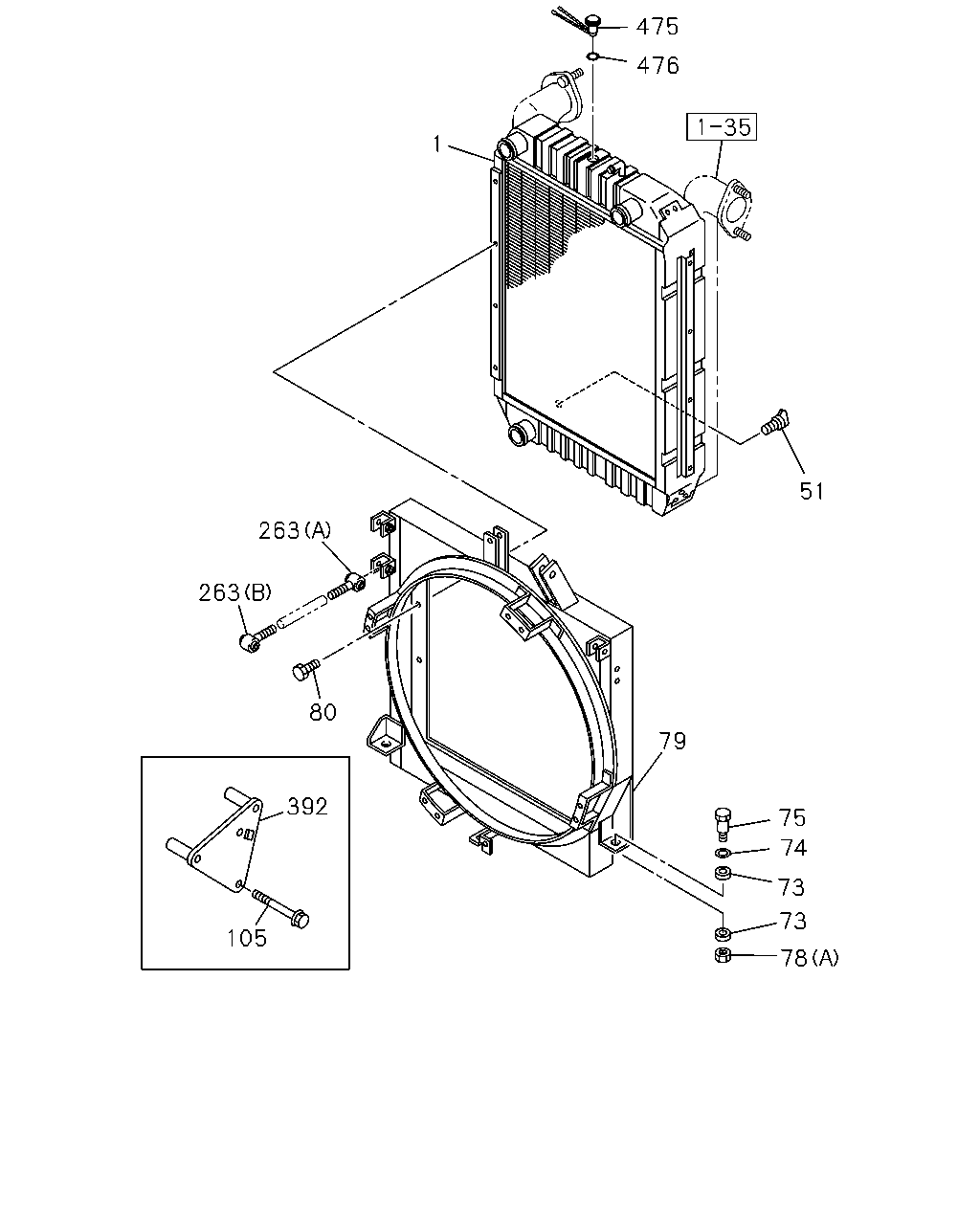

çizim 38934
475 476 1 51 263 263 80 79 392 75 74 73 73 105 78
BalonParca AdiParca NoAdetTipApplied Date
1 RADIATOR ASM 1-21410-792-1 01 1 9712-
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9712-
73 RUBBER; CUSHION,RAD MTG
T=24 		1-21467-011-1 04 1 9712-
74 WASHER; PL,CUSHION RUBBER 1-09503-262-0 02 1 9712-
75 BOLT; CUSHION RUBBER,RAD MTG
M12X77 		1-09009-162-0 02 1 9712-
78 NUT; CUSHION RUBBER
(B) M8 FLANGE 		0-91150-108-0 08 1 9712-
78 NUT; CUSHION RUBBER
(A) M12 FLANGE 		0-91150-212-0 02 1 9712-
79 GUIDE; FAN,RAD 1-21570-078-0 01 1 9712-9909
79 GUIDE; FAN,RAD 1-21570-089-0 01 1 9910-
80 BOLT; FAN GUIDE
M10X50 FLANGE 		0-28081-050-0 08 1 9712-
105 BOLT; BRKT
M12X110 		0-28186-211-0 03 1 9712-
215 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 04 1 9804-
263 END ASM; RAD TIE ROD
(A) RH THREAD 		9-21460-134-1 03 1 9712-
263 END ASM; RAD TIE ROD
(B) LH THREAD 		9-21460-135-1 03 1 9712-
266 DUCT; ENG TO RAD
(A) 		1-21431-497-0 01 1 9712-
266 DUCT; ENG TO RAD
(B) 		1-21431-498-0 01 1 9712-
392 BRACKET; FAN ADJ LINK 1-13676-086-1 01 1 9712-
475 SWITCH; WATER LEVEL 1-82480-070-0 01 1 9712-9807
475 SWITCH; WATER LEVEL 1-82480-091-0 01 1 9808-
476 GASKET; SWITCH,WATER LEVEL
ID=28 T=2.5 		1-09630-126-0 01 1 9712-
