6-75 — MAT AND CARPET (#45479) — 128 parça

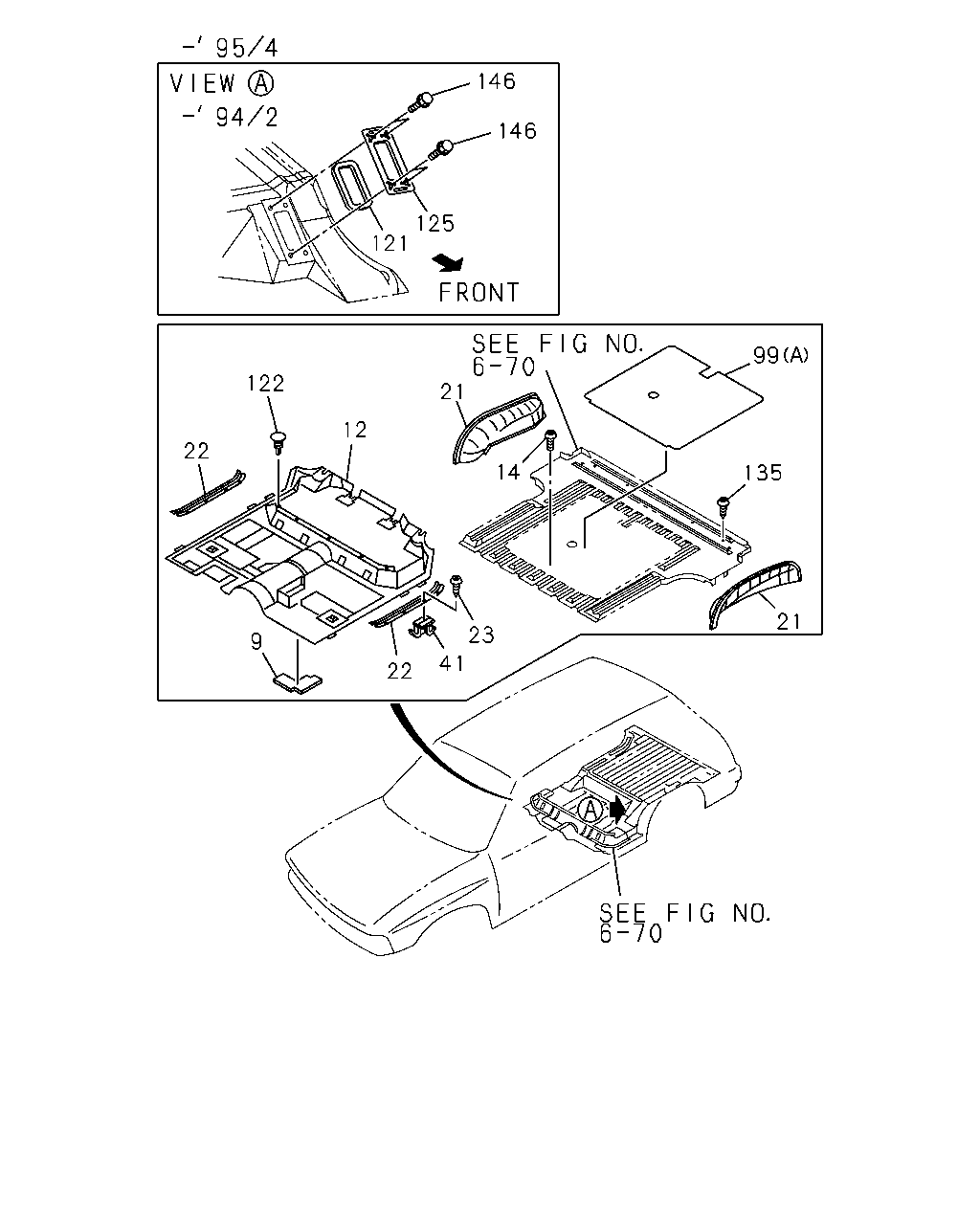

çizim 67127
146 146 125 121 22 122 12 21 99 135 21 23 41 22 9 14
BalonParca AdiParca NoAdetTipApplied Date A B
9 INSULATION; PAD,RR FLOOR 8-97015-027-2 01 1 9301- ● ●
9 INSULATION; PAD,RR FLOOR 8-97015-026-2 01 1 9301- ● ●
12 CARPET; FLOOR,RR
GRAY 		8-97007-447-7 01 1 9301-9504 ●
12 CARPET; FLOOR,RR
GRAY 		8-97007-449-7 01 1 9301-9504 ●
14 SCREW; PLATE
M8X16 W/CONCAVE WASHER 		8-97021-209-0 01 1 9301-9404 ● ●
14 SCREW; PLATE
M8X16 		8-94188-667-0 01 1 9405- ● ●
21 CARPET; RR WHEEL HOUSE
GRAY 		8-97082-248-0 01 1 9301-9308 ● ●
21 CARPET; RR WHEEL HOUSE
GRAY 		8-97098-130-0 01 1 9309-9504 ● ●
21 CARPET; RR WHEEL HOUSE
DARK GRAY 		8-97151-137-0 01 1 9505- ● ●
21 CARPET; RR WHEEL HOUSE
GRAY 		8-97082-244-0 01 1 9301-9504 ● ●
21 CARPET; RR WHEEL HOUSE
DARK GRAY 		8-97150-569-0 01 1 9505- ● ●
22 PLATE; SILL,RR
GRAY 		8-94376-785-1 01 1 9301-9504 ● ●
22 PLATE; SILL,RR
GRAY 		8-97150-571-1 01 1 9505- ● ●
22 PLATE; SILL,RR
GRAY 		8-94376-782-1 01 1 9301-9504 ● ●
22 PLATE; SILL,RR
GRAY 		8-97150-570-1 01 1 9505- ● ●
23 SCREW; SILL PLATE
M5X16 		8-94243-069-0 12 1 9301- ● ●
41 GROMMET; SCREW,SILL PLATE 8-94338-713-0 12 1 9301- ● ●
99 DEADENER; FLOOR
(B) 		8-97176-024-1 01 1 9607- ● ●
99 DEADENER; FLOOR
(B) 		8-97139-549-1 01 1 9607- ● ●
99 DEADENER; FLOOR
(A) 		8-94341-792-2 01 1 9301- ● ●
121 GASKET; S/ABS COVER 8-94369-942-0 01 1 9301-9402 ● ●
122 CLIP; CARPET
GRAY 		8-94476-812-0 03 1 9301-9504 ● ●
125 COVER; S/ABS 8-94369-861-0 01 1 9301-9402 ● ●
135 SCREW; MAT TO FLOOR
M5X16 		8-94243-069-0 05 1 9301- ● ●
146 BOLT; S/ABS COVER
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9301-9402 ● ●

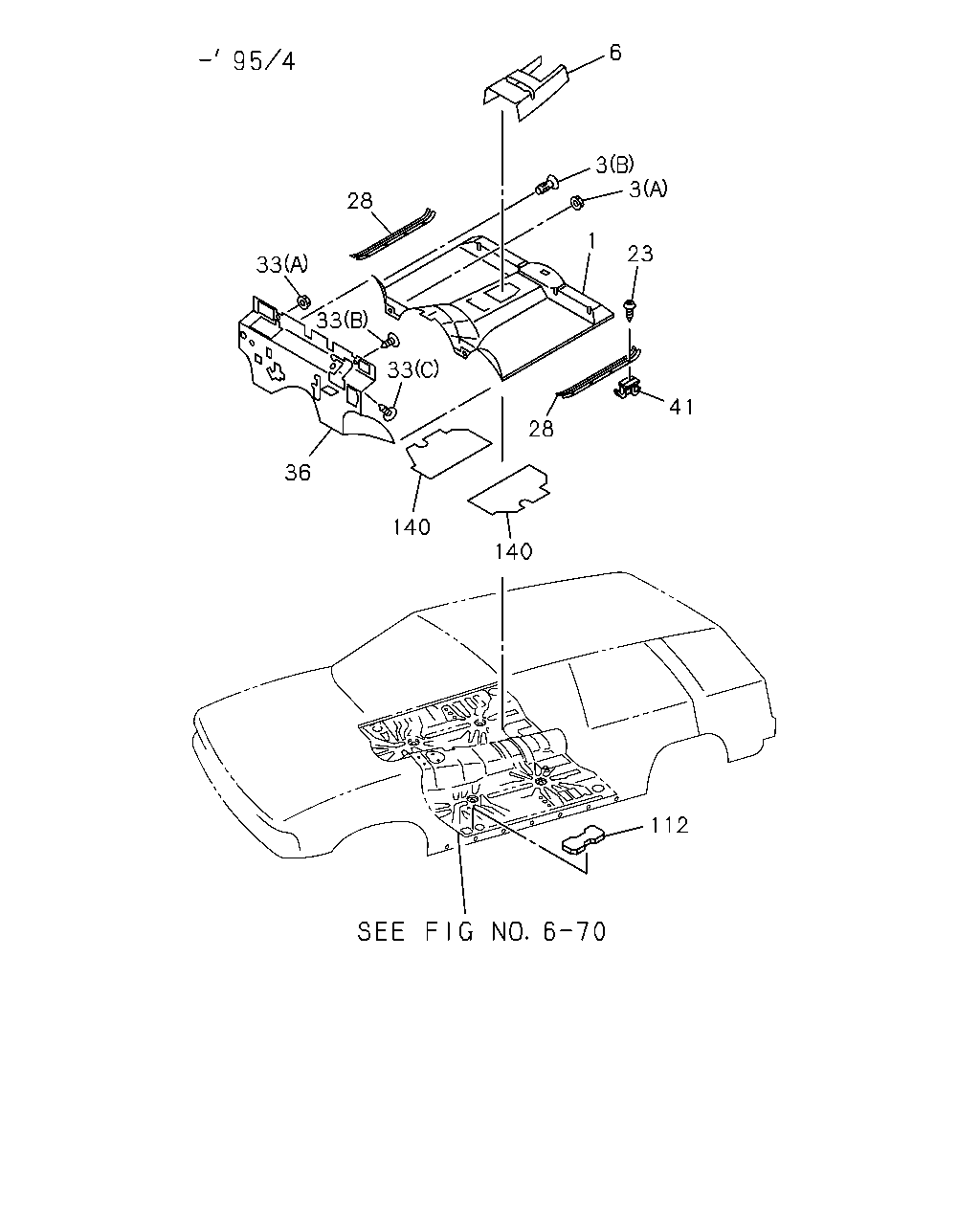

çizim 67732
6 3 3 23 1 41 28 140 140 36 33 33 33 28 112
BalonParca AdiParca NoAdetTipApplied Date A B
1 CARPET; FLOOR,FRT
A/T THM(RMQ) DARK GRAY 		8-97153-207-1 01 1 9505-9511 ●
1 CARPET; FLOOR,FRT
A/T THM(RMQ) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97154-000-2 01 1 9512-9607 ●
1 CARPET; FLOOR,FRT
A/T THM(RMQ) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97158-069-1 01 1 9608- ●
1 CARPET; FLOOR,FRT
A/T THM(RMQ) GRAY 		8-97009-944-2 01 1 9301-9408 ● ●
1 CARPET; FLOOR,FRT
A/T THM(RMQ) GRAY 		8-97151-242-0 01 1 9409-9410 ● ●
1 CARPET; FLOOR,FRT
A/T THM(RMQ) GRAY 		8-97153-571-0 01 1 9411-9504 ● ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97153-206-1 01 1 9505-9511 ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) LEATHER SEAT<6TB> DARK GRAY 		8-97153-999-2 01 1 9512-9607 ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97153-999-2 01 1 9512-9607 ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) LEATHER SEAT<6TB> DARK GRAY 		8-97158-068-1 01 1 9608- ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97158-068-1 01 1 9608- ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) GRAY 		8-97009-942-2 01 1 9301-9408 ● ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) GRAY 		8-97151-240-0 01 1 9409-9410 ● ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) GRAY 		8-97153-570-0 01 1 9411-9504 ● ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97153-205-1 01 1 9505-9511 ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97153-998-2 01 1 9512-9607 ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97158-067-1 01 1 9608- ●
1 CARPET; FLOOR,FRT
A/T THM(RMQ) DARK GRAY 		8-97153-208-1 01 1 9505-9511 ●
1 CARPET; FLOOR,FRT
A/T THM(RMQ) LEATHER SEAT<6TB> DARK GRAY 		8-97154-001-2 01 1 9512-9607 ●
1 CARPET; FLOOR,FRT
A/T THM(RMQ) DARK GRAY 		8-97154-001-2 01 1 9512-9607 ●
1 CARPET; FLOOR,FRT
A/T THM(RMQ) LEATHER SEAT<6TB> DARK GRAY 		8-97158-070-1 01 1 9608- ●
1 CARPET; FLOOR,FRT
A/T THM(RMQ) DARK GRAY 		8-97158-070-1 01 1 9608- ●
3 CLIP; CARPET FIX
(A) H=10.5 		8-94441-810-0 02 1 9301- ● ●
3 CLIP; CARPET FIX
(B) GRAY 		8-97000-170-0 02 1 9301-9504 ● ●
3 CLIP; CARPET FIX
(B) DARK GRAY 		8-97150-562-0 02 1 9505- ● ●
3 CLIP; CARPET FIX
(C) DARK GRAY 		8-97098-324-0 03 1 9505- ● ●
6 DEADENER; FLOOR GEAR BOX FRT 8-94435-435-2 01 1 9301-9504 ● ●
6 DEADENER; FLOOR GEAR BOX FRT 8-97100-148-1 01 1 9505-9511 ● ●
6 DEADENER; FLOOR GEAR BOX FRT
A/T THM(RMQ) 		8-97100-148-1 01 1 9512- ● ●
6 DEADENER; FLOOR GEAR BOX FRT
M/T MUA 5 SPEED(RMN) FLOOR REMOTE SHIFT<M11> 		8-97100-148-1 01 1 9512- ● ●
23 SCREW; SILL PLATE
M5X16 		8-94243-069-0 12 1 9301- ● ●
28 PLATE; SILL,FRT
GRAY 		8-94373-324-2 01 1 9301-9504 ● ●
28 PLATE; SILL,FRT
GRAY 		8-97150-573-2 01 1 9505- ● ●
28 PLATE; SILL,FRT
GRAY 		8-94373-293-2 01 1 9301-9504 ● ●
28 PLATE; SILL,FRT
GRAY 		8-97150-572-2 01 1 9505- ● ●
33 CLIP; INSULATION
(A) 		8-94441-810-0 03 1 9301- ● ●
33 CLIP; INSULATION
(B) 		8-94476-811-0 02 1 9301- ● ●
33 CLIP; INSULATION
(C) 		8-97046-468-0 01 1 9301-9306 ● ●
36 INSULATION; PAD,DASH INNER 8-97064-424-6 01 1 9301-9504 ● ●
36 INSULATION; PAD,DASH INNER 8-97108-302-2 01 1 9505- ● ●
41 GROMMET; SCREW,SILL PLATE 8-94338-713-0 12 1 9301- ● ●
112 INSULATION; PAD,FRT FLOOR 8-94384-527-1 02 1 9301- ● ●
140 DEADENER; DASH LWR PANEL 8-94331-142-0 02 1 9301- ● ●

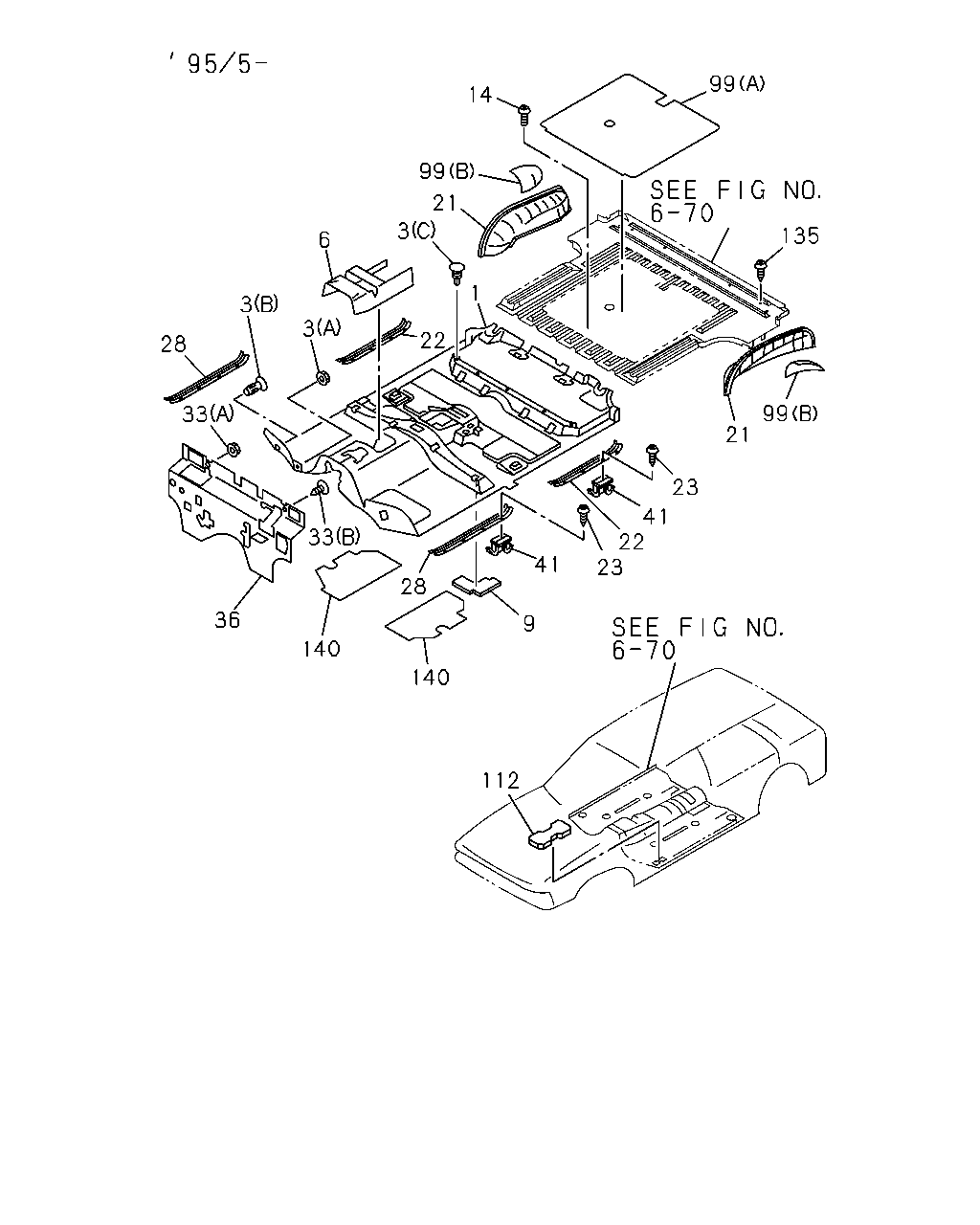

çizim 70688
99 135 99 21 23 41 22 23 41 9 112 140 28 140 36 33 33 28 3 3 6 22 1 3 21 99 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 CARPET; FLOOR,FRT
A/T THM(RMQ) DARK GRAY 		8-97153-207-1 01 1 9505-9511 ●
1 CARPET; FLOOR,FRT
A/T THM(RMQ) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97154-000-2 01 1 9512-9607 ●
1 CARPET; FLOOR,FRT
A/T THM(RMQ) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97158-069-1 01 1 9608- ●
1 CARPET; FLOOR,FRT
A/T THM(RMQ) GRAY 		8-97009-944-2 01 1 9301-9408 ● ●
1 CARPET; FLOOR,FRT
A/T THM(RMQ) GRAY 		8-97151-242-0 01 1 9409-9410 ● ●
1 CARPET; FLOOR,FRT
A/T THM(RMQ) GRAY 		8-97153-571-0 01 1 9411-9504 ● ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97153-206-1 01 1 9505-9511 ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) LEATHER SEAT<6TB> DARK GRAY 		8-97153-999-2 01 1 9512-9607 ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97153-999-2 01 1 9512-9607 ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) LEATHER SEAT<6TB> DARK GRAY 		8-97158-068-1 01 1 9608- ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97158-068-1 01 1 9608- ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) GRAY 		8-97009-942-2 01 1 9301-9408 ● ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) GRAY 		8-97151-240-0 01 1 9409-9410 ● ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) GRAY 		8-97153-570-0 01 1 9411-9504 ● ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97153-205-1 01 1 9505-9511 ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97153-998-2 01 1 9512-9607 ●
1 CARPET; FLOOR,FRT
M/T MUA 5 SPEED(RMN) EXC. LEATHER SEAT<6TB> DARK GRAY 		8-97158-067-1 01 1 9608- ●
1 CARPET; FLOOR,FRT
A/T THM(RMQ) DARK GRAY 		8-97153-208-1 01 1 9505-9511 ●
1 CARPET; FLOOR,FRT
A/T THM(RMQ) LEATHER SEAT<6TB> DARK GRAY 		8-97154-001-2 01 1 9512-9607 ●
1 CARPET; FLOOR,FRT
A/T THM(RMQ) DARK GRAY 		8-97154-001-2 01 1 9512-9607 ●
1 CARPET; FLOOR,FRT
A/T THM(RMQ) LEATHER SEAT<6TB> DARK GRAY 		8-97158-070-1 01 1 9608- ●
1 CARPET; FLOOR,FRT
A/T THM(RMQ) DARK GRAY 		8-97158-070-1 01 1 9608- ●
3 CLIP; CARPET FIX
(A) H=10.5 		8-94441-810-0 02 1 9301- ● ●
3 CLIP; CARPET FIX
(B) GRAY 		8-97000-170-0 02 1 9301-9504 ● ●
3 CLIP; CARPET FIX
(B) DARK GRAY 		8-97150-562-0 02 1 9505- ● ●
3 CLIP; CARPET FIX
(C) DARK GRAY 		8-97098-324-0 03 1 9505- ● ●
6 DEADENER; FLOOR GEAR BOX FRT 8-94435-435-2 01 1 9301-9504 ● ●
6 DEADENER; FLOOR GEAR BOX FRT 8-97100-148-1 01 1 9505-9511 ● ●
6 DEADENER; FLOOR GEAR BOX FRT
A/T THM(RMQ) 		8-97100-148-1 01 1 9512- ● ●
6 DEADENER; FLOOR GEAR BOX FRT
M/T MUA 5 SPEED(RMN) FLOOR REMOTE SHIFT<M11> 		8-97100-148-1 01 1 9512- ● ●
9 INSULATION; PAD,RR FLOOR 8-97015-027-2 01 1 9301- ● ●
9 INSULATION; PAD,RR FLOOR 8-97015-026-2 01 1 9301- ● ●
14 SCREW; PLATE
M8X16 W/CONCAVE WASHER 		8-97021-209-0 01 1 9301-9404 ● ●
14 SCREW; PLATE
M8X16 		8-94188-667-0 01 1 9405- ● ●
21 CARPET; RR WHEEL HOUSE
GRAY 		8-97082-248-0 01 1 9301-9308 ● ●
21 CARPET; RR WHEEL HOUSE
GRAY 		8-97098-130-0 01 1 9309-9504 ● ●
21 CARPET; RR WHEEL HOUSE
DARK GRAY 		8-97151-137-0 01 1 9505- ● ●
21 CARPET; RR WHEEL HOUSE
GRAY 		8-97082-244-0 01 1 9301-9504 ● ●
21 CARPET; RR WHEEL HOUSE
DARK GRAY 		8-97150-569-0 01 1 9505- ● ●
22 PLATE; SILL,RR
GRAY 		8-94376-785-1 01 1 9301-9504 ● ●
22 PLATE; SILL,RR
GRAY 		8-97150-571-1 01 1 9505- ● ●
22 PLATE; SILL,RR
GRAY 		8-94376-782-1 01 1 9301-9504 ● ●
22 PLATE; SILL,RR
GRAY 		8-97150-570-1 01 1 9505- ● ●
23 SCREW; SILL PLATE
M5X16 		8-94243-069-0 12 1 9301- ● ●
28 PLATE; SILL,FRT
GRAY 		8-94373-324-2 01 1 9301-9504 ● ●
28 PLATE; SILL,FRT
GRAY 		8-97150-573-2 01 1 9505- ● ●
28 PLATE; SILL,FRT
GRAY 		8-94373-293-2 01 1 9301-9504 ● ●
28 PLATE; SILL,FRT
GRAY 		8-97150-572-2 01 1 9505- ● ●
33 CLIP; INSULATION
(A) 		8-94441-810-0 03 1 9301- ● ●
33 CLIP; INSULATION
(B) 		8-94476-811-0 02 1 9301- ● ●
33 CLIP; INSULATION
(C) 		8-97046-468-0 01 1 9301-9306 ● ●
36 INSULATION; PAD,DASH INNER 8-97064-424-6 01 1 9301-9504 ● ●
36 INSULATION; PAD,DASH INNER 8-97108-302-2 01 1 9505- ● ●
41 GROMMET; SCREW,SILL PLATE 8-94338-713-0 12 1 9301- ● ●
99 DEADENER; FLOOR
(B) 		8-97176-024-1 01 1 9607- ● ●
99 DEADENER; FLOOR
(B) 		8-97139-549-1 01 1 9607- ● ●
99 DEADENER; FLOOR
(A) 		8-94341-792-2 01 1 9301- ● ●
112 INSULATION; PAD,FRT FLOOR 8-94384-527-1 02 1 9301- ● ●
135 SCREW; MAT TO FLOOR
M5X16 		8-94243-069-0 05 1 9301- ● ●
140 DEADENER; DASH LWR PANEL 8-94331-142-0 02 1 9301- ● ●
