◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#45478) — 61 parça

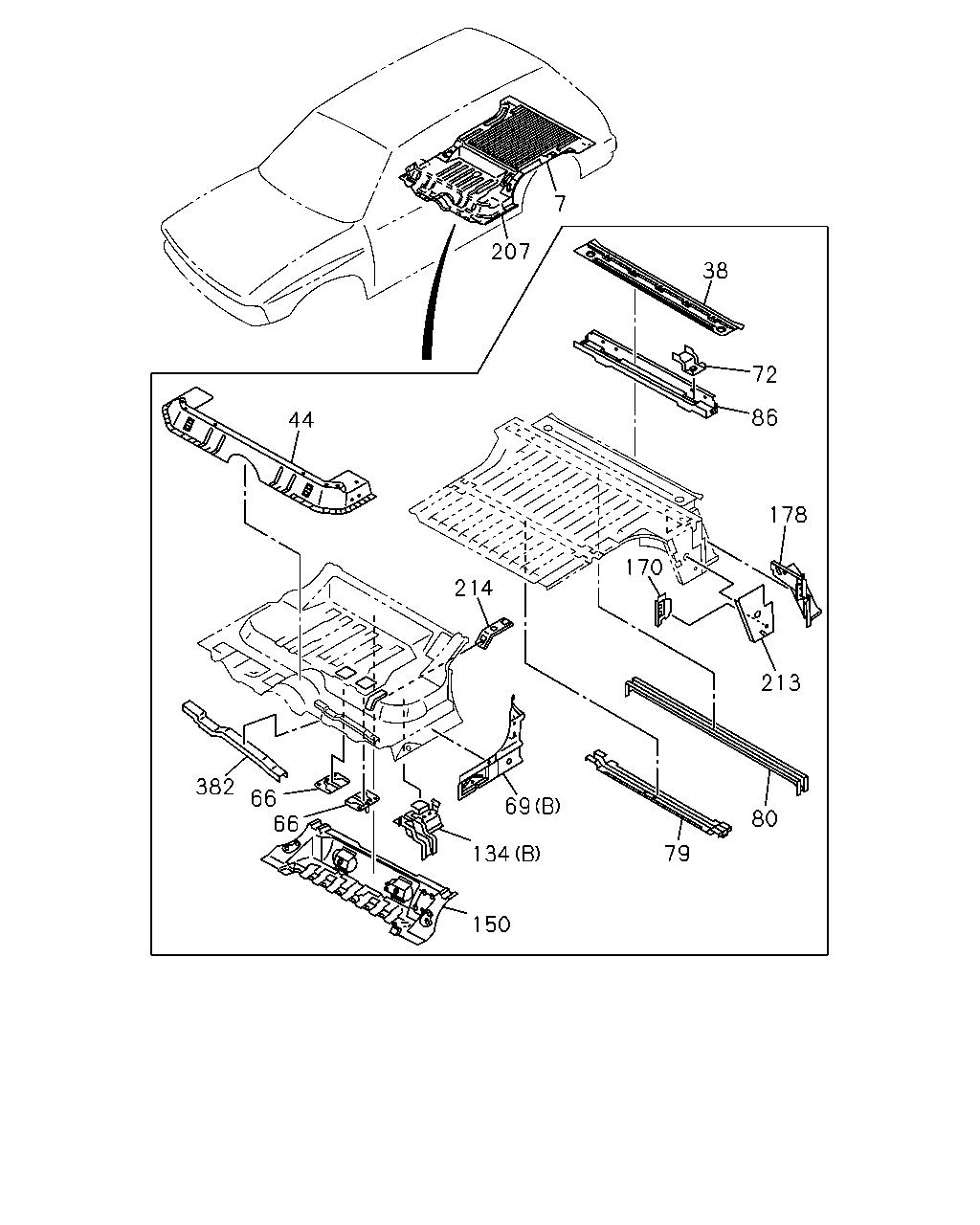

çizim 67100
7 207 38 72 86 178 170 213 80 79 69 134 150 66 66 382 214 44
BalonParca AdiParca NoAdetTipApplied Date
7 PANEL; RR FLOOR,RR 8-94316-455-3 01 1 9301-
38 CLOSING; RR END 8-94316-472-1 01 1 9301-
44 BAR; FRT COMPT PAN,RR 8-94328-471-2 01 1 9301-
66 PROTECTOR; EXH PIPE,RR 8-94316-447-0 02 1 9301-
69 PANEL; ROCKER INNER
(A) 		8-94328-468-1 01 1 9301-
69 PANEL; ROCKER INNER
(B) 		8-94369-272-1 01 1 9301-
69 PANEL; ROCKER INNER
(A) 		8-94328-467-1 01 1 9301-
69 PANEL; ROCKER INNER
(B) 		8-94369-271-1 01 1 9301-
72 BRACKET; CAB MTG,RR 8-94316-474-1 01 1 9301-
72 BRACKET; CAB MTG,RR 8-94316-473-1 01 1 9301-
79 BOLSTER ASM; RR FLOOR NO 3 8-94316-462-1 01 1 9301-
80 BOLSTER ASM; RR FLOOR NO.4 8-94316-465-1 01 1 9301-
86 BAR; RR END 8-94316-469-2 01 1 9301-
134 BRACKET; BODY MTG
(A) 		8-97021-702-2 01 1 9301-9508
134 BRACKET; BODY MTG
(A) 		8-97803-497-0 01 1 9509-
134 BRACKET; BODY MTG
(A) 		8-97021-701-2 01 1 9301-9508
134 BRACKET; BODY MTG
(A) 		8-97803-496-0 01 1 9509-
134 BRACKET; BODY MTG
(B) 		8-94316-451-1 01 1 9301-9504
134 BRACKET; BODY MTG
(B) 		8-97108-173-3 01 1 9505-
134 BRACKET; BODY MTG
(B) 		8-94316-452-1 01 1 9301-9504
134 BRACKET; BODY MTG
(B) 		8-97108-174-3 01 1 9505-
150 BRACKET; SEAT BELT,ANCHOR 8-94316-442-6 01 1 9301-9504
150 BRACKET; SEAT BELT,ANCHOR 8-97109-464-1 01 1 9505-
170 EXTENSION; RR FLOOR 8-94365-474-0 01 1 9301-
170 EXTENSION; RR FLOOR 8-94365-475-0 01 1 9301-
178 GUSSET; FLOOR END 8-94369-270-2 01 1 9301-
178 GUSSET; FLOOR END 8-94369-269-2 01 1 9301-
207 PANEL; FLOOR,RR CTR 8-94316-435-6 01 1 9301-
213 PANEL; RR FLOOR SIDE 8-94365-819-1 01 1 9301-
213 PANEL; RR FLOOR SIDE 8-94365-818-0 01 1 9301-
214 PANEL; SEAT MTG,FRT 8-94316-445-0 04 1 9301-
382 STIFFENER; RR FLOOR 8-94368-858-2 02 1 9301-

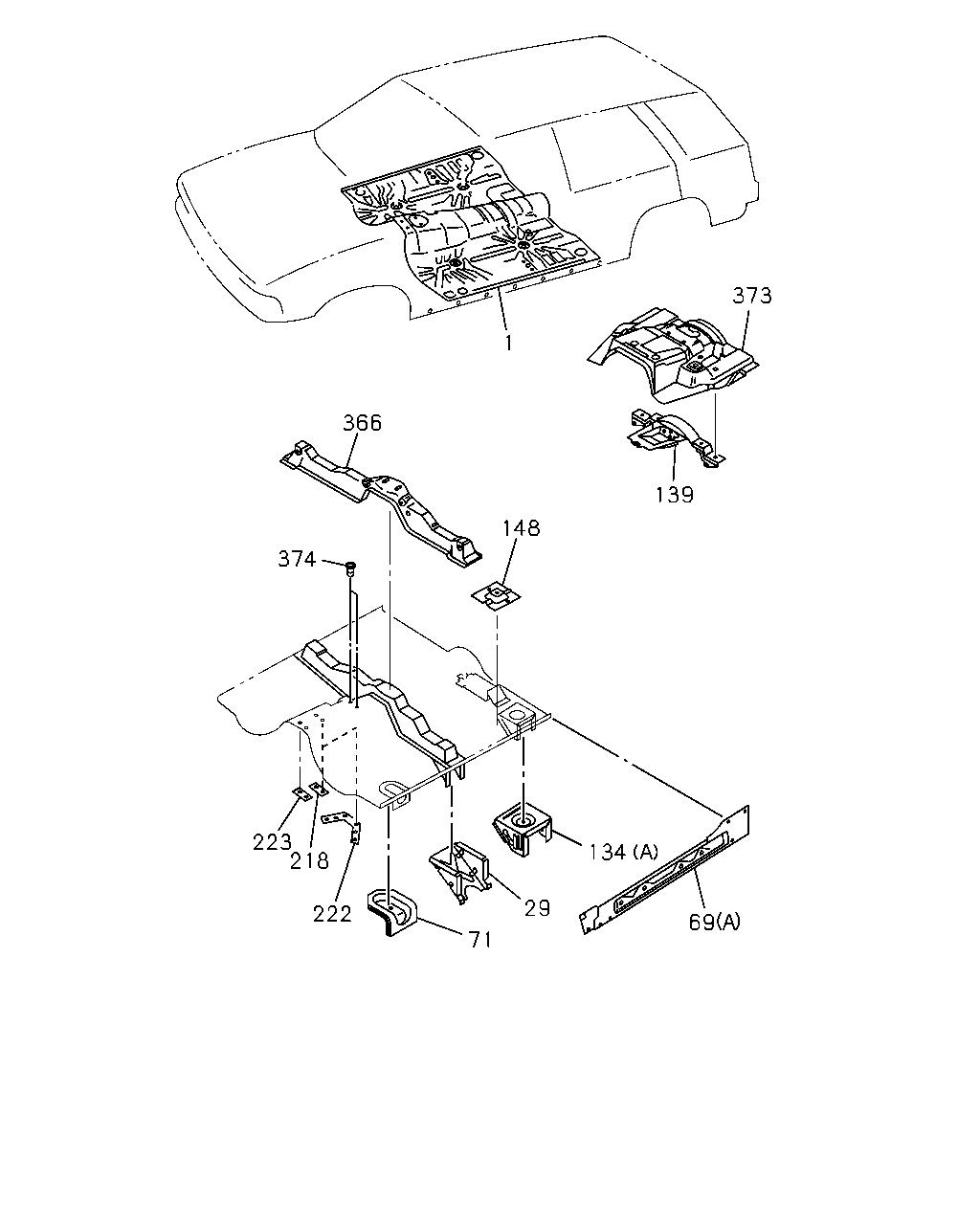

çizim 67760
1 373 139 148 366 374 223 218 222 71 29 134 69
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR 8-97062-623-4 01 1 9301-9504
1 PANEL; FLOOR 8-97109-467-2 01 1 9505-
29 GUSSET 8-94435-652-1 02 1 9301-
69 PANEL; ROCKER INNER
(A) 		8-94328-468-1 01 1 9301-
69 PANEL; ROCKER INNER
(B) 		8-94369-272-1 01 1 9301-
69 PANEL; ROCKER INNER
(A) 		8-94328-467-1 01 1 9301-
69 PANEL; ROCKER INNER
(B) 		8-94369-271-1 01 1 9301-
71 BRACKET; CAB MTG,CENTER 8-94359-298-1 01 1 9301-
71 BRACKET; CAB MTG,CENTER 8-94359-297-1 01 1 9301-
134 BRACKET; BODY MTG
(A) 		8-97021-702-2 01 1 9301-9508
134 BRACKET; BODY MTG
(A) 		8-97803-497-0 01 1 9509-
134 BRACKET; BODY MTG
(A) 		8-97021-701-2 01 1 9301-9508
134 BRACKET; BODY MTG
(A) 		8-97803-496-0 01 1 9509-
134 BRACKET; BODY MTG
(B) 		8-94316-451-1 01 1 9301-9504
134 BRACKET; BODY MTG
(B) 		8-97108-173-3 01 1 9505-
134 BRACKET; BODY MTG
(B) 		8-94316-452-1 01 1 9301-9504
134 BRACKET; BODY MTG
(B) 		8-97108-174-3 01 1 9505-
139 BRACKET; HAND BRAKE LEVER 8-97033-047-4 01 1 9301-
148 BRACKET; SEAT 8-97802-746-0 02 1 9301-9311
148 BRACKET; SEAT 8-94435-642-0 02 1 9312-9607
148 BRACKET; SEAT 8-94435-642-0 02 1 9608-
218 PATCH; A/T CONT LEVER 8-97800-803-0 01 1 9301-9504
222 PATCH; BRKT 8-97108-152-1 01 1 9505-
223 PATCH; CONSOLE BOX 8-94447-561-0 01 1 9301-
366 BAR ASM; FRT SEAT MTG 8-94326-399-2 01 1 9301-9510
366 BAR ASM; FRT SEAT MTG 8-97135-427-2 01 1 9511-
373 REINFORCEMENT; SEAT BELT 8-97064-076-7 01 1 9301-9510
373 REINFORCEMENT; SEAT BELT 8-97135-425-0 01 1 9511-
374 NUT; FLOOR
M8 POP NUT 		8-94279-538-0 02 1 9512-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
