◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#45476) — 36 parça

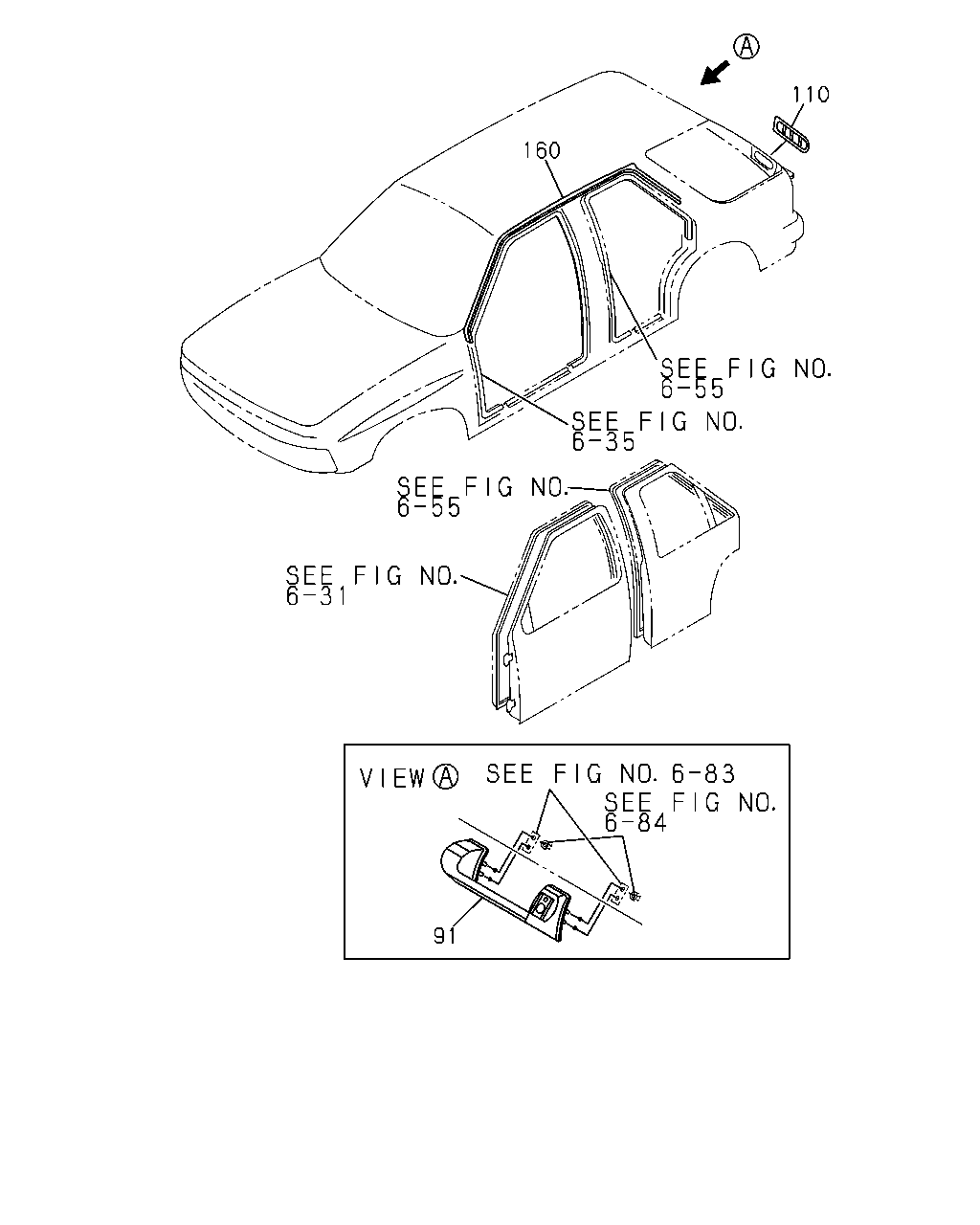

çizim 17119
110 160 91
BalonParca AdiParca NoAdetTipApplied Date A B
91 PROTECTOR; RR WIPER
RR WIPER<C25> 		8-94379-243-3 01 1 9301- ● ●
110 VALVE; OUTLET VENT 8-94379-232-2 02 1 9301- ● ●
160 SEAL; DRIP 8-97080-769-1 01 1 9301-9308 ● ●
160 SEAL; DRIP 8-97102-673-0 01 1 9309- ● ●
160 SEAL; DRIP 8-97080-768-1 01 1 9301-9308 ● ●
160 SEAL; DRIP 8-97102-672-0 01 1 9309- ● ●

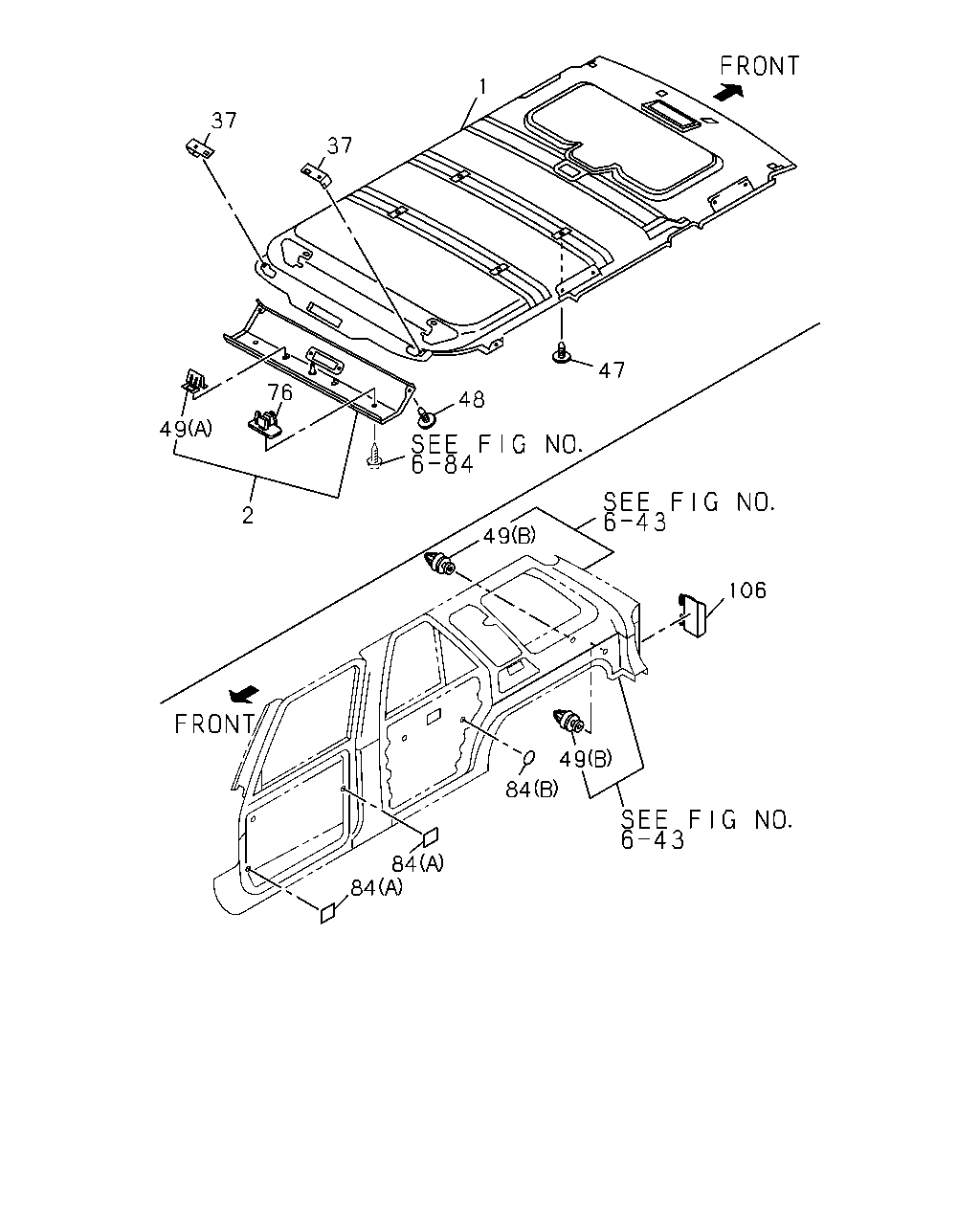

çizim 67131
1 37 37 49 76 2 48 47 49 106 49 84 84 84
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINING; HD
MAP LAMP<UF3> EXC. SUN ROOF<CF7> GRAY 		8-97007-991-4 01 1 9301-9405 ● ●
1 LINING; HD
MAP LAMP<UF3> EXC. SUN ROOF<CF7> GRAY 		8-97152-048-0 01 1 9406-9504 ● ●
1 LINING; HD
MAP LAMP<UF3> AM/FM CASSETTE 4 SPEAKERS<UM6>,AM/FM CASSETE 6 SPEAKERS<7AK> EXC. SUN ROOF<CF7> LIGHT GRAY 		8-97153-161-1 01 1 9505- ● ●
1 LINING; HD
MAP LAMP<UF3> EXC. SUN ROOF<CF7>,AM/FM CASSETTE 4 SPEAKERS<UM6>, AM/FM CASSETE 6 SPEAKERS<7AK> GRAY 		8-97153-163-0 01 1 9505- ● ●
1 LINING; HD
SUN ROOF<CF7> MAP LAMP<UF3> GRAY 		8-97007-996-5 01 1 9303-9405 ● ●
1 LINING; HD
SUN ROOF<CF7> MAP LAMP<UF3> GRAY 		8-97152-053-0 01 1 9406-9504 ● ●
1 LINING; HD
SUN ROOF<CF7> MAP LAMP<UF3> AM/FM CASSETTE 4 SPEAKERS<UM6>,AM/FM CASSETE 6 SPEAKERS<7AK> GRAY 		8-97153-164-1 01 1 9505- ● ●
1 LINING; HD
SUN ROOF<CF7> MAP LAMP<UF3> EXC. AM/FM CASSETTE 4 SPEAKERS<UM6>,AM/FM CASSETE 6 SPEAKERS<7AK> GRAY 		8-97153-165-0 01 1 9505- ● ●
1 LINING; HD
EXC. SUN ROOF<CF7>,MAP LAMP<UF3> GRAY 		8-97007-993-4 01 1 9301-9405 ● ●
1 LINING; HD
EXC. SUN ROOF<CF7>,MAP LAMP<UF3> GRAY 		8-97152-047-0 01 1 9406-9504 ● ●
1 LINING; HD
AM/FM CASSETTE 4 SPEAKERS<UM6>,AM/FM CASSETE 6 SPEAKERS<7AK> EXC. SUN ROOF<CF7>,MAP LAMP<UF3> GRAY 		8-97153-160-1 01 1 9505- ● ●
1 LINING; HD
EXC. SUN ROOF<CF7>,MAP LAMP<UF3>,AM/FM CASSETTE 4 SPEAKERS<UM6>,AM/FM CASSETE 6 SPEAKERS<7AK> GRAY 		8-97153-162-0 01 1 9505- ● ●
2 LINING; HD,ROOF RR
GRAY 		8-94376-818-3 01 1 9301-9504 ● ●
2 LINING; HD,ROOF RR
GRAY 		8-97150-617-3 01 1 9505- ● ●
37 BRACKET; ROOF TRIM,RR 8-94369-950-1 01 1 9301- ● ●
37 BRACKET; ROOF TRIM,RR 8-94369-949-1 01 1 9301- ● ●
47 CLIP; HEADLINING
GRAY 		8-97000-722-0 10 1 9301-9504 ● ●
47 CLIP; HEADLINING
LIGHT GRAY 		8-97153-166-0 10 1 9505- ● ●
48 CLIP; ROOF SIDE TRIM
GRAY 		8-97000-722-0 02 1 9301-9504 ● ●
48 CLIP; ROOF SIDE TRIM
GRAY 		8-97150-618-0 02 1 9505- ● ●
49 CLIP; TRIM COVER
(A) H=13 		8-94438-727-0 02 1 9301- ● ●
49 CLIP; TRIM COVER
(B) H=16.7 		8-97022-017-0 44 1 9301- ● ●
76 GROMMET; SCREW,ROOF RR TRIM 8-94338-713-0 02 1 9301- ● ●
84 PATCH; WATER PROOF SHEET,DOOR
(B) OD=30 		8-97040-577-0 02 1 9301- ● ●
84 PATCH; WATER PROOF SHEET,DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A30> (A) 45X45 T=0.08 		8-94238-288-1 02 1 9301- ● ●
84 PATCH; WATER PROOF SHEET,DOOR
POWER WINDOW<A30> (A) 45X45 T=0.08 		8-94238-288-1 02 1 9301- ● ●
84 PATCH; WATER PROOF SHEET,DOOR
POWER WINDOW<A30> (A) 45X45 T=0.08 		8-94238-288-1 06 1 9301- ● ●
84 PATCH; WATER PROOF SHEET,DOOR
EXC. POWER WINDOW<A30> (A) 45X45 T=0.08 		8-94238-288-1 04 1 9301- ● ●
106 STOPPER; TAIL GATE CABLE
GRAY 		8-97001-655-0 02 1 9301-9504 ● ●
106 STOPPER; TAIL GATE CABLE
GRAY 		8-97153-083-0 02 1 9505- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
