Isuzu WW
▶
SUV
▶
UC
▶
50688 - UC-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

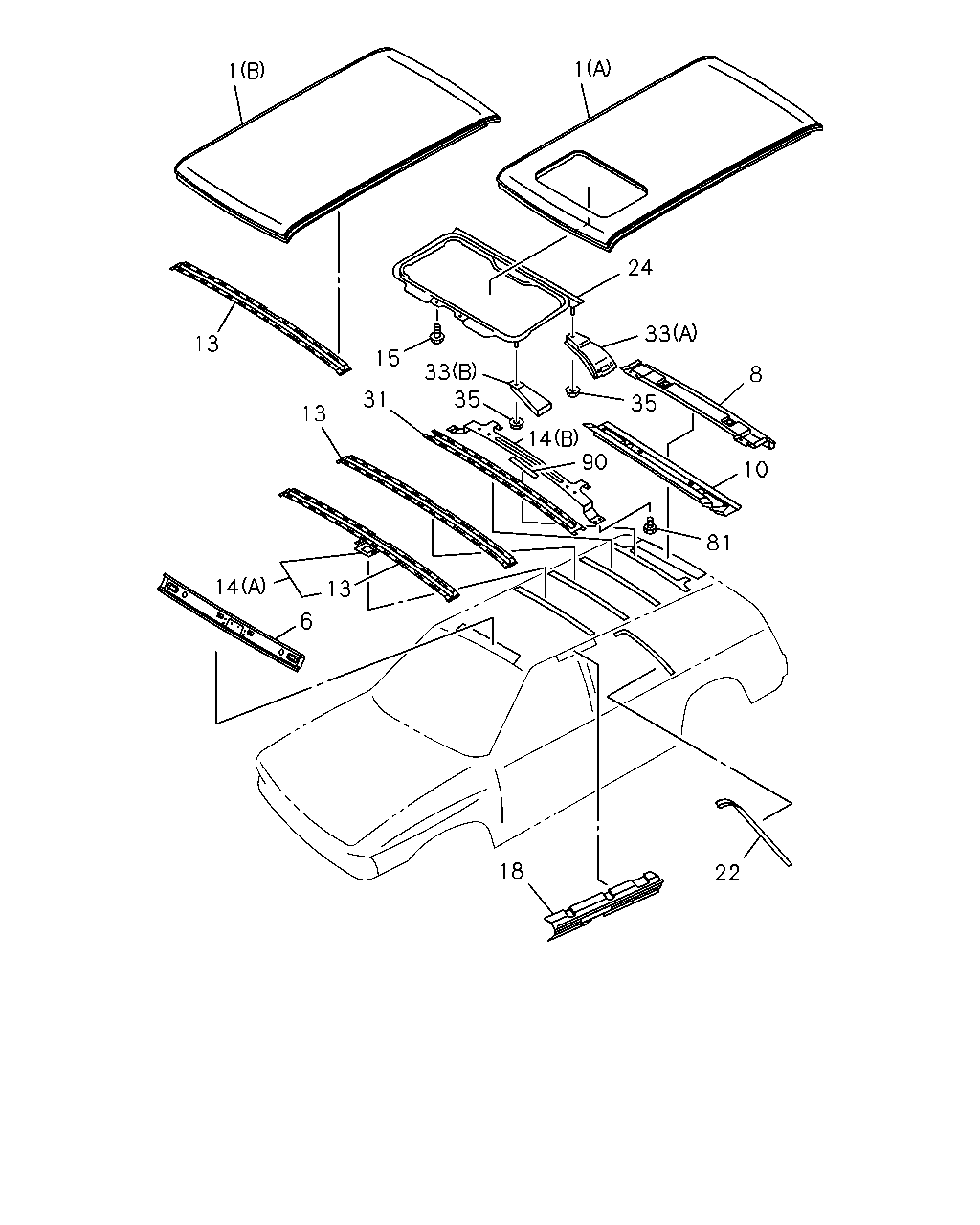

6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#45474) — 27 parça
1
13
13
13
6
14
31
15
33
35
14
90
81
22
18
10
8
35
33
24
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
(B)
8-94326-912-3
01
1
9301-9302
1
PANEL; ROOF
EXC. SUN ROOF<CF7> (B)
8-94326-912-3
01
1
9303-9504
1
PANEL; ROOF
EXC. SUN ROOF<CF7> (B)
8-94326-912-4
01
1
9505-
1
PANEL; ROOF
SUN ROOF<CF7> (A)
8-94326-913-4
01
1
9303-
6
FRAME; ROOF FRT
8-94326-578-1
01
1
9301-
8
EXTENSION; ROOF RR
8-97066-130-1
01
1
9301-
10
FRAME; ROOF RR
8-94316-610-1
01
1
9301-
13
PANEL; ROOF SUPPORT
8-94326-916-1
03
1
9301-9302
13
PANEL; ROOF SUPPORT
EXC. SUN ROOF<CF7>
8-94326-916-1
03
1
9303-9504
13
PANEL; ROOF SUPPORT
EXC. SUN ROOF<CF7>
8-94326-916-1
03
1
9505-
13
PANEL; ROOF SUPPORT
SUN ROOF<CF7>
8-94326-916-1
02
1
9303-
14
SUPPORT; ROOF
(A)
8-94328-792-2
01
1
9301-
14
SUPPORT; ROOF
(B)
8-97100-050-7
01
1
9505-
15
BOLT; ROOF SUPPORT
SUN ROOF<CF7> M6X14 FLANGE
8-94327-380-0
04
1
9303-
18
RAIL; ROOF CTR FRT
8-94326-956-3
01
1
9301-
18
RAIL; ROOF CTR FRT
8-94326-955-3
01
1
9301-
22
RAIL; ROOF CTR RR
8-94332-124-0
01
1
9301-
22
RAIL; ROOF CTR RR
8-94332-123-0
01
1
9301-
24
FRAME; SUNROOF
SUN ROOF<CF7>
8-94434-783-0
01
1
9303-
31
PANEL; ROOF SUPPORT,RR
8-94328-472-2
01
1
9301-
33
BRACKET; SUNROOF
SUN ROOF<CF7> (A)
8-94369-864-0
01
1
9303-
33
BRACKET; SUNROOF
SUN ROOF<CF7> (B)
8-94455-889-0
01
1
9303-
33
BRACKET; SUNROOF
SUN ROOF<CF7> (A)
8-94369-863-0
01
1
9303-
33
BRACKET; SUNROOF
SUN ROOF<CF7> (B)
8-94455-888-0
01
1
9303-
35
NUT; BRKT
SUN ROOF<CF7> M6 FLANGE
8-94253-333-0
04
1
9303-
81
BOLT; ROOF
M6X12 FLANGE
0-28480-612-0
04
1
9505-
90
CUSHION
8-97126-448-1
01
1
9505-
