◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#45469) — 57 parça

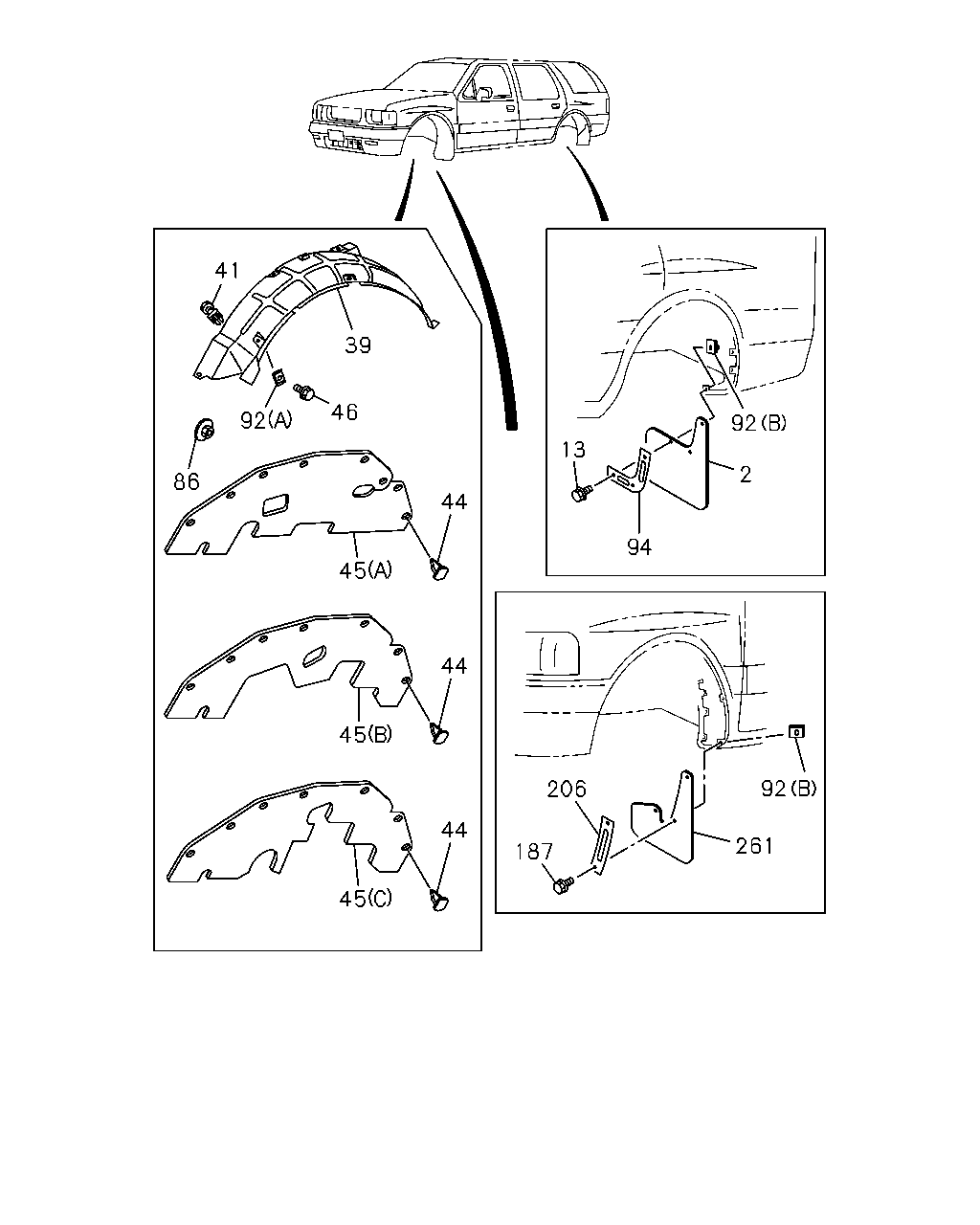

çizim 65712
41 39 46 92 86 45 44 44 45 45 44 187 206 261 92 94 13 2 92
BalonParca AdiParca NoAdetTipApplied Date
2 COVER; MUD,TIRE RR
MUD FLAP<VH4> 		8-94344-482-1 02 1 9301-9308
2 COVER; MUD,TIRE RR
MUD FLAP<VH4> EXC. WIDE TIRE<6NZ> 		8-94344-482-1 02 1 9309-
2 COVER; MUD,TIRE RR
MUD FLAP<VH4> WIDE TIRE<6NZ> 		8-97027-546-0 02 1 9309-
13 SCREW; RR MUD FLAP
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 06 1 9301-
39 LINER; FENDER
PROTECTOR-BODY SIDE MOLDING<B84> 		8-97075-986-0 01 1 9301-9408
39 LINER; FENDER
PROTECTOR-BODY SIDE MOLDING<B84>,WHEEL ARCH MOLDING<7GU> 		8-97075-986-0 01 1 9409-9504
39 LINER; FENDER
WIDE TIRE<6NZ> EXC. PROTECTOR-BODY SIDE MOLDING<B84>,WHEEL ARCH MOLDING<7GU> 		8-97075-986-0 01 1 9409-9504
39 LINER; FENDER
PROTECTOR-BODY SIDE MOLDING<B84> 		8-97075-986-0 01 1 9505-9509
39 LINER; FENDER
WIDE TIRE<6NZ> EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-97075-986-0 01 1 9505-9509
39 LINER; FENDER
PROTECTOR-BODY SIDE MOLDING<B84> 		8-97129-415-0 01 1 9510-9511
39 LINER; FENDER
WIDE TIRE<6NZ> EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-97129-415-0 01 1 9510-9511
39 LINER; FENDER
PROTECTOR-BODY SIDE MOLDING<B84>,WHEEL ARCH MOLDING<7GU> 		8-97129-415-0 01 1 9512-
39 LINER; FENDER
WIDE TIRE<6NZ> EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-97129-415-0 01 1 9512-
39 LINER; FENDER
PROTECTOR-BODY SIDE MOLDING<B84> 		8-97075-985-0 01 1 9301-9408
39 LINER; FENDER
PROTECTOR-BODY SIDE MOLDING<B84>,WHEEL ARCH MOLDING<7GU> 		8-97075-985-0 01 1 9409-9504
39 LINER; FENDER
WIDE TIRE<6NZ> EXC. PROTECTOR-BODY SIDE MOLDING<B84>,WHEEL ARCH MOLDING<7GU> 		8-97075-985-0 01 1 9409-9504
39 LINER; FENDER
PROTECTOR-BODY SIDE MOLDING<B84> 		8-97075-985-0 01 1 9505-9509
39 LINER; FENDER
WIDE TIRE<6NZ> EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-97075-985-0 01 1 9505-9509
39 LINER; FENDER
PROTECTOR-BODY SIDE MOLDING<B84> 		8-97129-414-0 01 1 9510-9511
39 LINER; FENDER
WIDE TIRE<6NZ> EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-97129-414-0 01 1 9510-9511
39 LINER; FENDER
PROTECTOR-BODY SIDE MOLDING<B84>,WHEEL ARCH MOLDING<7GU> 		8-97129-414-0 01 1 9512-
39 LINER; FENDER
WIDE TIRE<6NZ> EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-97129-414-0 01 1 9512-
39 LINER; FENDER
EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-97075-988-0 01 1 9301-9308
39 LINER; FENDER
EXC. PROTECTOR-BODY SIDE MOLDING<B84>,WIDE TIRE<6NZ> 		8-97075-988-0 01 1 9309-9408
39 LINER; FENDER
EXC. PROTECTOR-BODY SIDE MOLDING<B84>,WIDE TIRE<6NZ>,WHEEL ARCH MOLDING<7GU> 		8-97075-988-0 01 1 9409-9504
39 LINER; FENDER
EXC. PROTECTOR-BODY SIDE MOLDING<B84>,WIDE TIRE<6NZ> 		8-97075-988-0 01 1 9505-9509
39 LINER; FENDER
EXC. PROTECTOR-BODY SIDE MOLDING<B84>,WIDE TIRE<6NZ> 		8-97129-417-0 01 1 9510-9511
39 LINER; FENDER
EXC. PROTECTOR-BODY SIDE MOLDING<B84>,WIDE TIRE<6NZ>,WHEEL ARCH MOLDING<7GU> 		8-97129-417-0 01 1 9512-
39 LINER; FENDER
EXC. PROTECTOR-BODY SIDE MOLDING<B84> 		8-97075-987-0 01 1 9301-9308
39 LINER; FENDER
EXC. PROTECTOR-BODY SIDE MOLDING<B84>,WIDE TIRE<6NZ> 		8-97075-987-0 01 1 9309-9408
39 LINER; FENDER
EXC. PROTECTOR-BODY SIDE MOLDING<B84>,WIDE TIRE<6NZ>,WHEEL ARCH MOLDING<7GU> 		8-97075-987-0 01 1 9409-9504
39 LINER; FENDER
EXC. PROTECTOR-BODY SIDE MOLDING<B84>,WIDE TIRE<6NZ> 		8-97075-987-0 01 1 9505-9509
39 LINER; FENDER
EXC. PROTECTOR-BODY SIDE MOLDING<B84>,WIDE TIRE<6NZ> 		8-97129-416-0 01 1 9510-9511
39 LINER; FENDER
EXC. PROTECTOR-BODY SIDE MOLDING<B84>,WIDE TIRE<6NZ>,WHEEL ARCH MOLDING<7GU> 		8-97129-416-0 01 1 9512-
41 RIVET; INNER LINER
MUD FLAP<VH4> 		8-94221-150-0 12 1 9301-
41 RIVET; INNER LINER
EXC. MUD FLAP<VH4> 		8-94221-150-0 18 1 9301-
44 CLIP; ANCHOR 8-94215-211-0 16 1 9301-9511
44 CLIP; ANCHOR 8-94215-211-0 14 1 9512-
45 COVER; MUD,FENDER SKIRT
(A) 		8-97038-997-2 01 1 9301-9511
45 COVER; MUD,FENDER SKIRT
(B) 		8-94359-627-2 01 1 9512-9601
45 COVER; MUD,FENDER SKIRT
(B) 		8-97138-229-0 01 1 9602-9610
45 COVER; MUD,FENDER SKIRT
(B) 		8-97163-046-0 01 1 9611-
45 COVER; MUD,FENDER SKIRT
(A) 		8-97038-996-2 01 1 9301-9511
45 COVER; MUD,FENDER SKIRT
(C) 		8-97135-588-0 01 1 9512-9610
45 COVER; MUD,FENDER SKIRT
(C) 		8-97163-045-0 01 1 9611-
46 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 04 1 9301-
86 CLIP; MUD GUARD
H=10.5 		8-94441-810-0 01 1 9301-9305
92 NUT; MUD COVER
(A) ID=5.2 H=10 		8-97032-135-0 10 1 9301-
92 NUT; MUD COVER
MUD FLAP<VH4> (B) ID=5.2 H=10 		8-97032-135-0 06 1 9301-
94 RETAINER; FLAP RUBBER 8-94379-228-0 01 1 9301-
94 RETAINER; FLAP RUBBER 8-94379-229-0 01 1 9301-
187 SCREW; FENDER COVER
MUD FLAP<VH4> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 06 1 9301-
206 STAY; MUD COVER,FRT
MUD FLAP<VH4> 		8-94331-669-0 01 1 9301-9601
206 STAY; MUD COVER,FRT
MUD FLAP<VH4> 		8-94331-668-0 01 1 9301-9601
261 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> 		8-97028-610-0 02 1 9301-9308
261 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> EXC. WIDE TIRE<6NZ> 		8-97028-610-0 02 1 9309-
261 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> WIDE TIRE<6NZ> 		8-97021-887-1 02 1 9309-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
