◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#45467) — 37 parça

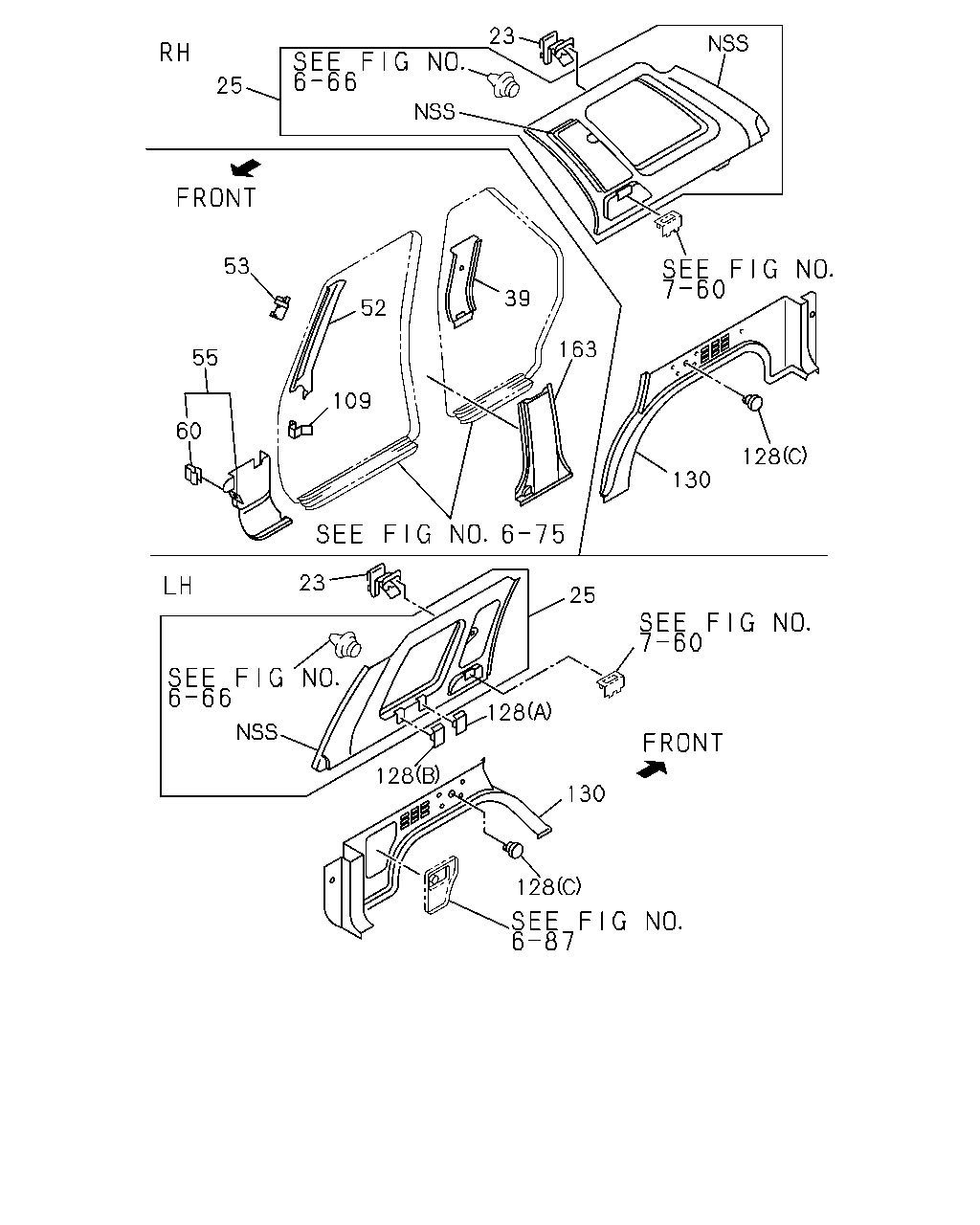

çizim 70902
25 23 53 55 60 109 52 39 163 130 128 25 128 128 23 128 130
BalonParca AdiParca NoAdetTipApplied Date A B
23 RETAINER; QTR 8-94338-720-3 20 1 9301- ● ●
25 COVER; TRIM,QUARTER PILLAR,UPR
GRAY 		8-94377-834-7 01 1 9301-9408 ●
25 COVER; TRIM,QUARTER PILLAR,UPR
GRAY 		8-94377-834-7 01 1 9409-9504 ● ●
25 COVER; TRIM,QUARTER PILLAR,UPR
GRAY 		8-97153-153-0 01 1 9505- ● ●
25 COVER; TRIM,QUARTER PILLAR,UPR
GRAY 		8-94377-831-7 01 1 9301-9408 ●
25 COVER; TRIM,QUARTER PILLAR,UPR
GRAY 		8-94377-831-7 01 1 9409-9504 ● ●
25 COVER; TRIM,QUARTER PILLAR,UPR
GRAY 		8-97153-152-0 01 1 9505- ● ●
25 COVER; TRIM,QUARTER PILLAR,UPR
GRAY 		8-94377-840-7 01 1 9301-9408 ●
25 COVER; TRIM,QUARTER PILLAR,UPR
GRAY 		8-94377-837-7 01 1 9301-9408 ●
39 COVER; TRIM,CENTER PILLAR
GRAY 		8-94376-826-4 01 1 9301-9504 ● ●
39 COVER; TRIM,CENTER PILLAR
GRAY 		8-97150-623-4 01 1 9505- ● ●
39 COVER; TRIM,CENTER PILLAR
GRAY 		8-94376-823-4 01 1 9301-9504 ● ●
39 COVER; TRIM,CENTER PILLAR
GRAY 		8-97150-622-4 01 1 9505- ● ●
52 COVER; TRIM,FRT PILLAR
GRAY 		8-94376-800-0 01 1 9301-9504 ● ●
52 COVER; TRIM,FRT PILLAR
GRAY 		8-97152-352-0 01 1 9505- ● ●
52 COVER; TRIM,FRT PILLAR
GRAY 		8-94376-797-0 01 1 9301-9504 ● ●
52 COVER; TRIM,FRT PILLAR
GRAY 		8-97152-351-0 01 1 9505- ● ●
53 RETAINER; TRIM,FRT PILLAR 8-94117-873-3 06 1 9301- ● ●
55 PAD; TRIM,DASH SIDE
GRAY 		8-97082-311-0 01 1 9301-9504 ● ●
55 PAD; TRIM,DASH SIDE
GRAY 		8-97150-587-0 01 1 9505- ● ●
55 PAD; TRIM,DASH SIDE
GRAY 		8-94373-308-1 01 1 9301-9504 ● ●
55 PAD; TRIM,DASH SIDE
GRAY 		8-97150-586-1 01 1 9505- ● ●
60 CLIP; ANCHOR,TRIM PAD 8-94321-034-0 02 1 9301- ● ●
109 CLIP; DOOR FINISHER 8-97123-122-1 01 1 9505- ● ●
128 COVER; HOLE,RR QUARTER TRIM
(A) GRAY 		8-94377-846-4 01 1 9301-9504 ● ●
128 COVER; HOLE,RR QUARTER TRIM
(A) GRAY 		8-97150-632-4 01 1 9505- ● ●
128 COVER; HOLE,RR QUARTER TRIM
(B) GRAY 		8-94377-852-4 01 1 9301-9504 ● ●
128 COVER; HOLE,RR QUARTER TRIM
(B) GRAY 		8-97150-634-4 01 1 9505- ● ●
128 COVER; HOLE,RR QUARTER TRIM
(C) GRAY 		8-94377-864-2 02 1 9301-9504 ● ●
130 COVER; TRIM,QUARTER PILLAR
GRAY 		8-94377-861-6 01 1 9301-9504 ● ●
130 COVER; TRIM,QUARTER PILLAR
GRAY 		8-97153-068-0 01 1 9505- ● ●
130 COVER; TRIM,QUARTER PILLAR
GRAY 		8-94377-858-6 01 1 9301-9504 ● ●
130 COVER; TRIM,QUARTER PILLAR
GRAY 		8-97153-067-0 01 1 9505- ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
GRAY 		8-94377-828-4 01 1 9301-9504 ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
GRAY 		8-97150-625-4 01 1 9505- ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
GRAY 		8-94376-829-4 01 1 9301-9504 ● ●
163 COVER; TRIM,CENTER PILLAR,LWR
GRAY 		8-97150-624-4 01 1 9505- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
