Sayfa 6-41 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-41 - SIDE WINDOW GLASS AND WEATHERSTRIP ▶

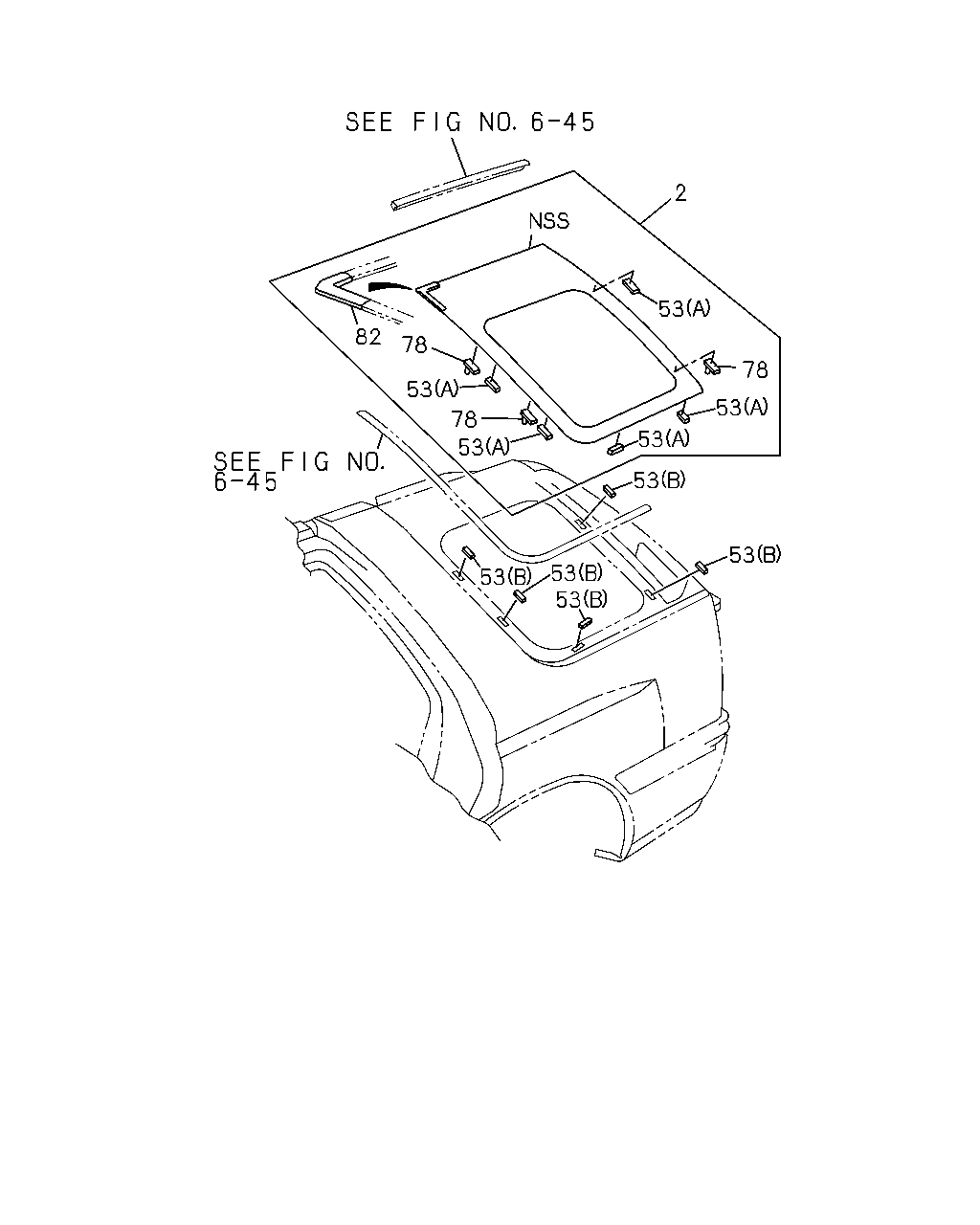

6-41 — SIDE WINDOW GLASS AND WEATHERSTRIP (#45466) — 16 parça

2 53 78 53 53 53 53 53 53 53 53 78 53 78 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	GLASS; RR QUARTER PRIVACY GLASS<S3Y>	8-97046-447-1	01	1	9301-9308
2	GLASS; RR QUARTER PRIVACY GLASS<S3Y>	8-97096-745-1	01	1	9309-9408
2	GLASS; RR QUARTER PRIVACY GLASS<S3Y>	8-97115-603-0	01	1	9409-
2	GLASS; RR QUARTER PRIVACY GLASS<S3Y>	8-97046-446-1	01	1	9301-9308
2	GLASS; RR QUARTER PRIVACY GLASS<S3Y>	8-97096-744-1	01	1	9309-9408
2	GLASS; RR QUARTER PRIVACY GLASS<S3Y>	8-97115-602-0	01	1	9409-
2	GLASS; RR QUARTER EXC. PRIVACY GLASS<S3Y>	8-94330-415-8	01	1	9301-9308
2	GLASS; RR QUARTER EXC. PRIVACY GLASS<S3Y>	8-97096-743-1	01	1	9309-
2	GLASS; RR QUARTER EXC. PRIVACY GLASS<S3Y>	8-94330-414-8	01	1	9301-9308
2	GLASS; RR QUARTER EXC. PRIVACY GLASS<S3Y>	8-97096-742-1	01	1	9309-
53	FASTENER; RR QUARTER (A)	8-97014-219-0	10	1	9301-9307
53	FASTENER; RR QUARTER (A)	8-97102-679-0	10	1	9308-
53	FASTENER; RR QUARTER (B)	8-97107-544-0	10	1	9308-
78	BRACKET; QUARTER GLASS	8-94370-842-2	06	1	9301-
82	SPACER; RR QUARTER GLASS	8-94318-637-6	01	1	9301-
82	SPACER; RR QUARTER GLASS	8-94318-636-6	01	1	9301-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
