◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#45465) — 195 parça
çizim 17263
15 51 15
BalonParca AdiParca NoAdetTipApplied Date A B
15 COVER; HOLE,DOOR TRIM
(A) OD=50 T=0.08 BLACK 		8-94111-754-0 08 1 9301-9308 ●
15 COVER; HOLE,DOOR TRIM
DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2> EXC. CONVENIENT PACKAGE<6QZ> (A) OD=50 T=0.08 BLACK 		8-94111-754-0 04 1 9309-9504 ●
15 COVER; HOLE,DOOR TRIM
EXC. CONVENIENT PACKAGE<6QZ> (A) OD=50 T=0.08 BLACK 		8-94111-754-0 04 1 9309-9504 ●
15 COVER; HOLE,DOOR TRIM
EXC. CONVENIENT PACKAGE<6QZ> (A) OD=50 T=0.08 BLACK 		8-94111-754-0 04 1 9505- ●
15 COVER; HOLE,DOOR TRIM
EXC. CONVENIENT PACKAGE<6QZ> (B) GRAY 		8-94378-143-0 02 1 9301-9410 ●
15 COVER; HOLE,DOOR TRIM
EXC. CONVENIENT PACKAGE<6QZ> (B) GRAY 		8-94378-143-0 02 1 9411-9504 ●
15 COVER; HOLE,DOOR TRIM
EXC. POWER WINDOW<A30> (B) GRAY 		8-94378-143-0 02 1 9411-9504 ●
15 COVER; HOLE,DOOR TRIM
EXC. DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2>, CONVENIENT PACKAGE<6QZ> (A) OD=50 T=0.08 BLACK 		8-94111-754-0 06 1 9309-9504 ●
15 COVER; HOLE,DOOR TRIM
EXC. DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2>, CONVENIENT PACKAGE<6QZ> (C) BLACK 		8-97087-101-0 02 1 9309-9504 ●
15 COVER; HOLE,DOOR TRIM
EXC. POWER WINDOW<A30> (B) GRAY 		8-94378-143-0 01 1 9301-9410 ●
51 WEATHERSTRIP; FRONT DOOR
GRAY 		8-94476-891-5 01 1 9301-9504 ● ●
51 WEATHERSTRIP; FRONT DOOR
GRAY 		8-97150-664-2 01 1 9505- ● ●
51 WEATHERSTRIP; FRONT DOOR
GRAY 		8-94476-888-5 01 1 9301-9504 ● ●
51 WEATHERSTRIP; FRONT DOOR
GRAY 		8-97150-663-2 01 1 9505- ● ●

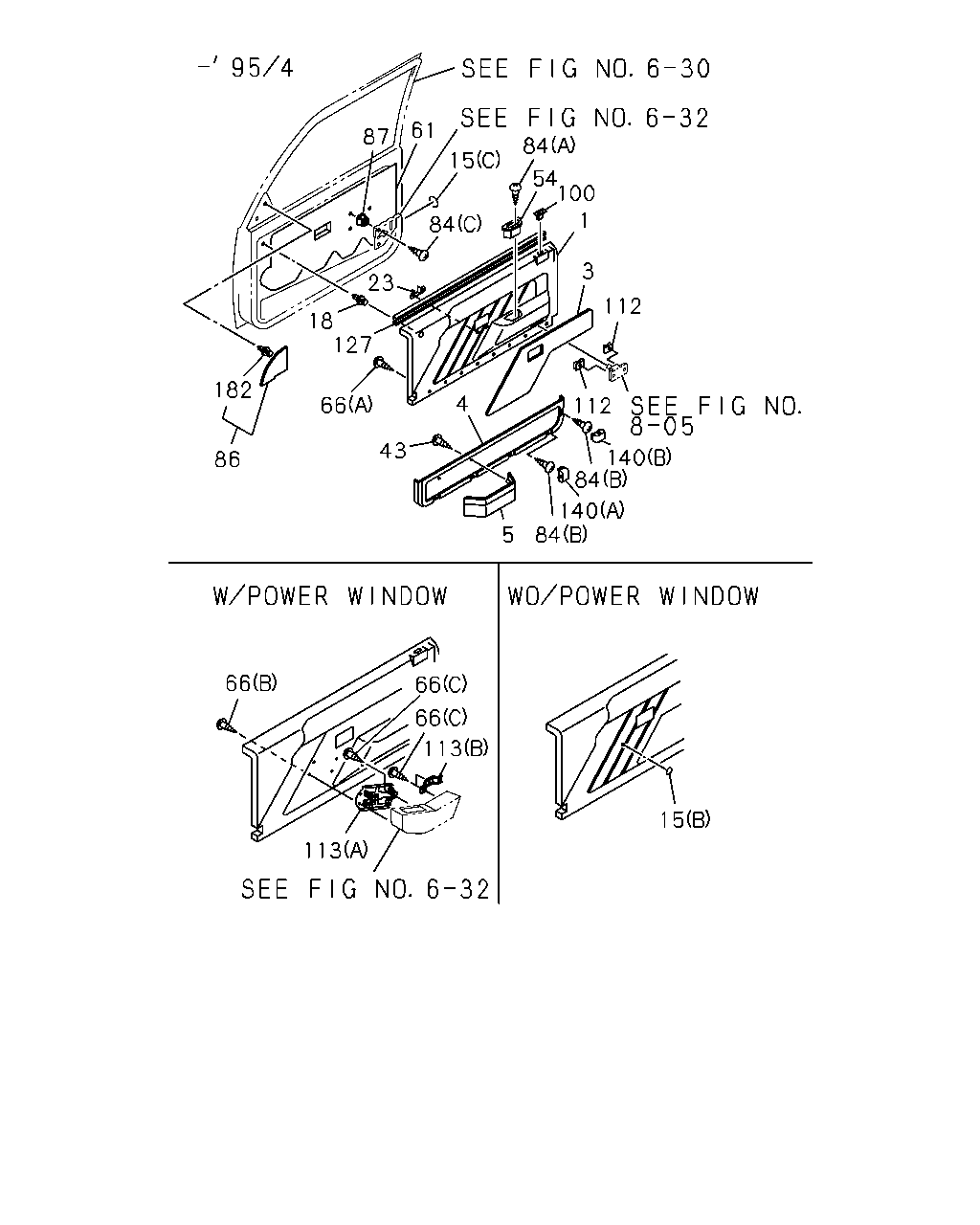

çizim 66181
87 61 15 84 54 100 1 3 112 112 140 84 140 84 5 4 43 66 127 18 23 84 182 86 66 66 66 113 113 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
CONVENIENT PACKAGE<6QZ> GRAY 		8-94378-191-3 01 1 9301-9504 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> GRAY 		8-94378-191-3 01 1 9301-9504 ●
1 PAD; TRIM,FRT DOOR
CONVENIENT PACKAGE<6QZ> GRAY 		8-94378-188-3 01 1 9301-9504 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> GRAY 		8-94378-188-3 01 1 9301-9504 ●
1 PAD; TRIM,FRT DOOR
EXC. CONVENIENT PACKAGE<6QZ> GRAY 		8-94383-844-1 01 1 9301-9504 ●
1 PAD; TRIM,FRT DOOR
EXC. CONVENIENT PACKAGE<6QZ> GRAY 		8-94383-841-1 01 1 9301-9504 ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW<A30> GRAY 		8-94383-832-1 01 1 9301-9504 ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW<A30> GRAY 		8-94383-829-1 01 1 9301-9504 ●
3 TRIM; FULL,FRT DOOR,LWR
CONVENIENT PACKAGE<6QZ> GRAY 		8-94378-197-1 01 1 9301-9504 ●
3 TRIM; FULL,FRT DOOR,LWR
POWER WINDOW<A30> GRAY 		8-94378-197-1 01 1 9301-9504 ●
3 TRIM; FULL,FRT DOOR,LWR
CONVENIENT PACKAGE<6QZ> GRAY 		8-94378-194-1 01 1 9301-9504 ●
3 TRIM; FULL,FRT DOOR,LWR
POWER WINDOW<A30> GRAY 		8-94378-194-1 01 1 9301-9504 ●
3 TRIM; FULL,FRT DOOR,LWR
EXC. POWER WINDOW<A30> GRAY 		8-94383-850-2 01 1 9301-9504 ●
3 TRIM; FULL,FRT DOOR,LWR
EXC. POWER WINDOW<A30> GRAY 		8-94383-847-2 01 1 9301-9504 ●
4 PLATE; LWR,FRT DOOR
EXC. CONVENIENT PACKAGE<6QZ> WO/TRIM LWR GRAY 		8-94383-856-0 01 1 9301-9410 ●
4 PLATE; LWR,FRT DOOR
WO/TRIM LWR GRAY 		8-94383-856-0 01 1 9411-9504 ● ●
4 PLATE; LWR,FRT DOOR
EXC. CONVENIENT PACKAGE<6QZ> WO/TRIM LWR GRAY 		8-94383-853-0 01 1 9301-9410 ●
4 PLATE; LWR,FRT DOOR
WO/TRIM LWR GRAY 		8-94383-853-0 01 1 9411-9504 ● ●
4 PLATE; LWR,FRT DOOR
CONVENIENT PACKAGE<6QZ> WO/TRIM LWR GRAY 		8-94378-155-0 01 1 9301-9308 ● ●
4 PLATE; LWR,FRT DOOR
CONVENIENT PACKAGE<6QZ> WO/TRIM LWR GRAY 		8-94378-152-0 01 1 9301-9308 ● ●
4 PLATE; LWR,FRT DOOR
CONVENIENT PACKAGE<6QZ> W/TRIM LWR GRAY 		8-97082-275-0 01 1 9309-9410 ● ●
4 PLATE; LWR,FRT DOOR
CONVENIENT PACKAGE<6QZ> W/TRIM LWR GRAY 		8-97082-271-0 01 1 9309-9410 ● ●
5 POCKET; DOOR
CONVENIENT PACKAGE<6QZ> GRAY 		8-94430-469-1 02 1 9301-9504 ●
5 POCKET; DOOR
GRAY 		8-94430-469-1 02 1 9301-9504 ●
5 POCKET; DOOR
CONVENIENT PACKAGE<6QZ> GRAY 		8-97150-665-1 02 1 9505-9511 ●
5 POCKET; DOOR
GRAY 		8-97150-665-1 02 1 9505-9511 ●
5 POCKET; DOOR
POWER WINDOW<A30> GRAY 		8-97150-665-1 02 1 9512- ●
5 POCKET; DOOR
GRAY 		8-97150-665-1 02 1 9512- ●
15 COVER; HOLE,DOOR TRIM
(A) OD=50 T=0.08 BLACK 		8-94111-754-0 08 1 9301-9308 ●
15 COVER; HOLE,DOOR TRIM
DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2> EXC. CONVENIENT PACKAGE<6QZ> (A) OD=50 T=0.08 BLACK 		8-94111-754-0 04 1 9309-9504 ●
15 COVER; HOLE,DOOR TRIM
EXC. CONVENIENT PACKAGE<6QZ> (A) OD=50 T=0.08 BLACK 		8-94111-754-0 04 1 9309-9504 ●
15 COVER; HOLE,DOOR TRIM
EXC. CONVENIENT PACKAGE<6QZ> (A) OD=50 T=0.08 BLACK 		8-94111-754-0 04 1 9505- ●
15 COVER; HOLE,DOOR TRIM
EXC. CONVENIENT PACKAGE<6QZ> (B) GRAY 		8-94378-143-0 02 1 9301-9410 ●
15 COVER; HOLE,DOOR TRIM
EXC. CONVENIENT PACKAGE<6QZ> (B) GRAY 		8-94378-143-0 02 1 9411-9504 ●
15 COVER; HOLE,DOOR TRIM
EXC. POWER WINDOW<A30> (B) GRAY 		8-94378-143-0 02 1 9411-9504 ●
15 COVER; HOLE,DOOR TRIM
EXC. DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2>, CONVENIENT PACKAGE<6QZ> (A) OD=50 T=0.08 BLACK 		8-94111-754-0 06 1 9309-9504 ●
15 COVER; HOLE,DOOR TRIM
EXC. DOOR MIRROR ELEC CONT WO/DEFOGGER<DG2>, CONVENIENT PACKAGE<6QZ> (C) BLACK 		8-97087-101-0 02 1 9309-9504 ●
15 COVER; HOLE,DOOR TRIM
EXC. POWER WINDOW<A30> (B) GRAY 		8-94378-143-0 01 1 9301-9410 ●
18 CLIP; DOOR PAD
H=16.7 		8-97022-017-0 22 1 9301- ● ●
23 BRACKET; DOOR TRIM 8-94328-357-0 02 1 9301-9410 ● ●
43 SCREW; DOOR POCKET
CONVENIENT PACKAGE<6QZ> M4X14 		8-94318-550-0 08 1 9301-9511 ●
43 SCREW; DOOR POCKET
M4X14 		8-94318-550-0 08 1 9301-9511 ●
43 SCREW; DOOR POCKET
POWER WINDOW<A30> M4X14 		8-94318-550-0 08 1 9512- ●
43 SCREW; DOOR POCKET
M4X14 		8-94318-550-0 08 1 9512- ●
54 BOX; FRT DOOR
GRAY 		8-94377-916-1 02 1 9301-9502 ● ●
54 BOX; FRT DOOR
GRAY 		8-97153-723-0 02 1 9503-9504 ● ●
54 BOX; FRT DOOR
GRAY 		8-97153-724-0 02 1 9505- ● ●
61 SEAL; WATER,DOOR PAD 8-94434-970-2 02 1 9301-9303 ●
61 SEAL; WATER,DOOR PAD
EXC. CONVENIENT PACKAGE<6QZ> 		8-94434-970-2 02 1 9304-9504 ● ●
61 SEAL; WATER,DOOR PAD
EXC. CONVENIENT PACKAGE<6QZ> 		8-97100-024-2 02 1 9505-9511 ● ●
61 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW<A30> 		8-97100-024-2 02 1 9512- ● ●
61 SEAL; WATER,DOOR PAD 8-94450-128-2 02 1 9301-9303 ●
61 SEAL; WATER,DOOR PAD
CONVENIENT PACKAGE<6QZ> 		8-94450-128-2 02 1 9304-9504 ● ●
61 SEAL; WATER,DOOR PAD
CONVENIENT PACKAGE<6QZ> 		8-97100-025-2 02 1 9505-9511 ● ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW<A30> 		8-97100-025-2 02 1 9512- ● ●
66 SCREW; LWR PLATE
CONVENIENT PACKAGE<6QZ> (B) M4X14 		8-94318-550-0 08 1 9301-9504 ●
66 SCREW; LWR PLATE
POWER WINDOW<A30> (B) M4X14 		8-94318-550-0 08 1 9301-9504 ●
66 SCREW; LWR PLATE
CONVENIENT PACKAGE<6QZ> (C) M4X10 TAPPING 		9-07066-410-0 12 1 9301-9504 ●
66 SCREW; LWR PLATE
POWER WINDOW<A30> (C) M4X10 TAPPING 		9-07066-410-0 12 1 9301-9504 ●
66 SCREW; LWR PLATE
(A) M4X8 		8-94363-204-0 22 1 9301-9504 ● ●
84 SCREW; BOX BRKT
(C) M6X16 TAPPING W/PL WASHER 		0-74300-616-0 08 1 9301-9310 ● ●
84 SCREW; BOX BRKT
(C) M6X16 		9-09829-197-0 08 1 9311- ● ●
84 SCREW; BOX BRKT
(A) M6X14 SELF TAPPING 		9-09629-040-0 04 1 9301- ● ●
84 SCREW; BOX BRKT
(B) 1/6"X1/2" SELFTAP BAIND-HEAD 		8-94385-076-0 10 1 9301-9308 ● ●
84 SCREW; BOX BRKT
(B) M4X13 TAPPING 		8-97104-883-0 10 1 9309-9311 ● ●
84 SCREW; BOX BRKT
(B) 1/6"X1/2" SELFTAP BAIND-HEAD 		8-94385-076-0 10 1 9312-9504 ● ●
84 SCREW; BOX BRKT
(B) 1/6"X1/2" SELFTAP BAIND-HEAD 		8-94385-076-0 08 1 9505- ● ●
84 SCREW; BOX BRKT
(C) M6X16 		9-09829-197-0 08 1 9311-9603 ● ●
86 COVER ASM; DOOR POCKET 8-97093-746-1 01 1 9309-9504 ● ●
86 COVER ASM; DOOR POCKET
EXC. AM/FM CASSETE 6 SPEAKERS<7AK> 		8-97093-746-1 01 1 9505- ● ●
86 COVER ASM; DOOR POCKET 8-97093-747-1 01 1 9309-9504 ● ●
86 COVER ASM; DOOR POCKET
EXC. AM/FM CASSETE 6 SPEAKERS<7AK> 		8-97093-747-1 01 1 9505- ● ●
87 GROMMET; SCREW,BRKT 5-09470-001-0 08 1 9301-9603 ● ●
87 GROMMET; SCREW,BRKT 5-09470-001-0 06 1 9604- ● ●
100 GUIDE; HOLE,DOOR LOCK KNOB
CONVENIENT PACKAGE<6QZ> GRAY 		8-94477-598-3 02 1 9301-9308 ●
100 GUIDE; HOLE,DOOR LOCK KNOB
POWER WINDOW<A30> GRAY 		8-94477-598-3 02 1 9301-9308 ●
100 GUIDE; HOLE,DOOR LOCK KNOB
EXC. POWER WINDOW<A30> GRAY 		8-94388-467-0 02 1 9301-9308 ● ●
100 GUIDE; HOLE,DOOR LOCK KNOB
GRAY 		8-94388-467-0 02 1 9309-9504 ● ●
100 GUIDE; HOLE,DOOR LOCK KNOB
GRAY 		8-97150-918-0 02 1 9505- ● ●
112 NUT; SPIRE
CONVENIENT PACKAGE<6QZ> 		8-94328-358-0 04 1 9301-9406 ● ●
112 NUT; SPIRE
CONVENIENT PACKAGE<6QZ> 		8-94449-956-0 04 1 9407-9504 ● ●
112 NUT; SPIRE
POWER WINDOW<A30> 		8-94449-956-0 04 1 9505- ● ●
113 BRACKET; POWER WINDOW SW BOX,DOOR SIDE
CONVENIENT PACKAGE<6QZ> (A) 		8-97012-812-3 02 1 9301-9504 ●
113 BRACKET; POWER WINDOW SW BOX,DOOR SIDE
POWER WINDOW<A30> (A) 		8-97012-812-3 02 1 9301-9504 ●
113 BRACKET; POWER WINDOW SW BOX,DOOR SIDE
CONVENIENT PACKAGE<6QZ> (B) 		8-97027-711-1 02 1 9301-9504 ●
113 BRACKET; POWER WINDOW SW BOX,DOOR SIDE
POWER WINDOW<A30> (B) 		8-97027-711-1 02 1 9301-9504 ●
127 SEAL; DOOR INNER 8-94434-994-3 01 1 9301-9308 ● ●
127 SEAL; DOOR INNER 8-97021-886-1 01 1 9309-9410 ● ●
127 SEAL; DOOR INNER 8-97118-783-0 01 1 9411-9512 ● ●
127 SEAL; DOOR INNER
951218- 		8-97144-401-0 01 1 9512- ● ●
127 SEAL; DOOR INNER 8-94434-993-3 01 1 9301-9308 ● ●
127 SEAL; DOOR INNER 8-97021-885-1 01 1 9309-9410 ● ●
127 SEAL; DOOR INNER 8-97118-782-0 01 1 9411-9512 ● ●
127 SEAL; DOOR INNER
951218- 		8-97144-400-0 01 1 9512- ● ●
140 COVER; LWR PLATE,DOOR
(A) GRAY 		8-94377-919-1 08 1 9301-9504 ● ●
140 COVER; LWR PLATE,DOOR
(A) GRAY 		8-97150-660-1 08 1 9505- ● ●
140 COVER; LWR PLATE,DOOR
(B) GRAY 		8-94377-922-2 02 1 9301-9504 ● ●
182 CLIP; COVER 8-97019-200-0 02 1 9309-9504 ● ●
182 CLIP; COVER
EXC. AM/FM CASSETE 6 SPEAKERS<7AK> 		8-97019-200-0 02 1 9505- ● ●

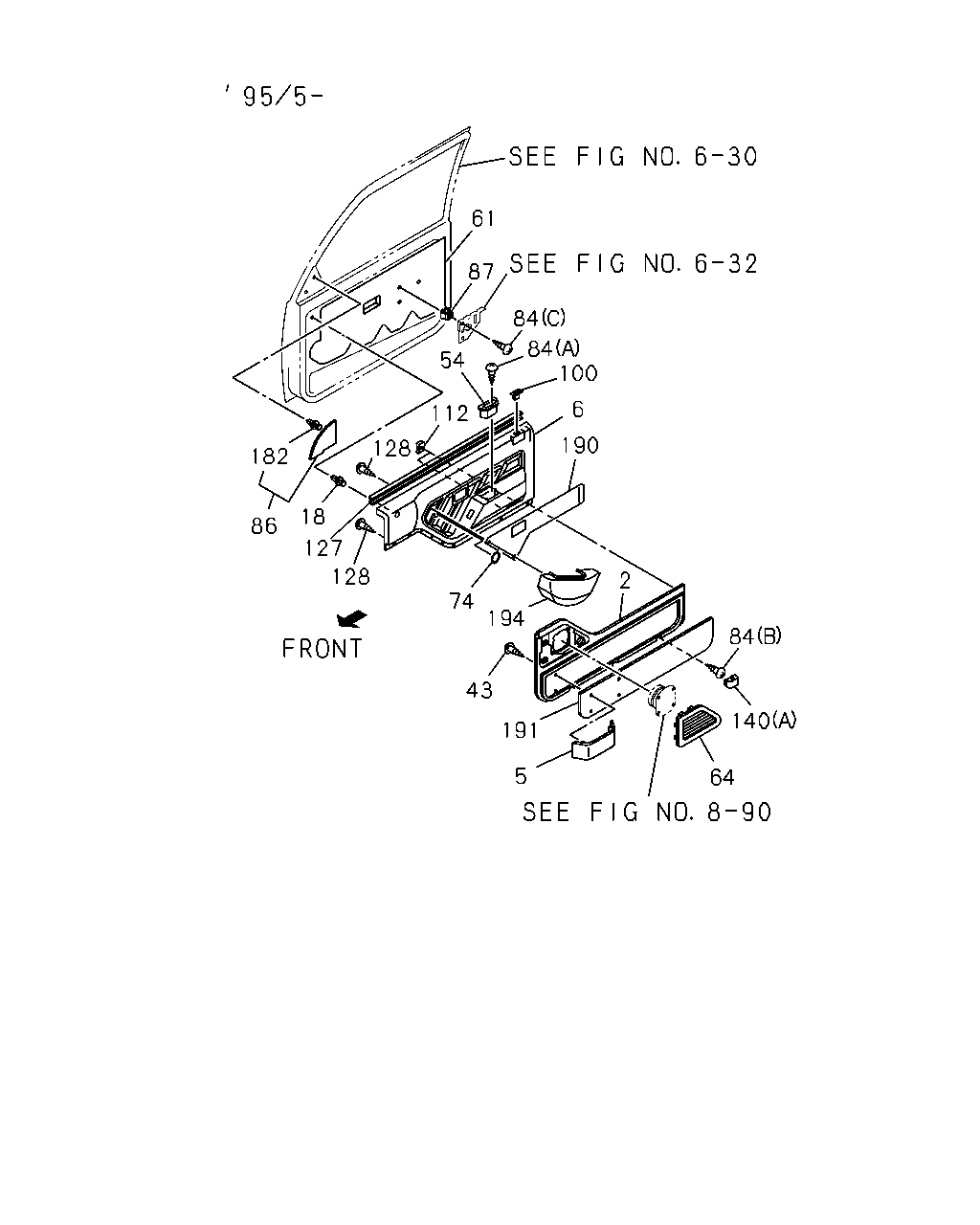

çizim 70903
61 87 84 84 54 100 6 190 112 128 182 86 18 127 128 74 194 2 84 140 64 5 191 43
BalonParca AdiParca NoAdetTipApplied Date A B
2 TRIM; DOOR,LWR
GRAY 		8-97150-929-2 01 1 9505- ● ●
2 TRIM; DOOR,LWR
GRAY 		8-97150-928-2 01 1 9505- ● ●
5 POCKET; DOOR
CONVENIENT PACKAGE<6QZ> GRAY 		8-94430-469-1 02 1 9301-9504 ●
5 POCKET; DOOR
GRAY 		8-94430-469-1 02 1 9301-9504 ●
5 POCKET; DOOR
CONVENIENT PACKAGE<6QZ> GRAY 		8-97150-665-1 02 1 9505-9511 ●
5 POCKET; DOOR
GRAY 		8-97150-665-1 02 1 9505-9511 ●
5 POCKET; DOOR
POWER WINDOW<A30> GRAY 		8-97150-665-1 02 1 9512- ●
5 POCKET; DOOR
GRAY 		8-97150-665-1 02 1 9512- ●
6 TRIM; DOOR,UPR
EXC. POWER WINDOW<A30> GRAY 		8-97150-915-3 01 1 9505- ●
6 TRIM; DOOR,UPR
EXC. POWER WINDOW<A30> GRAY 		8-97150-914-3 01 1 9505- ●
6 TRIM; DOOR,UPR
POWER WINDOW<A30> GRAY 		8-97150-917-3 01 1 9505- ● ●
6 TRIM; DOOR,UPR
POWER WINDOW<A30> GRAY 		8-97150-916-3 01 1 9505- ● ●
18 CLIP; DOOR PAD
H=16.7 		8-97022-017-0 22 1 9301- ● ●
43 SCREW; DOOR POCKET
CONVENIENT PACKAGE<6QZ> M4X14 		8-94318-550-0 08 1 9301-9511 ●
43 SCREW; DOOR POCKET
M4X14 		8-94318-550-0 08 1 9301-9511 ●
43 SCREW; DOOR POCKET
POWER WINDOW<A30> M4X14 		8-94318-550-0 08 1 9512- ●
43 SCREW; DOOR POCKET
M4X14 		8-94318-550-0 08 1 9512- ●
54 BOX; FRT DOOR
GRAY 		8-94377-916-1 02 1 9301-9502 ● ●
54 BOX; FRT DOOR
GRAY 		8-97153-723-0 02 1 9503-9504 ● ●
54 BOX; FRT DOOR
GRAY 		8-97153-724-0 02 1 9505- ● ●
61 SEAL; WATER,DOOR PAD 8-94434-970-2 02 1 9301-9303 ●
61 SEAL; WATER,DOOR PAD
EXC. CONVENIENT PACKAGE<6QZ> 		8-94434-970-2 02 1 9304-9504 ● ●
61 SEAL; WATER,DOOR PAD
EXC. CONVENIENT PACKAGE<6QZ> 		8-97100-024-2 02 1 9505-9511 ● ●
61 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW<A30> 		8-97100-024-2 02 1 9512- ● ●
61 SEAL; WATER,DOOR PAD 8-94450-128-2 02 1 9301-9303 ●
61 SEAL; WATER,DOOR PAD
CONVENIENT PACKAGE<6QZ> 		8-94450-128-2 02 1 9304-9504 ● ●
61 SEAL; WATER,DOOR PAD
CONVENIENT PACKAGE<6QZ> 		8-97100-025-2 02 1 9505-9511 ● ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW<A30> 		8-97100-025-2 02 1 9512- ● ●
64 GRILLE
GRAY 		8-97150-662-2 01 1 9505- ● ●
64 GRILLE
GRAY 		8-97150-661-2 01 1 9505- ● ●
74 CAP; DOOR TRIM
EXC. POWER WINDOW<A30> GRAY 		8-97150-925-0 02 1 9505- ●
84 SCREW; BOX BRKT
(C) M6X16 TAPPING W/PL WASHER 		0-74300-616-0 08 1 9301-9310 ● ●
84 SCREW; BOX BRKT
(C) M6X16 		9-09829-197-0 08 1 9311- ● ●
84 SCREW; BOX BRKT
(A) M6X14 SELF TAPPING 		9-09629-040-0 04 1 9301- ● ●
84 SCREW; BOX BRKT
(B) 1/6"X1/2" SELFTAP BAIND-HEAD 		8-94385-076-0 10 1 9301-9308 ● ●
84 SCREW; BOX BRKT
(B) M4X13 TAPPING 		8-97104-883-0 10 1 9309-9311 ● ●
84 SCREW; BOX BRKT
(B) 1/6"X1/2" SELFTAP BAIND-HEAD 		8-94385-076-0 10 1 9312-9504 ● ●
84 SCREW; BOX BRKT
(B) 1/6"X1/2" SELFTAP BAIND-HEAD 		8-94385-076-0 08 1 9505- ● ●
84 SCREW; BOX BRKT
(C) M6X16 		9-09829-197-0 08 1 9311-9603 ● ●
86 COVER ASM; DOOR POCKET 8-97093-746-1 01 1 9309-9504 ● ●
86 COVER ASM; DOOR POCKET
EXC. AM/FM CASSETE 6 SPEAKERS<7AK> 		8-97093-746-1 01 1 9505- ● ●
86 COVER ASM; DOOR POCKET 8-97093-747-1 01 1 9309-9504 ● ●
86 COVER ASM; DOOR POCKET
EXC. AM/FM CASSETE 6 SPEAKERS<7AK> 		8-97093-747-1 01 1 9505- ● ●
87 GROMMET; SCREW,BRKT 5-09470-001-0 08 1 9301-9603 ● ●
87 GROMMET; SCREW,BRKT 5-09470-001-0 06 1 9604- ● ●
100 GUIDE; HOLE,DOOR LOCK KNOB
CONVENIENT PACKAGE<6QZ> GRAY 		8-94477-598-3 02 1 9301-9308 ●
100 GUIDE; HOLE,DOOR LOCK KNOB
POWER WINDOW<A30> GRAY 		8-94477-598-3 02 1 9301-9308 ●
100 GUIDE; HOLE,DOOR LOCK KNOB
EXC. POWER WINDOW<A30> GRAY 		8-94388-467-0 02 1 9301-9308 ● ●
100 GUIDE; HOLE,DOOR LOCK KNOB
GRAY 		8-94388-467-0 02 1 9309-9504 ● ●
100 GUIDE; HOLE,DOOR LOCK KNOB
GRAY 		8-97150-918-0 02 1 9505- ● ●
112 NUT; SPIRE
CONVENIENT PACKAGE<6QZ> 		8-94328-358-0 04 1 9301-9406 ● ●
112 NUT; SPIRE
CONVENIENT PACKAGE<6QZ> 		8-94449-956-0 04 1 9407-9504 ● ●
112 NUT; SPIRE
POWER WINDOW<A30> 		8-94449-956-0 04 1 9505- ● ●
127 SEAL; DOOR INNER 8-94434-994-3 01 1 9301-9308 ● ●
127 SEAL; DOOR INNER 8-97021-886-1 01 1 9309-9410 ● ●
127 SEAL; DOOR INNER 8-97118-783-0 01 1 9411-9512 ● ●
127 SEAL; DOOR INNER
951218- 		8-97144-401-0 01 1 9512- ● ●
127 SEAL; DOOR INNER 8-94434-993-3 01 1 9301-9308 ● ●
127 SEAL; DOOR INNER 8-97021-885-1 01 1 9309-9410 ● ●
127 SEAL; DOOR INNER 8-97118-782-0 01 1 9411-9512 ● ●
127 SEAL; DOOR INNER
951218- 		8-97144-400-0 01 1 9512- ● ●
128 SCREW; TAP
EXC. POWER WINDOW<A30> 		8-97123-889-0 20 1 9505- ●
128 SCREW; TAP
POWER WINDOW<A30> 		8-97123-889-0 36 1 9505- ● ●
140 COVER; LWR PLATE,DOOR
(A) GRAY 		8-94377-919-1 08 1 9301-9504 ● ●
140 COVER; LWR PLATE,DOOR
(A) GRAY 		8-97150-660-1 08 1 9505- ● ●
140 COVER; LWR PLATE,DOOR
(B) GRAY 		8-94377-922-2 02 1 9301-9504 ● ●
182 CLIP; COVER 8-97019-200-0 02 1 9309-9504 ● ●
182 CLIP; COVER
EXC. AM/FM CASSETE 6 SPEAKERS<7AK> 		8-97019-200-0 02 1 9505- ● ●
190 TRIM; CTR CLOTH
POWER WINDOW<A30> CONVENIENT PACKAGE<6QZ> GRAY 		8-97150-920-2 01 1 9505-9511 ●
190 TRIM; CTR CLOTH
POWER WINDOW<A30> GRAY 		8-97150-920-2 01 1 9512- ●
190 TRIM; CTR CLOTH
LEATHER SEAT<6TB> GRAY 		8-97150-920-2 01 1 9512- ●
190 TRIM; CTR CLOTH
POWER WINDOW<A30> CONVENIENT PACKAGE<6QZ> GRAY 		8-97150-919-2 01 1 9505-9511 ●
190 TRIM; CTR CLOTH
POWER WINDOW<A30> GRAY 		8-97150-919-2 01 1 9512- ●
190 TRIM; CTR CLOTH
LEATHER SEAT<6TB> GRAY 		8-97150-919-2 01 1 9512- ●
190 TRIM; CTR CLOTH
POWER WINDOW<A30> GRAY 		8-97150-922-2 01 1 9505-9511 ●
190 TRIM; CTR CLOTH
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-922-2 01 1 9512- ●
190 TRIM; CTR CLOTH
POWER WINDOW<A30> GRAY 		8-97150-921-2 01 1 9505-9511 ●
190 TRIM; CTR CLOTH
EXC. LEATHER SEAT<6TB> GRAY 		8-97150-921-2 01 1 9512- ●
191 CARPET; FRT DOOR
POWER WINDOW<A30> DARK GRAY 		8-97150-931-0 01 1 9505- ● ●
191 CARPET; FRT DOOR
POWER WINDOW<A30> DARK GRAY 		8-97150-930-0 01 1 9505- ● ●
194 TRIM; SW BOX
POWER WINDOW<A30> GRAY 		8-97150-933-2 01 1 9505- ● ●
194 TRIM; SW BOX
POWER WINDOW<A30> GRAY 		8-97150-932-2 01 1 9505- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
