◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UC ▶ 50688 - UC-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#45464) — 50 parça

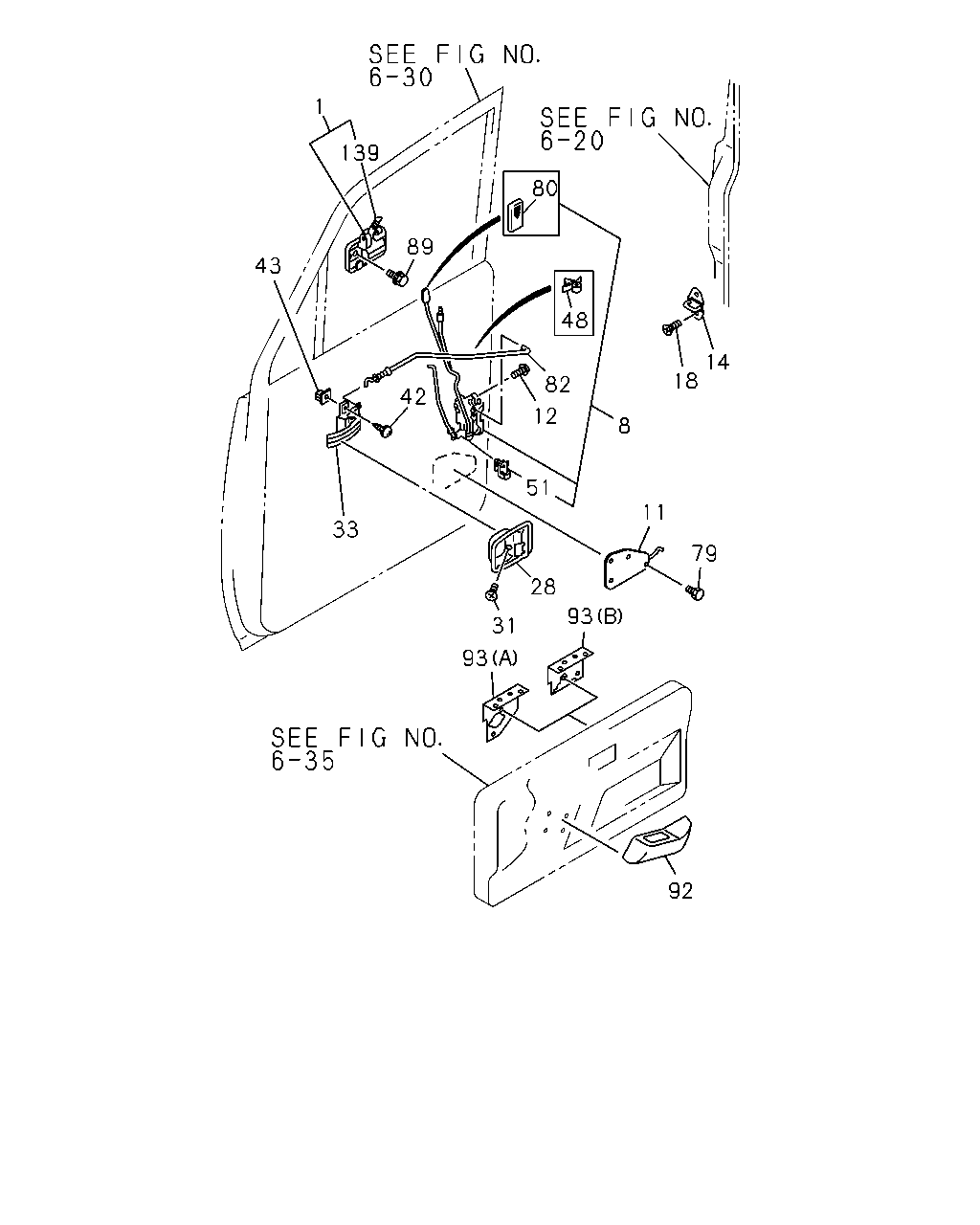

çizim 65362
1 139 43 89 80 48 14 18 8 82 12 42 33 51 11 79 93 28 31 93 92
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-94474-031-3 01 1 9301-
1 HANDLE; OUTSIDE,FRT DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-94474-030-3 01 1 9301-
1 HANDLE; OUTSIDE,FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94335-870-3 01 1 9301-
1 HANDLE; OUTSIDE,FRT DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94335-869-3 01 1 9301-
8 LOCK; DOOR,FRT DOOR
GRAY 		8-94373-458-2 01 1 9301-9504
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> GRAY 		8-97150-641-3 01 1 9505-
8 LOCK; DOOR,FRT DOOR
GRAY 		8-94373-455-2 01 1 9301-9504
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> GRAY 		8-97150-640-3 01 1 9505-
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> GRAY 		8-97153-066-1 01 1 9505-
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> GRAY 		8-97153-065-1 01 1 9505-
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-94450-010-3 01 1 9301-9604
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-97141-948-0 01 1 9605-
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-94450-011-2 01 1 9505-9604
11 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-97141-949-0 01 1 9605-
12 SCREW; DOOR LK
M6X16 OVAL-HD 		8-94172-523-0 06 1 9301-
14 STRIKER; FRT DOOR 8-94115-959-0 02 1 9301-
18 SCREW; DOOR STRIKER
M8X20 		9-03097-820-0 04 1 9301-
28 BEZEL; INSIDE LEVER,FRT DOOR
GRAY 		8-94430-430-2 01 1 9301-9504
28 BEZEL; INSIDE LEVER,FRT DOOR
GRAY 		8-97150-649-2 01 1 9505-
28 BEZEL; INSIDE LEVER,FRT DOOR
GRAY 		8-94430-427-2 01 1 9301-9504
28 BEZEL; INSIDE LEVER,FRT DOOR
GRAY 		8-97150-648-2 01 1 9505-
31 SCREW; BEZEL,INSIDE LEVER
M4X10 TAPPING OVAL-HEAD 		0-70680-410-0 02 1 9301-
33 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-94430-424-3 01 1 9301-9504
33 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97150-647-3 01 1 9505-
33 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-94430-421-3 01 1 9301-9504
33 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97150-646-3 01 1 9505-
42 SCREW; TAPPING,INSIDE LEVER
M6X16 		9-09829-197-0 04 1 9301-9604
42 SCREW; TAPPING,INSIDE LEVER
M6X16 TAPPING W/PL WASHER 		0-74300-616-0 04 1 9605-
43 GROMMET; SCREW,INSIDE LEVER,DOOR 5-09470-001-0 04 1 9301-
48 ANTIRATTLER; DOOR LINK
ID=3.5 		8-94167-353-0 02 1 9301-9406
48 ANTIRATTLER; DOOR LINK
ID=3.8 WHITE 		8-94217-699-0 02 1 9407-
51 SNAP; FRT DOOR LOCK CONT ROD 8-97041-585-0 03 1 9301-
51 SNAP; FRT DOOR LOCK CONT ROD 8-97041-586-0 03 1 9301-
79 BOLT; DOOR LK ACTUATOR
AUTO DOOR LOCK<AU4> M6X8 		8-94155-893-0 02 1 9301-9504
79 BOLT; DOOR LK ACTUATOR
AUTO DOOR LOCK<AU4> M6X8 		8-94155-893-0 04 1 9505-
80 KNOB; DOOR LOCK
GRAY 		8-97002-903-0 02 1 9301-9504
80 KNOB; DOOR LOCK
GRAY 		8-97152-890-0 02 1 9505-
82 LINK; DOOR INSIDE 8-97081-276-1 01 1 9301-
82 LINK; DOOR INSIDE 8-97081-275-1 01 1 9301-
89 BOLT; DOOR OUTSIDE HANDLE
M6X8 		8-94155-893-0 04 1 9301-
92 BOX; POWER WINDOW SW,DOOR SIDE
POWER WINDOW<A30> GRAY 		8-97001-016-5 01 1 9301-9504
92 BOX; POWER WINDOW SW,DOOR SIDE
POWER WINDOW<A30> GRAY 		8-97001-013-5 01 1 9301-9504
93 BRACKET; BOX,DOOR
(A) 		8-97018-622-1 01 1 9301-9603
93 BRACKET; BOX,DOOR
(B) 		8-97146-542-0 01 1 9604-
93 BRACKET; BOX,DOOR
(A) 		8-97018-621-1 01 1 9301-9603
93 BRACKET; BOX,DOOR
(B) 		8-97146-541-0 01 1 9604-
139 HOLDER; ROD,DOOR HANDLE
EXTERIOR CHROME PACKAGE<6CX> 		8-97102-756-0 01 1 9301-
139 HOLDER; ROD,DOOR HANDLE
EXTERIOR CHROME PACKAGE<6CX> 		8-97102-755-0 01 1 9301-
139 HOLDER; ROD,DOOR HANDLE
EXC. EXTERIOR CHROME PACKAGE<6CX> WHITE 		8-97037-508-0 01 1 9301-
139 HOLDER; ROD,DOOR HANDLE
EXC. EXTERIOR CHROME PACKAGE<6CX> YELLOW 		8-97044-834-0 01 1 9301-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
