6-31 — FRONT DOOR GLASS AND REGULATOR (#45463) — 87 parça

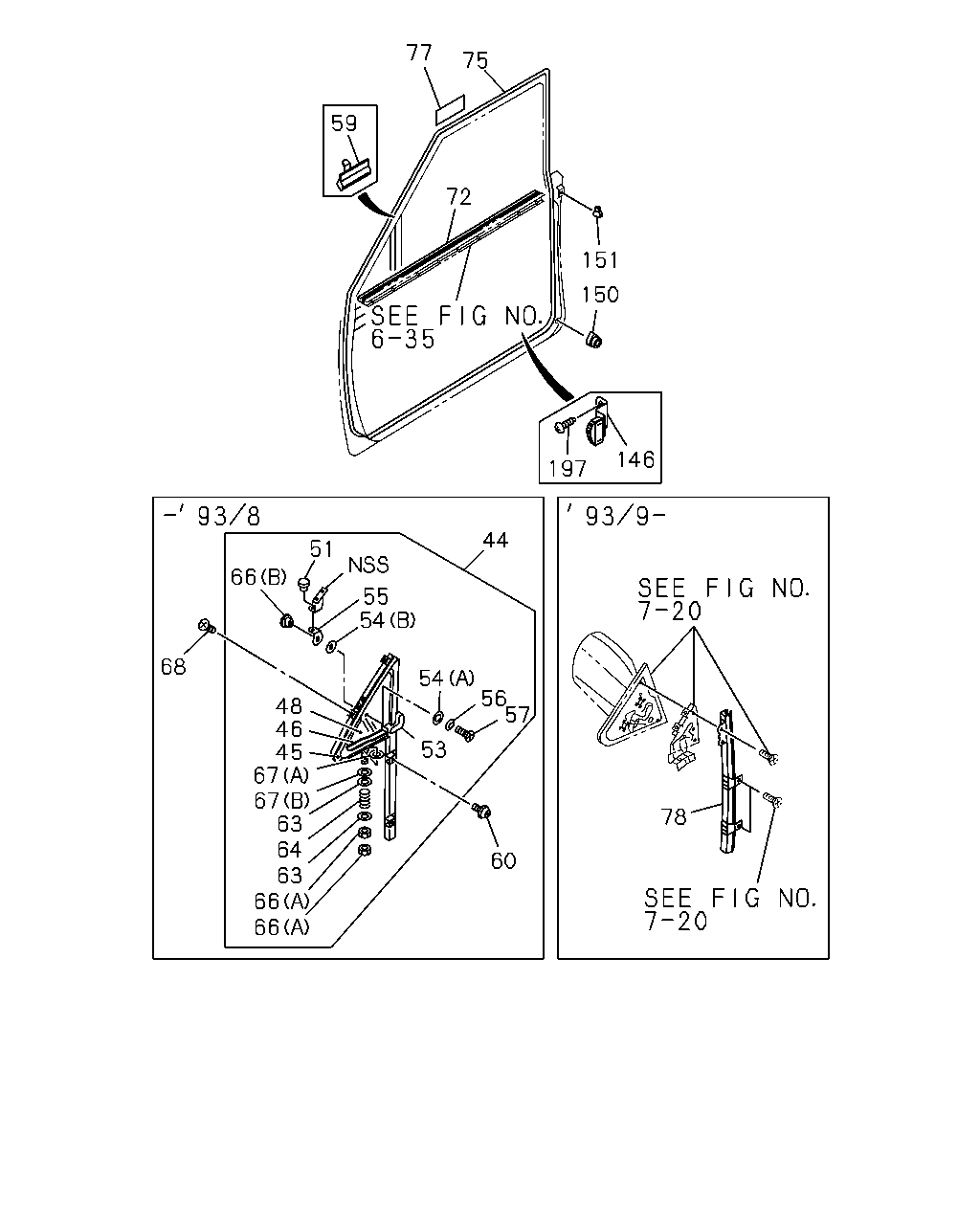

75 77 59 72 151 150 197 146 78 60 57 56 54 53 66 66 63 64 63 67 67 45 46 48 54 55 51 66 68 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	VENTILATOR ASM; CROSS,FRT DOOR	8-97080-759-0	01	1	9301-9308
44	VENTILATOR ASM; CROSS,FRT DOOR	8-97080-758-0	01	1	9301-9308
45	WEATHERSTRIP; CROSS,VENTILATOR	8-94311-341-4	01	1	9301-9308
45	WEATHERSTRIP; CROSS,VENTILATOR	8-94311-340-4	01	1	9301-9308
46	RUBBER; GLAZING,CROSS VENT	8-94316-825-1	02	1	9301-9308
48	GLASS; CROSS VENTILATOR	8-94330-896-0	01	1	9301-9308
48	GLASS; CROSS VENTILATOR	8-94330-895-0	01	1	9301-9308
51	RIVET; PIVOT,UPR	8-94183-523-0	02	1	9301-9308
53	HANDLE; CATCH,CROSS VENTILATOR	8-94334-621-0	01	1	9301-9308
53	HANDLE; CATCH,CROSS VENTILATOR	8-94334-620-0	01	1	9301-9308
54	RUBBER; WASHER,PIVOT BRKT (B) T=1.5	8-94311-327-0	02	1	9301-9308
54	RUBBER; WASHER,PIVOT BRKT (A) T=2.5	8-94334-180-0	02	1	9301-9308
55	BRACKET; GLASS STOPPER	8-94311-344-0	02	1	9301-9308
56	WASHER; PL,BRKT	8-94184-511-0	02	1	9301-9308
57	SCREW; BRKT M5X8	8-97061-782-0	02	1	9301-9308
59	CAP; END,CROSS VENT	8-94478-142-1	01	1	9301-9308
59	CAP; END,CROSS VENT	8-94478-141-1	01	1	9301-9308
60	BOLT; CROSS VENT M6X8	8-94155-893-0	04	1	9301-9308
63	WASHER; PL,VENTILATOR ID=8.4 OD=18	9-09160-608-0	04	1	9301-9308
64	SPRING; CROSS VENT	8-94363-447-0	02	1	9301-9308
66	NUT; PIVOT,LWR (B)	8-94311-328-0	02	1	9301-9308
66	NUT; PIVOT,LWR (A) M6	9-09110-406-0	04	1	9301-9308
67	WASHER; STOPPER (A) T=2.3	8-94334-179-0	02	1	9301-9308
67	WASHER; STOPPER (B) T=0.5	8-94334-181-0	02	1	9301-9308
68	SCREW; VENTILATOR M4X12 OVAL-HEAD	9-93297-412-0	04	1	9301-9308
72	SEAL; WAIST,FRT DOOR L=27	8-94335-862-0	01	1	9301-9308
72	SEAL; WAIST,FRT DOOR L=33	8-97086-512-1	01	1	9309-9603
72	SEAL; WAIST,FRT DOOR L=33	8-97140-103-0	01	1	9604-
72	SEAL; WAIST,FRT DOOR L=27	8-94335-861-0	01	1	9301-9308
72	SEAL; WAIST,FRT DOOR L=33	8-97086-511-1	01	1	9309-9603
72	SEAL; WAIST,FRT DOOR L=33	8-97140-102-0	01	1	9604-
75	WEATHERSTRIP; FRT DOOR	8-97014-445-1	01	1	9301-9308
75	WEATHERSTRIP; FRT DOOR	8-97096-911-3	01	1	9309-
75	WEATHERSTRIP; FRT DOOR	8-97014-444-1	01	1	9301-9308
75	WEATHERSTRIP; FRT DOOR	8-97096-909-3	01	1	9309-
77	CLIP; WAIST SEAL,DOOR	8-97084-593-0	02	1	9301-
78	RAIL; FRT GUIDE	8-97012-540-1	01	1	9309-
78	RAIL; FRT GUIDE	8-97012-539-1	01	1	9309-
146	STABILIZER; FRT DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>	8-97033-817-1	01	1	9301-
146	STABILIZER; FRT DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>	8-97033-816-1	01	1	9301-
150	BUFFER; FRT DOOR	8-94341-913-2	02	1	9301-
151	BUFFER; DOOR UPR	8-97026-103-1	02	1	9301-
197	SCREW; STABILIZER EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30> M6X14	8-94113-240-1	04	1	9301-

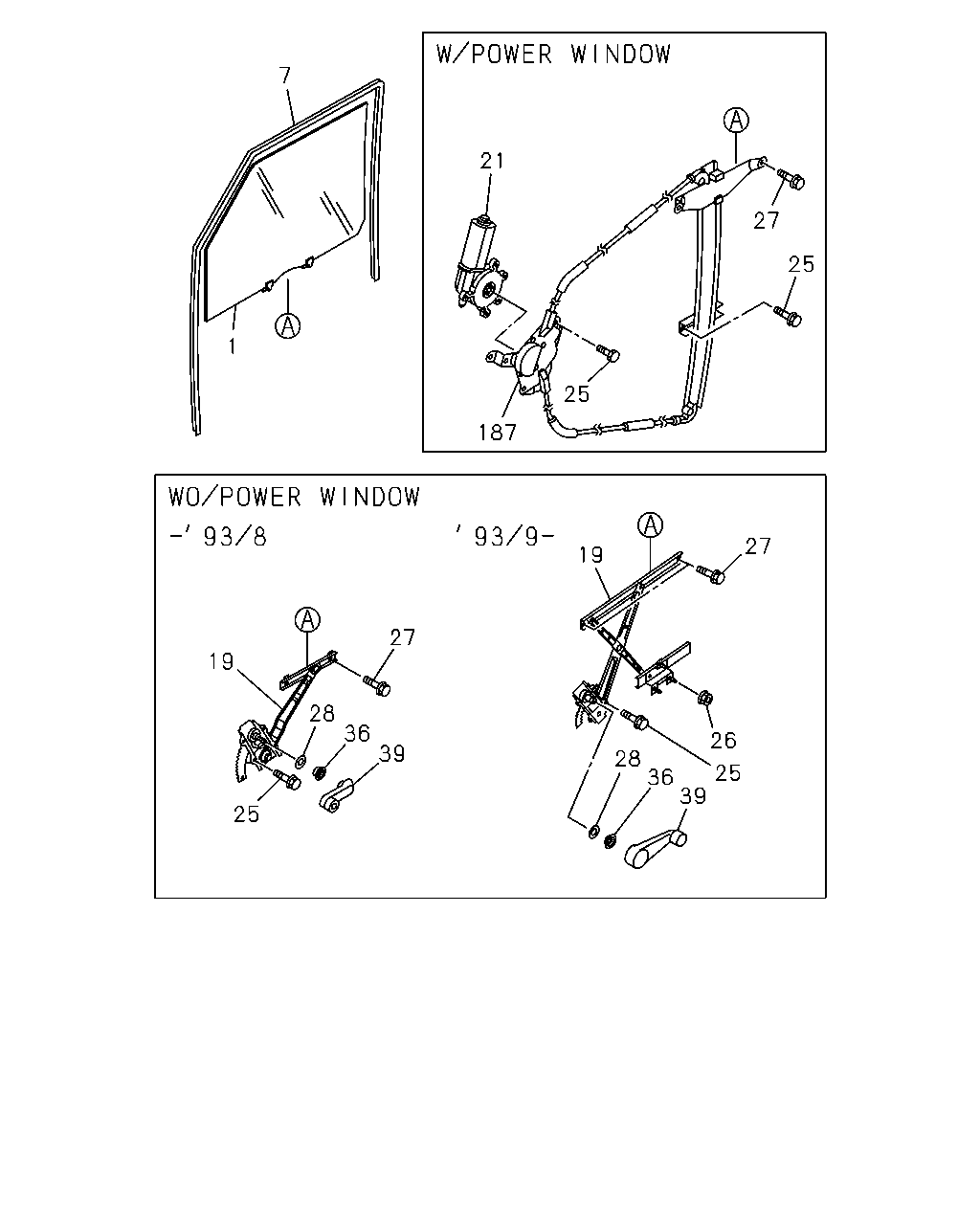

7 1 21 187 25 25 27 27 19 26 25 39 36 28 39 36 28 27 25 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR	8-94330-538-0	01	1	9301-9308
1	GLASS; FRT DOOR POWER WINDOW<A30>	8-97096-731-1	01	1	9309-
1	GLASS; FRT DOOR	8-94330-537-0	01	1	9301-9308
1	GLASS; FRT DOOR POWER WINDOW<A30>	8-97096-730-1	01	1	9309-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	8-97096-733-1	01	1	9309-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	8-97096-732-1	01	1	9309-
7	GLASS RUN; FRT DOOR	8-97080-757-2	01	1	9301-9308
7	GLASS RUN; FRT DOOR	8-97093-652-3	01	1	9309-9411
7	GLASS RUN; FRT DOOR	8-97124-757-0	01	1	9412-
7	GLASS RUN; FRT DOOR	8-97080-756-2	01	1	9301-9308
7	GLASS RUN; FRT DOOR	8-97093-651-3	01	1	9309-9411
7	GLASS RUN; FRT DOOR	8-97124-756-0	01	1	9412-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	8-94434-978-3	01	1	9301-9308
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	8-97095-532-1	01	1	9309-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	8-94434-977-3	01	1	9301-9308
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	8-97095-531-1	01	1	9309-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	8-94388-183-2	01	1	9301-9308
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	8-97081-273-2	01	1	9309-9511
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	8-97081-273-2	01	1	9512-9608
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	8-97165-882-0	01	1	9609-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	8-94388-184-2	01	1	9301-9308
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	8-97081-272-2	01	1	9309-9511
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	8-97081-272-2	01	1	9512-9608
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	8-97165-881-0	01	1	9609-
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X8	8-94155-893-0	14	1	9301-
25	BOLT; WINDOW REG EXC. POWER WINDOW<A30> M6X8	8-94155-893-0	08	1	9301-
26	NUT; FLANGE,WINDOW REG EXC. POWER WINDOW<A30> M6 FLANGE	5-09440-004-0	06	1	9309-
27	BOLT; GLASS FIX M6X8	8-94155-893-0	04	1	9301-
28	GASKET; DUST SEAL,WINDOW REG EXC. POWER WINDOW<A30>	8-94106-830-1	02	1	9301-
36	ESCUTCHEON; HANDLE,WINDOW REG EXC. POWER WINDOW<A30>	8-94220-668-1	02	1	9301-
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A30> GRAY	8-94436-757-0	02	1	9301-9504
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A30> GRAY	8-97150-650-0	02	1	9505-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	8-94386-455-0	01	1	9301-9301
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	8-97093-532-0	01	1	9302-9308
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	8-97081-712-1	01	1	9309-9501
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	8-97105-549-0	01	1	9502-9502
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	8-97123-324-0	01	1	9503-9608
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	8-97165-880-0	01	1	9609-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	8-94386-454-0	01	1	9301-9301
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	8-97093-531-0	01	1	9302-9308
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	8-97081-711-1	01	1	9309-9501
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	8-97105-550-0	01	1	9502-9502
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	8-97123-323-0	01	1	9503-9608
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	8-97165-879-0	01	1	9609-
