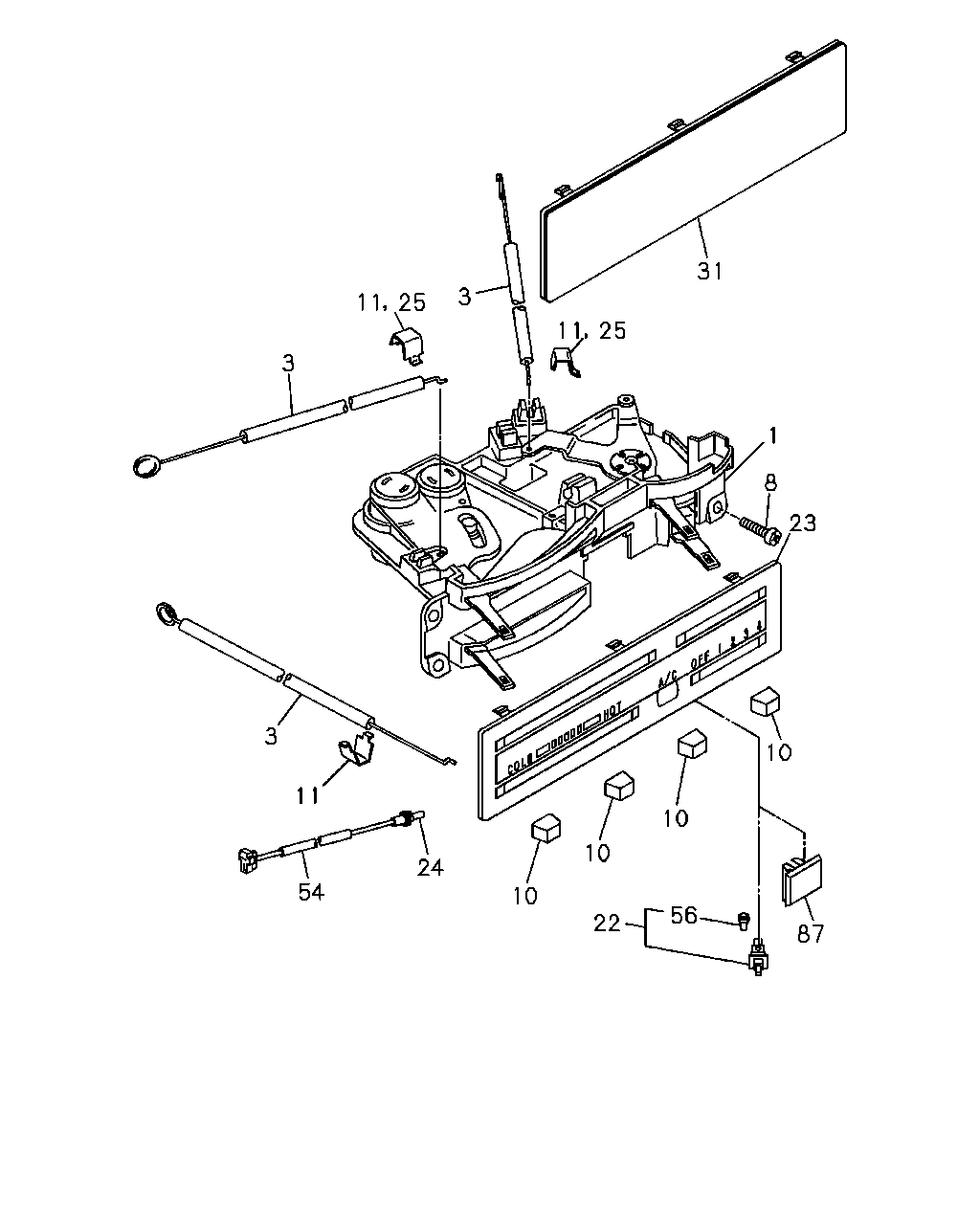

8-65 — CONTROL LEVER; HEATER AND AIR CON (#45461) — 19 parça

3 11 25 3 11 25 31 1 8 23 10 10 10 10 24 54 11 3 22 56 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	08.849 LEVER SUB ASM; HTR CONT COOLER WO/HEATER(YL1)	8-94324-860-0	01	1	9210-	●	●	●	●	●	●	●	●
1	08.849 LEVER SUB ASM; HTR CONT HEATER & DEFROSTER(C41),AIR CON(C60)	8-94324-856-1	01	1	9210-	●	●	●	●	●	●	●	●
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CON(C60) TEMP LEVER	8-94324-854-0	01	1	9210-	●	●	●	●	●	●	●	●
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) MODE	8-94324-857-0	01	1	9210-	●	●	●	●	●	●	●	●
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) FRESH	8-94324-858-0	01	1	9210-	●	●	●	●	●	●	●	●
8	08.852 SCREW; CONT LVR TO INST PNL HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 16.085 M5X16 TAPPING	9-09829-323-1	03	1	9210-	●	●	●	●	●	●	●	●
10	08.852 KNOB; CONT LEVER COOLER WO/HEATER(YL1)	8-94435-195-0	03	1	9210-	●	●	●	●	●	●	●	●
10	08.852 KNOB; CONT LEVER HEATER & DEFROSTER(C41),AIR CON(C60)	8-94435-195-0	04	1	9210-	●	●	●	●	●	●	●	●
11	09.787 CLIP; CABLE,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CON(C60) 08.849	8-94325-471-0	03	1	9210-	●	●	●	●	●	●	●	●
22	08.852 SWITCH; A/C,MAIN AIR CON(C60),COOLER WO/HEATER(YL1)	8-94442-974-0	01	1	9210-9408	●	●	●	●	●	●	●	●
22	08.852 SWITCH; A/C,MAIN AIR CON(C60),COOLER WO/HEATER(YL1)	8-97117-963-0	01	1	9409-	●	●	●	●	●	●	●	●
23	08.852 BEZEL; CONT LEVER COOLER WO/HEATER(YL1)	8-94435-499-4	01	1	9210-	●	●	●	●	●	●	●	●
23	08.852 BEZEL; CONT LEVER HEATER & DEFROSTER(C41),AIR CON(C60)	8-94435-498-4	01	1	9210-	●	●	●	●	●	●	●	●
24	08.991 BULB; CONT LEVER HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 12V 1.4W	5-82194-021-0	01	1	9210-	●	●	●	●	●	●	●	●
25	08.854 CLIP; CABLE,CONT LEVER COOLER WO/HEATER(YL1) 08.849	8-94325-471-0	02	1	9210-	●	●	●	●	●	●	●	●
31	08.850 COVER; HOLE,CONT LEVER EXC. HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1)	8-94318-804-0	01	1	9210-	●	●	●	●	●	●	●	●
54	08.849 HARNESS; CONT BEZEL HEATER & DEFROSTER(C41),AIR CON(C60),COOLER WO/HEATER(YL1) 08.991 12V 1.4W	8-94155-537-3	01	1	9210-	●	●	●	●	●	●	●	●
56	08.991 BULB; SWITCH,A/C AIR CON(C60),COOLER WO/HEATER(YL1) 14V 60MA	8-94337-134-0	01	1	9210-	●	●	●	●	●	●	●	●
87	08.849 CAP; A/C SWITCH HEATER & DEFROSTER(C41) 08.852	8-94435-500-0	01	1	9210-	●	●	●	●	●	●	●	●
