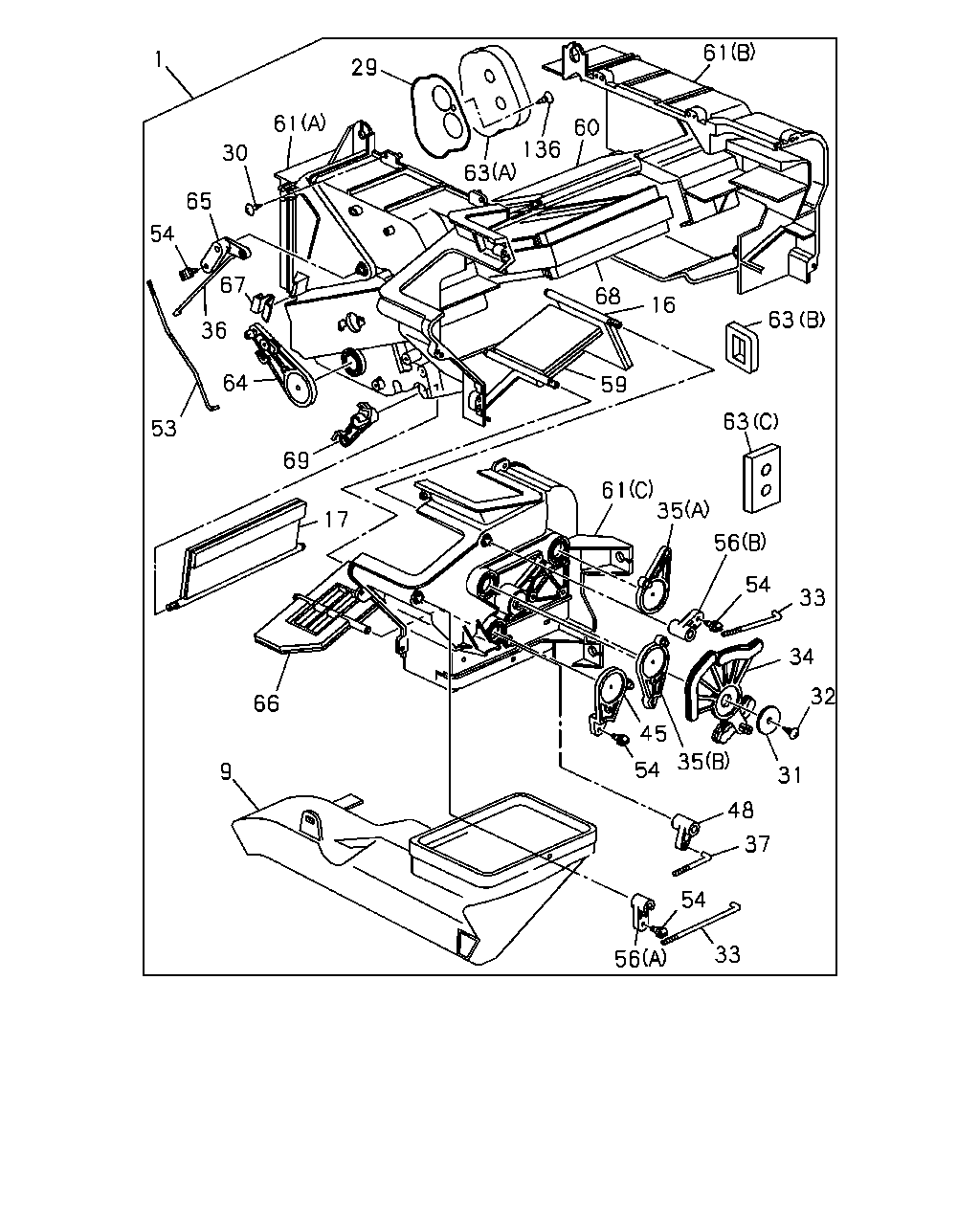

8-60 — HEATER UNIT; FRONT (#45460) — 36 parça

61 60 136 63 29 61 1 30 65 54 36 67 53 64 69 17 66 9 68 16 59 63 63 61 35 56 54 33 34 32 31 35 45 54 48 37 54 56 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CON(C60)	8-97078-874-2	01	1	9210-	●	●	●	●	●	●	●	●
9	08.854 DUCT; HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60)	8-94328-639-1	01	1	9210-	●	●	●	●	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CON(C60) 08.854	8-94328-631-0	01	1	9210-	●	●	●	●	●	●	●	●
17	09.786 SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER(C41),AIR CON(C60)	8-94328-641-0	01	1	9210-	●	●	●	●	●	●	●	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60) 08.845	8-97045-865-0	01	1	9210-	●	●	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60) 08.852 M4X16	8-94324-850-0	14	1	9210-9307	●	●	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60) 08.852 M4X16	8-94324-850-0	13	1	9308-	●	●	●	●	●	●	●	●
31	08.852 WASHER; HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60)	8-94129-950-0	01	1	9210-	●	●	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60) 08.846 M5X16	8-94248-820-0	01	1	9210-	●	●	●	●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CON(C60) 08.852	8-94328-635-0	02	1	9210-	●	●	●	●	●	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60)	8-97045-861-0	01	1	9210-	●	●	●	●	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60) (A)	8-94328-645-1	01	1	9210-	●	●	●	●	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60) (B)	8-97045-860-0	01	1	9210-	●	●	●	●	●	●	●	●
36	08.852 ROD; HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60) 09.786	8-94324-847-0	01	1	9210-	●	●	●	●	●	●	●	●
37	08.852 ROD; LEVER HEATER & DEFROSTER(C41),AIR CON(C60)	8-94324-848-0	01	1	9210-	●	●	●	●	●	●	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60)	8-94328-646-1	01	1	9210-	●	●	●	●	●	●	●	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60) 08.852	8-94328-627-0	01	1	9210-	●	●	●	●	●	●	●	●
53	08.866 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CON(C60)	8-94324-846-0	01	1	9210-	●	●	●	●	●	●	●	●
54	08.854 CLIP; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CON(C60) 09.786	8-94248-794-0	04	1	9210-	●	●	●	●	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60) 08.852 (A)	8-94328-649-0	01	1	9210-	●	●	●	●	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60) (B)	8-97045-859-0	01	1	9210-	●	●	●	●	●	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CON(C60)	8-94328-629-0	01	1	9210-	●	●	●	●	●	●	●	●
60	08.854 DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60)	8-94324-833-0	01	1	9210-	●	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60) (A)	8-94328-636-3	01	1	9210-	●	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60) (B)	8-94328-637-3	01	1	9210-	●	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60) (C)	8-94328-638-2	01	1	9210-	●	●	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60) (A)	8-97069-412-1	01	1	9210-	●	●	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60) (B)	8-97069-413-0	01	1	9210-9307	●	●	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60) (C)	8-97069-414-0	01	1	9210-9307	●	●	●	●	●	●	●	●
64	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CON(C60)	8-94324-840-1	01	1	9210-	●	●	●	●	●	●	●	●
65	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CON(C60)	8-94328-642-0	01	1	9210-	●	●	●	●	●	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CON(C60) 08.854	8-94328-630-0	01	1	9210-	●	●	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60) 09.787	8-94337-654-0	02	1	9210-	●	●	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60)	8-94328-640-3	01	1	9210-	●	●	●	●	●	●	●	●
69	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CON(C60)	8-97045-858-0	01	1	9210-	●	●	●	●	●	●	●	●
136	08.850 SCREW; PLATE HEATER & DEFROSTER(C41),AIR CON(C60)	8-97045-863-0	01	1	9210-	●	●	●	●	●	●	●	●
