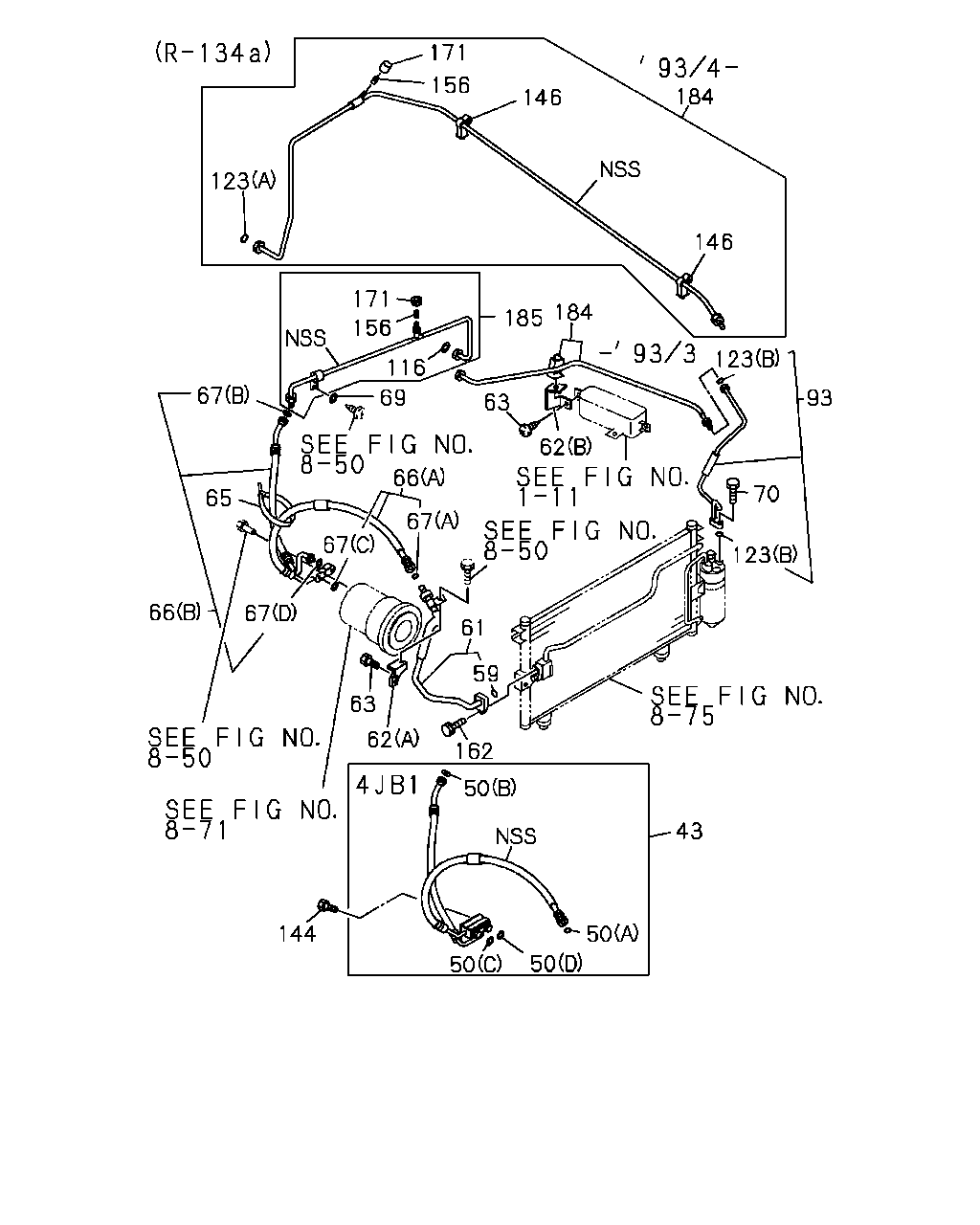

8-52 — PIPING; AIR CONDITIONING (#45459) — 60 parça

123 171 156 146 146 184 93 123 184 185 171 156 116 69 63 62 70 123 66 67 67 67 65 67 66 63 62 162 59 61 43 50 50 50 50 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97022-195-0	01	1	9210-9301	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97086-225-0	01	1	9302-9302	●	●	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1)	8-97069-326-1	01	1	9303-	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1) (A) ID=10.8	8-94113-331-0	01	1	9210-	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1) 09.172 (B) ID=7.80	8-94113-333-0	01	1	9210-9301	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1) (B) ID=13.9	8-94113-330-0	01	1	9302-	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1) 09.260 (C) ID=11.0	8-94461-900-0	01	1	9210-	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1) 09.260 (D) ID=14.8	8-94461-901-0	01	1	9210-	●	●	●	●	●	●	●	●
59	09.222 GASKET; PIPE,FLEX HOSE TO CONDEN AIR CON(C60),COOLER WO/HEATER(YL1) ID=10.8	8-94113-331-0	01	1	9210-	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER AIR CON(C60),COOLER WO/HEATER(YL1)	8-97069-423-1	01	1	9210-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE AIR CON(C60),COOLER WO/HEATER(YL1) (A)	8-94459-508-1	01	1	9210-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-94462-279-1	01	1	9210-	●	●	●	●	●	●	●	●
63	09.242 SCREW; BRKT AIR CON(C60),COOLER WO/HEATER(YL1) M6X12	9-09829-330-1	02	1	9210-	●	●	●	●	●	●	●	●
65	09.242 CLIP; A/C PIPE 4JA1 ENG(RLE) AIR CON(C60),COOLER WO/HEATER(YL1) 00.785 L=300	8-94151-373-0	01	1	9210-9406	●	●	●	●	●	●	●	●
65	09.242 CLIP; A/C PIPE 4JA1 ENG(RLE) AIR CON(C60),COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> 00.785 L=300	8-94151-373-0	01	1	9407-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1 ENG(RLE) AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-97022-187-0	01	1	9210-9301	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1 ENG(RLE) AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-97086-222-0	01	1	9302-9406	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1 ENG(RLE) AIR CON(C60),COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (B)	8-97086-222-0	01	1	9407-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1 ENG(RLE) AIR CON(C60),COOLER WO/HEATER(YL1) (A)	8-97022-193-0	01	1	9210-9301	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1 ENG(RLE) AIR CON(C60),COOLER WO/HEATER(YL1) (A)	8-97086-216-0	01	1	9302-9406	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4JA1 ENG(RLE) AIR CON(C60),COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-97086-216-0	01	1	9407-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-97022-186-0	01	1	9210-9301	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-97086-221-0	01	1	9302-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) (A)	8-97022-190-0	01	1	9210-9301	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) (A)	8-97069-327-1	01	1	9302-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4ZA1 ENG(L17) AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-97022-189-0	01	1	9210-9301		●	●	●
66	09.225 HOSE; FLEX,A/C 4ZA1 ENG(L17) AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-97086-224-0	01	1	9302-		●	●	●
66	09.225 HOSE; FLEX,A/C 4ZA1 ENG(L17) AIR CON(C60),COOLER WO/HEATER(YL1) (A)	8-97022-194-0	01	1	9210-9301		●	●	●
66	09.225 HOSE; FLEX,A/C 4ZA1 ENG(L17) AIR CON(C60),COOLER WO/HEATER(YL1) (A)	8-97086-217-0	01	1	9302-		●	●	●
66	09.225 HOSE; FLEX,A/C C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1) (B)	8-97022-181-0	01	1	9210-9308		●	●	●		●	●	●
66	09.225 HOSE; FLEX,A/C C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1) (A)	8-97022-192-0	01	1	9210-9308		●	●	●		●	●	●
67	09.260 GASKET; FLEX HOSE C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) 09.222 (A) ID=10.8	8-94113-331-0	01	1	9210-9406	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> 09.222 (A) ID=10.8	8-94113-331-0	01	1	9407-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) 09.172 (B) ID=7.80	8-94113-333-0	01	1	9210-9301	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE C223 ENG(LQ7) AIR CON(C60),COOLER WO/HEATER(YL1) 09.172 (B) ID=7.80	8-94113-333-0	01	1	9302-9308		●	●	●		●	●	●
67	09.260 GASKET; FLEX HOSE C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) (C) ID=11.0	8-94461-900-0	01	1	9210-9406	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (C) ID=11.0	8-94461-900-0	01	1	9407-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE C223 ENG(LQ7),4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) (D) ID=14.8	8-94461-901-0	01	1	9210-9406	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (D) ID=14.8	8-94461-901-0	01	1	9407-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) 09.222 (B) ID=13.9	8-94113-330-0	01	1	9302-9406	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4ZD1 ENG(LW3),4ZA1 ENG(L17),4JA1 ENG(RLE),4ZE1 ENG(RLJ) AIR CON(C60),COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> 09.222 (B) ID=13.9	8-94113-330-0	01	1	9407-	●	●	●	●	●	●	●	●
69	09.220 WASHER; PL,PIPE TO BRKT AIR CON(C60),COOLER WO/HEATER(YL1) 16.125 ID=5.3 OD=12	9-09160-605-0	01	1	9210-9602	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY AIR CON(C60),COOLER WO/HEATER(YL1) 04.686 M6X25 FLANGE	0-28080-625-0	01	1	9210-	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CON(C60),COOLER WO/HEATER(YL1)	8-97069-424-1	01	1	9210-9303	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97079-704-0	01	1	9304-	●	●	●	●	●	●	●	●
116	09.225 GASKET; PIPE AIR CON(C60),COOLER WO/HEATER(YL1) 09.222 ID=13.9	8-94113-330-0	01	1	9210-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CON(C60),COOLER WO/HEATER(YL1) (B) ID=6.07	8-94461-902-0	02	1	9210-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CON(C60),COOLER WO/HEATER(YL1) (A) ID=6.07	8-94461-902-0	01	1	9304-	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9210-9406	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1) TURBOCHARGER<K51> 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9407-9603	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CON(C60),COOLER WO/HEATER(YL1) TURBOCHARGER<K51> 00.685 M10X45 FLANGE	0-28081-045-0	01	1	9604-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CON(C60),COOLER WO/HEATER(YL1) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9304-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CON(C60),COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	02	1	9304-	●	●	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CON(C60),COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9610-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE AIR CON(C60),COOLER WO/HEATER(YL1) CAP MARK H	8-97083-101-0	01	1	9304-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE AIR CON(C60),COOLER WO/HEATER(YL1) 09.226 CAP MARK L	8-97083-102-0	01	1	9304-	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CON(C60),COOLER WO/HEATER(YL1)	8-94450-198-3	01	1	9210-9303	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-859-0	01	1	9304-	●	●	●	●	●	●	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO AIR CON(C60),COOLER WO/HEATER(YL1)	8-94450-197-2	01	1	9210-9303	●	●	●	●	●	●	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO AIR CON(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-861-0	01	1	9304-	●	●	●	●	●	●	●	●
